Improved Racing - TH Series Stainless Steel Braided Smooth Bore PTFE Hose

Improved Racing - TH Series Stainless Steel Braided Smooth Bore PTFE Hose

IR-TH3-03

$3.77 USD
$3.77 USD $3.77 USD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

PTFE (Polytetrafluoroethylene, also known by the brand name Teflon®) is highly compatible with all automotive fluids and has a very wide operating temperature range. Although less flexible than rubber hose, it is more robust and will not allow fluids to permeate through the inner bore.

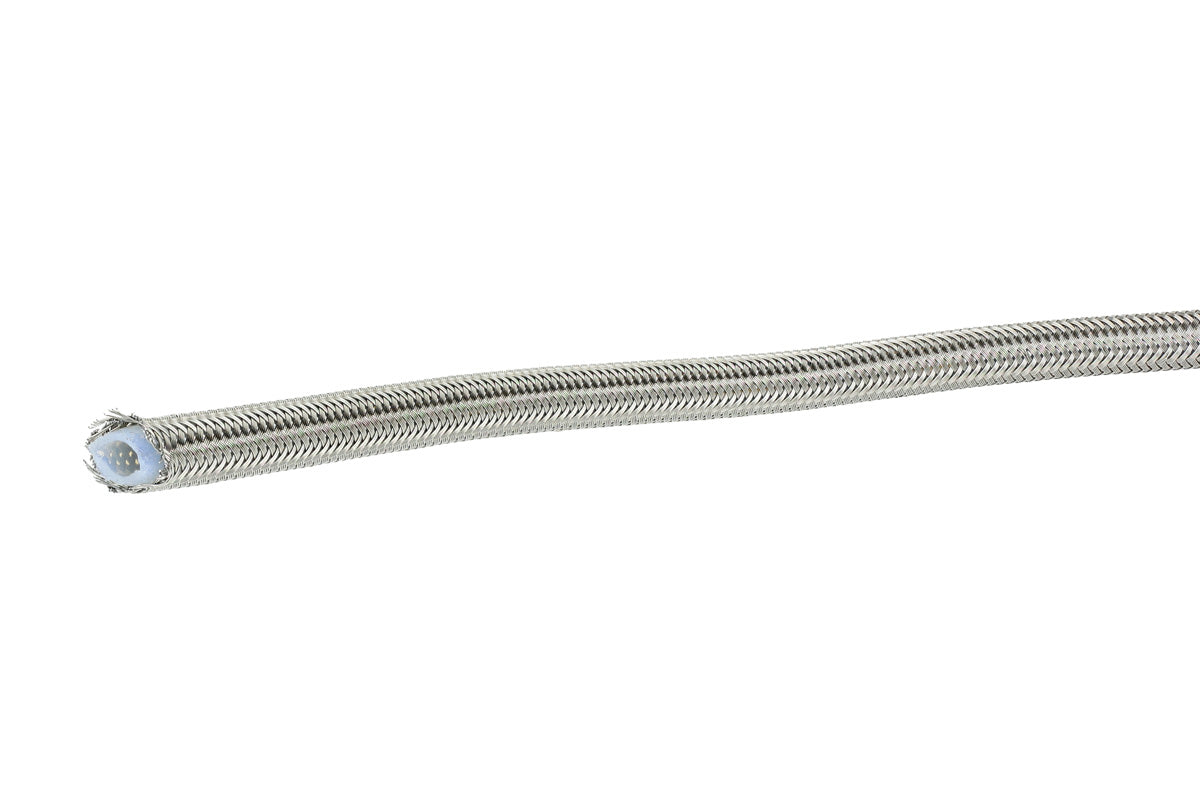

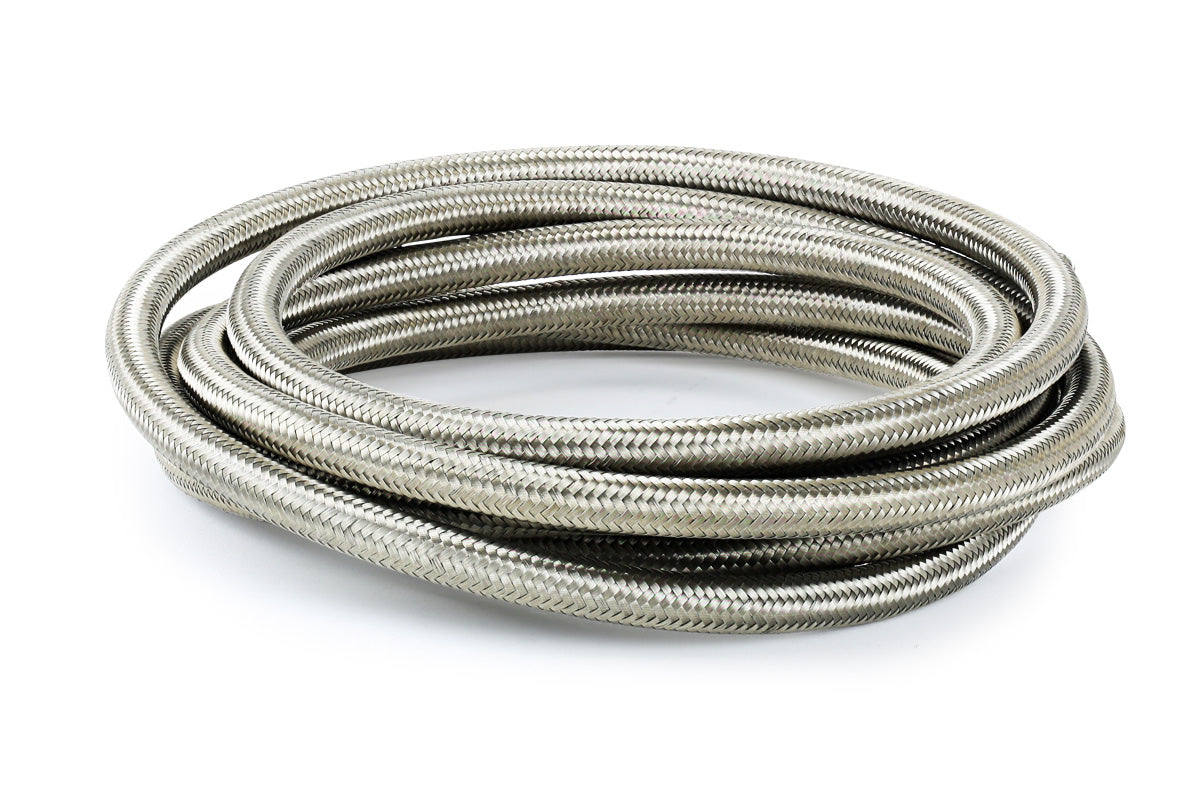

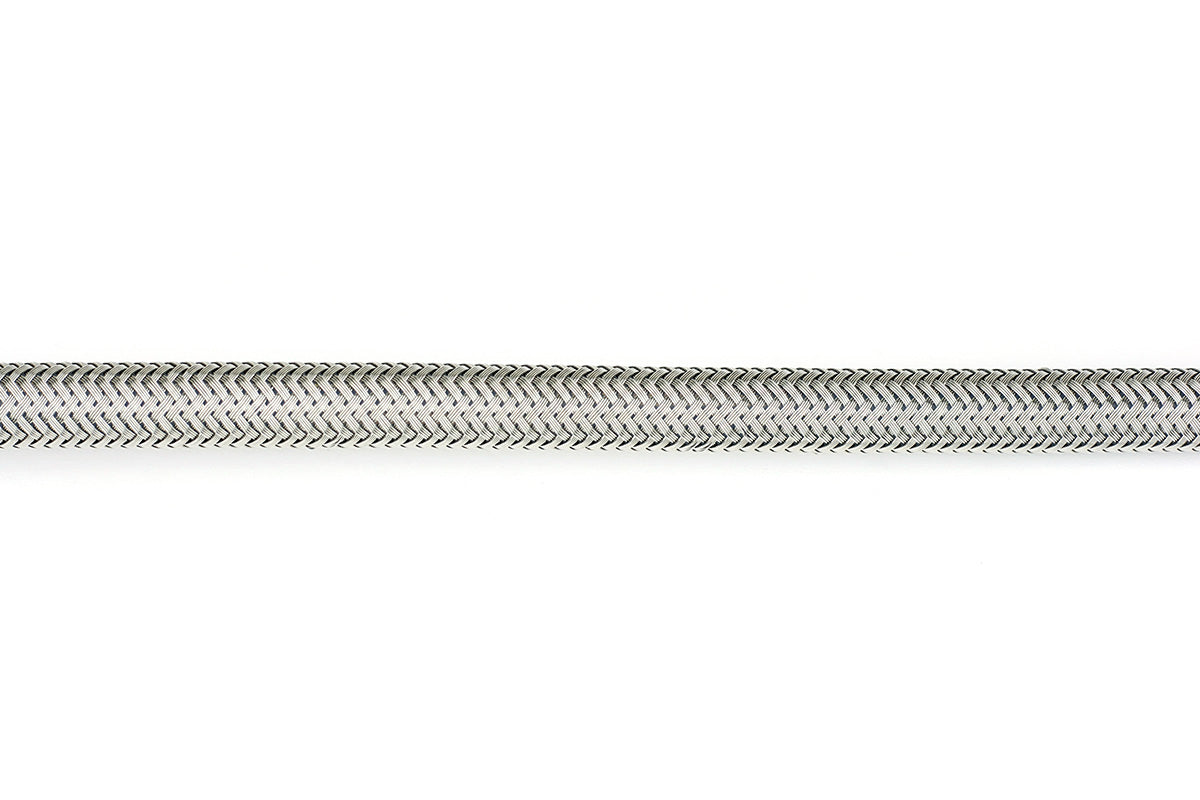

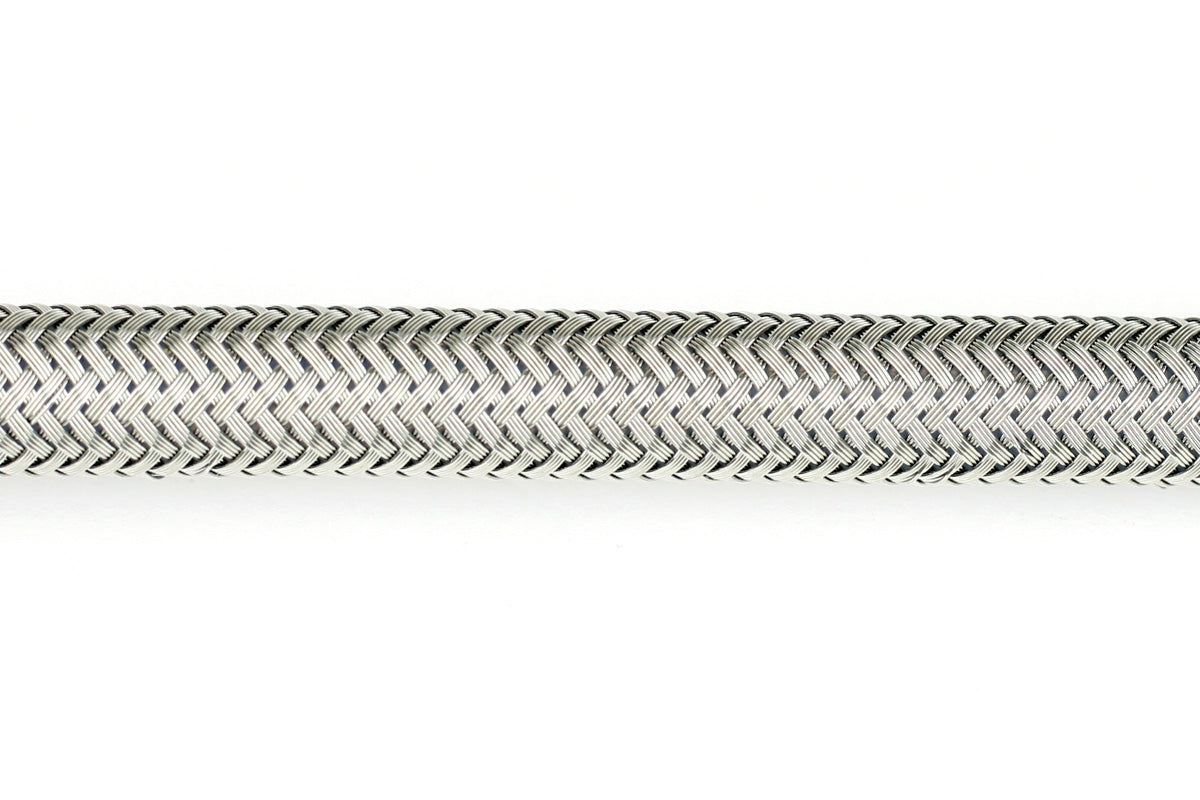

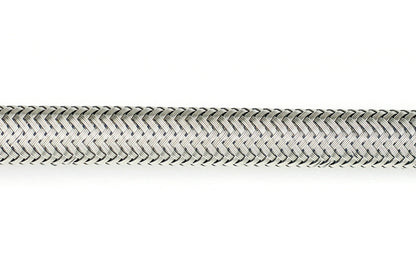

RaceFlux's PTFE hose is constructed from smooth bore extruded PTFE with a stainless steel single wire braid. For use with RaceFlux T-Series PTFE AN hose end fittings and other brand traditional smooth bore PTFE AN hose end fittings. Sold by the foot.

Features and Benefits

  • Smooth bore extruded PTFE construction with stainless steel single wire braid
  • Rated for -100°F to +450°F (-73°C to 232°C)
  • Max operating pressure rating of 1,000, burst pressure 3,000 psi
  • Compatible with all automotive fluids, including corrosive fluids
Part #
TH3
Brand
RaceFlux
Compatible Hose
TH (Smooth Bore PTFE)
Compatible Fittings
T (Smooth Bore PTFE Reusable)
Color
Natural
Hose Style
AN Reusable Standard
Applications
Brakes
Breather and vent lines
Fuel (in-tank)
Fuel (outside of tank)
Gauge and sensor lines
High pressure applications
High temperature applications
Hydraulics: high pressure (clutch - power steering - etc)
Hydraulics: low pressure (return lines)
Vacuum lines
Coolant & water lines
Other oil water and air systems
Fluid Compatibility
Air
Alcohol
Brake Fluid
Coolants
Diesel Fuels
Engine oil
Ethanol-based fuels (E85+)
Ethanol/gasoline mixtures
Gear oil
Methanol
Nitromethane
Nitrous Oxide
Power Steering Fluid
Racing fuels
Transmission fluid
Vacuum
Water
Standards & Certifications
Permeation rating per SAE J30 R9
Permeation rating per SAE J30 R10
Conductive (Anti-Static)
N/A
Outer Cover
Stainless Steel Braid
Inner Bore Material
PTFE
Reinforcement
Stainless Steel Braid
Minimum Operating Temperature
-60°F (-51°C)
Maximum Operating Temperature
450°F (232°C)
Maximum Operating Pressure
1000 psi (68.94 bar)
Vacuum Rating
28 in/Hg (948 mbar)
Burst Pressure
3000 psi (206.84 bar)
