ISR Performance - 240SX KA24DE RWD Turbo line kit - Bottom mount

ISR Performance - 240SX KA24DE RWD Turbo line kit - Bottom mount

Now you can easily add coolant lines and oil lines when adding a turbo to your 240sx KA24DE.

This kit allows for the perfect routing of an oil feed line to most bottom mount turbo setups from an existing port in your oil filter housing and integrates a coolant distribution block into the system to supply coolant to your turbo and returns it back to another factory port on your block.

It is supplied with a 10an steel weld on bung for your oil pan for the supplied oil drain line to be installed.

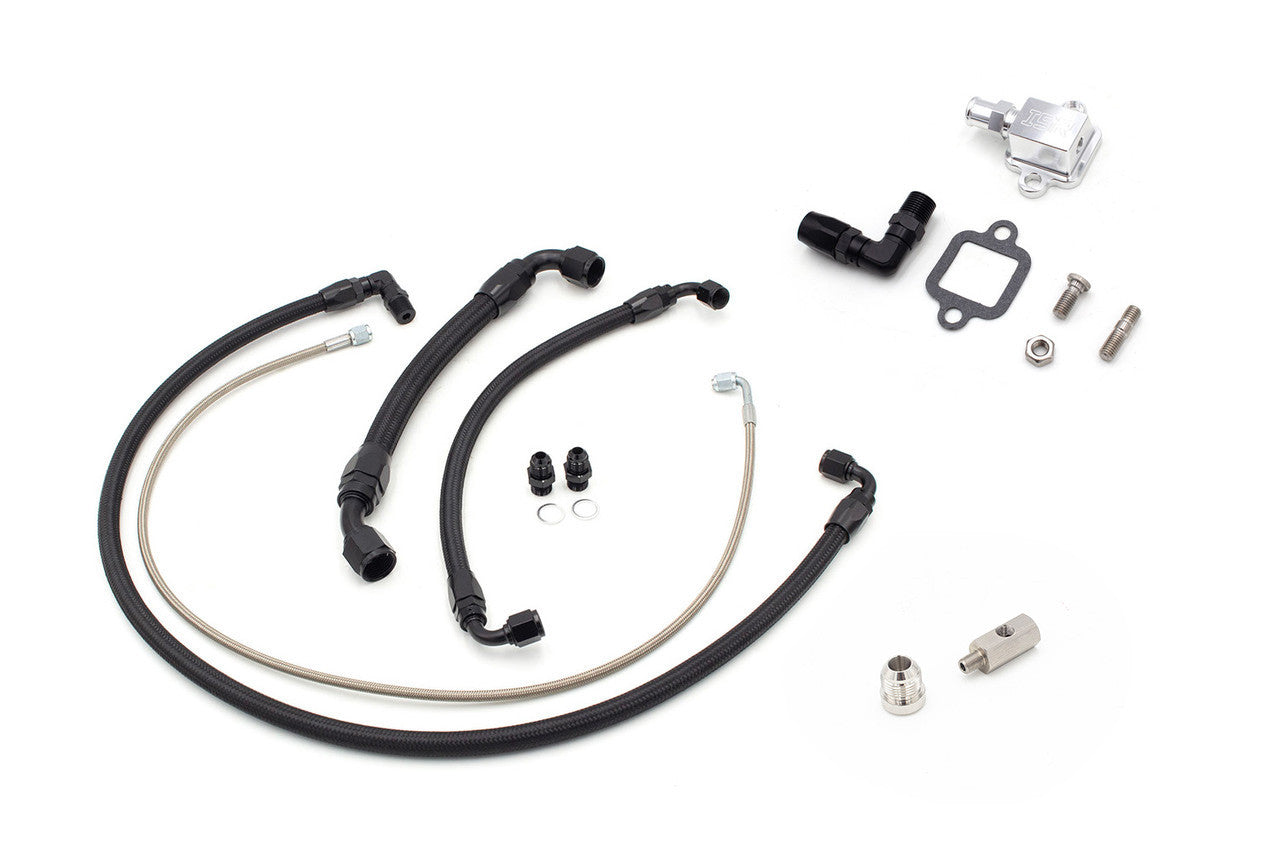

In the box:

• 3an oil feed line
• 10an oil return hose
• bspt / npt oil block adapter

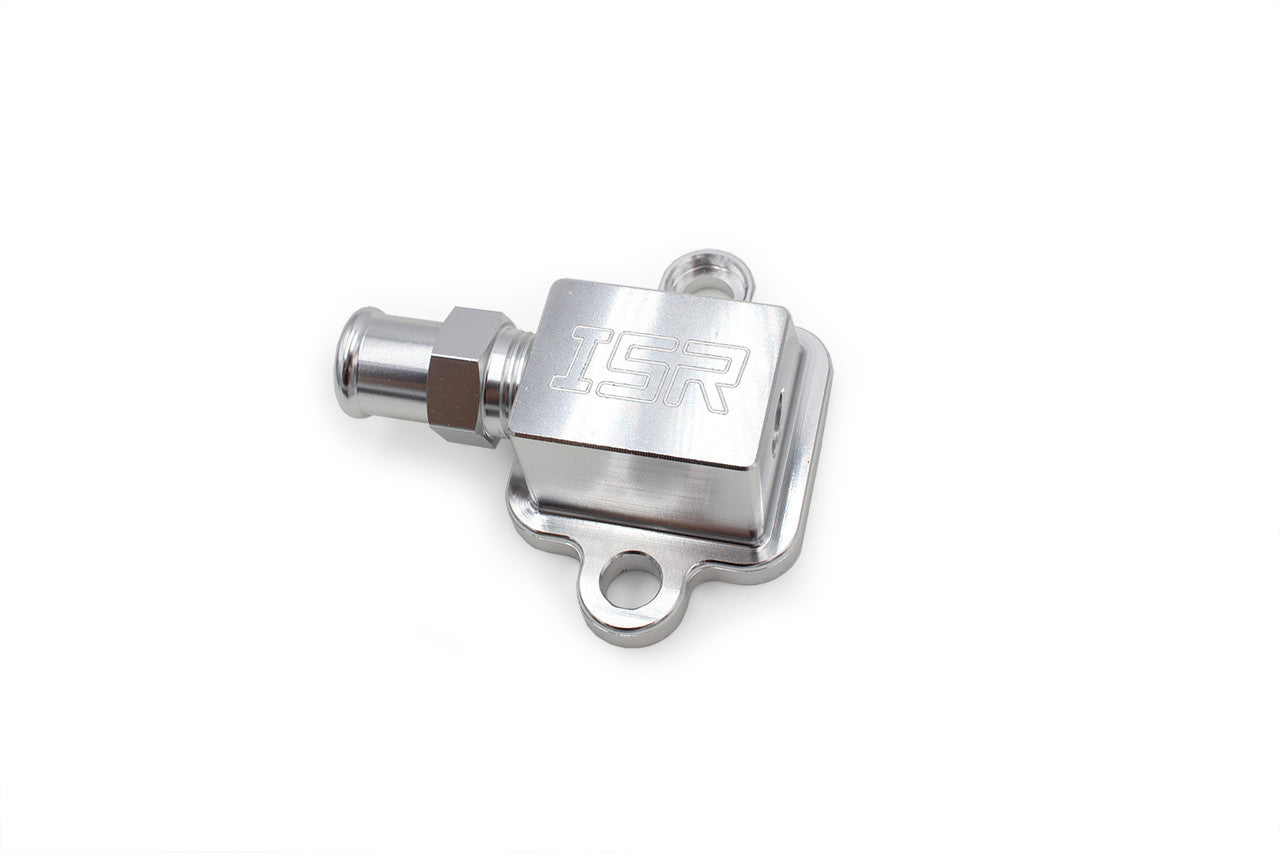

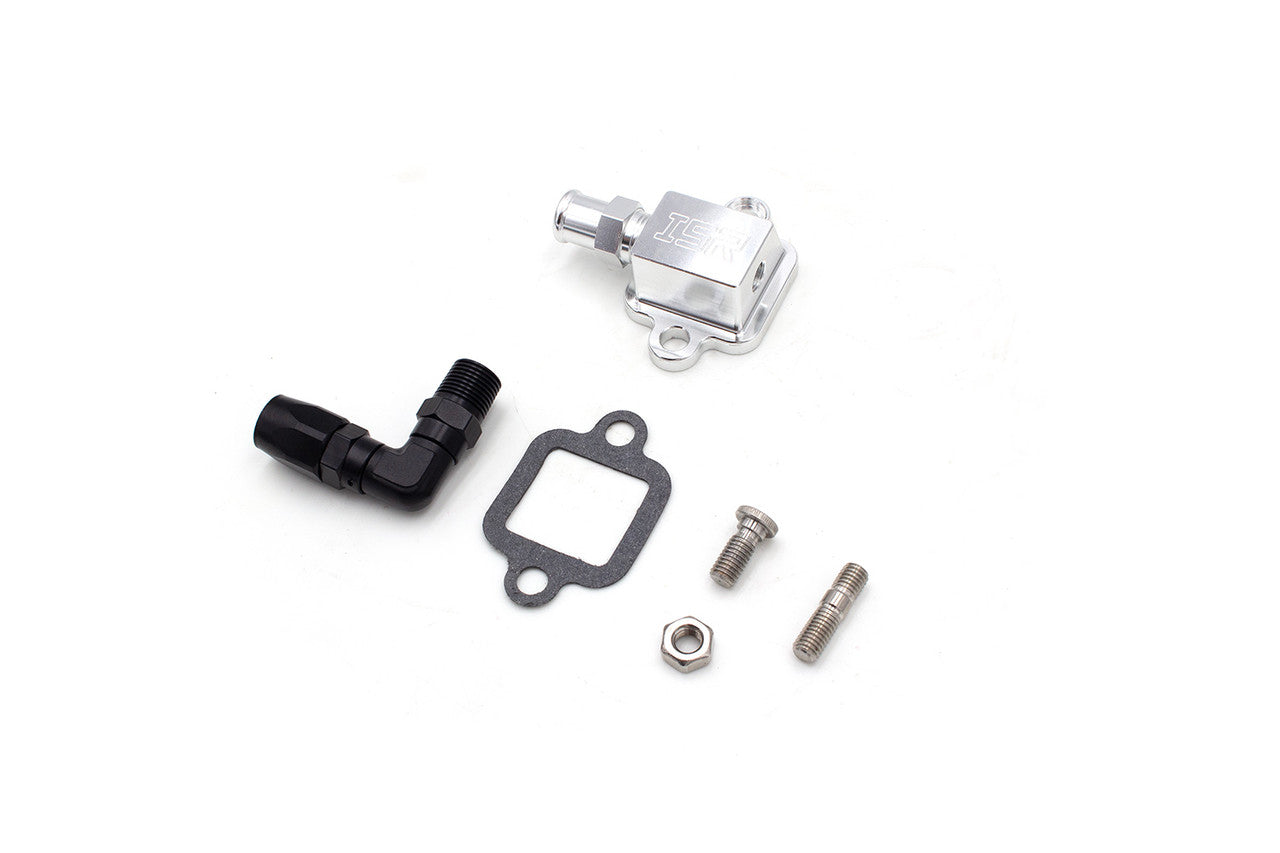

• Coolant distribution block and fittings
• 6an coolant feed line
• 6an coolant return line
• 1/4 bspt to 6an adapter fitting
• 10an steel weld on bung

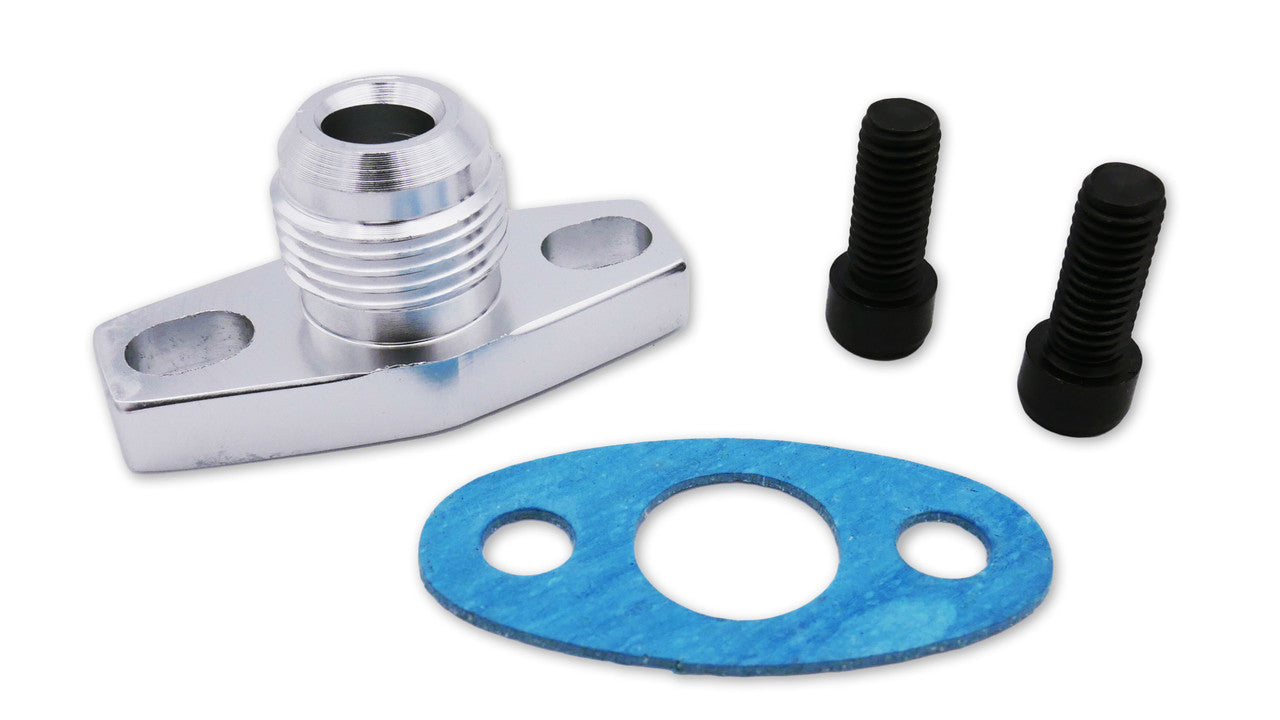

• 10an GT drain flange

**NOTE. Due to conditions and age of these engines you must make sure that the factory oil and coolant ports are cleaned and free of built up debris, burnt oil and corrosion. Failure to clean these ports can restrict fluid or force debris into your turbo causing damage. **

*does not include flywheel bolts if purchased separately, flywheel bolts can be reused from your previous single disc set up or are included when you purchase the cd09 LS conversion kit*
