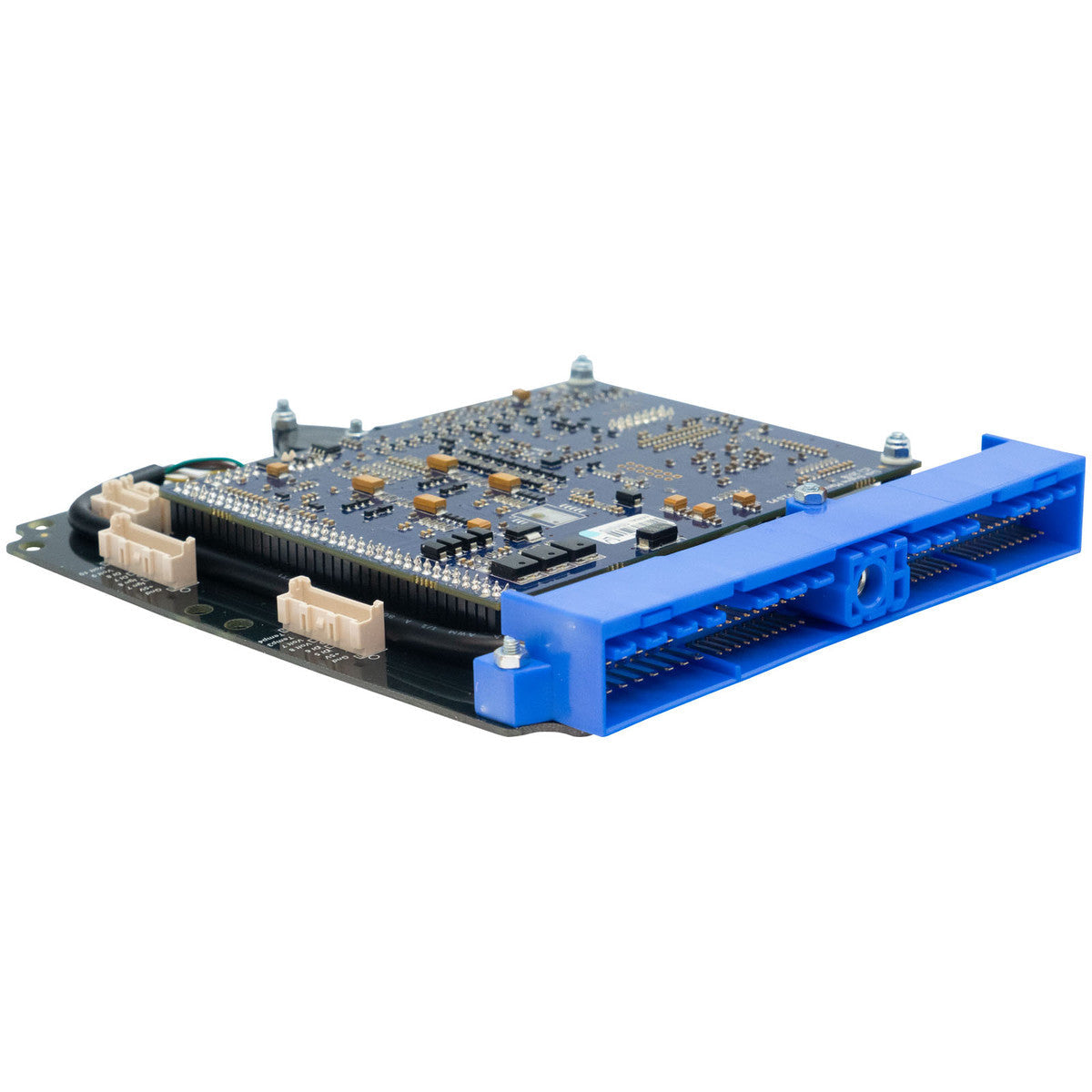

LINK ECU - Nissan 300ZX Z32 Link G4X Plugin ECU (213-4000)

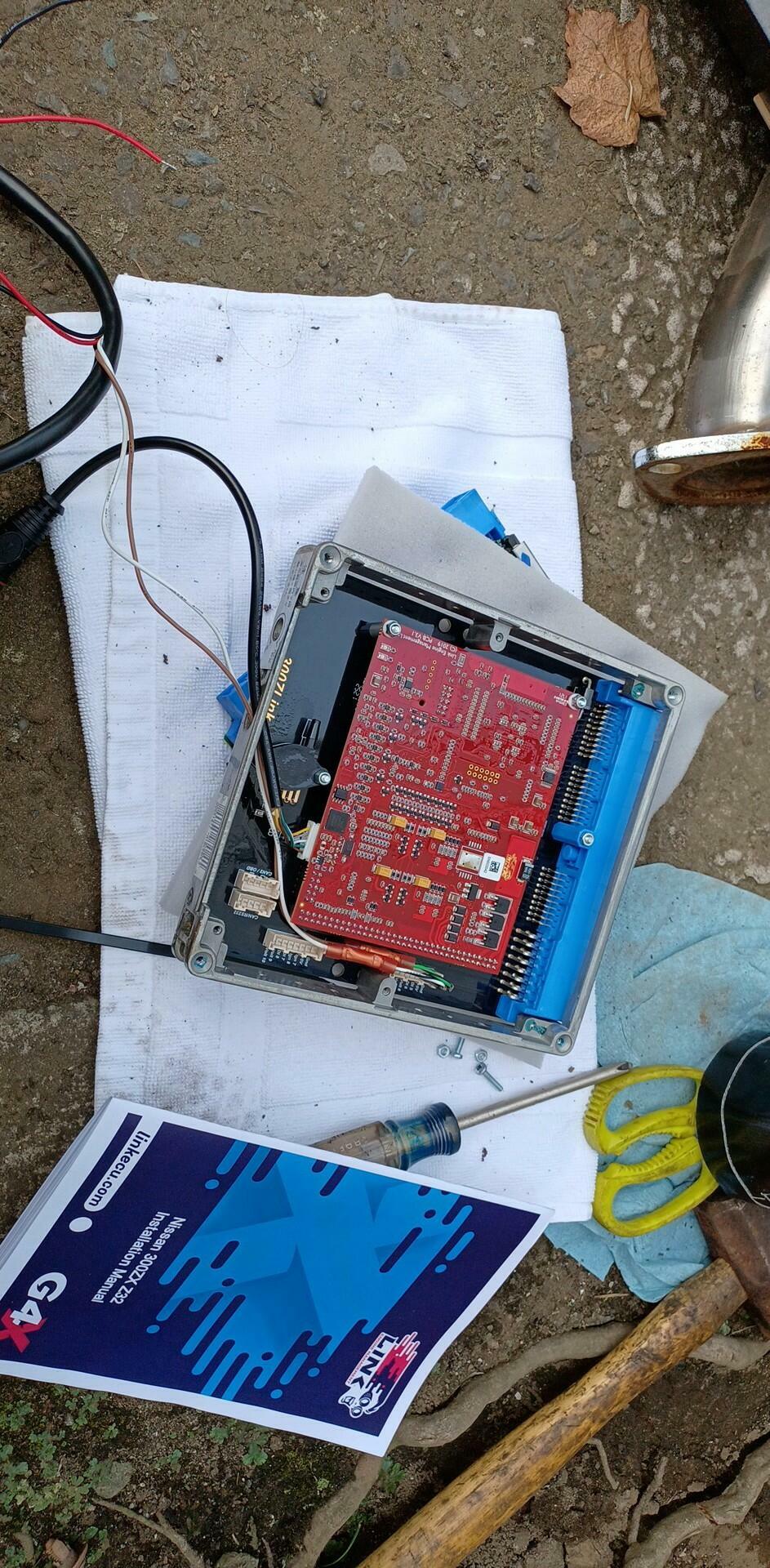

• Please check your connector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• Includes an onboard 4 bar or 7 bar MAP sensor.
• Most factory features are supported.
• It is highly recommended to fit an IAT sensor with this model.
• Check the features tab for I/O expansion options.

G4+ PlugIn Key Features (Where Applicable)

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune - automated fuel tuning
• Individual cylinder correction
• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• Up to 32Mbit internal logging memory
• Staged injection
• Knock with "windowing"

I/O Expansion Options:
The following expansion connector inputs/outputs are provided:
Expansion connector 1
GND                Sensor Ground Only
+5V Out        Low Current +5V Supply
DI 5                Digital Input
DI 6                Digital Input
Volt 8                Analog Volt Input
Volt 7                Analog Volt Input
Temp 3                Analog Temp Input
Temp 4                Analog Temp Input

Expansion Connector 2
Gnd                Sensor Ground Only
+5V Out        Low Current +5V Supply
Ign 7                Ignition 7 Auxiliary Output
Ign 8                Ignition 8 Auxiliary Output
DI 7                Digital Input
DI 8                Digital Input
An Volt 9        Analog 0-5V input
An Volt 10        Analog 0-5V input
