Mazworx - Mazworx SRVQ Adapter Kit for S-chassis

Mazworx SRVQ Adapter kit comes with a new bell housing for easy installation on S-chassis Nissan.

The kit includes:

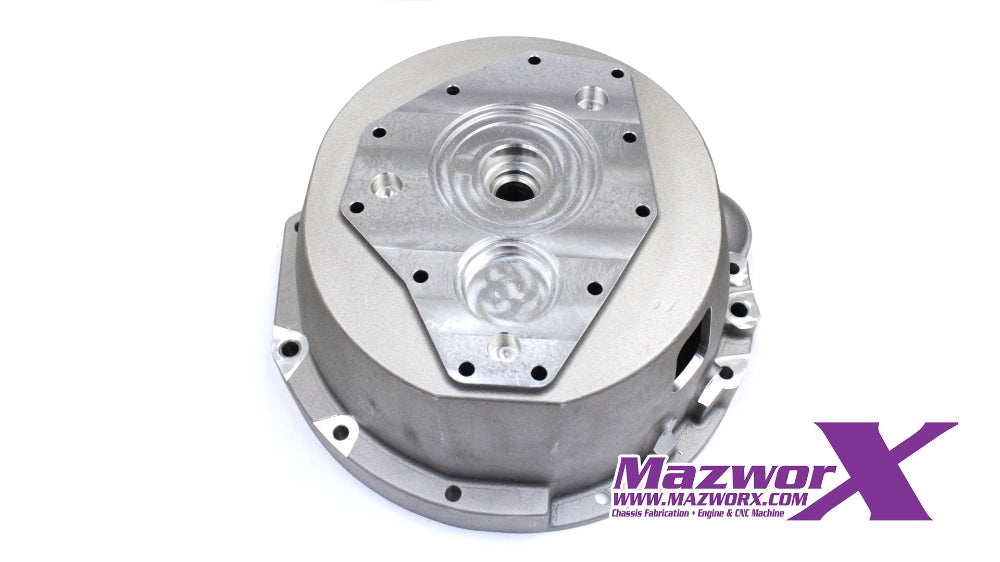

- SR-VQ bellhousing and Hardware
- Driveshaft (options available)   *Driveshaft pictured is the carbon fiber option
- S-Chassis/Z33 Transmission Crossmember
- Z33 Short Shifter and Shifter Bracket
- Shifter Cover
- Roller Pilot Bearing and Recess Tool
- Front Cover Gasket and Input Shaft Seal

Driveshaft weights:
19lbs Mild Steel
15lbs Aluminum
16lbs Carbon Fiber

Hydraulic release bearing kit is recommended for multidisc clutches.  Check and make sure your clutch requires a 44mm bearing.

*If you purchase a new CD009 transmission or a used unit without the shifter assembly you will need to buy the reverse lockout hardware separate.

*If you're installing this kit on to an S15 SR20 Spec R (6spd) you will need to convert to the S13/S14 style flywheel/clutch.  The S15 kit is made to use the S15 diff.

*The bellhousing is machined for a VQ35DE transmission. If you have an VQ35HR or VQ37VHR(370Z), then you will need the proper adapter ring. The adapter ring is included when you select your transmission type.

SRVQ Installation Instructions
