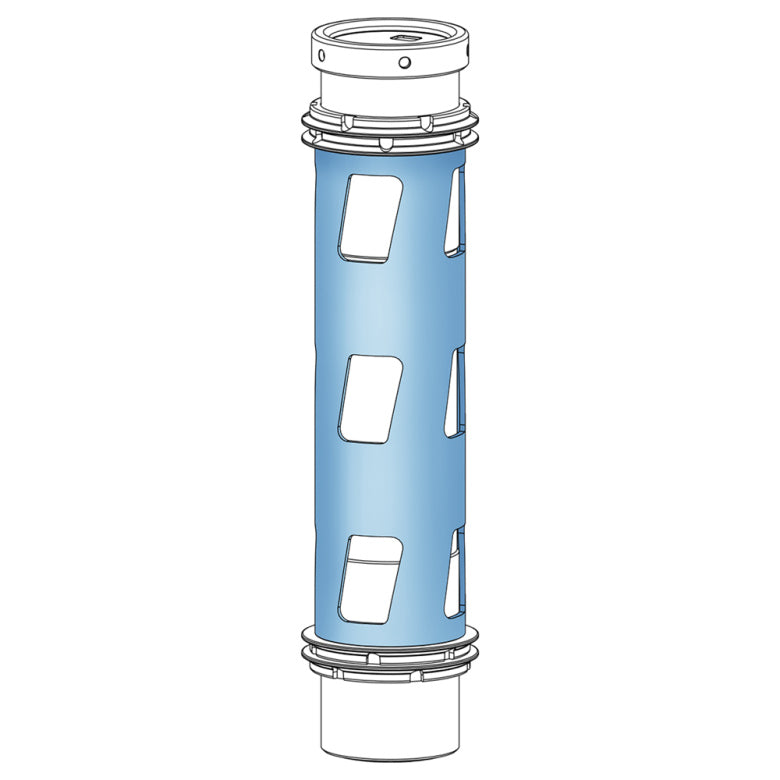

Nuke Performance - Mounting steel tube for Air Jack 60C

Mounting accessories for mounting the Nuke Performance Air Jack 60C. Enables easy installation thanks to correct dimensions.

Made of steel and intended to be welded to the body or chassis. Delivered untreated and ready to be applied. Adapt external dimensions to your needs and purposes.

Length: 225mm (8.86") *
Thickness : 2mm (0.08")
Hole Ø : 62.5mm (2.46")
Material : Steel
Weight : 661g (1.45lb)

* The tube can be divided into three shorter sections for use as either low or high mounting points, with a recommended length of 64mm (2.52") for each section.

We recommend that each air jack be supported by both top and bottom mounting points or by a tube bracket secured at both low and high mounting points. Ensure that the mounting points are installed securely and adequately.

• Mounting accessories for the Nuke Performance Air Jack 60C

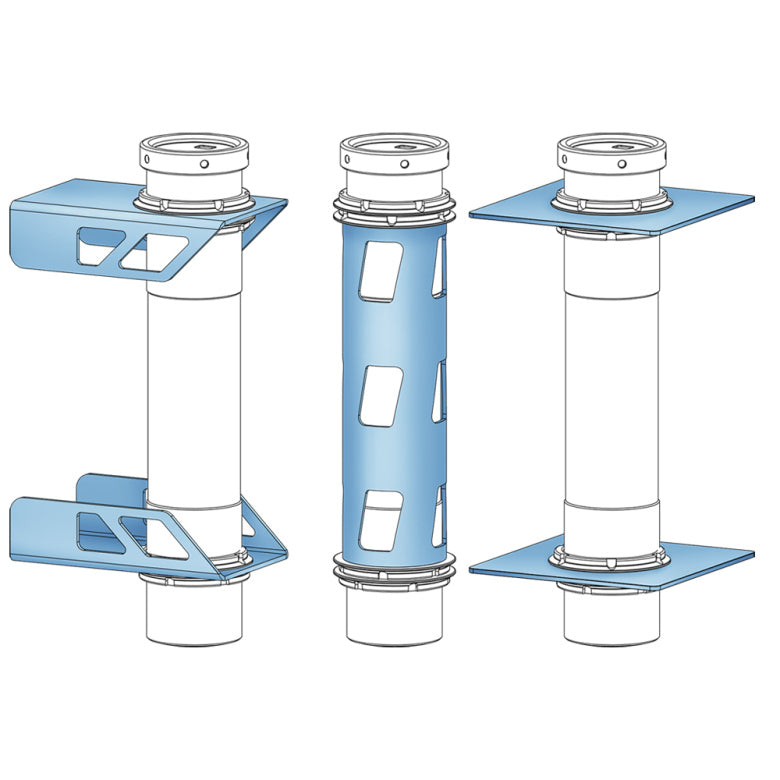

Nuke Performance has developed a range of mounting accessories to make installing Air Jack 60C as simple as possible. A plate, bracket, and pipe are available, all in weldable steel and adapted for direct fitment of the Air Jack 60 C to your chassis. All parts are easy to adapt to your intended dimension needs.
Steel Plate Part # : 580-10-017
Steel Bracket Part # : 580-10-018
Steel Tube / Pipe Part # : 580-10-019

• Download User Manual (.pdf)
• Accessories / Spare Parts

Quantity : 1pc
