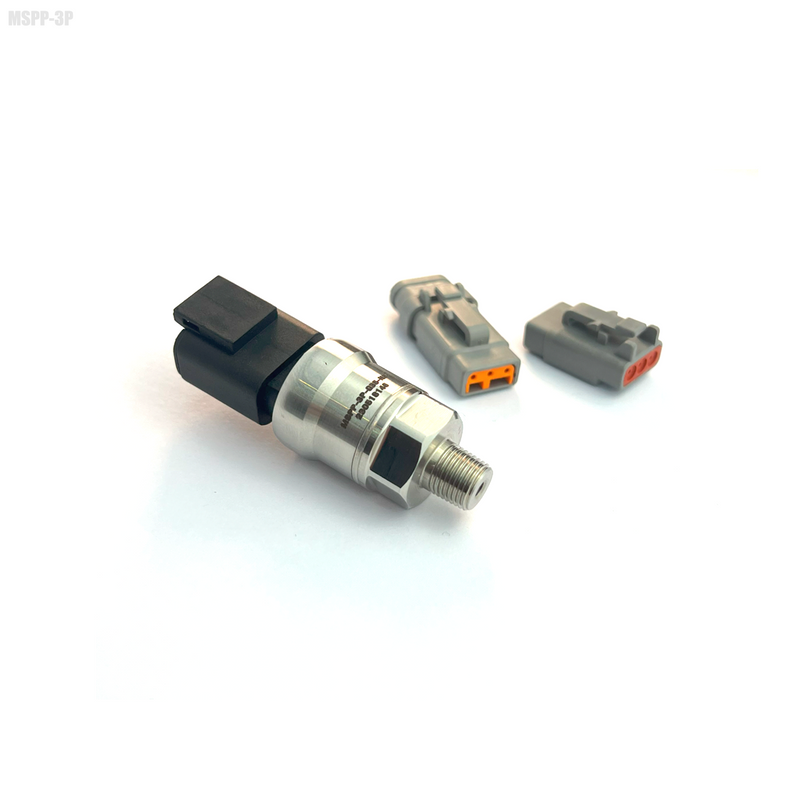

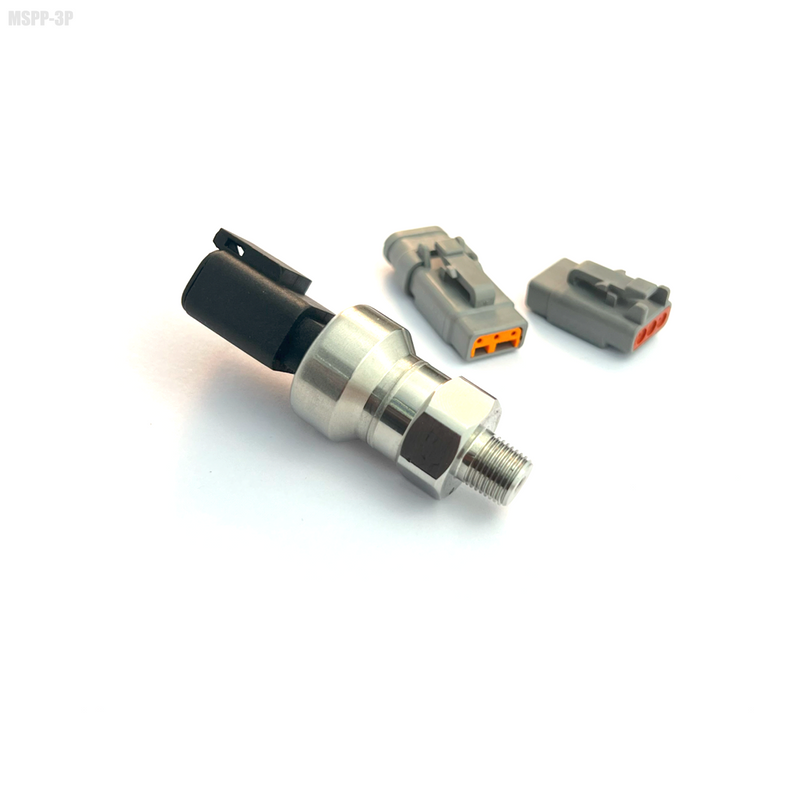

Platinum Racing Products - Syltech sensors- MSPP GAUGE Precision Pressure Sensor

Includes:
Optioned Mating Connector: DTM06-3S / DTM06-3S-E007

Description:
Deutsch DTM Connector
Stainless Construction
GAUGE Pressure 0 to (listed Pressure)

Features:
High precision stainless diaphragm, butt sealed & laser welded.

Best Use Examples:
5 Bar - Lower air and fluid pressures such as coolant, fuels & crank case.
10 Bar - Higher air and fluid pressures such as oils, fuels & exhausts.
17 Bar - Higher air and fluid pressures such as oils, fuels & exhausts. Ideal for CO2 Boost control
35 Bar -Larger fluid pressures such as mechanical fuel pumps, transmission lines, converter & ATESSA pumps.
135 Bar - Highest fluid pressures such as nitrous & power steering.

Best thing about Syltech’s new motorsport range is that they sport the universally loved Deutsch DTM connectors instead of the troublesome dated connectors. All sensors will include a bootable DTM connector (-E007 range) and gold plated pins (0462 201 2031) to ensure only the best for your builds!

We also carry these in a 5, 10,17,35 and 135 Bar (Gauge) fluid pressure sensors capable of measuring any fluid you throw at it; Oil, ethanol, methanol, diesel, coolant, cola, ribena, etc!
Also available 4 & 5 Bar (Absolute) MAP sensors for higher end boosted application cars that see beyond the usual ~28psi and need an accurate reading.

MSPP-3P-G05-N8 Data Sheet
MSPP-3P-G10-N8 Data Sheet
MSPP-3P-G17-N8 Data Sheet
MSPP-3P-G35-N8 Data Sheet
MSPP-3P-G135-N8 Data Sheet
