PMC Motorsport - Adapter Kit GM Chevrolet V8 LS - manual 6-speed BMW N54 GS6-53BZ 135i 335i 535i - 240mm / 9.45"

PMC Motorsport - Adapter Kit GM Chevrolet V8 LS - manual 6-speed BMW N54 GS6-53BZ 135i 335i 535i - 240mm / 9.45"

PMC-A-LS-N54-240

$1,180.20 USD
$1,180.20 USD $1,180.20 USD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

PMC adapter

PMC Motorsport adapter / Adaptor kit / swap kit / conversion kit / clutch kit GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW E8x 135i E9x335i E60 535i N54 GS6-53BZ 6-speed - 240mm / 9.45"

An adapter allowing the connection (swap / conversion) of a GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec with a ZF manual transmission (ZF Friedrichshafen) used in BMWs. The perfect solution for amateur and professional motorsports.

Planning to do a GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace your automatic transmission with a BMW manual transmission and gain new possibilities. PMC Motorsport adapters are not only for transmission swaps in GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec engines but also provide support for executing LS swaps in BMWs and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

Balanced before shipping

Each of our flywheels is thoroughly inspected and balanced before shipping.

Pilot Bearing for Input Shaft

Bushing supporting the input shaft and minimizing its vibrations.

Replaceable friction surface

The worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer.

Why Choose BMW Transmissions?

Availability and Price. Millions of vehicles produced ensure easy access to spare parts, both from ASO services and the aftermarket.

Durability and Reliability. BMW ZF/Getrag transmissions have proven themselves in amateur and professional motorsport for years. They handle high torque (some models 1000Nm+) and are highly reliable, ideal for high-power SWAP projects.

Speed and Convenience. Modern ZF 8HP or Getrag DCT DKG automatic transmissions provide ultra-fast gear shifts (0.2 seconds).

Compatible Engines :

GM Chevrolet V8 LS

GM 5.7 Liter V8 Small Block Chevrolet LS1

GM 6.0 Liter V8 Small Block Chevrolet LS2

GM 6.2 Liter V8 Small Block Chevrolet LS3

GM 5.7 Liter V8 Small Block Chevrolet LS6

GM 7.0 Liter V8 Small Block Chevrolet LS7

GM Chevrolet V8 Vortec

GM Small Block V8 Chevrolet Vortec 4800

GM Small Block V8 Chevrolet Vortec 5300

GM Small Block V8 Chevrolet Vortec 6000 (VortecMAX)

GM Small Block V8 Chevrolet Vortec 6200
Compatible Transmissions :

ZF (ZF Friedrichshafen) S6-53 GS6-53BZ 6-speed

ZF S6-53 GS6-53BZ HGX (THGX) BMW N54 E60 535i E9x 335i

ZF S6-53 GS6-53BZ JGD (TJGD) BMW N54 E60 535i E9x 335i

ZF S6-53 GS6-53BZ JGF (TJGF) BMW N54 E60 535i E9x 335i

ZF S6-53 GS6-53BZ JGK (TJGK) BMW N54 E8x 135i Z4 35i

ZF S6X53 GS6X53BZ HGY (THGY) BMW N54 E60 535i E9x 335i

ZF Friedrichshafen S6-53BZ

ZF Friedrichshafen GS6-53BZ 6-speed manual transmission (S6-53BZ), due to its high durability (1000Nm+) and low price, is the ideal solution for cars prepared for motorsport.

Female spline type: 32.5x35-26N

ZF GS6-53BZ Gear Ratios
1 2 3 4 5 6 R
4.055 2.396 1.582 1.192 1.000 0.872 3.677



ZF GS6-53BZ HGX THGX

 HGX E90 E91 E92 E93 135i 335i 535i HGK HGU E90 E91 E92 E93 330D 325D

ZF GS6-53BZ JGD TJGD

 JGD E90 E91 E92 E93 135i 335i 535i

ZF GS6-53BZ JGF TJGF

 JGF E90 E91 E92 E93 135i 335i 535i

ZF GS6-53BZ JGK TJGK

 JGK E90 E91 E92 E93 135i 335i 535i

Installation Instructions

!!! PMC Motorsport parts are intended for motorsports and use on race tracks. Parts should be installed by professionals using the appropriate tools in workshops designed for this purpose !!!

The flywheel is made of aluminum and cast iron and is fully recyclable.

! The custom flywheel requires the use of a ring gear / flywheel from the automatic Chevrolet LS – not included in the kit!

montaż skrzyni biegów zf6 gs6-53bz 135i 335i 535i e60 e90 PMC GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec adapter pmcinstrukcja montażu koła zamachowego PMC GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortecinstrukcja montażu koła zamachowego PMC GM Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 / Vortec - BMW ZF GS6-53DZ HGU HGK 240mminstrukcja pozycji łapy sprzęgła na łożysku oporowym
Brand
PMC MOTORSPORT
Symbol
A-LS-N54-240
GM Chevrolet engine list
Chevrolet LS1More
Chevrolet LS2More
Chevrolet LS3
Chevrolet LS6More
Chevrolet LS7More
Chevrolet LSX 6-crankshaft bolts
Chevrolet Vortec 4800More
Chevrolet Vortec 5300More
Chevrolet Vortec 6200More
Chevrolet Vortec 6000More
Manual gearbox (Petrol)
6-speed ZF GS6-53BZ BMW N54More
Clutch Set
Set with Clutch
No
Max torque
Adapter Kit ONLY 240mm / 9.45" (single disc)
Flywheel Type
Rigid / Single-mass / Single-disc
Diameter of Friction Plate
240mm / 9.45"
Recommended clutch pressure plate
Sachs XTend 3000 951 952 (M57N M57N2)
Sachs XTend 3000 951 949 (N54 N55)
Sachs Performance 88 308 200 1243 / 883082.001243
Clutch disc
Dedicated to your gearbox - 240mm / 9.45"
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Clutch Slave Cylinder required
Dedicated to your gearbox
Starter required (not included)
Chevrolet LS (OE)
Flexplate / ring gear / Drive plate required
Chevrolet LS OE 12654640 12553054 12563136 12580709 12602448 12606620 12637677
ADDITIONAL INFORMATION
Adapter Kit Type
Motorsport
Daily
Drift
Gearbox adapter thickness
35mm / 1.37"
Drive shaft bolt tightening torque [Nm / lb⋅ft ]
80Nm / 59lb⋅ft + Glue
Replaceable friction surface
Yes

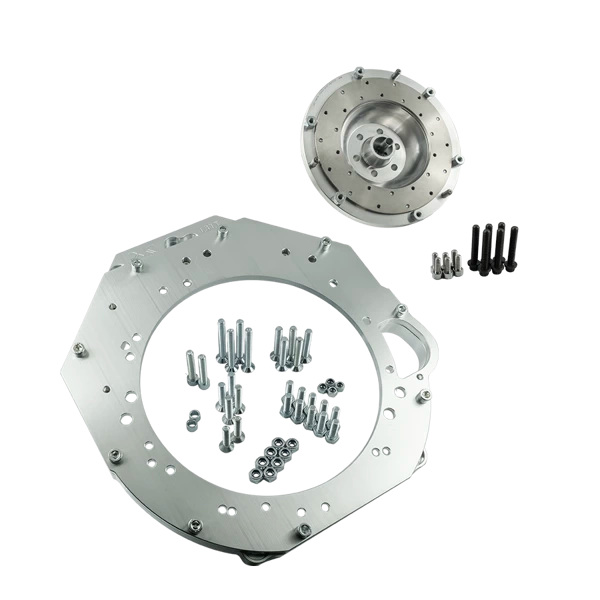

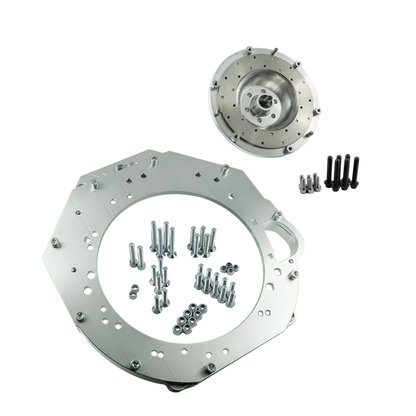

Set includes

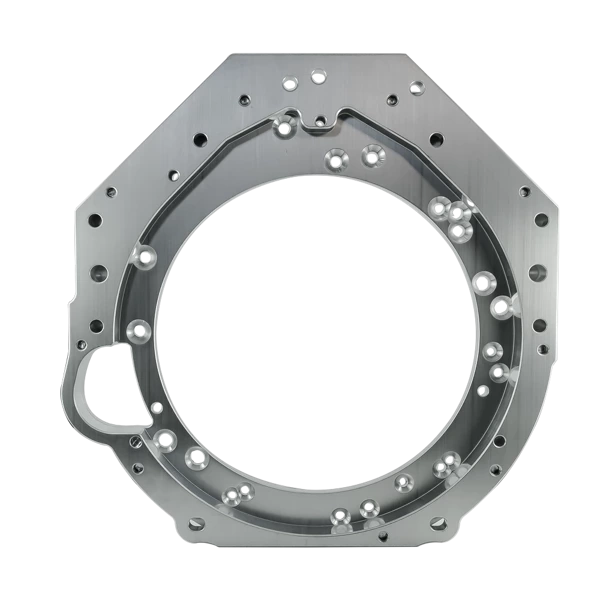

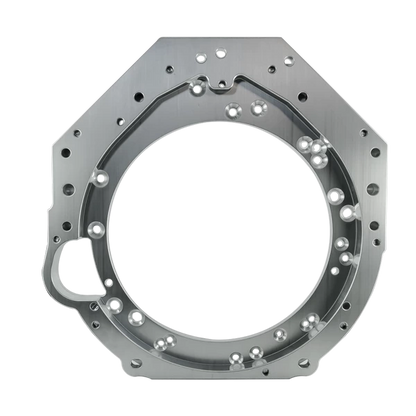

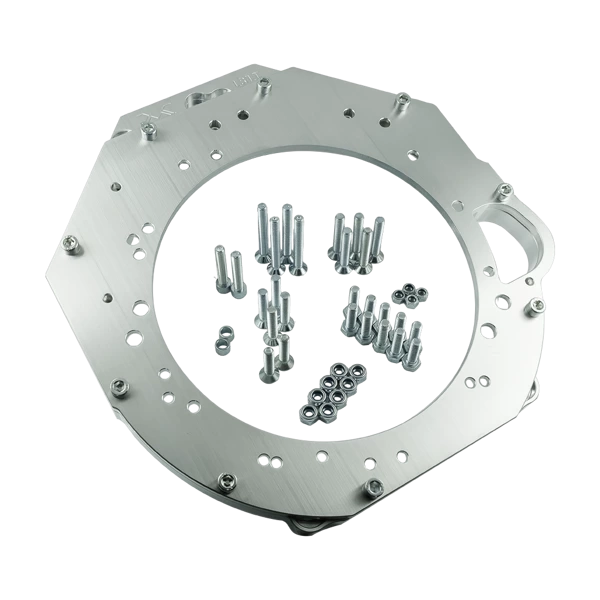

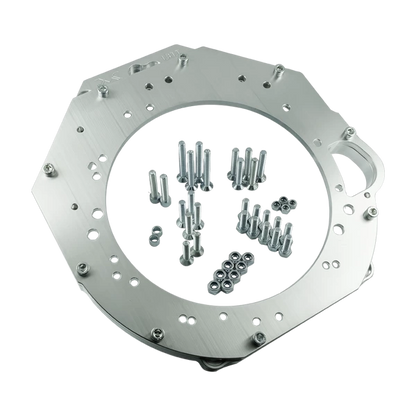

Aluminium gearbox adapter
Gearbox adapter bolts

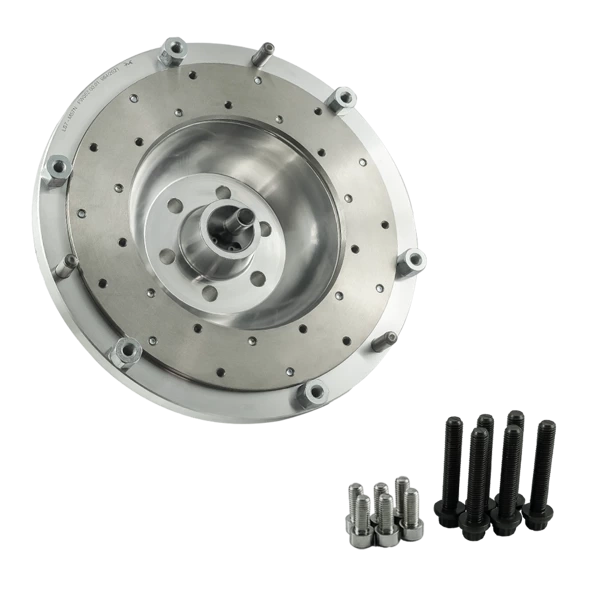

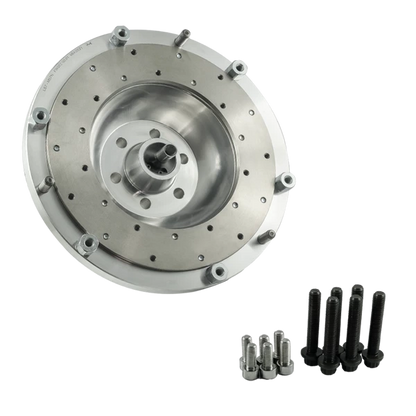

Custom Flywheel
Crankshaft bolts kit
Clutch cover - pressure plate bolts kit
Product sales codes included
K0N54-240-LS
F0M57-LS (4421)
EAN
5903707409952
Product code
A-LS-N54-240

Why PMC Motorsport?

Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.

Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.
