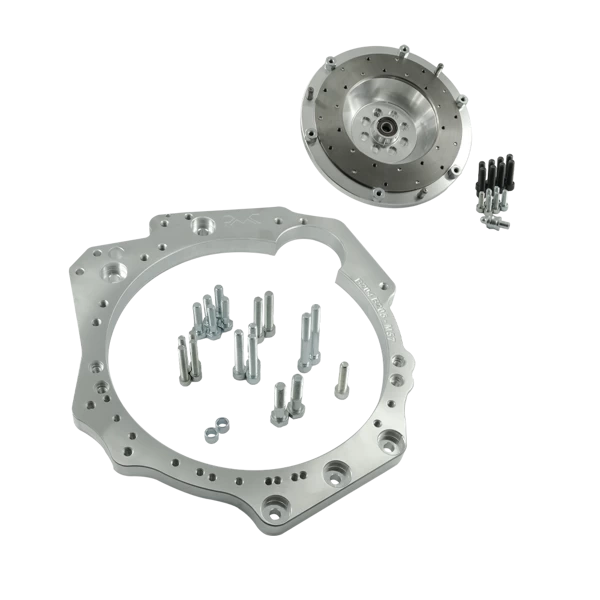

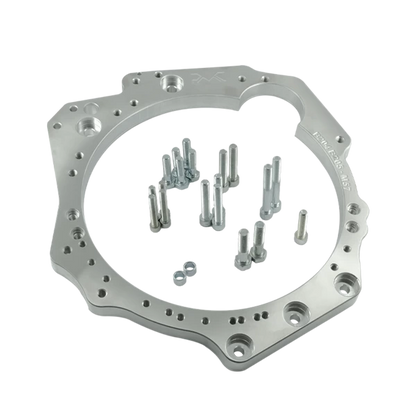

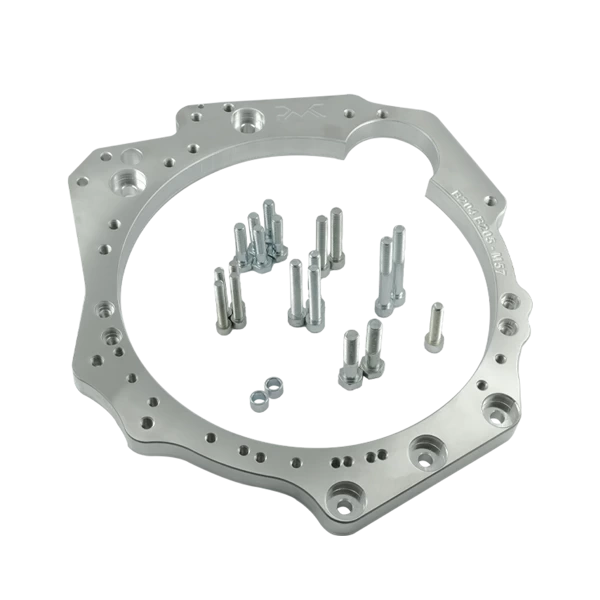

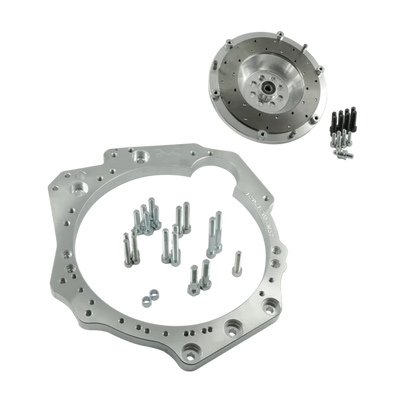

PMC Motorsport Adapter / Conversion Kit / Clutch Kit Saab H B204 B205 B234 B235 - BMW M50 M52 M54 ZF310 ZF320 ZF-5 S5D-250 5-speed / S50 S52 Getrag 420G 6-speed - 240mm / 9.45"

Clutch kit enabling the connection (swap / conversion) of a Saab H B204 B205 B234 B235 engine with a manual ZF (ZF Friedrichshafen) / GETRAG gearbox from BMW. The adapter supports very popular manual gearboxes such as: ZF 5, GETRAG 420 G, GETRAG 250 G

Are you planning a Saab H B204 B205 B234 B235 SWAP in your BMW (E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87)? Our adapter is a reliable solution. Replace the automatic gearbox with a manual one from BMW and gain new possibilities. PMC Motorsport adapters are not only about gearbox replacement in Saab H B204 B205 B234 B235 but also support in implementing Saab H SWAPs in BMW and other vehicles, such as Nissan (S13, S14, S15, PS13) or Mazda RX-7 / RX-8.

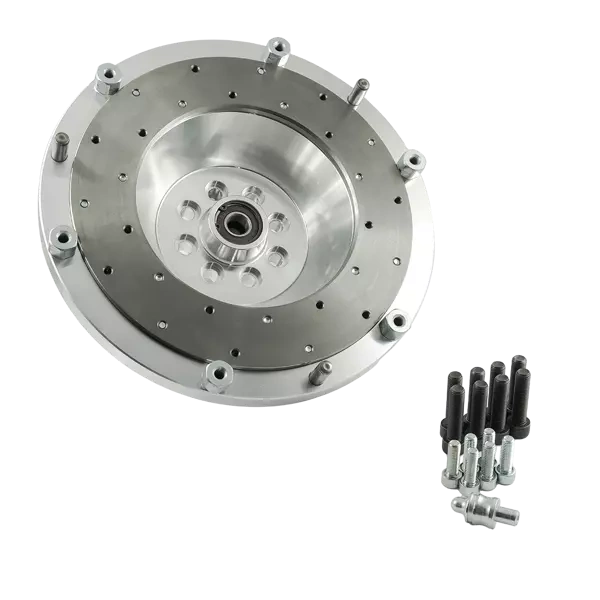

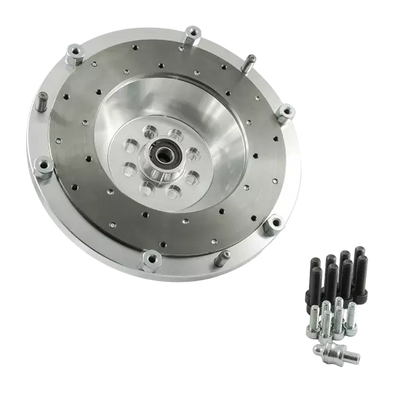

Balanced before shipping Each of our flywheels is thoroughly checked and balanced before shipping.	Clutch pilot bearing The bearing supports the clutch shaft and minimizes its vibrations.	Replaceable friction surface The worn cast iron surface is easily removable and can be replaced with a completely new one, available in our offer.

Why choose PMC Motorsport parts and adapters?

Professionalism

From design to implementation, our parts go a long way. Each component for which we produce parts has been measured by us with a measuring arm and a 3D scanner. The prototype undergoes numerous tests to eliminate all possible problems during its use. For our production, we use only certified materials from proven suppliers. We have a modern CNC machine park and experienced employees.

Perfect concentricity.

Our adapters guarantee a perfect fit between the engine and the gearbox.

Made in Poland

All our production and design department are located in Poland.

Assistance with selection and after-sales support.

The PMC Motorsport team will help you choose the right kit for you. And in case of doubts during assembly, they will provide technical support. You can contact us via Facebook, Instagram, and email: office@pmcmotorsport.com



Purchase of individual components

We offer every component of our kit for separate purchase. If you need a replacement part, write to us: office@pmcmotorsport.com

Fast worldwide shipping.

We ship our products to almost all countries worldwide. European Union countries (excluding islands) and Great Britain have automatically calculated shipping. For countries not on the list, after placing an order, our team will prepare a shipping calculation and add it to the order. You will receive an email with the order cost. !!! ATTENTION: The shipping quote provided with the product price does not include additional fees / customs duties that may occur depending on the shipping country. !!!

0% VAT

0% VAT for customers with an active European VAT number (option for B2B customers outside Poland). After successful verification in the VIES system, we modify the order by removing the charged VAT from the order.

Experience

Thousands of adapters produced and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driven cars and professional motorsport projects.

Quality confirmed by certificate

From the beginning, we have focused on the quality of the parts we manufacture. Each element is controlled after each stage of production. Each component manufactured by us is engraved with a production serial number. We confirm quality with ISO PN-EN ISO 9001:2015 certificate.

Why choose BMW gearboxes?

Availability and price. Millions of cars produced and their worldwide availability guarantee the availability of spare parts. Parts, as well as complete gearboxes, are easily accessible in authorized service centers and on the aftermarket.

Durability and reliability. BMW ZF / Getrag gearboxes have been successfully used for many years in both amateur and professional motorsport. They can transfer very high torque (some models 1000Nm+), while guaranteeing high reliability. They are ideal for SWAP projects with high power intended for daily use.

Speed and convenience. When using new-generation ZF 8HP or Getrag DCT DKG automatic gearboxes, we gain ultra-fast shifting times (0.2 seconds).

ZF Friedrichshafen ZF5 S5-32D

ZF Friedrichshafen ZF-5 (ZF 5) S5D-310 S5D-320 5-speed manual gearbox used in BMW E series with M50 M52 M54 engines ( E36 328i, M3 USA E46 328i, 328ci, 330i, E34 525i (M50), E39 525i (M54) 528i (M52) 530i (M54), Z3 2.8i (M52) 3.0i (M54), Z3 M3.2i (S52) Canada & USA only, M3.2i (S54) ), gearbox weight is approx. 39 kg (86 lb).

Male spline type: 23x29-10N

ZF 320D 10534013
ZF 320D 105340148

Installation Instructions

!!! PMC Motorsport parts are intended for motorsport and use on race tracks. Parts for assembly by professionals using appropriate tools in workshops adapted for this purpose !!!

The flywheel is made of aluminum and cast iron and is fully recyclable.

! The custom flywheel requires the use of a ring gear / flywheel from an automatic Saab H - not included!

FAQ

1. Which Saab engine version does the Saab - BMW RWD manual gearbox adapter fit?

The PMC Motorsport adapter fits Saab engines with block cover number Saab OE 55557715.

2. Which starter should be used with the PMC Motorsport Saab - BMW adapter?

For mounting the adapter, you should use a Saab OE starter.

3. Which ring gear should be used with the PMC Motorsport Saab - BMW flywheel?

When installing the PMC Motorsport Saab - BMW flywheel, you should use a ring gear (flywheel) from the automatic Saab OE version.

4. What clutch can I use with the PMC Motorsport flywheel?

The Saab - BMW ZF5 flywheel has been designed for BMW M57 / M57N / M57N2 / N54 / B58 / BMW E46 M3 / Sachs Performance 883082.001243 clutch pressure plates. Clutches from companies like ACT / Spec / Tanaci are often used with our kit (it is important that the custom clutch pressure plate also fits BMW OE flywheels: BMW M57 / M57N / M57N2 / N54 / B58). For your gearbox, you should use a clutch disc with the appropriate spline, a dedicated release bearing kit, and a slave cylinder.
