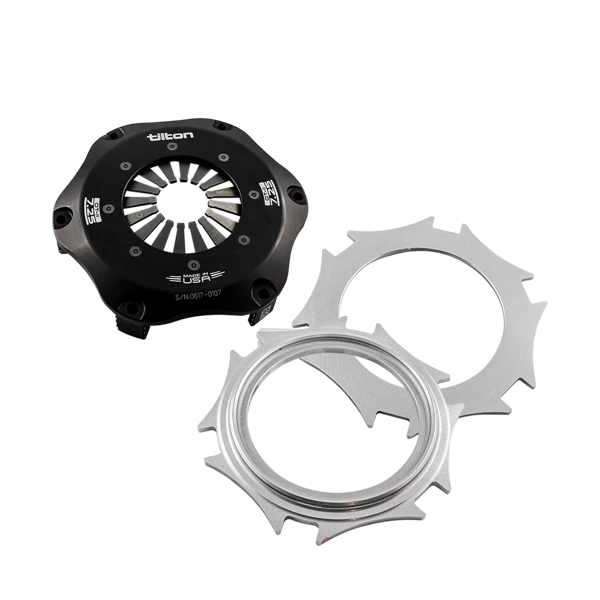

Tilton’s 7.25″ OT-185 cerametallic racing clutches are primarily designed for racing applications where some clutch modulation is desired. They feature 4-paddle discs that incorporate a unique blend of ceramic and metallic materials. Cerametallic discs are thicker than sintered metallic discs, and they provide higher heat capacity through their increased mass. In addition, the engagement characteristics of cerametallic clutches are smoother than sintered metallic clutches. These features make Tilton’s 7.25″ OT-185 cerametallic racing clutches popular in the following applications:
- Rally
- Hill climb
- Road racing
- Club racing
- Off-road
- Extreme street/strip
Features
- Open, one-piece clutch cover design. Provides lower operating temperature, higher strength and minimized deflection for quick shifting.
- Five diaphragm spring rate options. Provides a wide range of torque capacities and release loads to tune the clutch for the application.
- Chrome vanadium diaphragm springs and an engineered pressure plate geometry. Provides a high clamp load-to-wear ratio, low release load and quick shifting.
- High-strength steel pressure and floater plates.
- .283″ thick friction disc. Provides excellent wear resistance and withstands elevated temperatures.
- Hardened steel thrust buttons provide a smooth and durable surface for pressure and floater plates.
- Dynamic spin balanced.
Individually inspected for proper assembly and balance.
Plate Count 2-Plate
Flywheel Type Pot
Pressure Plate Ration. High (H)
Spring Color (Torque Capacity; Pressure Plate) 760 lb-ft
