PMC Motorsport - Flywheel Mercedes-Benz M113 M156 AMG - BMW M50 S50 M52 S52 M54 S54 M57 - 184MM 7.25" (P) (K0M50-TP-M156)

PMC Motorsport - Flywheel Mercedes-Benz M113 M156 AMG - BMW M50 S50 M52 S52 M54 S54 M57 - 184MM 7.25" (P) (K0M50-TP-M156)

SKU: PMC - K0M50-TP-M156 ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

This purchase would enter you into the RTR Mustang Spec 5 with 140 entries. Learn more
$696.27 USD
$696.27 USD $696.27 USD
Sale Sold out

PMC Motorsport Lightweight custom aluminum flywheel Mercedes-Benz M113 M156 AMG - BMW M50 M52 M54 ZF 310 ZF320 S5D-250 M57 GS5-39DZ S50 S52 S54 Getrag 420G - 184mm / 7.25" POT

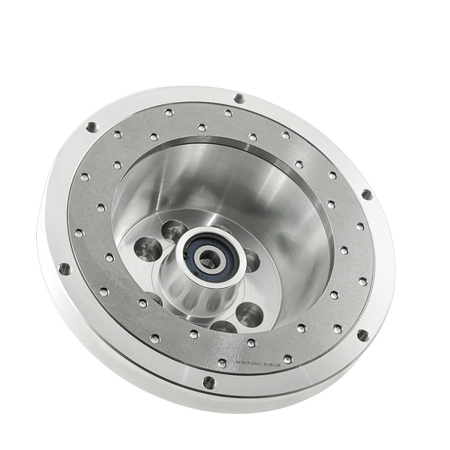

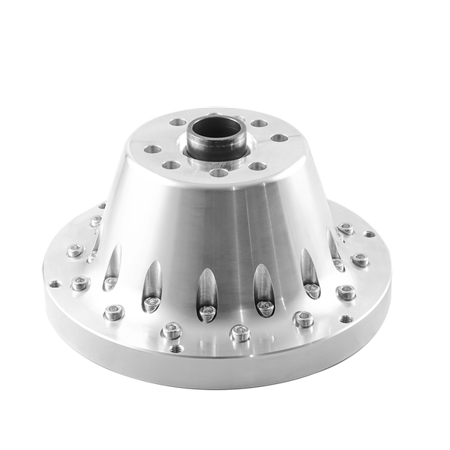

Custom aluminum flywheel designed to mate the Mercedes-Benz M113 M156 AMG engine to the BMW gearbox

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining

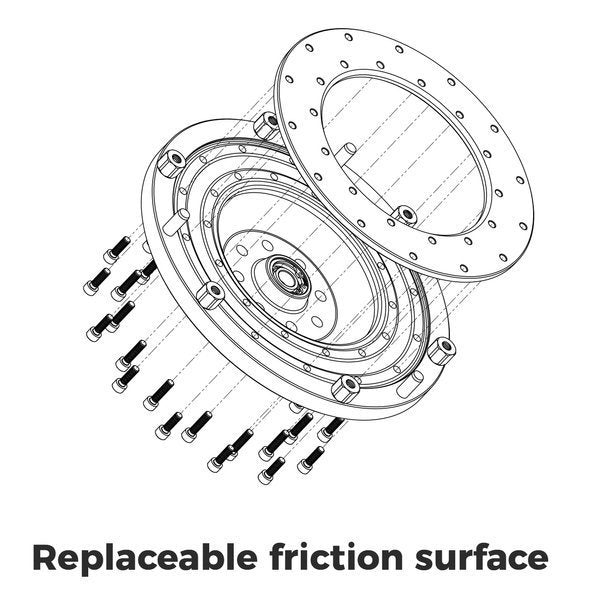

  • Replaceable cast iron friction surface

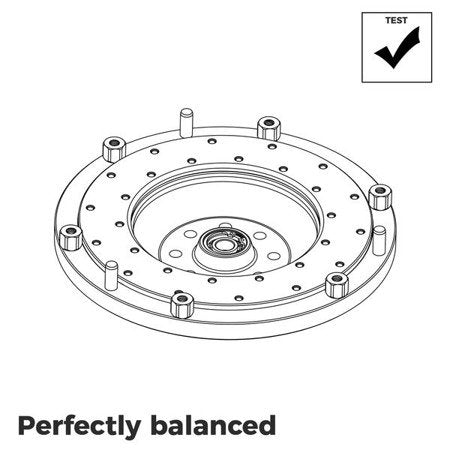

  • The flywheel is balanced prior to shipment
Engine List

  • Mercedes-Benz M113 (flexplate a2730300312)
  • Mercedes-Benz M113K (flexplate a2730300312)
  • Mercedes-Benz M113 AMG (flexplate a2730300312)
  • Mercedes-Benz M156 (flexplate a2730300312)



Gearbox List

  • BMW GETRAG S5D-250G S5D250 5-speed
    • BMW E36 M50 M52 320i 323i 325i 323ti 325is
    • BMW E34 M50 520i 525i
    • BMW E39 M52 M54 520i 523i 525i
    • BMW E46 M52 M54 M56 320i 323i 325i
    • BMW Z3 2.0 2.5 2.2i
  • BMW ZF (ZF Friedrichshafen) S5D-310 ZF 310 / ZF310 S5-31 5-speed
    • BMW E34 525i USA
  • BMW ZF (ZF Friedrichshafen) S5D-320 ZF 320 / ZF320 S5-32 5-speed
    • BMW E36 328i M3 3.2 M3 323i
    • BMW E38 728i
    • BMW E39 528i 530i 523i 525i
    • BMW E46 328i 330i
    • BMW Z3 2.8 3.0 M 3.2 S54
  • BMW S50 E36 M3 GETRAG 420 TBAB 226.0.0161.91 6-speed
  • BMW S54 E46 M3 GETRAG 420 TBAI 226.0.0440.97 6-speed
  • BMW ZF (ZF Friedrichshafen) M57 Diesel ZF GS5-39DZ THBA THBM THBG THBK THBC 5-speed 23 00 7 501 342 / 23 00 7 508 772 /  23 00 7 518 077 / 23 00 1 434 505
    • BMW E39 530D 525D
    • BMW E46 330D 1434256 ZF 1065401011

The flywheel does not fit the BMW M54 6-speed gearbox



Manual

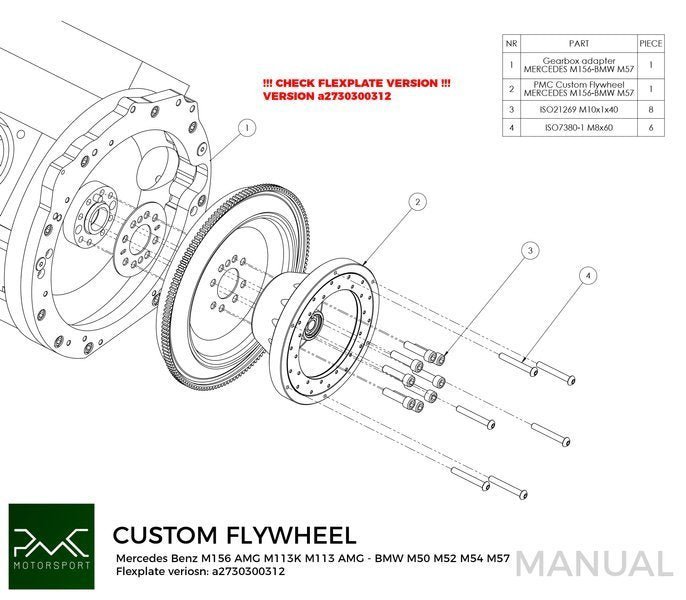

  • An adapter is required to connect the engine to the gearbox
  • Use the flywheel / ring gear from the automatic version
  • Tighten the flywheel to the same torque as OE.
  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 24mm position

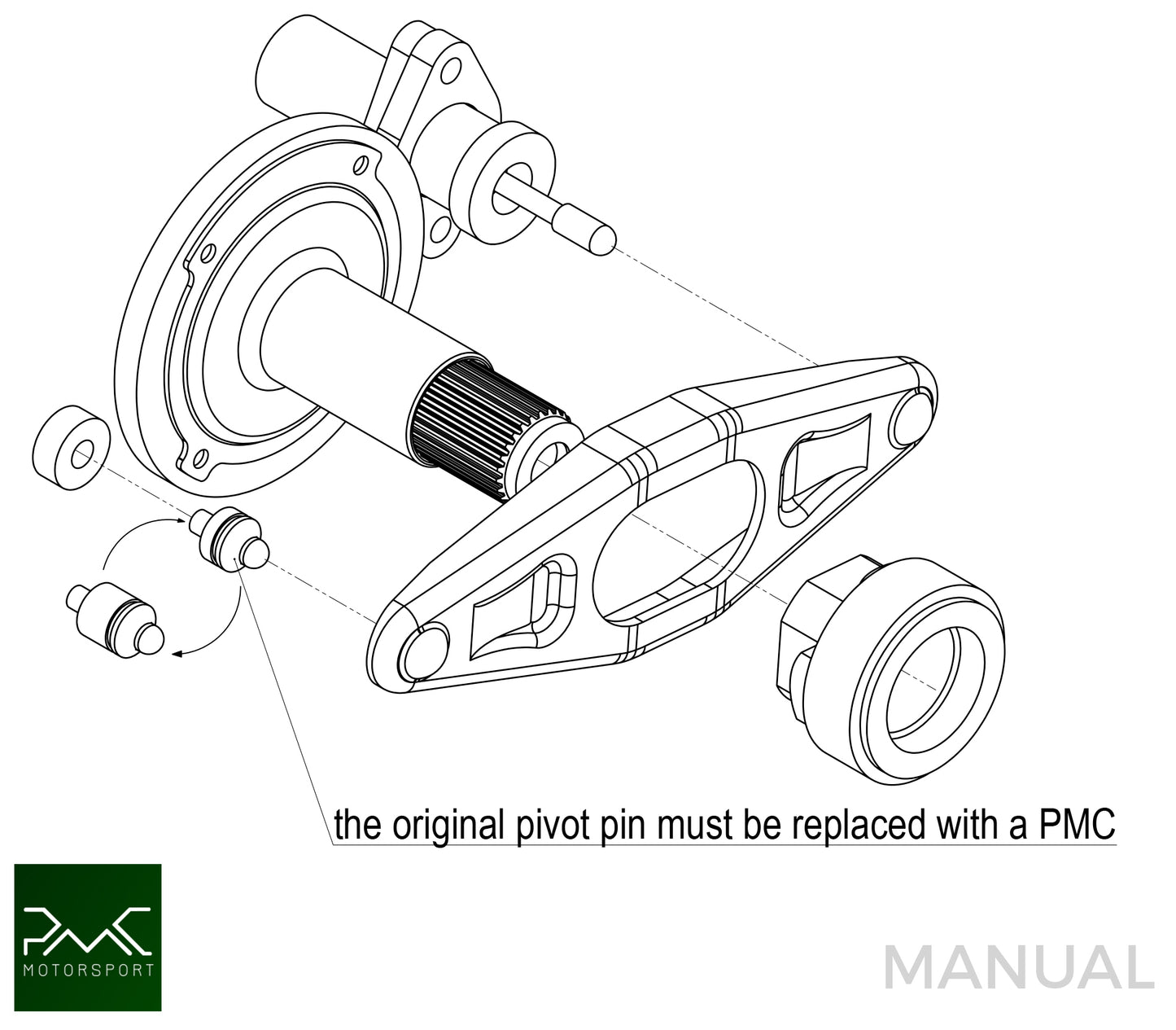

  • Replace the original custom pivot pin with the one from the kit.
  • Required adaptation of the clutch slave pump (change of the pump to a smaller one - piston diameter or shortening the pump stroke)

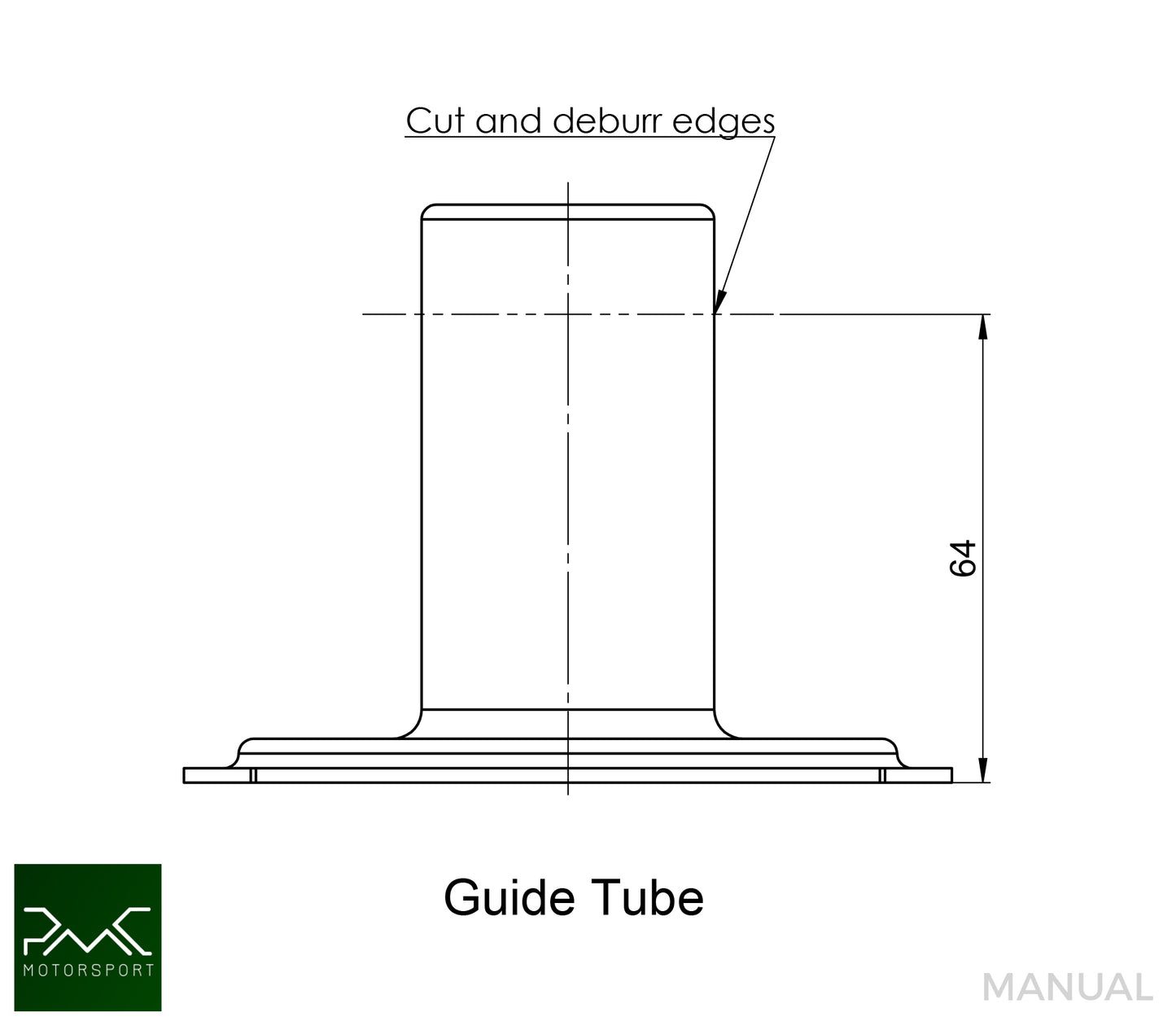

  • Guide tube shortening required BMW OEM 23 11 7 501 71



Engine:
Mercedes-Benz V8 M156
,
Mercedes-Benz V8 M113 4.3 5.0 5.4
,
Mercedes-Benz V8 M113 5.4K AMG
Gearbox:
BMW ZF S5D-320 ZF-320 / M52 / M54 / E36 M3 5-speed
,
BMW ZF S5D-310 ZF-310 / M50 5-speed
,
BMW GETRAG S5D-250 M50 M52 M54 5-speed
,
BMW E36 M3 GETRAG 420 TBAB 6-speed
,
BMW E46 M3 6-speed GETRAG 420 TBAI
,
BMW E39 530D M57 ZF GS5-39DZ 5-speed (DIESEL)
,
BMW E39 525D M57 ZF GS5-39DZ 5-speed (DIESEL)
,
BMW E46 330D M57 ZF GS5-39DZ 5-speed (DIESEL)
CLUTCH SET
Flywheel Type:
Ultralight Race 184mm / 7.25"
Diameter:
184mm / 7.25"
Recommended clutch pressure plate:
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-312 xxx Twin disc (POT)
,
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-013 xxx Triple disc (POT)
Clutch disc required:
Dedicated to your gearbox - 184mm 7.25"
Flexplate / ring gear required:
Mercedes-Benz Automatic OEM a2730300312
ADDITIONAL INFORMATION
Material:
Aluminium
Replaceable friction surface:
Yes

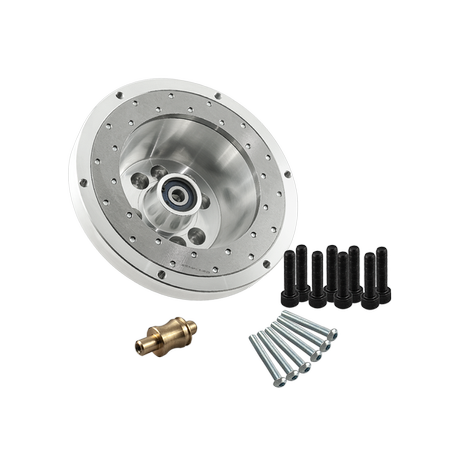

Set includes:
Custom Clutch fork pivot pin / Ball
,
Clutch cover - pressure plate bolts kit
,
Crankshaft bolts kit
,
Flywheel centering sleeve
Gearbox adapter required:
F0M50-M113
,
F0M50-M156
Product sales codes included:
K0M50-TP-M156 (2654)
