PMC Motorsport - Flywheel Toyota JZ - Nissan 350Z Z33 370Z Z34 - 250mm / 9.84" (K0350-JZ)

PMC Motorsport - Flywheel Toyota JZ - Nissan 350Z Z33 370Z Z34 - 250mm / 9.84" (K0350-JZ)

PMC - K0350-JZ

$728.99 USD
$656.75 USD $728.99 USD
Sale Sold out

Now accepting crypto with

Coinbase Commerce logo

Choose Coinbase at checkout

Need help finding the right part? Call us at (239) 270-5116 — Monday–Friday, 9am–5pm EST.
View full details

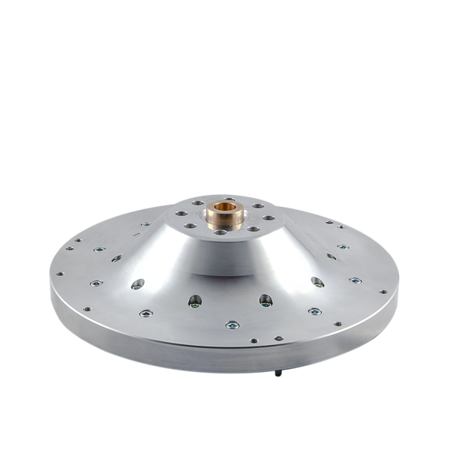

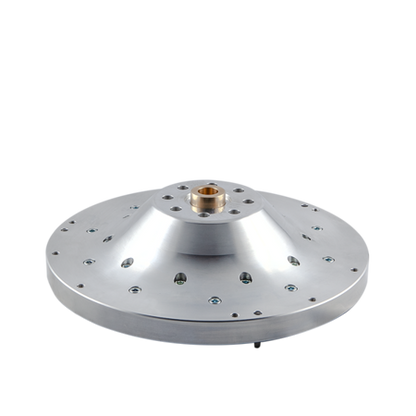

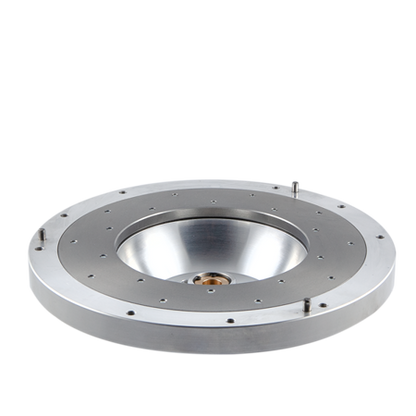

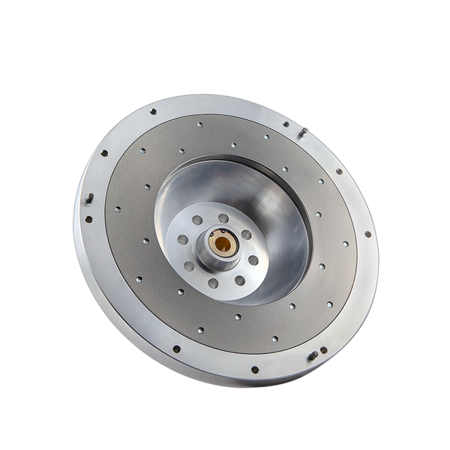

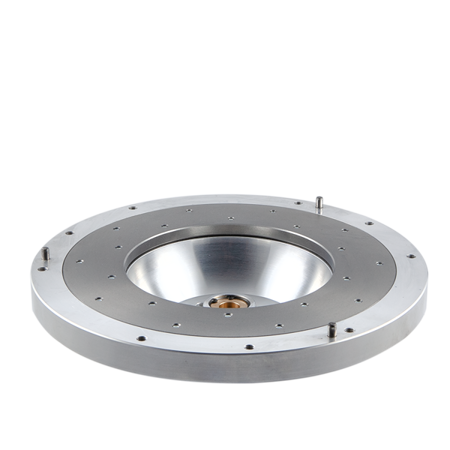

PMC Motorsport Lightweight custom aluminum flywheel Toyota JZ 1JZ 2JZ - Nissan 350Z Z33 / Nissan 370Z Z34 - 250mm / 9.84"

Custom aluminum flywheel designed to mate the Toyota JZ 1JZ 2JZ engine to the Nissan 350Z / 370Z gearbox

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining

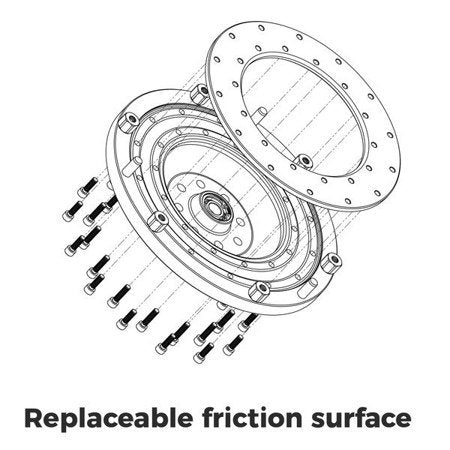

  • Replaceable cast iron friction surface

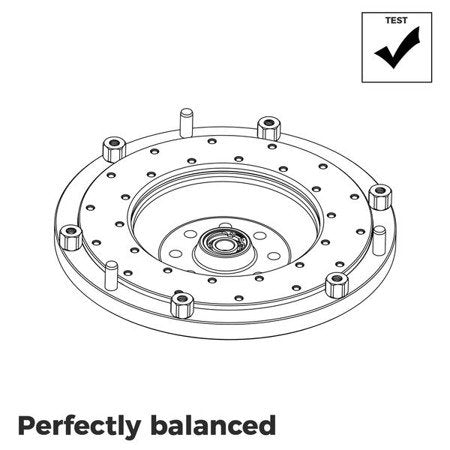

  • The flywheel is balanced prior to shipment

Engine list:
  • Toyota 1JZ (non VVT-i / VVT-i version)
    • Toyota 1JZ-FSE
    • Toyota 1JZ-GE
    • Toyota 1JZ-GTE
  • Toyota 2JZ (non VVT-i / VVT-i version)
    • Toyota 2JZ-FSE
    • Toyota 2JZ-GE
    • Toyota 2JZ-GTE

Gearbox list:
  • Nissan CD001
  • Nissan 350Z typ CD005 32010CD005 32010-CD005
  • Nissan 350Z typ CD006 32010CD006 32010-CD006
  • Nissan 350Z typ CD007 32010CD007 32010-CD007
  • Nissan 350Z typ CD008 32010CD008 32010-CD008
  • Nissan 350Z / Infiniti G35 typ CD009 32010CD009 32010-CD009 6MT
  • Nissan 370Z 320B0-1EA0A JK40C



Model Model series Date Part number   ADD
350Z DE Z33 06/02 -10/02 32010-CD000   1st and 2nd Double Cone Synchro
  Z33 10/02 - 02/03 32010-CD003   1st and 2nd Double Cone Synchro
  Z33 02/03 - 04/03 32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 04/03 - 07/03 32010-CD006   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 07/03 - 07/04 32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 07/04 - 11/06 32010-CD009   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
350Z HR Z33 11/06 - 07/07 32010-JK400   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  Z33 07/07 - 32010-JK41B   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
370Z Z34 06/09 - 320B0-1EA0A Non-Sport (without Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  Z34 06/09 - 320B0-1EA0B Sport / NISMO (with Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 DE V35  08/02 - 02/03  32010-CD003   1st and 2nd Double Cone Synchro
  V35  12/02 - 02/03  32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35  02/03 - 04/03  32010-CD005 All models incl.  1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35 04/03 - 09/03  32010-CD007
  V35 09/03 - 08/04  32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35 11/04 -  32010-CD009  Superseded CD00A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 HR V36 sedan 08/06 - 06/07 32010-JK400   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  V36 sedan 06/07 - 07/08 32010-JK40B    1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q40 V36 sedan ALL 32010-JK41A    1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q60 CV36 Coupe ALL 32010-JK41A   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro

RATIO:

  • 1st 3.794
  • 2nd 2.324
  • 3rd 1.624
  • 4th 1.271
  • 5th 1
  • 6th 0.794
  • Reverse 3.446

Manual

  • An adapter is required to connect the engine to the gearbox
  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • Tighten the flywheel to the same torque as OE
Engine:
Toyota JZ 1JZ 2JZ
Gearbox:
  • Nissan CD001
  • Nissan 350Z type CD005 32010CD005
  • Nissan 350Z type CD006 32010CD006
  • Nissan 350Z type CD007 32010CD007
  • Nissan 350Z type CD008 32010CD008
  • Nissan 350Z type CD009 32010CD009
  • Nissan 370Z 320B0-1EA0A JK40C
  • Nissan 350Z type CD00A
CLUTCH SET
Flywheel Type:
Single Disc
Diameter:
250mm / 9.84"
Recommended clutch pressure plate:
Nissan 350Z 370Z [250mm / 9.84"]
Clutch disc required:
Dedicated to your gearbox - 250mm / 9.84"
Flexplate / ring gear required:
Toyota OE 32101-30090 | 32101-22050 + one spacer OE 32116-22020 4.5mm between the engine block and the flexplate
ADDITIONAL INFORMATION
Material:
Aluminium
Replaceable friction surface:
Yes
Set includes:
  • Clutch cover - pressure plate bolts kit
  • Crankshaft bolts kit
Gearbox adapter required:
F0350-JZ
Product sales codes included:
K0350-JZ (981)
