PMC Motorsport - RACE STAGE 1 GM Chevrolet V8 LS - BMW M50 S50 M52 S52 M54 - 240mm / 9.45" (RS1-LS-M50-SP)

PMC Motorsport - RACE STAGE 1 GM Chevrolet V8 LS - BMW M50 S50 M52 S52 M54 - 240mm / 9.45" (RS1-LS-M50-SP)

SKU: PMC - RS1-LS-M50-SP-ZF ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

This purchase would enter you into the 1999 Mitsubishi Evo with 291 entries. Learn more
$1,451.62 USD
$1,451.62 USD $1,451.62 USD
Sale Sold out



PMC Motorsport RACE STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)

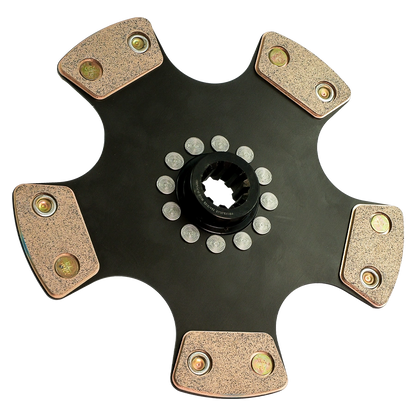

GM Chevrolet V8 LS - BMW M50 M52 M54 ZF 310 ZF320 S5D-250 S50 S52 Getrag 420G - 240mm / 9.45" - Sintered disc + Sachs Performance Pressure Plate

The adapter kit enables users connection of GM Chevrolet V8 LS engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Engine List
  • GM 5.7 Liter V8 Small Block Chevrolet LS1 5.7L / 346 cu. in. (1997-2005)
  • GM 6.0 Liter V8 Small Block Chevrolet LS2 6.0L / 364 cu. in. (2005-2009)
    • Corvette C5
    • Chevrolet SSR
    • Chevrolet Trailblazer SS
    • Cadillac CTS-V
    • Pontiac GTO
    • Saab 9-7X Aero
  • GM 6.2 Liter V8 Small Block Chevrolet LS3 6.2L / 376 cu. in.(2007-)
    • Chevrolet Corvette
    • Corvette Grand Sport
    • Chevrolet Camaro SS
    • Pontiac G8 GXP
  • GM 5.7 Liter V8 Small Block Chevrolet LS6 5.7L / 346 cu. in. (2001-2005)
  • GM 7.0 Liter V8 Small Block Chevrolet LS7 7.0L / 427 cu. in. (2006-2015)
    • Chevrolet Corvette Z06
    • Chevrolet Camaro Z/28
  • GM 6.0 Liter V8 Small Block L76 6.0L / 364 cu. in. (2007-2009)
    • Chevrolet Avalanche
    • Chevrolet Silverado
    • Chevrolet Suburban 1500
    • GMC Sierra
    • GMC Yukon XL
    • Holden Commodore
    • Pontiac G8
  • GM 6.0 Liter V8 Small Block Vortec L96 6.0L / 364 cu. in. (2010-2017)
    • Chevrolet Silverado and Sierra 2500HD
    • Chevrolet Silverado and Sierra 3500HD
    • GMC Yukon XL 2500
    • Chevy Suburban 2500S
    • Chevy Suburban 3500HD
    • Savana and Express 2500 & 3500 vans
  • GM 5.3 Liter V8 Small Block Chevrolet Vortec 5300 LM7 5.3L / 325 cu. in. (1999-2007)
    • Chevrolet Silverado 1500
    • GMC Sierra 1500
    • Chevrolet Tahoe
    • Chevrolet Suburban 1500
    • GMC Yukon
    • GMC Yukon XL 1500
    • Cadillac Escalade (2WD)
    • Chevrolet Avalanche
    • Chevrolet Express
    • GMC Savana
  • GM 6.0 Liter V8 Small Block Chevrolet Gen. 3 LQ9 (Vortec HO 6000 or VortecMAX)
    • 2002-06 Cadillac Escalade
    • 2002-06 Cadillac Escalade EXT
    • 2002-06 Cadillac Escalade ESV
    • 2003-07 Chevy Silverado SS
    • 2004-06 Chevy Silverado HO Edition
    • 2004-06 GMC Sierra HO Edition
    • 2006-07 Chevy Silverado Classic VortecMAX
    • 2006-07 GMC Sierra 1500 Classic VortecMAX
  • GM 6.0 Liter V8 Small Block Chevrolet Gen. 3 LQ4 (Vortec 6000)
    • 1999-01 Chevy Suburban
    • 1999-04 Chevy Silverado 2500
    • 2001-07 Chevy Silverado 1500 HD
    • 2001-07 Chevy Silverado 2500 HD
    • 2001-07 Chevy Silverado 3500
    • 2003-07 Chevy Express
    • 2002-04 GMC Sierra 1500 Denali
    • 2001-06 GMC Sierra 1500 HD (+2007 Classic)
    • 1999-04 GMC Sierra 2500
    • 2001-06 GMC Sierra 2500 HD (+2007 Classic)
    • 2001-06 GMC Sierra 3500 HD (+2007 Classic)
    • 2001-06 GMC Yukon Denali, XL1500, XL2500
    • 2003-07 GMC Savana
    • 2003-07 Hummer H2
Gearbox List
    • BMW GETRAG S5D-250G S5D250 5-speed
      • BMW GETRAG M50 M52
    • BMW ZF (ZF Friedrichshafen) ZF 5 S5D-310 ZF 310 / ZF310 S5-31 5-speed
      • BMW ZF (ZF Friedrichshafen) M50
    • BMW ZF (ZF Friedrichshafen) Zf 5 S5D-320 ZF 320 / ZF320 S5-32 5-speed
      • BMW ZF (ZF Friedrichshafen) M50 M52 S50 S52 S54
    • BMW GETRAG 420 / 420G 6-speed
      • BMW GETRAG 420 / 420G TBAB S50 E36 M3
      • BMW GETRAG 420 / 420G TAGU S50 E36 M3


    The flywheel does not fit the BMW M54 6-speed gearbox

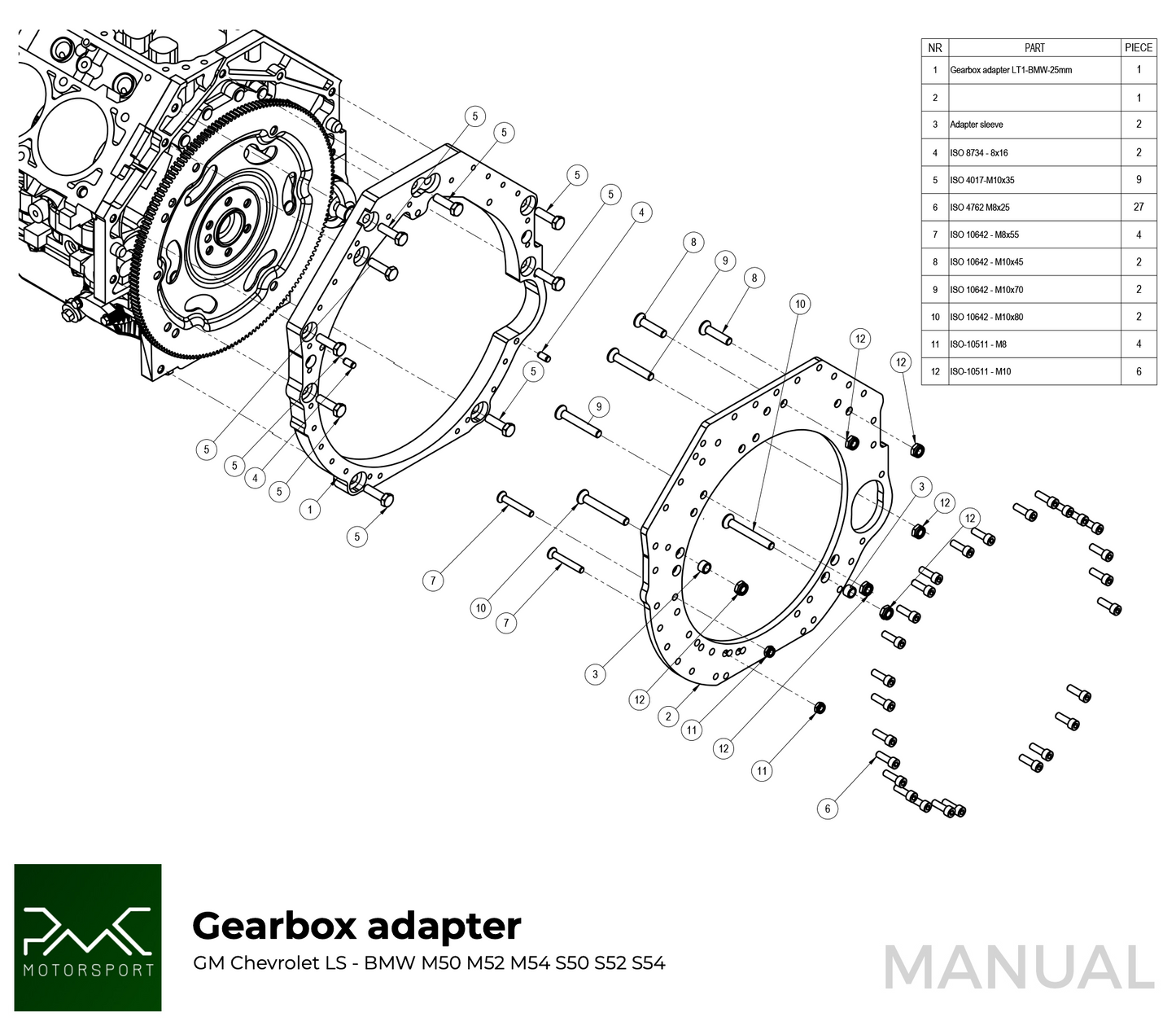

    Manual

    • Use the flywheel / ring gear from the automatic version
    • Tighten the flywheel to the same torque as OE
    • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 24mm position
    • Use 240mm clutch disc with spline dedicate to your gearbox

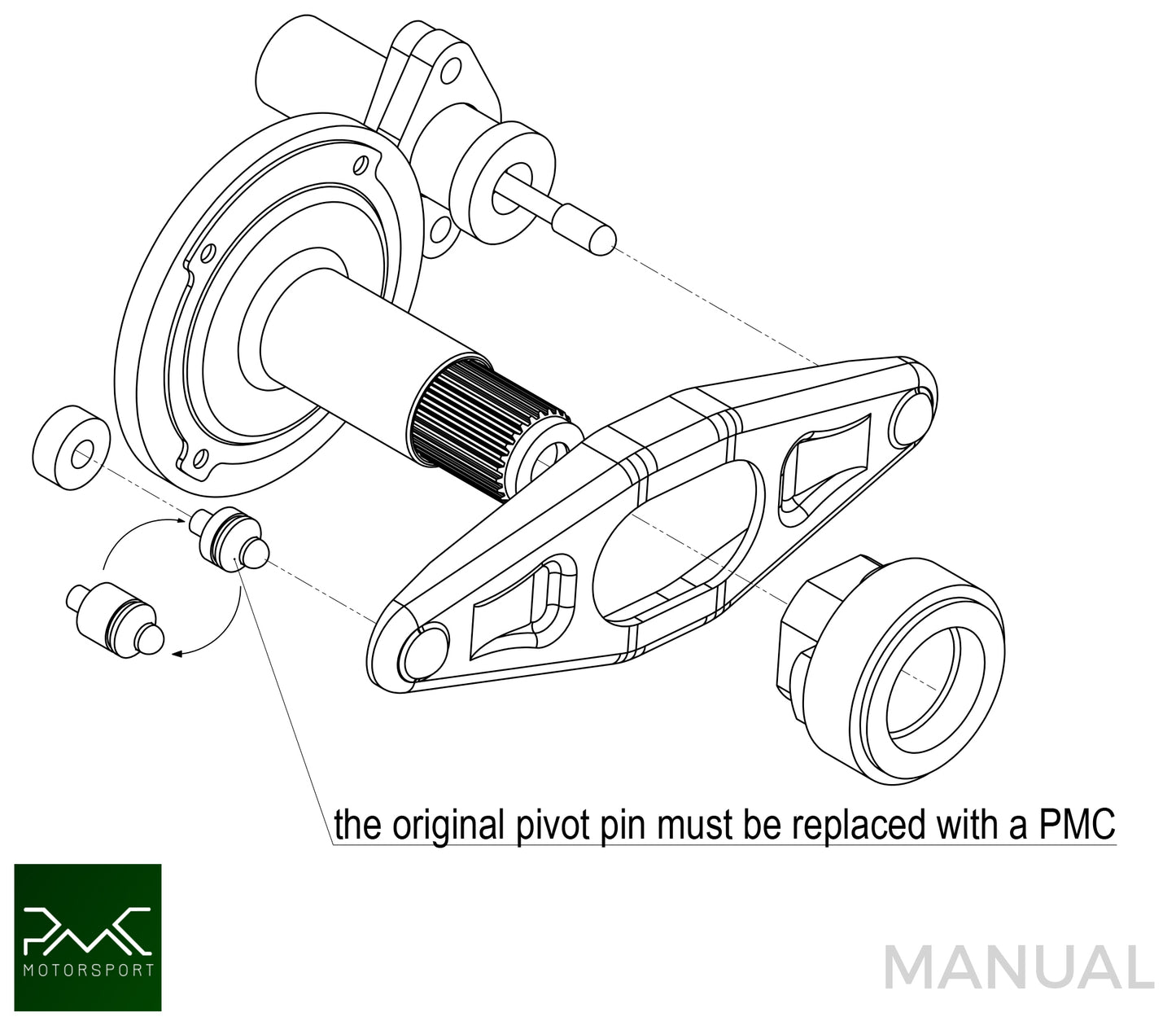

    • Replace the original custom pivot pin with the one from the kit



    Engine:
    Chevrolet V8 LS LS1 LS2 LS3 LS6 LS7 6-bolt Crankshaft
    Gearbox:
    • BMW S5D-310 ZF-310 / M50
    • BMW S5D-250 M50 M52 M54
    • BMW S5D-320 ZF-320 / M52 / M54 / E36 M3 5-SPEED
    • BMW E36 M3 6-speed Getrag 420 TBAB
    CLUTCH SET
    Set with Clutch:
    Yes
    Flywheel Type:
    Single Disc
    Clutch Set:

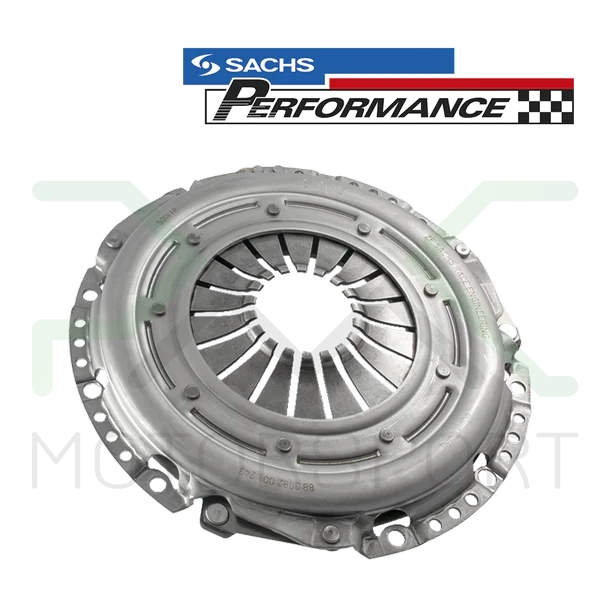

    Sachs Performance 88 308 200 1243 / 883082.001243
    Clutch disc required:
    Included
    Release bearing required:
    Dedicated to your gearbox
    Clutch fork required:
    dedicated to your gearbox
    Starter required:
    Chevrolet LS (OE) brak w zestawie
    Flexplate / ring gear required:
    Chevrolet LS OE 12654640
    ADDITIONAL INFORMATION
    Adapter Kit Type:
    Motorsport
    Gearbox adapter thickness:
    35mm / 1.37"
    Replaceable friction surface:
    Yes

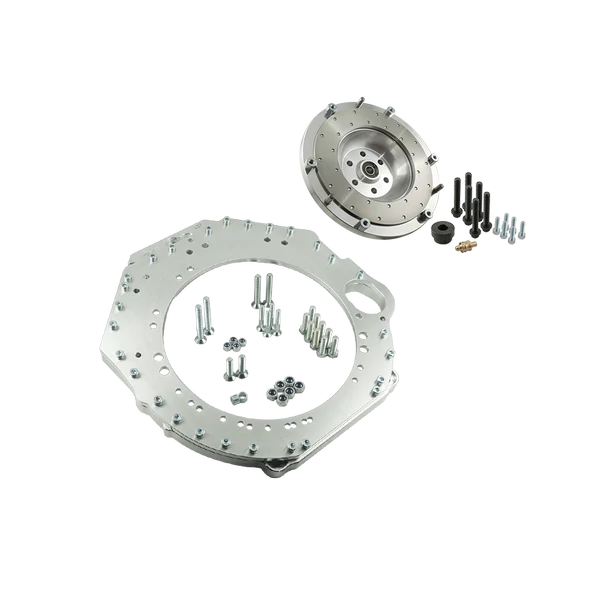

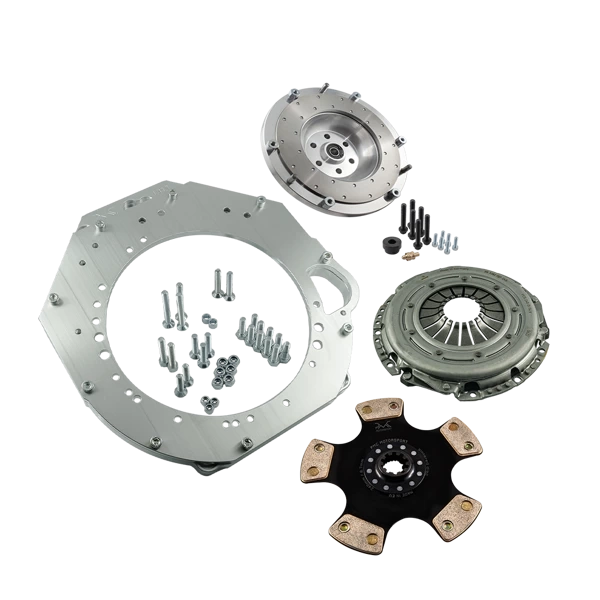

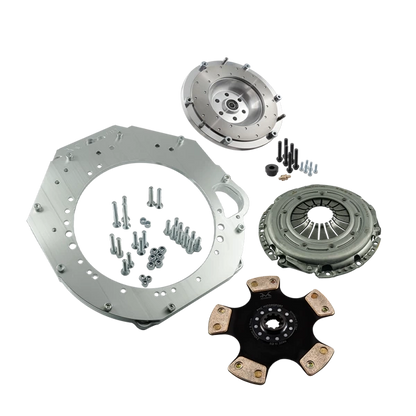

    Set includes:

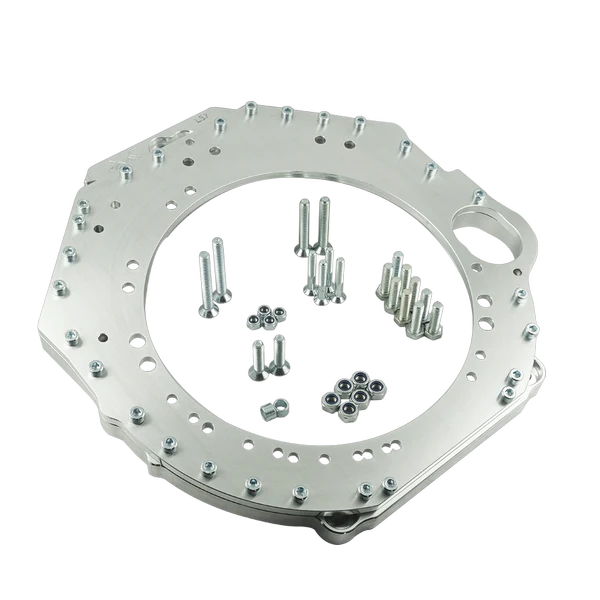

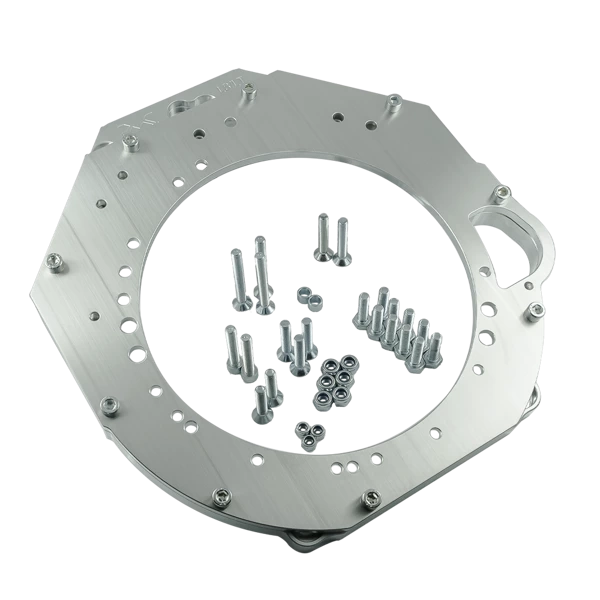

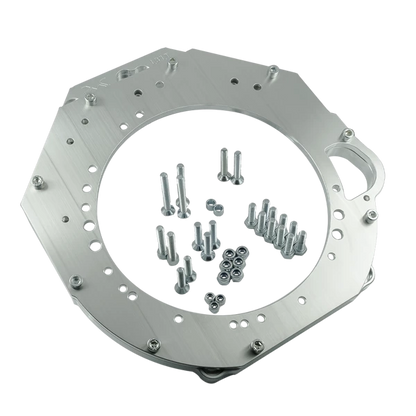

    • Aluminium gearbox adapter
    • Gearbox adapter bolts

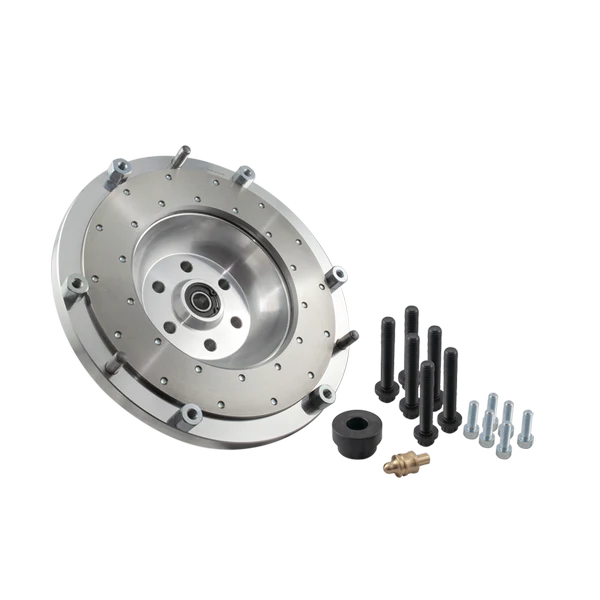

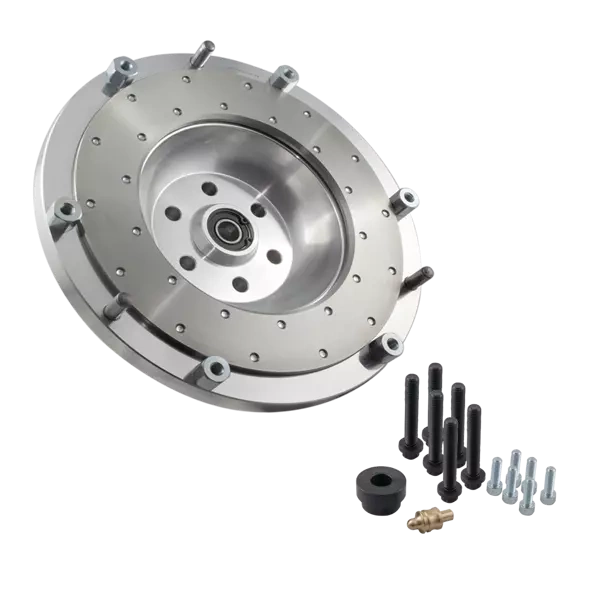

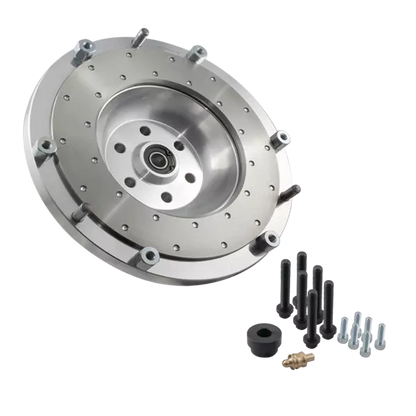

    • Custom Flywheel
    • Crankshaft bolts kit
    • Clutch cover - pressure plate bolts kit

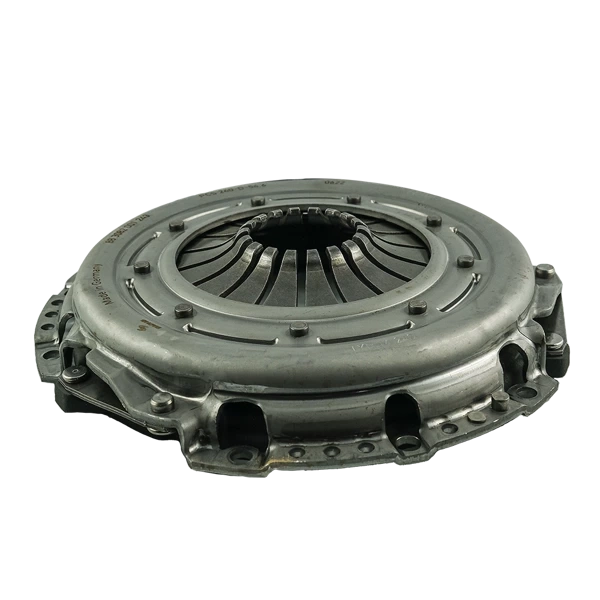

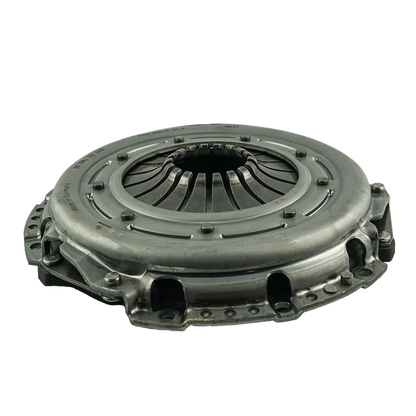

    • Sachs Performance 88 308 200 1243 / 883082.001243

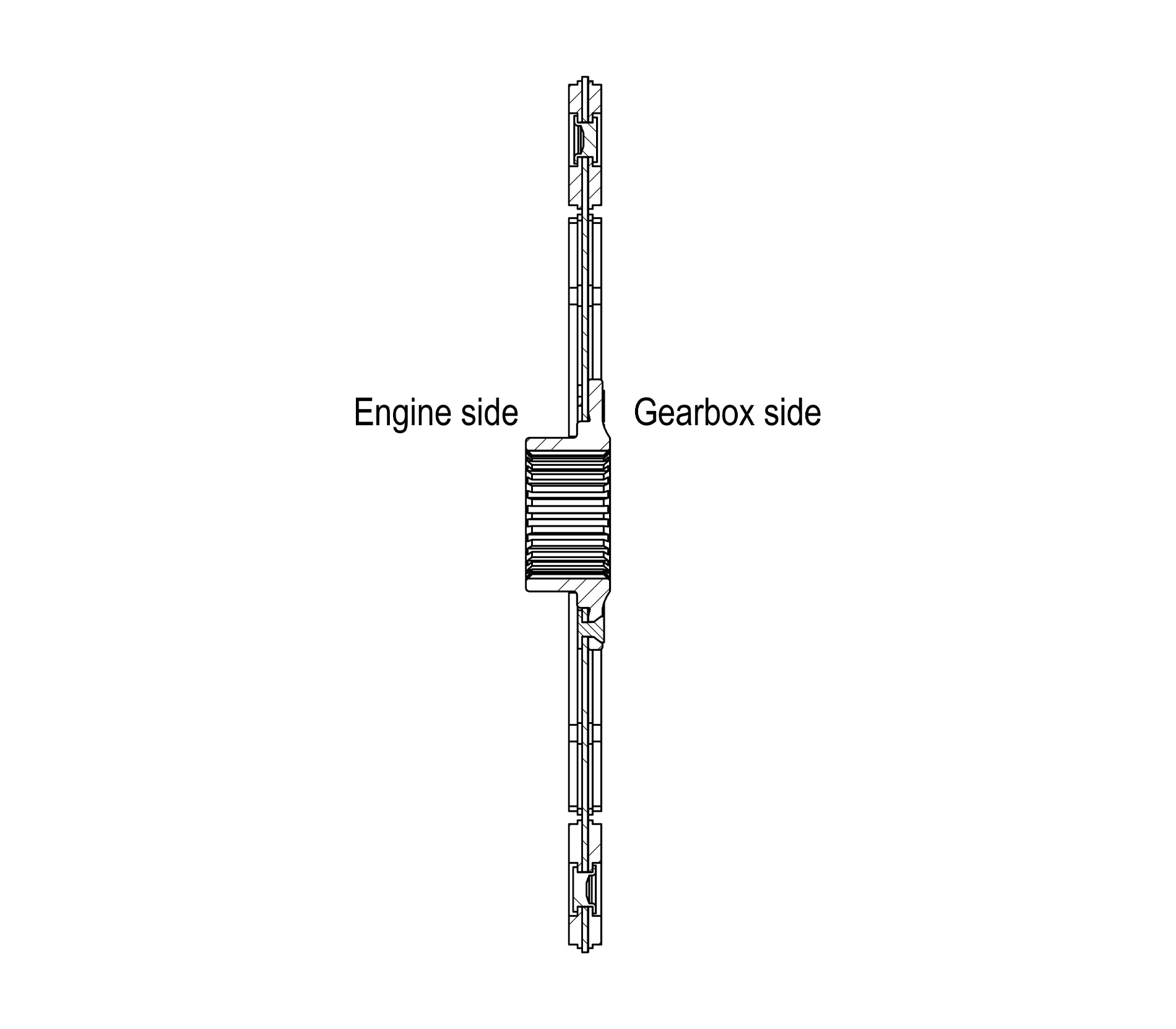

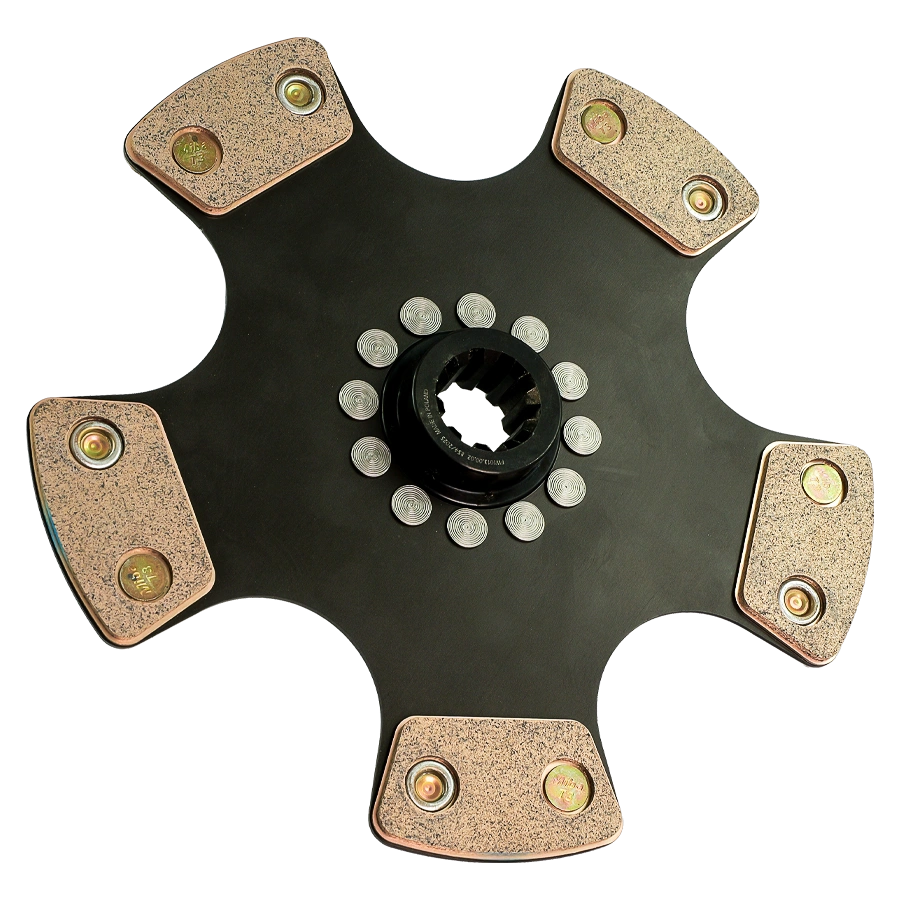

    • Spiekowa tarcza sprzęgła 240-23X29-10N
    Product sales codes included:
    • F0M50-LS (1999)
    • K0M50-240-LS (998)
    • ZF Trans - 240-23X29-10N
    • Getrag 230/420G Trans - 228-23X29-10N
    • SACHS 243 (1694)
