PMC Motorsport - RACE STAGE 2 Toyota JZ - BMW M57N HGU HGK / N54 - 184mm 7.25" (P) (RS2-JZ-HGU-184P)

PMC Motorsport - RACE STAGE 2 Toyota JZ - BMW M57N HGU HGK / N54 - 184mm 7.25" (P) (RS2-JZ-HGU-184P)

PMC - RS2-JZ-HGU-184P

$3,332.42 USD
$3,332.42 USD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

PMC Motorsport RACE STAGE 2 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)

Toyota JZ 1JZ 2JZ - BMW M57N M57N2 GS6-53DZ HGU HGK / BMW N54 GS6-53BZ - 184mm / 7.25" - 2x sintered disc + Pressure plate Tilton Engineering®

The adapter kit enables users connection of Toyota JZ 1JZ 2JZ engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Engine List
  • Toyota 1JZ / 1JZ-FSE / 1JZ-GE / 1JZ-GTE (non VVT-i / VVT-i version)
  • Toyota 2JZ / 2JZ-FSE / 2JZ-GE / 2JZ-GTE (non VVT-i / VVT-i version)
Gearbox List

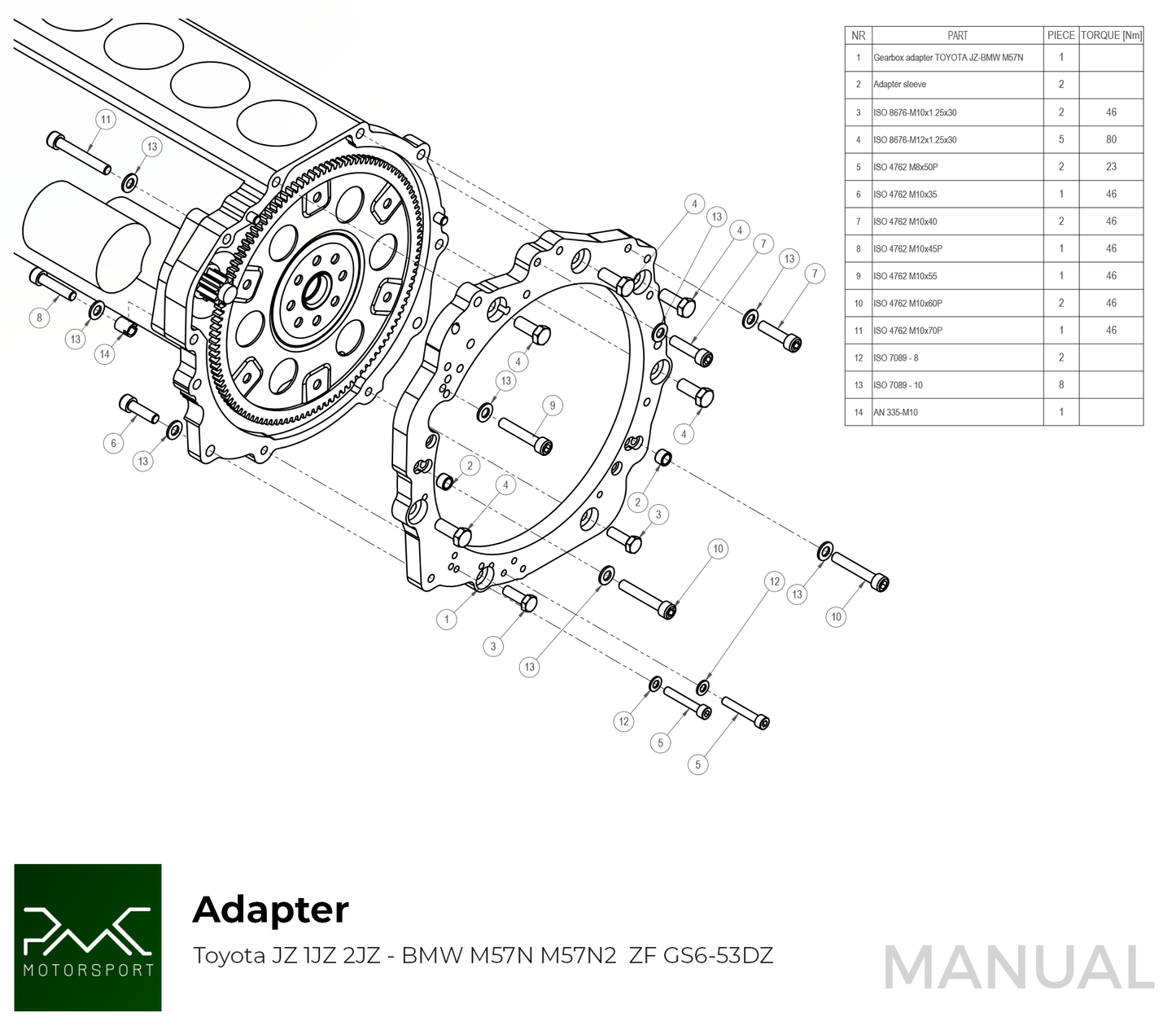

  • BMW M57N M57N2 23.00 7565213 GS6-53DZ HGU (THGU) 6-speed 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725
    • BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2
  • BMW M57N M57N2 23.00 753 9000 GS6-53DZ HGK (THGK) 6-speed 1067 010 004 ZF 1067 401 116 1067401116
    • BMW E90 325D 330D E90N 325D M57N2 E91 325D 330D E91N 325 M57N2 E92/e93 325D 330D M57N2

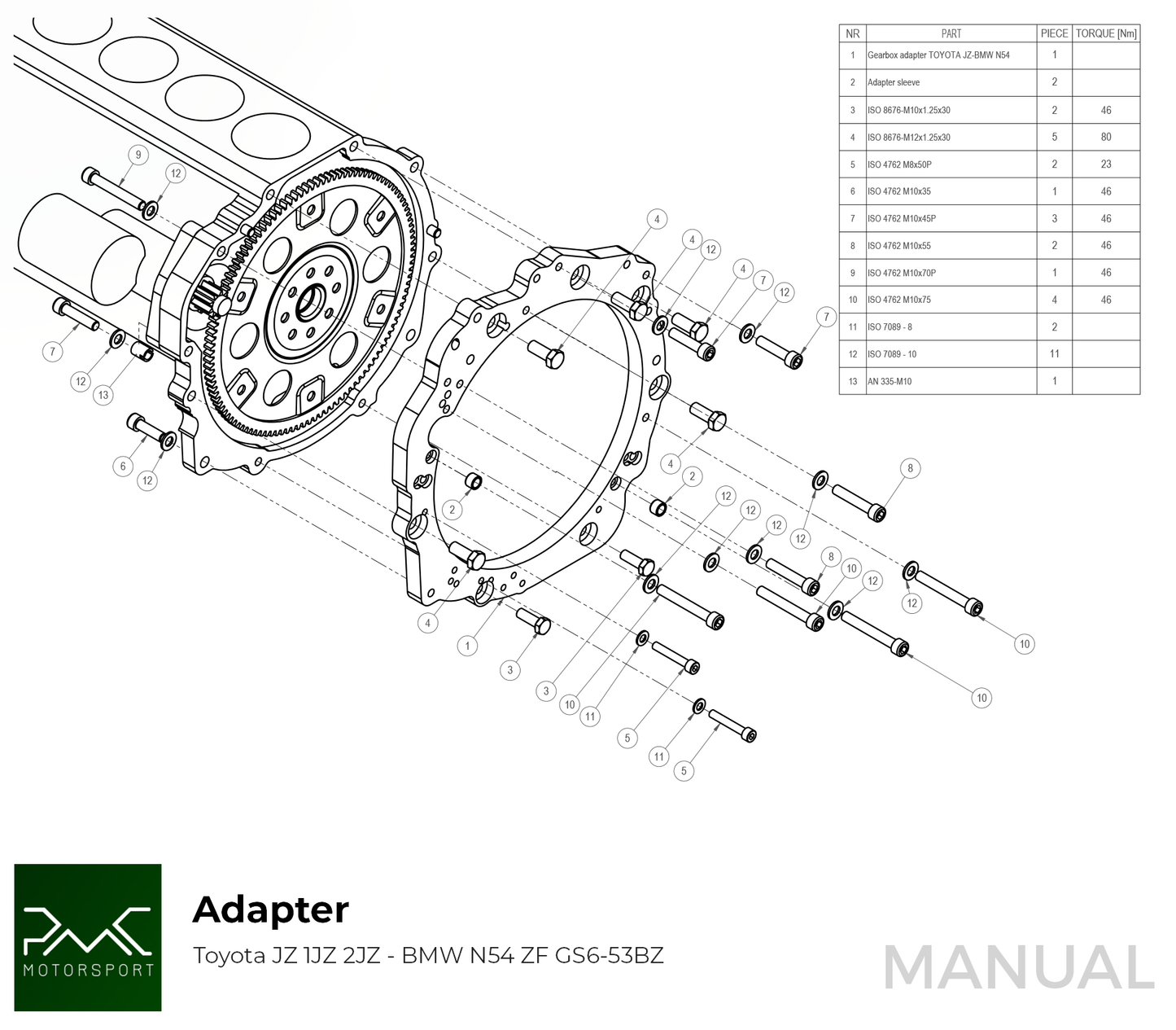

  • BMW N54 23.00 7565215 GS6-53BZ HGX (THGX) 6-speed 1067 010 016 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 571 423 / 23 00 7 567 242 BMW E60 535i E90 335i N54

  • BMW N54 23.00 7581859 GS6-53BZ JGK (TJGK) 6-speed 1067 010 019 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 581 860 BMW E82 135i N54 E88 135i N54

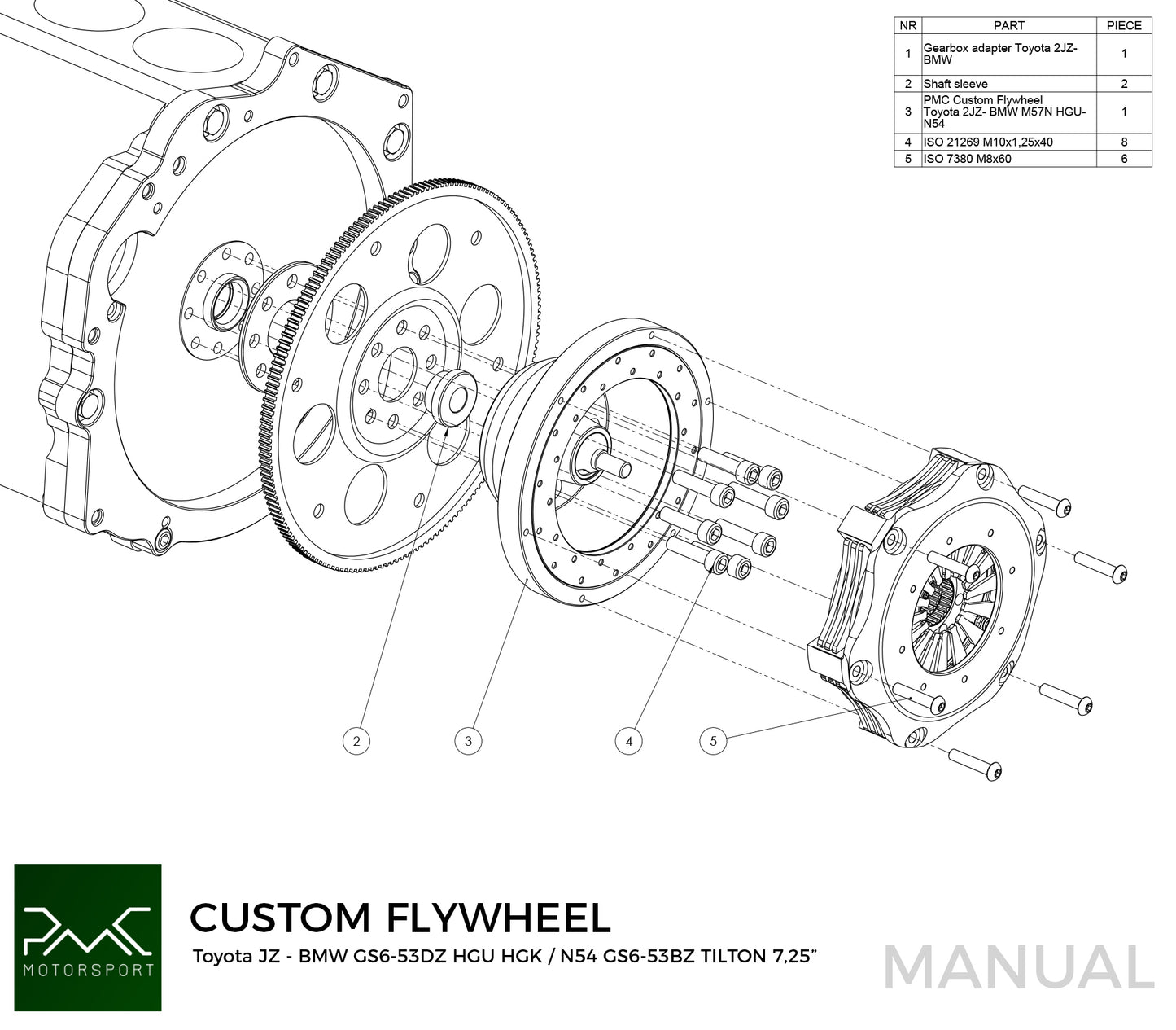

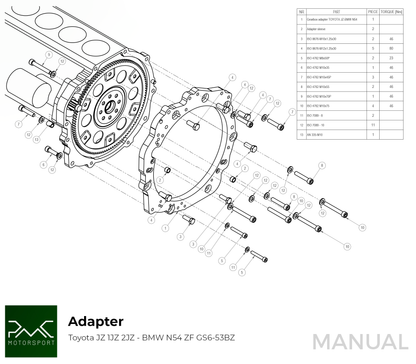

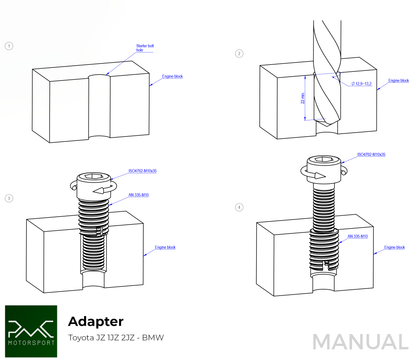

Manual

  • Use the flywheel / ring gear from the automatic version and one spacer (OE 32116-22020 4.5mm) between the engine block and the flexplate
  • Tighten the flywheel to the same torque as OE.

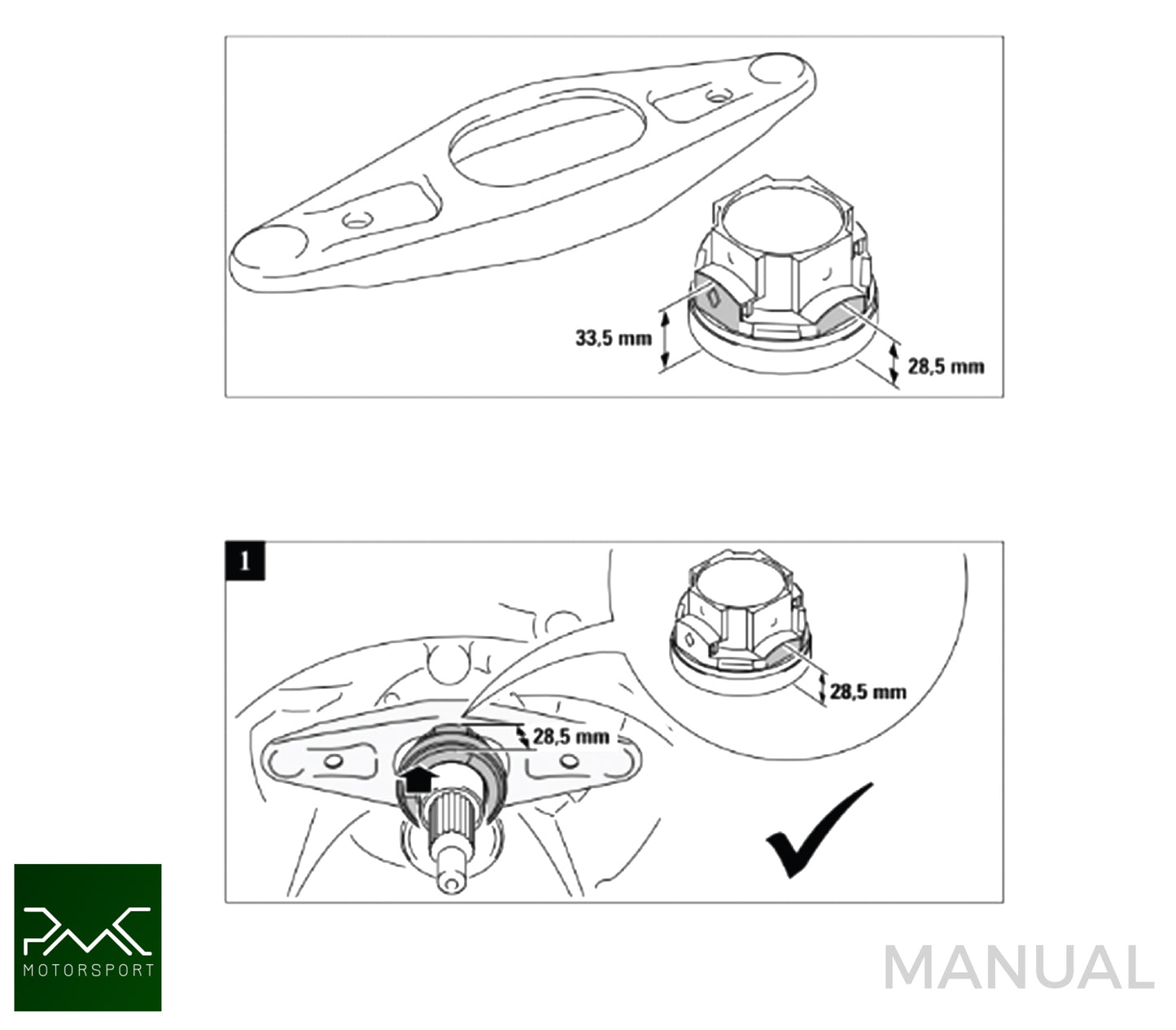

  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
  • Required adaptation of the clutch slave pump (change of the pump to a smaller one - piston diameter or shortening the pump stroke)

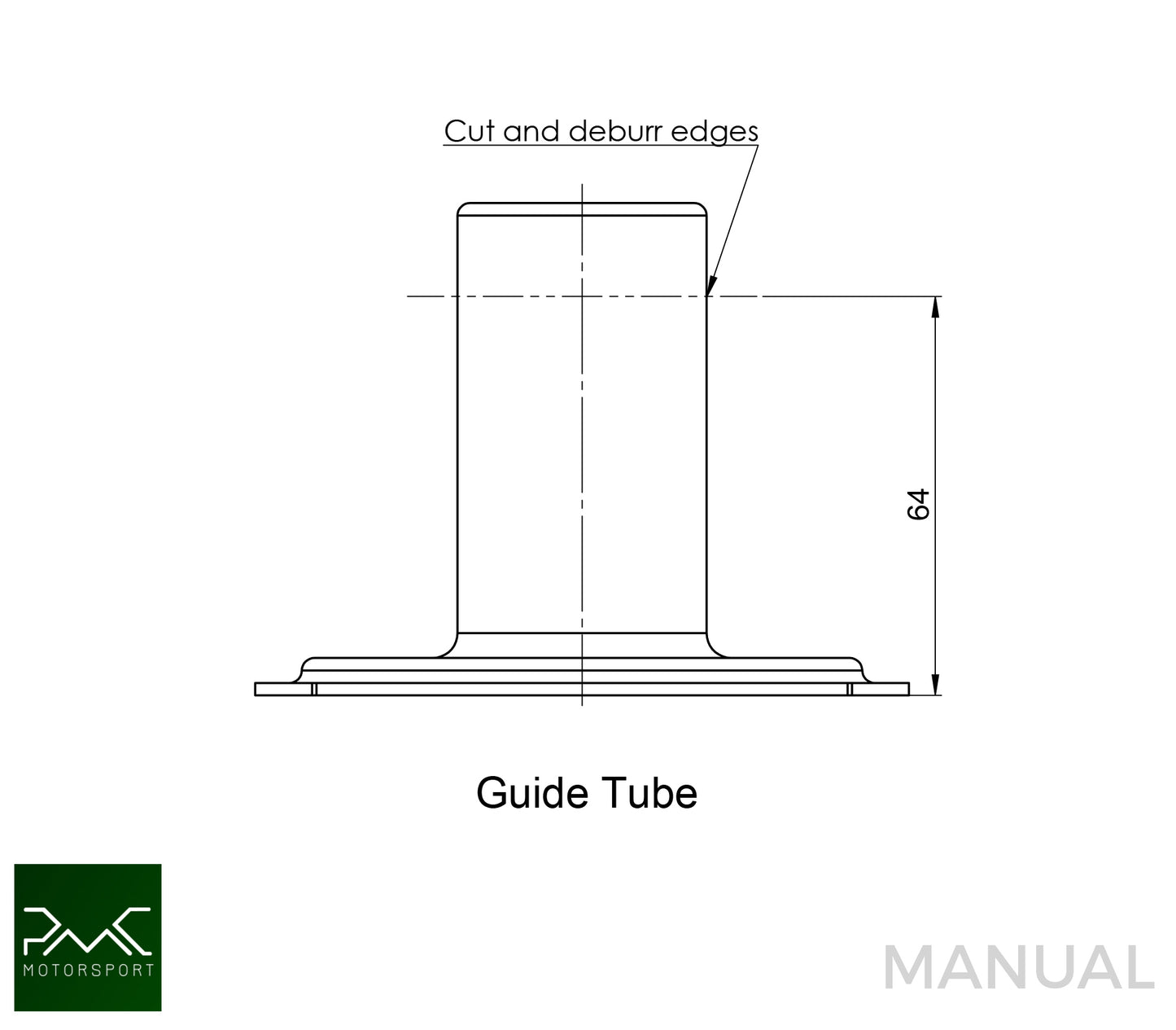

  • Guide tube shortening required BMW OEM 23 11 7 501 714



Engine:
Toyota JZ 1JZ 2JZ
Gearbox:
  • BMW M57N2 ZF GS6-53DZ HGU E90 330D 6-speed (DIESEL)
  • BMW M57N2 ZF GS6-53DZ HGK E90 330D 6-speed (DIESEL)
  • BMW N54 ZF GS6-53BZ 335i 135i 535i 6-speed (PETROL)
CLUTCH SET
Set with Clutch:
Yes
Flywheel Type:
Ultralight Race 184mm / 7.25"
Clutch Set:
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-312 HGG Twin disc (POT)
Clutch disc required:
Included
Release bearing required:
Dedicated to your gearbox
Clutch fork required:
dedicated to your gearbox
Starter required:
Toyota JZ (OE) Brak w zestawie
Flexplate / ring gear required:
Toyota OEM 32101-30090 | 32101-22050
ADDITIONAL INFORMATION
Adapter Kit Type:
Motorsport
Gearbox adapter thickness:
20mm / 0.78"
Replaceable friction surface:
Yes

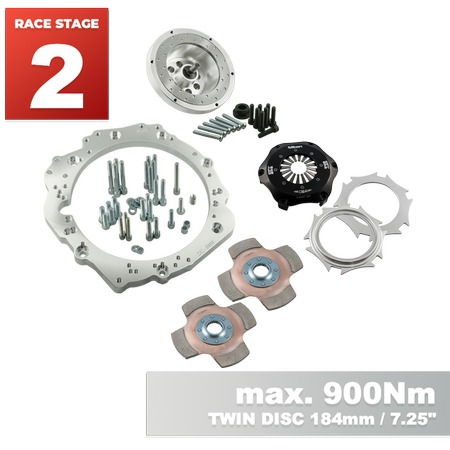

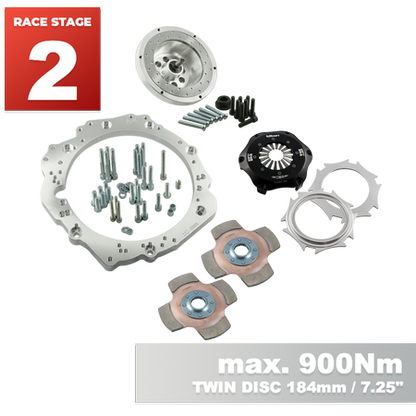

Set includes:

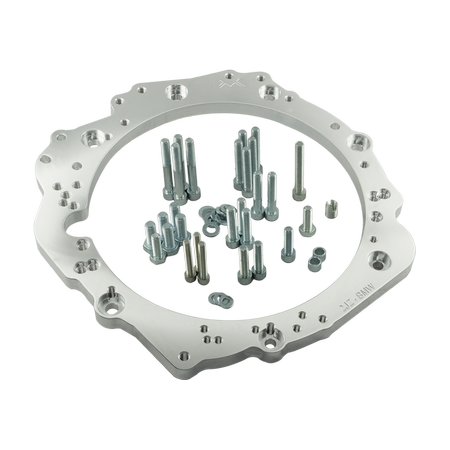

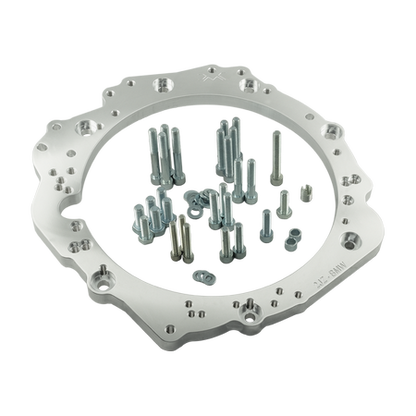

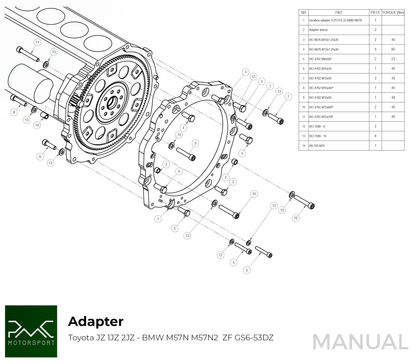

  • Aluminium gearbox adapter
  • Gearbox adapter bolts

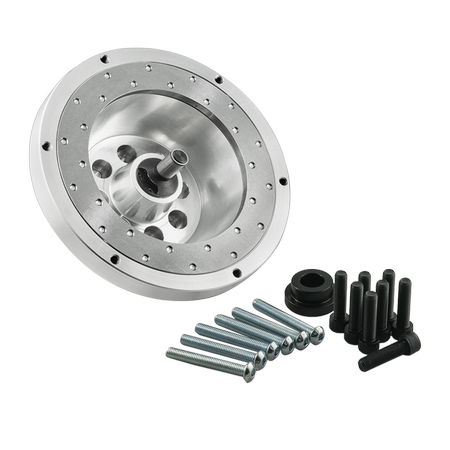

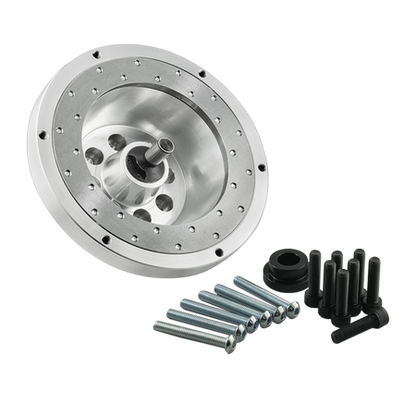

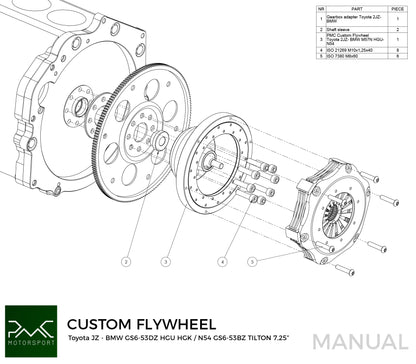

  • Custom Flywheel
  • Crankshaft bolts kit
  • Clutch cover - pressure plate bolts kit

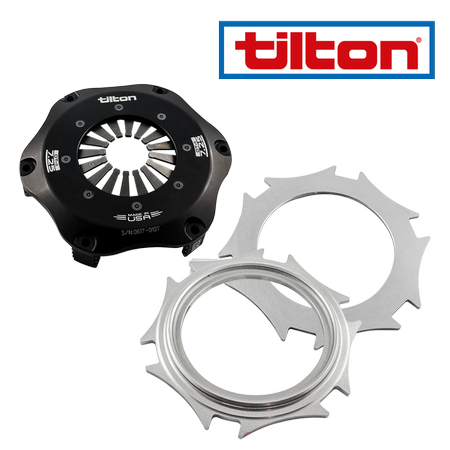

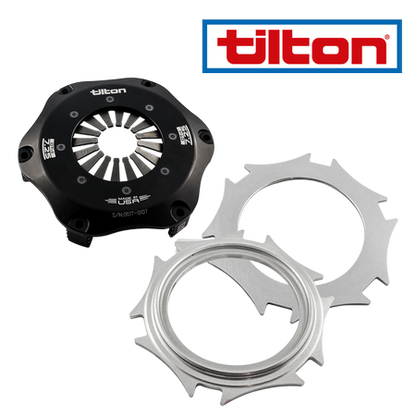

  • Tilton OT-II Cerametallic Pressure Plate 7.25" 66-312 HGG Twin disc (POT)

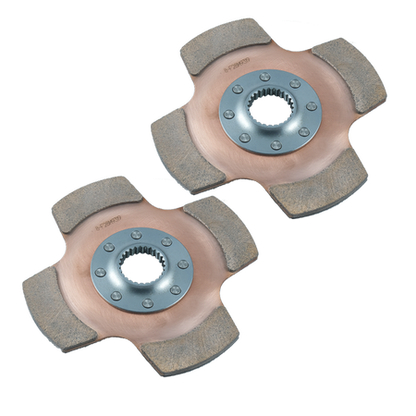

  • 2 Tarcze spiekowe Tilton 64185-8-VV-55
Product sales codes included:
  • F0BMW-JZ (3645)
  • K0HGU-TP-JZ (974)
  • Tilton OT-II Cerametallic Pressure Plate 7.25" 66-312 HGG Twin disc (POT)
  • TLT64185-8-VV-55

Why PMC Motorsport?

Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.

Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.
