PMC Motorsport - STAGE 1 GM Chevrolet LS - Nissan 350Z Z33 370Z Z34 - 250mm / 9.84" (S1-LS-350-CC)

PMC Motorsport - STAGE 1 GM Chevrolet LS - Nissan 350Z Z33 370Z Z34 - 250mm / 9.84" (S1-LS-350-CC)

PMC - S1-LS-350-CC

$2,492.78 USD
$2,492.78 USD
Sale Sold out
Need help finding the right part? Call us at (239) 270-5116
Mon-Fri 10–5 EST | Sales & Support
Sat-Sun 10–5 EST | Sales
View full details

OVERVIEW

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion)

GM Chevrolet V8 LS- Nissan 350Z Z33 / Nissan 370Z Z34 - 250mm / 9.84" - Competition Clutch CC-6073-2600

The adapter kit enables users connection of GM Chevrolet V8 LS engine series with Nissan gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Engine List
  • General Motors LS
    • Chevrolet LS 1
    • Chevrolet LS 2
    • Chevrolet LS 3
    • Chevrolet LS 6
    • Chevrolet LS 7
Gearbox List
  • Nissan CD001
  • Nissan 350Z type CD005 32010CD005
  • Nissan 350Z type CD006 32010CD006
  • Nissan 350Z type CD007 32010CD007
  • Nissan 350Z type CD008 32010CD008
  • Nissan 350Z type CD009 32010CD009
  • Nissan 370Z 320B0-1EA0A JK40C



Model Model series Date Part number   ADD
350Z DE Z33 06/02 -10/02 32010-CD000   1st and 2nd Double Cone Synchro
  Z33 10/02 - 02/03 32010-CD003   1st and 2nd Double Cone Synchro
  Z33 02/03 - 04/03 32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 04/03 - 07/03 32010-CD006   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 07/03 - 07/04 32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  Z33 07/04 - 11/06 32010-CD009   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
350Z HR Z33 11/06 - 07/07 32010-JK400   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  Z33 07/07 - 32010-JK41B   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
370Z Z34 06/09 - 320B0-1EA0A Non-Sport (without Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  Z34 06/09 - 320B0-1EA0B Sport / NISMO (with Synchro-rev) 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 DE V35  08/02 - 02/03  32010-CD003   1st and 2nd Double Cone Synchro
  V35  12/02 - 02/03  32010-CD005   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35  02/03 - 04/03  32010-CD005 All models incl.  1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35 04/03 - 09/03  32010-CD007
  V35 09/03 - 08/04  32010-CD008   1st 3rd and 4th Double Cone Synchro | 2nd Gear Triple Cone Syncro
  V35 11/04 -  32010-CD009  Superseded CD00A 1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G35 HR V36 sedan 08/06 - 06/07 32010-JK400   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
  V36 sedan 06/07 - 07/08 32010-JK40B    1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q40 V36 sedan ALL 32010-JK41A    1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro
G37 / Q60 CV36 Coupe ALL 32010-JK41A   1st 2nd and 3rd Triple Cone Synchro | 4th Gear Double Cone Syncro



RATIO:

  • 1st 3.794
  • 2nd 2.324
  • 3rd 1.624
  • 4th 1.271
  • 5th 1
  • 6th 0.794
  • Reverse 3.446



Manual

  • Use the flywheel / ring gear from the automatic version
  • Tighten the flywheel to the same torque as OE.



Engine:
GM Small Block V8 Chevrolet LS LS1 LS2 LS3 LS6 LS7 6-bolt Crankshaft
Gearbox:
  • Nissan CD001
  • Nissan 350Z type CD005 32010CD005
  • Nissan 350Z type CD006 32010CD006
  • Nissan 350Z type CD007 32010CD007
  • Nissan 350Z type CD008 32010CD008
  • Nissan 350Z type CD009 32010CD009
  • Nissan 370Z 320B0-1EA0A JK40C
  • Nissan 350Z type CD00A
Clutch Set
Set with Clutch:
Yes
Flywheel Type:
Single Disc
Clutch Set:
Competition Clutch CC-6073-2600
Clutch disc required:
Included
Release bearing required:
Included
Clutch fork required:
dedicated to your gearbox
Starter required:
Chevrolet LS (OE) Not Inc.
Flexplate / ring gear required:
Chevrolet LS OE 12654640 12553054 12563136 12580709 12602448 12606620 12637677
ADDITIONAL INFORMATION
Adapter Kit Type:
Motorsport
Daily
Gearbox adapter thickness:
35mm / 1.37"
Replaceable friction surface:
Yes

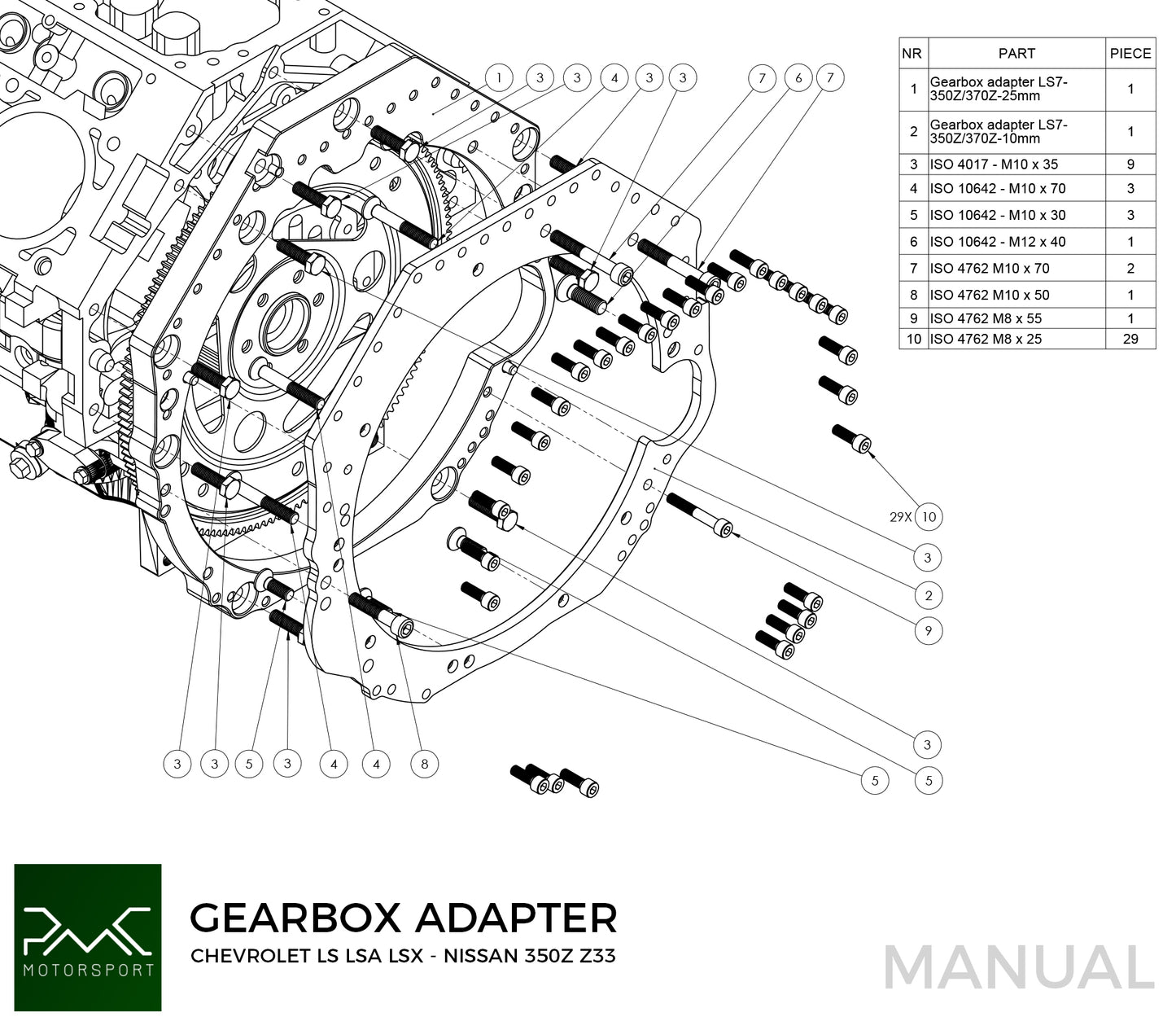

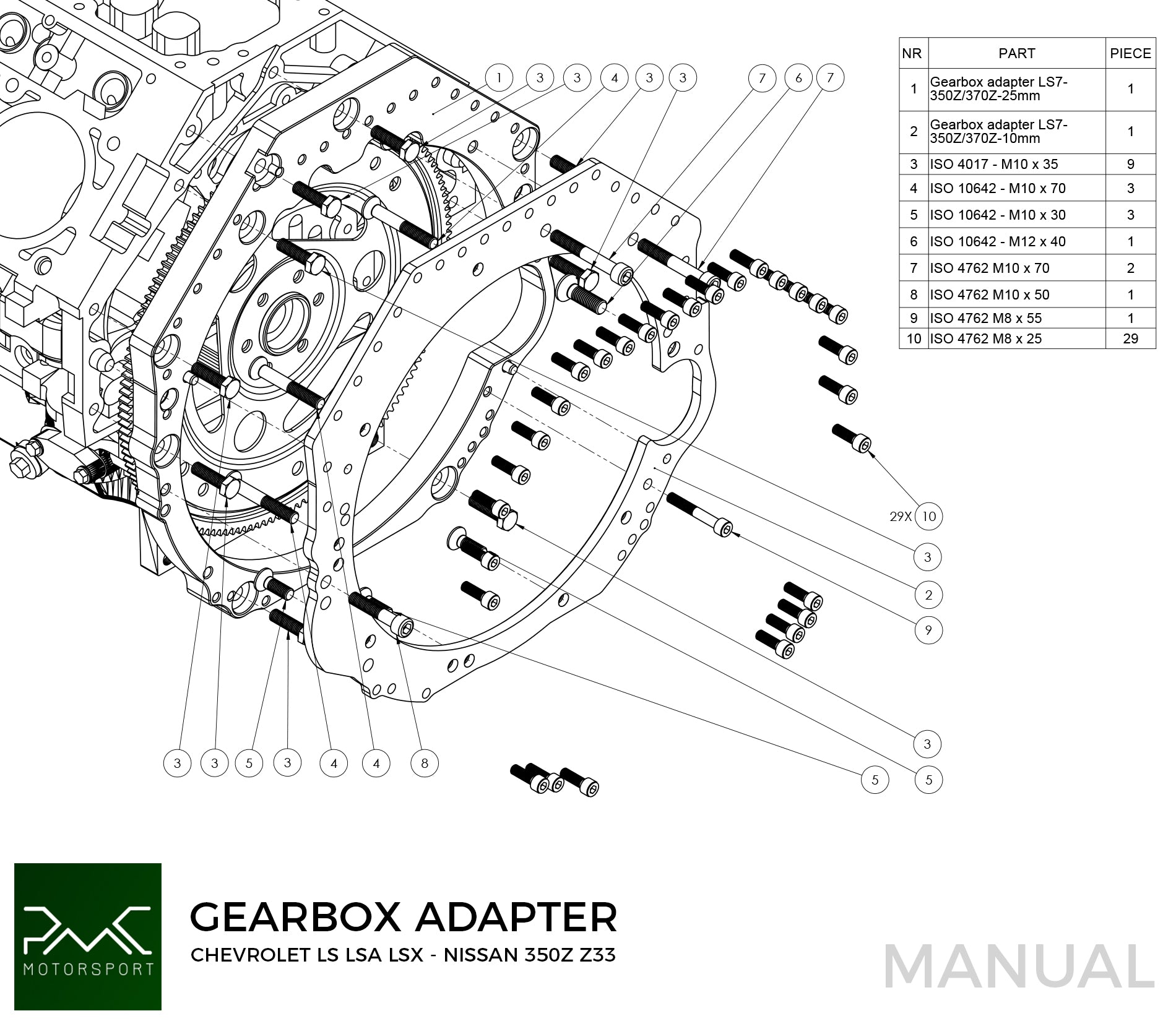

Set includes:

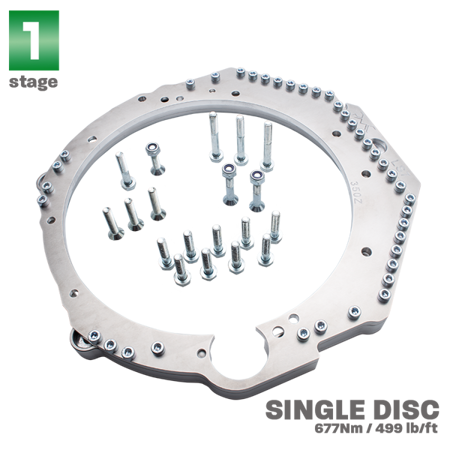

  • Aluminium gearbox adapter
  • Gearbox adapter bolts
  • Custom Flywheel
  • Clutch cover - pressure plate bolts kit
  • Competition Clutch CC-6073-2600
Product sales codes included:
  • F0350-LS (2061)
  • K0350-LS (1005)
  • Competition Clutch CC-6073-2600

Why PMC Motorsport?

Experience. Thousands of manufactured adapters and satisfied customers worldwide. PMC Motorsport adapters are used in both daily driver vehicles and professional projects intended for competitive motorsport.

Professionalism. From design to implementation, our parts go through a thorough process. Every component for which we produce parts is measured using coordinate measuring machines and 3D scanners. Prototypes undergo numerous tests to eliminate any possible issues in their usage. We use only certified materials from trusted suppliers in our production. We have a modern CNC machine park and experienced staff.

Quality. We prioritize quality in the parts we manufacture from the outset. After each production stage, the component undergoes inspection. Every subassembly we produce is engraved with a serial production number. Our quality is confirmed by the ISO PN-EN ISO 9001:2015 certificate.
