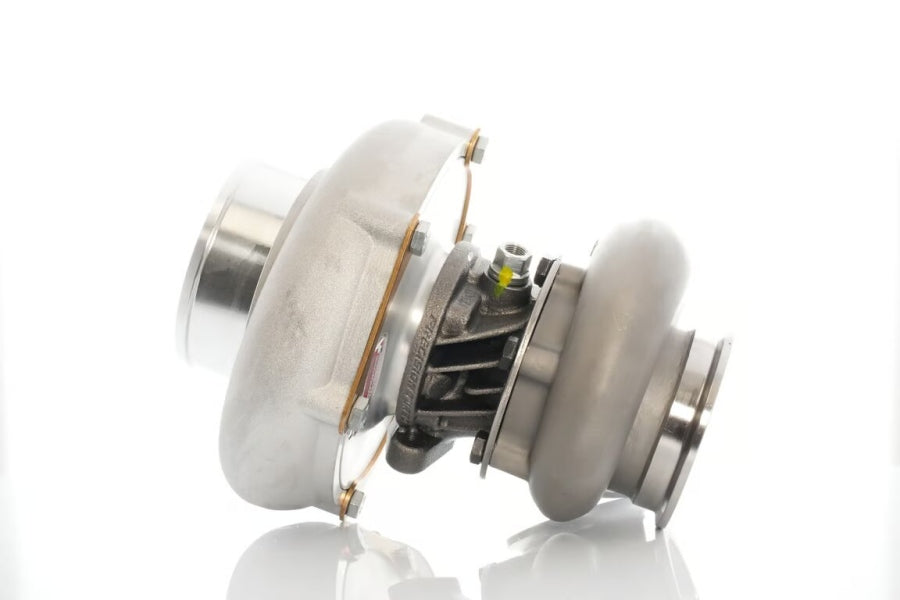

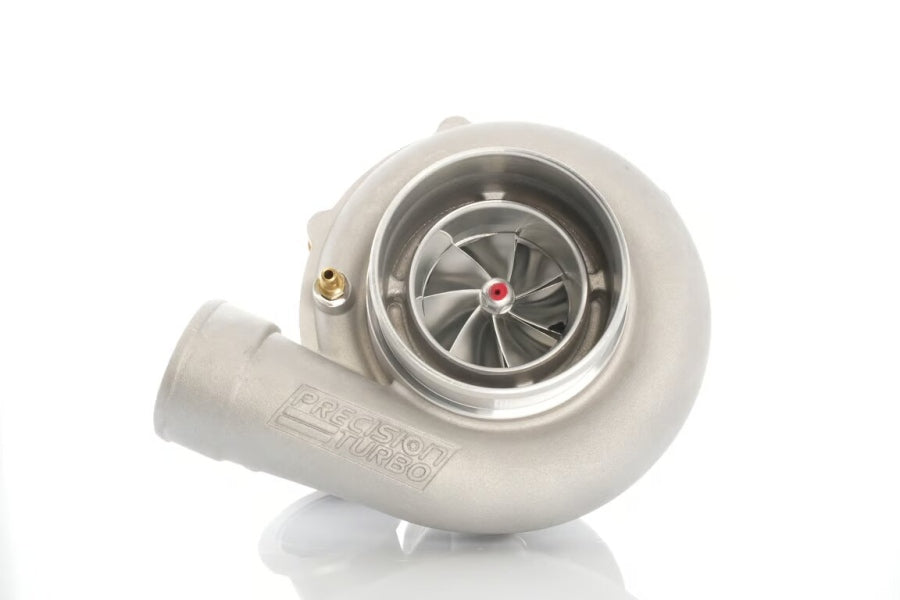

Precision Turbo - Precision Turbo 56mm Next Gen 5658 Turbo

THE ALL-NEW 5658 NEXT GEN

Key Features

• Exclusive NEXT GEN 56mm CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
• Compressor Cover enhancements provide 10% more flow over the previous Gen 2 cover
• Air-cooled, dual ceramic ball-bearing center housing rotating assembly(CHRA)
• High flow / highly efficient 58mm CEA turbine wheel
  Precision Next Gen 5662 turbo with all new 56mm 7x7 CEA compressor wheel and 58mm turbine wheel. Supports up to 770HP with ball bearing response and durability.


Features

Compressor Wheel Inducer: 55.98mm
Compressor Wheel Exducer: 76.20mm
Compressor Wheel Tip: 80.40mm
Max Shaft Speed: 180,460rpm

Power Rating

5658: 770HP

RECORD-SETTING NEXT GEN TECHNOLOGY

The NextGEN 56mm turbo is set to replace the GEN 2 55 and Gen 2 58 turbos. It has a state-of-the-art 56mm Next GEN compressor wheel machined from a 2618 aluminum forging and a standard rotation configuration. The NextGEN 56 is proven to provide exceptional performance.

More Information

Precision Turbo
Compressor Wheel Material Billet
Compressor Wheel Inducer 56mm
Center Cartridge Ball Bearing
Exhaust Housing Material Cast Iron
Compressor Housings "SCP (Anti-surge)" - 4.0"/2.5"
Exhaust Wheel Exducer 58mm
Exhaust Housing Inlet T3
Exhaust Housing Outlet V-Band
Exhaust Housing AR .63
Carb Legal No
