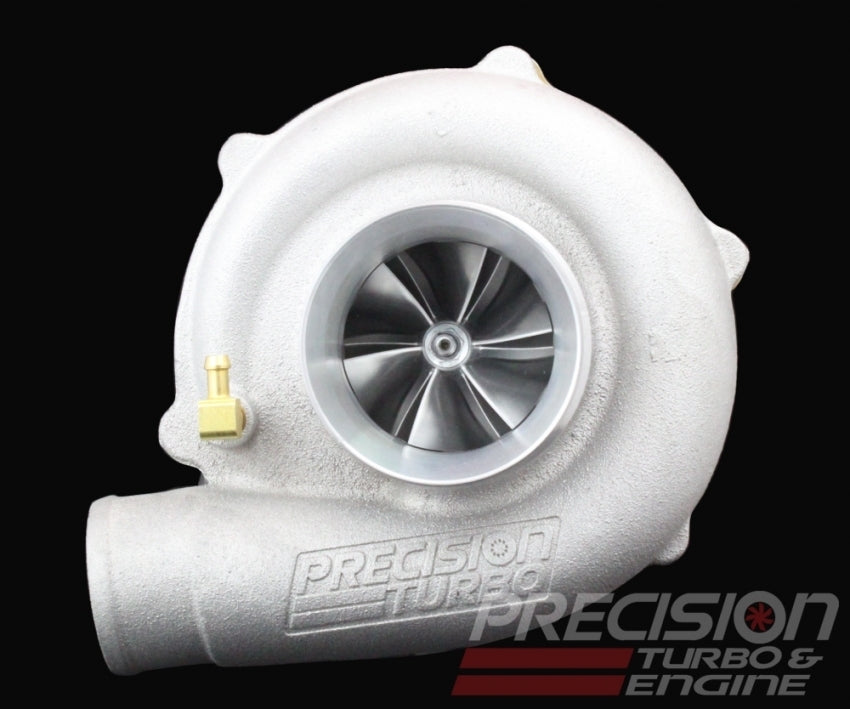

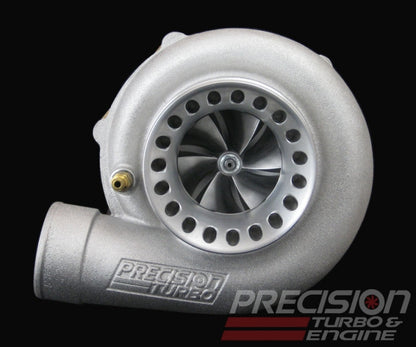

Precision Turbo - Street and Race Turbocharger - PT 6266 CEA

HP Rating: 745

Featuring the latest and greatest in compressor and turbine wheel technology from Precision, the PT6266 CEA® offers a unique combination of Competition Engineered Aerodynamics (CEA®) with both hot and cold sides! Offering a 30-45 horsepower increase over similarly sized turbine wheel equipped turbos, the PT6266 CEA® is the perfect choice for those wanting to make more power without changing their current system.

Ball Bearing Option Available

PTE's PT 6266 Turbocharger features the following:
Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging
Higher efficiency and faster transient response for maximum power and performance
62mm inducer compressor wheel
- Compressor cover options:
"E" compressor cover 3.0" inlet/2.0" outlet
"Ported S" compressor cover 4.0" inlet/2.5" outlet
Exclusive CEA® (Competition Engineered Aerodynamics) 66mm, 76 trim turbine wheel
- Turbine housing options:
 cast 310 stainless steel THV5S / 1.05 A/R
T3 .63 or .82 A/R with 4 bolt (2.5") discharge
T3 .63 A/R with 5 bolt discharge (with or without wastegate hole)
T3 .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge
V-Band inlet .82 A/R with V-Band discharge
T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" OD (outer diameter) V-Band discharge
T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" OD (outer diameter) V-Band discharge
Buick .63 or .85 A/R
K26 .82 A/R
- Available with either a Hydrodynamic 360 thrust bearing system, or an Air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)
