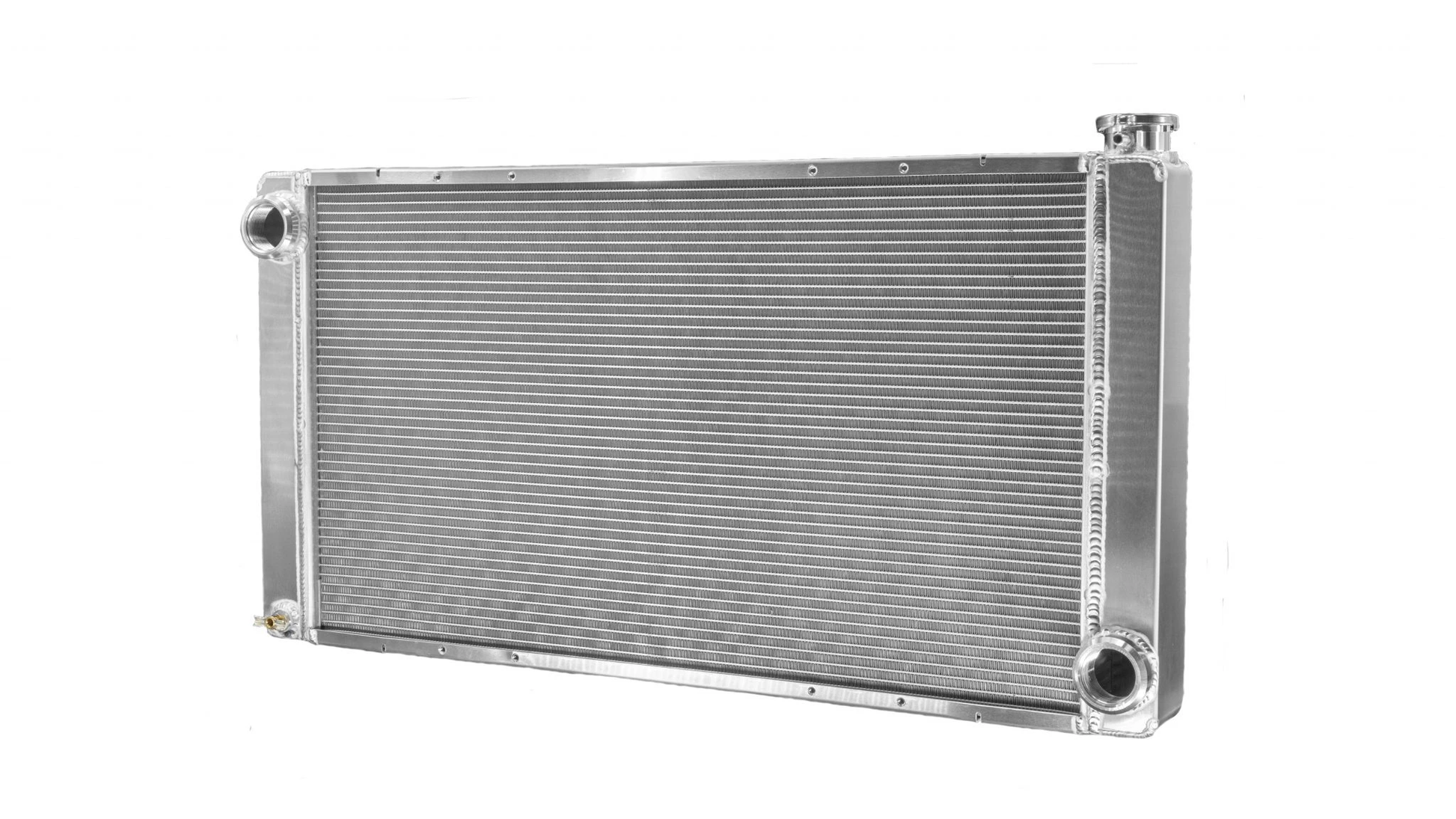

PWR - 55mm Universal Performance Radiator (PWR Open 33″ x 17″) -20 AN Port Inlet & Low Outlet

Universal Radiator Single Pass Open, 33″ x 17″ Low Outlet (Specify inlet / outlet fittings)

PWR NA universal radiators are excellent, general-purpose radiators capable of cooling many applications depending on the vehicle and use. Our universal radiators come standard with a 55mm thick core utilizing rolled dimpled tubes with our engineered R-shape fin. These radiators are available in either a single or double pass configuration as well as being an open or closed system. The inlet and outlet come with our -20AN universal port bung so you can select the inlet size of your choice. Mounting provisions for SPAL fans and fan ring are included with the radiators.

*Upper Fittings and Radiator Cap Sold Separately.

Radiator Style: Crossflow
Number of Passes: Single
Inlet Location: Upper Driver
Inlet Size: -20 AN Universal Port Bung
Outlet Location: Lower Passenger
Outlet Size: -20 AN Universal Port Bung
Tube Size: 55mm
