RACE STAGE 1 Honda K K20 K24 - BMW M57N2 HGU HGK / N54 Manual 6-Speed- 240mm / 9.45" ( RS1-K-HGU-SP )

RACE STAGE 1 Honda K K20 K24 - BMW M57N2 HGU HGK / N54 Manual 6-Speed- 240mm / 9.45" ( RS1-K-HGU-SP )

SKU: PMC - RS1-K-HGU-SP

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

Regular price $1,674.99 USD
Regular price $1,674.99 USD Sale price $1,674.99 USD
Sale Sold out

PMC Motorsport RACE STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Honda K K20 K24 - BMW M57N M57N2 ZF GS6-53DZ HGU HGK E90 325D 330D 6-speed Diesel / N54 ZF GS6-53BZ 135i 335i 553i - 240mm / 9.45" - Sintered disc + Sachs Performance Pressure Plate

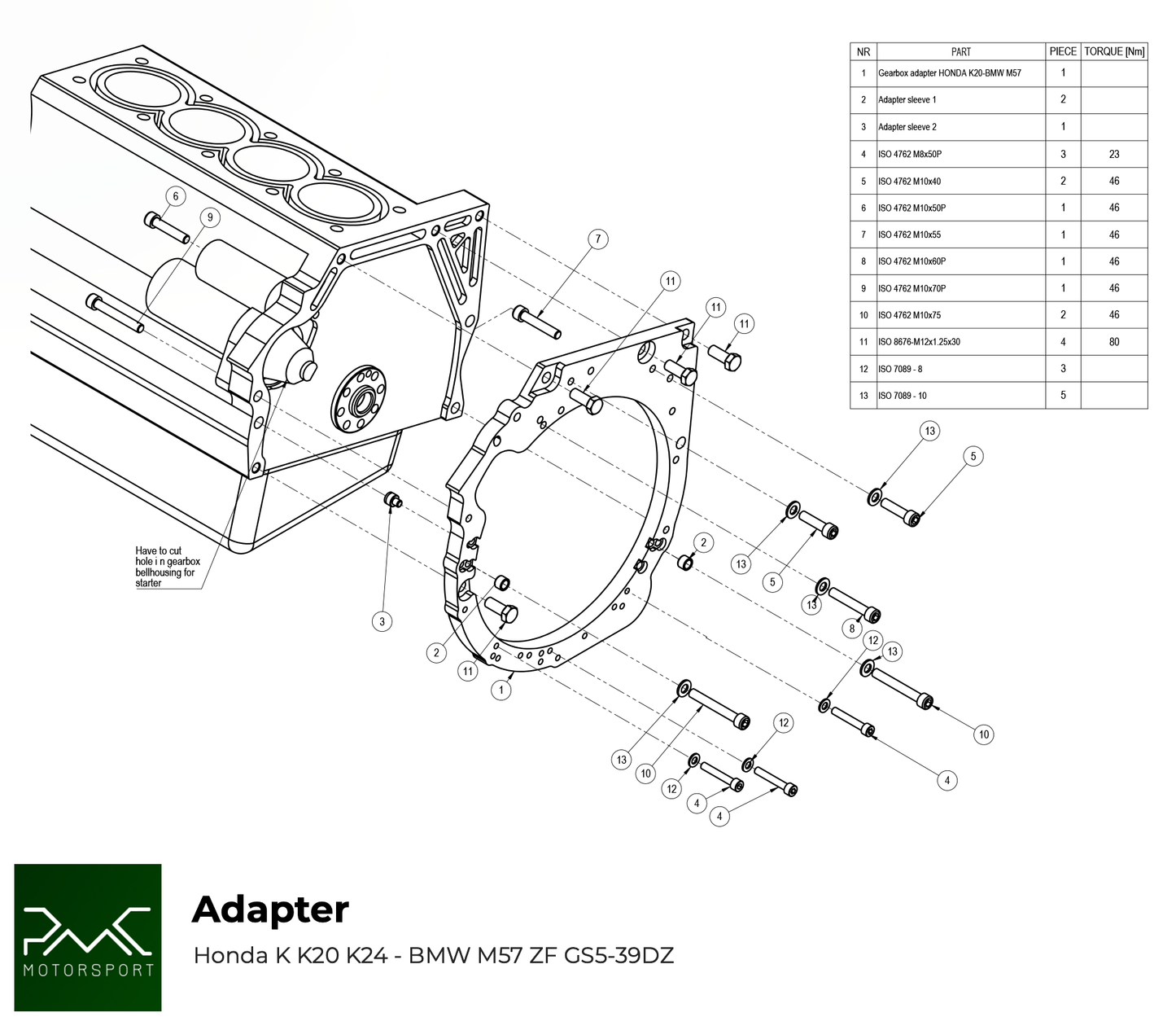

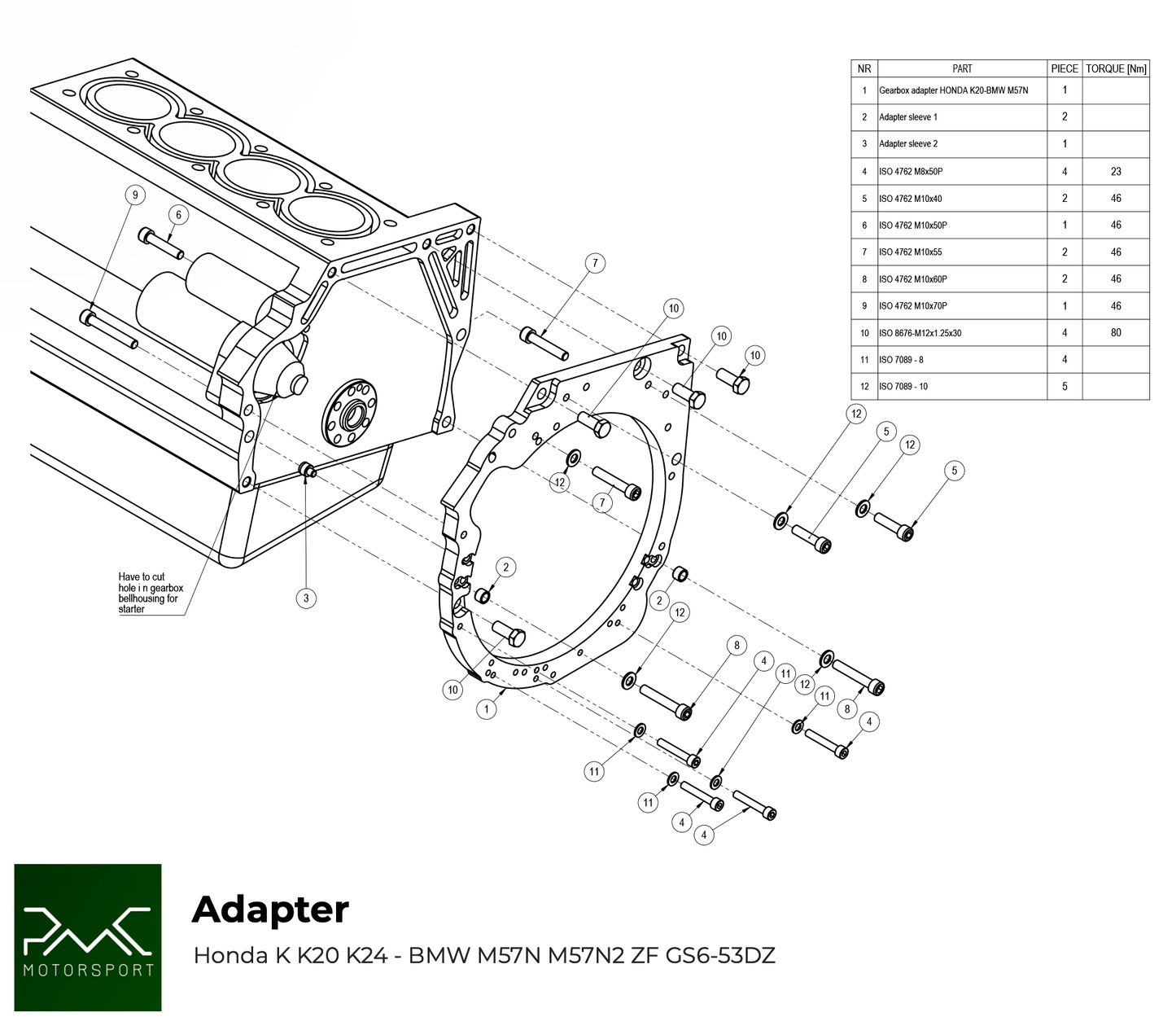

The adapter kit enables users connection of Honda K K20 K24 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



 Engine List
  • Honda K K20
    • Honda K20A
    • Honda K20A1
    • Honda K20A2
    • Honda K20A3
    • Honda K20A4
    • Honda K20A6
    • Honda K20Z1
    • Honda K20Z2
    • Honda K20Z3
    • Honda K20Z4
    • Honda K K24
      • Honda K24A1
      • Honda K24A2
      • Honda K24A3
      • Honda K24A4
      • Honda K24A8
      • Honda K24Z1
      • Honda K24Z2
      • Honda K24Z3
      • Honda K24Z4
      • Honda K24Z5
      • Honda K24Z6
      • Honda K24Z7

     Gearbox List
    • BMW ZF (ZF Friedrichshafen) M57N2 23.00 7565213 ZF GS6-53DZ HGU (THGU) 6-speed 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725
      • BMW E90 325D 330D
      • BMW E90N 325D M57N2
      • BMW E91 325D 330D
      • BMW E91N 325 M57N2
      • BMW E92 325D 330D M57N2
      • BMW E93 325D 330D M57N2
    • BMW ZF (ZF Friedrichshafen) M57N2 23.00 753 9000 ZF GS6-53DZ HGK (THGK) 6-speed 1067 010 004 ZF 1067 401 116 1067401116
      • BMW E90 325D 330D
      • BMW E90N 325D M57N2
      • BMW E91 325D 330D
      • BMW E91N 325 M57N2
      • BMW E92 325D 330D M57N2
      • BMW E93 325D 330D M57N2
    • BMW ZF (ZF Friedrichshafen) N54 23.00 7565215 ZF GS6-53BZ HGX (THGX) 6-speed 1067 010 016 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 571 423 / 23 00 7 567 242
      • BMW E60 535i
      • BMW E90 335i N54
    • BMW ZF (ZF Friedrichshafen) N54 23.00 7581859 ZF GS6-53BZ JGK (TJGK) 6-speed 1067 010 019 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 581 860
      • BMW E82 135i N54
      • BMW E88 135i N54

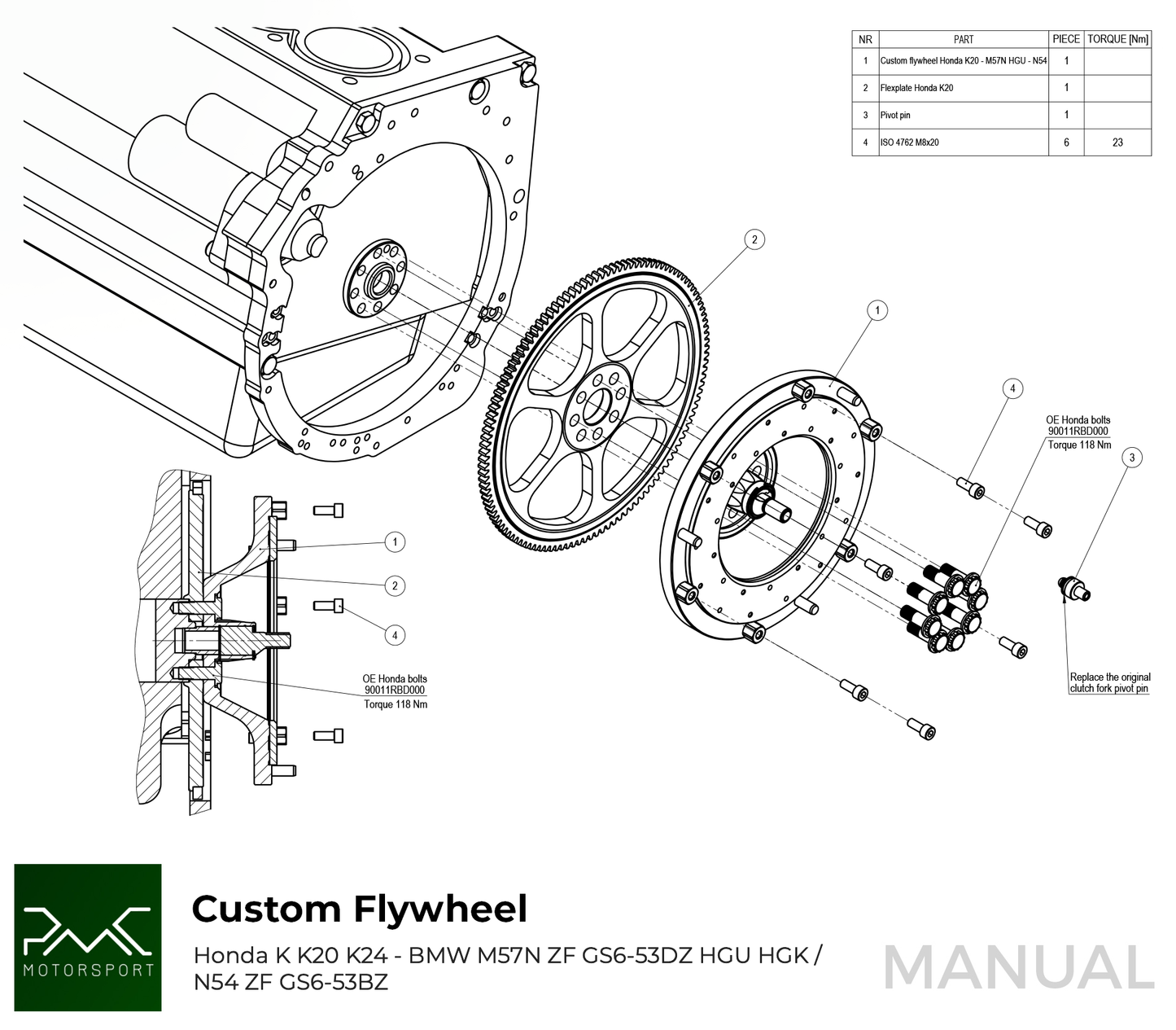

    Manual

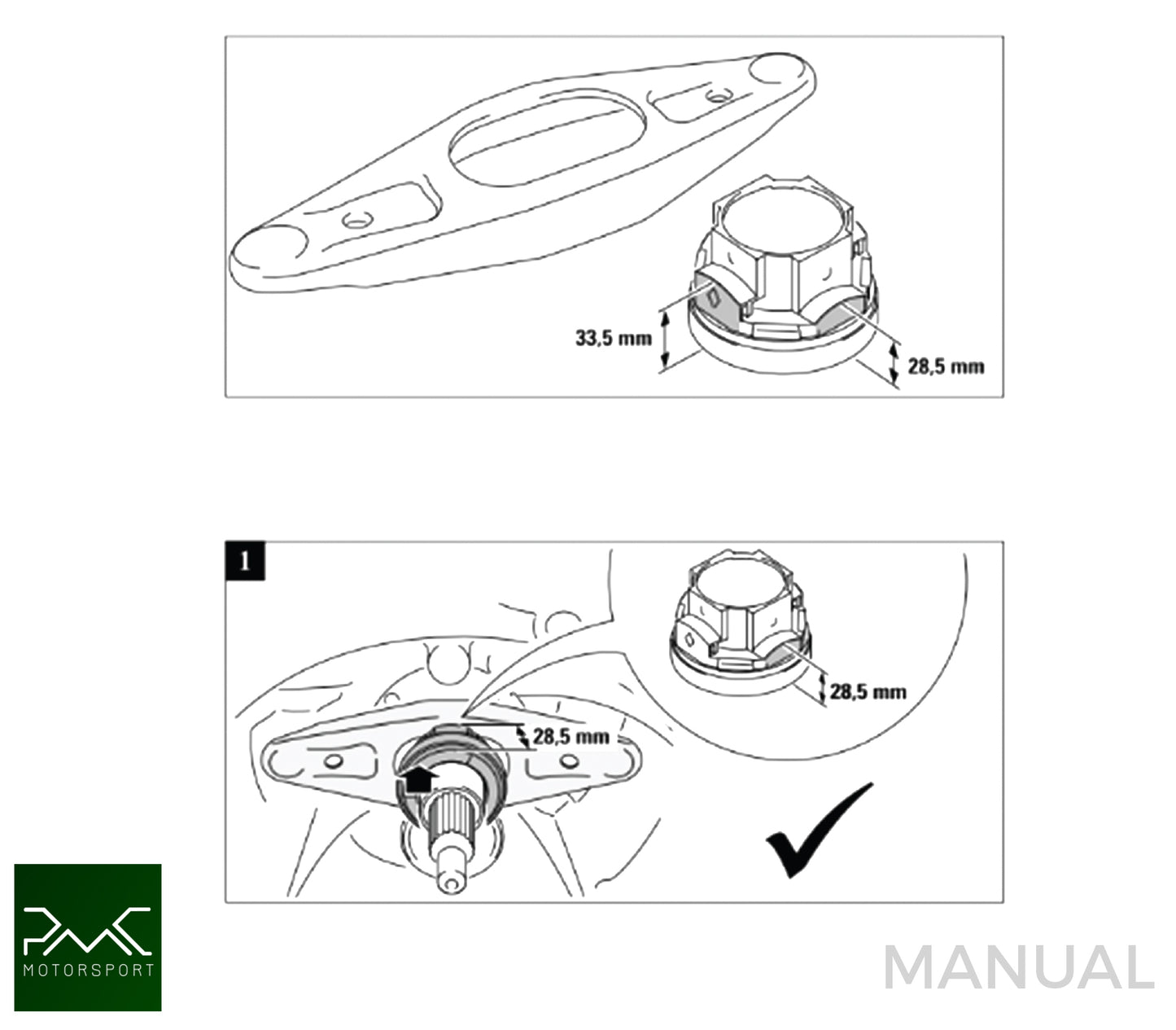

    • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
    • Use a 240mm clutch disc with a spline dedicate to your gearbox.

    Engine:
    Honda K K20 K24
    Gearbox:
    • BMW M57N2 ZF GS6-53DZ HGU E90 330D 6-speed (DIESEL)
    • BMW M57N2 ZF GS6-53DZ HGK E90 330D 6-speed (DIESEL)
    • BMW N54 ZF GS6-53BZ 335i 135i 535i 6-speed (PETROL)
    CLUTCH SET
    Set with Clutch:
    Yes
    Flywheel Type:
    Single Disc
    Clutch Set:

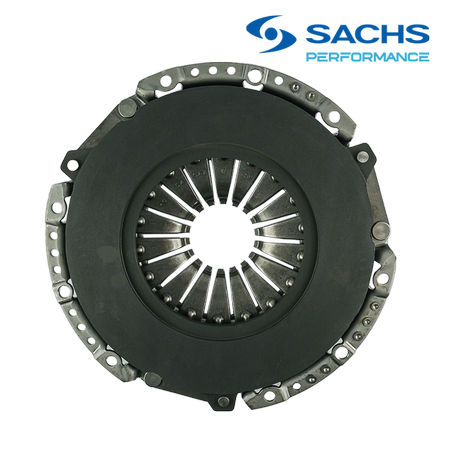

    Sachs Performance 88 308 200 1243 / 883082.001243
    Release bearing required:
    Dedicated to your gearbox
    Clutch fork required:
    dedicated to your gearbox
    Clutch disc required:
    Included
    Max torque:
    800Nm / 589,9 lb/ft
    Starter required:
    Honda K (OE) Brak w zestawie
    ADDITIONAL INFORMATION
    Adapter Kit Type:
    Motorsport
    Gearbox adapter thickness:
    20mm / 0.78"
    Replaceable friction surface:
    Yes

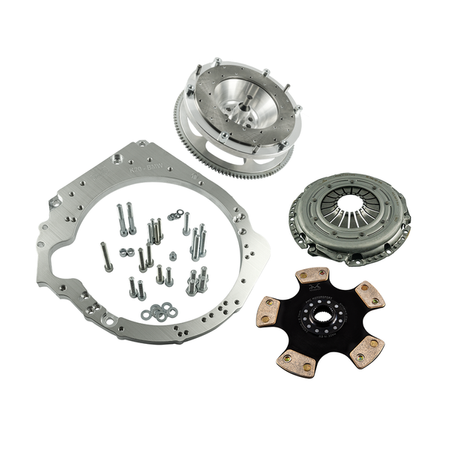

    Set includes:

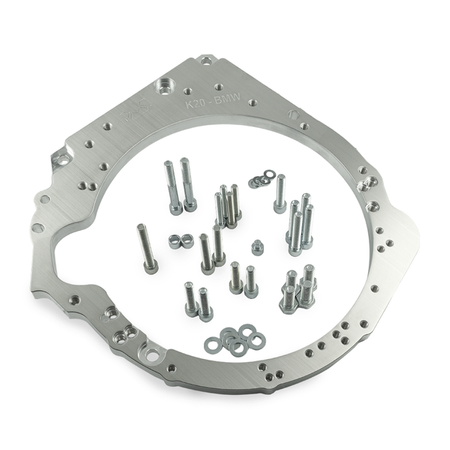

    • Aluminium gearbox adapter
    • Gearbox adapter bolts

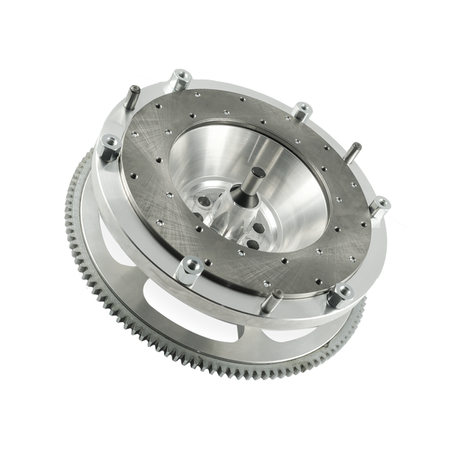

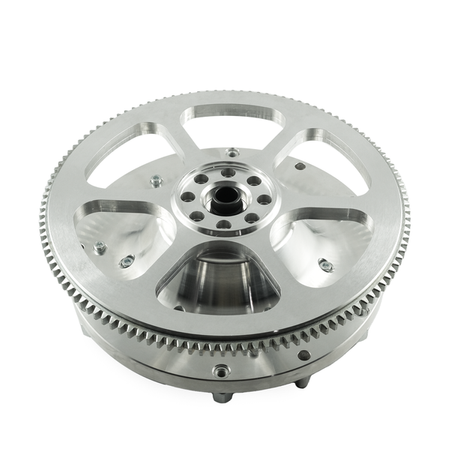

    • Custom Flywheel

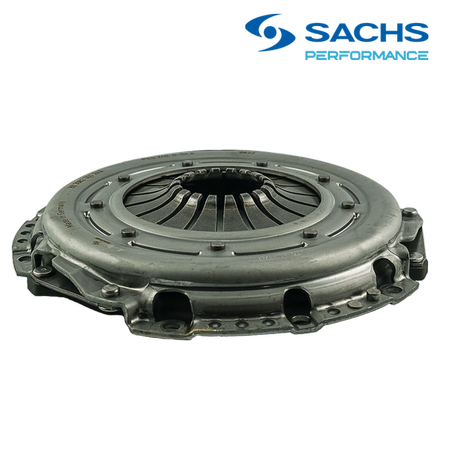

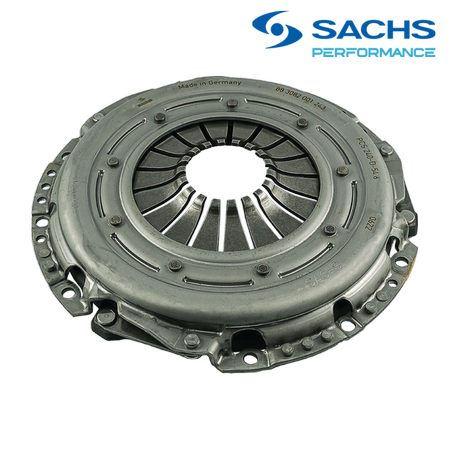

    • Sachs Performance 88 308 200 1243 / 883082.001243
    • Spiekowa tarcza sprzęgła 240-32,5x35-26N
    • Clutch cover - pressure plate bolts kit
    Product sales codes included:
    • SACHS 243 (1694)
    • K0HGU-240-K (4016)
    • 240-32,5X35-26N (1056)
    • F0BMW-K (1874)
