RACE STAGE 3 Honda K K20 K24 - BMW M57N2 HGU HGK / N54 - 184mm / 7.25" (S) (RS3-K-HGU-TS)
RACE STAGE 3 Honda K K20 K24 - BMW M57N2 HGU HGK / N54 - 184mm / 7.25" (S) (RS3-K-HGU-TS)
SKU: PMC - RS3-K-HGU-TS ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com
Regular price
$3,019.20 USD
Regular price
$2,720.00 USD
Sale price
$3,019.20 USD
Unit price
per
Couldn't load pickup availability
Now accepting crypto with
Choose Coinbase at checkout
Product Details
PMC Motorsport RACE STAGE 3 Adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Honda K20 K24 - BMW M57N2 ZF GS6-53DZ HGU HGK E90 325D 330D 6-speed Diesel / N54 ZF GS6-53BZ 135i 335i 553i - 184mm 7.25" STEP - 3x sintered disc + Pressure plate Tilton Engineering®
The adapter kit enables users connection of Honda K K20 K24 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.
- Designed in a CAD environment
- Only certified materials were used in the production process
- CNC machining
- Replaceable cast iron friction surface
- The flywheel is balanced prior to shipment
Engine list: |
|
Gearbox list: |
|
Manual
- Mount the flywheel to the same torque as OE (use OE Honda 90011-RBD-000 bolts (manual))
- The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
- Required adaptation of the clutch slave pump (change of the pump to a smaller one - piston diameter or shortening the pump stroke)
- Guide tube shortening required BMW OEM 23 11 7 501 71
Made in EU
Symbol
RS3-K-HGU-TS
Engine :
Honda K K20 K24More
Gearbox
BMW M57N2 ZF GS6-53DZ HGU E90 330D 6-biegów (DIESEL)
BMW M57N2 ZF GS6-53DZ HGK E90 330D 6-biegów (DIESEL)
BMW N54 ZF GS6-53BZ 335i 135i 535i 6-speed (Petrol)
Clutch Set
Set with Clutch
Yes
Flywheel Type
Ultralight Race 184mm / 7.25"
Diameter
184mm / 7.25"
Clutch Set
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-003 HGG Triple disc STEP
Samoregulacja
Nie
Clutch disc required
Included
Spline
32,5x35-26N
Spline Count
26
Release bearing required
Dedicated to your gearbox
Clutch fork required
Dedicated to your gearbox
Wymagany wysprzęglik :
Dedykowane do posiadanej skrzyni biegów
Starter required (Not included)
Honda K (OE)
Additional information
Adapter Kit Type
Race
Drift
Moment obrotowy dokręcania
118Nm + glue
Replaceable friction surface
Yes
Gearbox adapter thickness
20mm / 0.78"

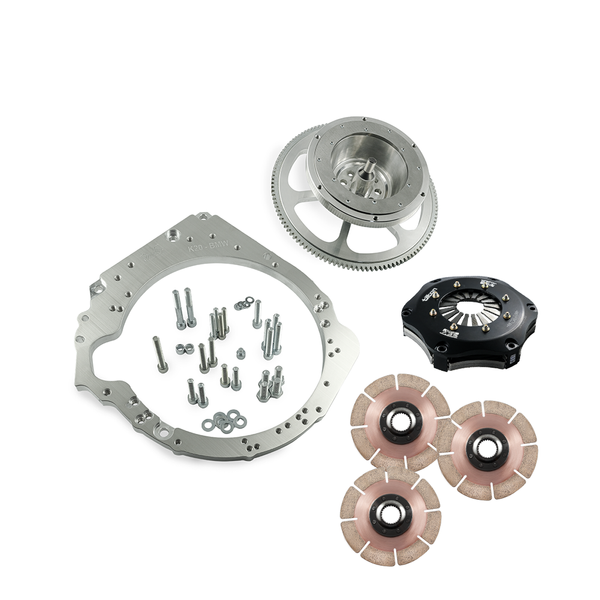

Set includes

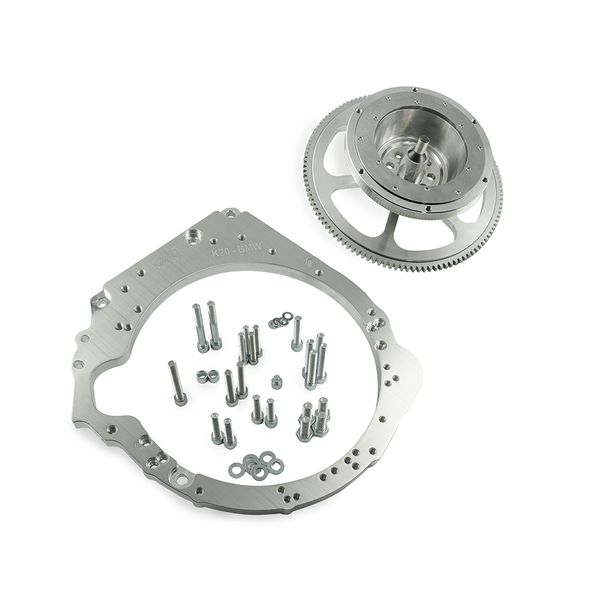

Custom Flywheel
Clutch cover - pressure plate bolts kit

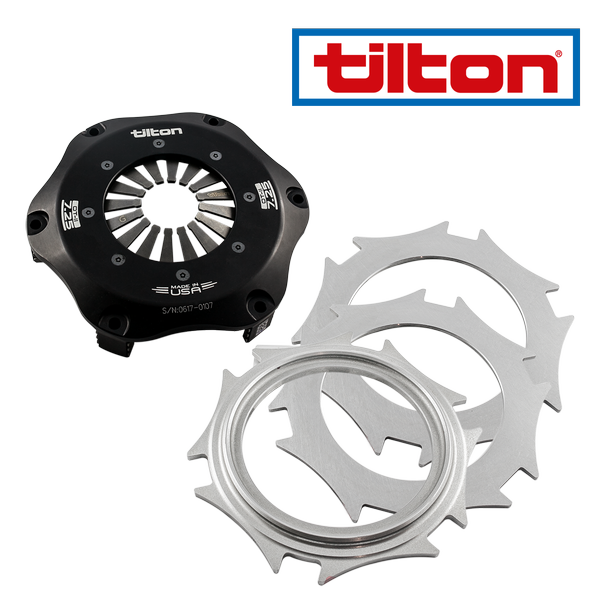

Tilton OT-II Cerametallic Pressure Plate 7.25" 66-003 HGG Triple disc STEP

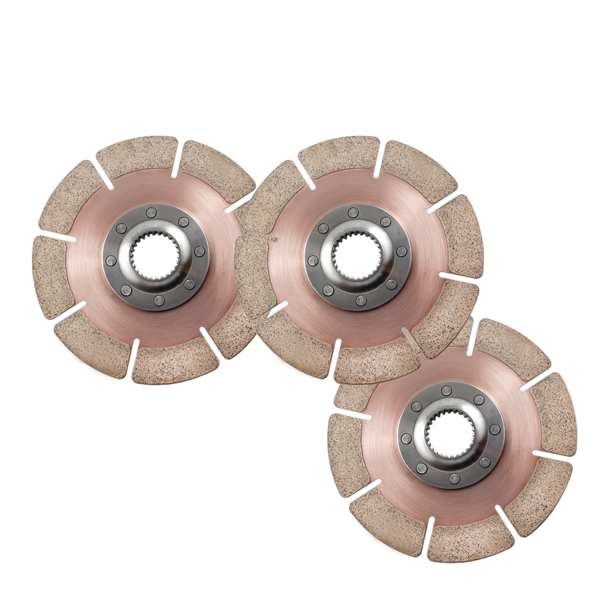

3x Sintered disc PMC 32,5x35-26N Miba [184mm/7.25"]
Aluminium gearbox adapter
Gearbox adapter bolts
Material
Aluminium
Żeliwo
Product sales codes included
K0HGU-TS-K
Tilton OT-II Cerametallic Pressure Plate 7.25" 66-003 HGG Triple disc STEP
PMC3P-D/B
F0BMW-K
-
