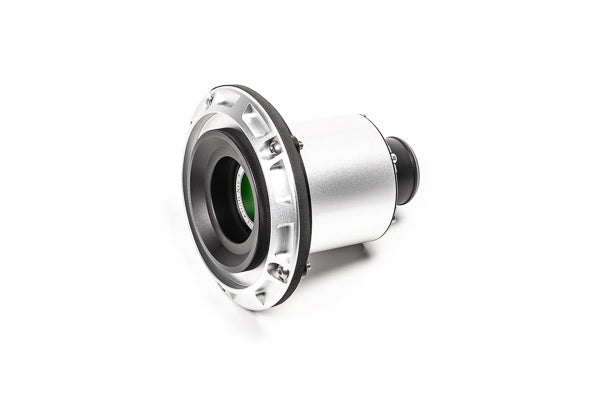

Radium Engineering - DRY BREAK 1.5IN FEMALE REMOTE MOUNT VENTED
Radium Engineering - DRY BREAK 1.5IN FEMALE REMOTE MOUNT VENTED
SKU: rad20-1004-V ⓘ
Get the best deal with our price match guarantee.
Contact us today!
(239) 270-5116
sales@drifthq.com
ENTRIES: 58
This purchase would enter you into the 1999 S15 giveaway with 58 entries. Learn more20-1004-V DRY BREAK, 1.5IN, FEMALE, REMOTE MOUNT, VENTED
Designed for remote mounting to an external surface such as a fender. Requires a 77mm (3.03") hole to be fabricated. Includes 20-0549-V Dry Break, 1.5in, Female, Vented as well as a gasket, stainless steel hardware, an aluminum housing and aluminum nut ring. The components, materials, and seals are compatible with all fuel types (unleaded and leaded gasoline, diesel, AV gas, methanol, ethanol, E15, E85, etc.).

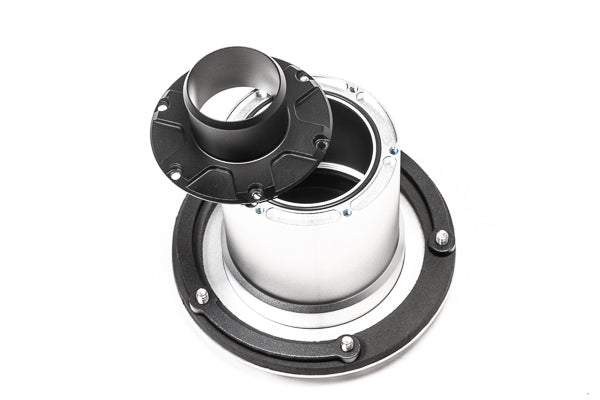

The o-ring sealed 1.5" barbed outlet is interchangeable.
By simply removing 6 screws, a different outlet adapter (sold separately) can be installed.
See the 2.25" barb (20-1007) and the 24AN fitting (20-1008) below.
Specifications:
Filler Hose Requirement: 1.5"
Flange Outer Diameter: 4.75"
Bolt Circle Diameter: 4.25" PCD
Height: 4.08" (Dry Break to Barb)
Mate: 20-0496 Dry Break, 1.5in, Male
-
