Sikky Manufacturing - Sikky Nissan 240sx S13/S14 LSx Swap Front Sump Oil Pan Kit (OP001S)

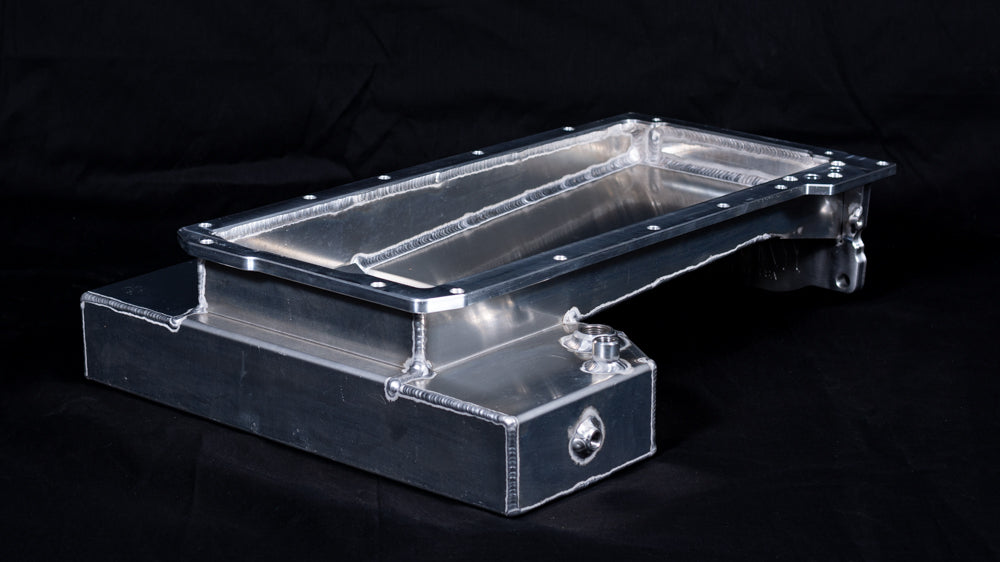

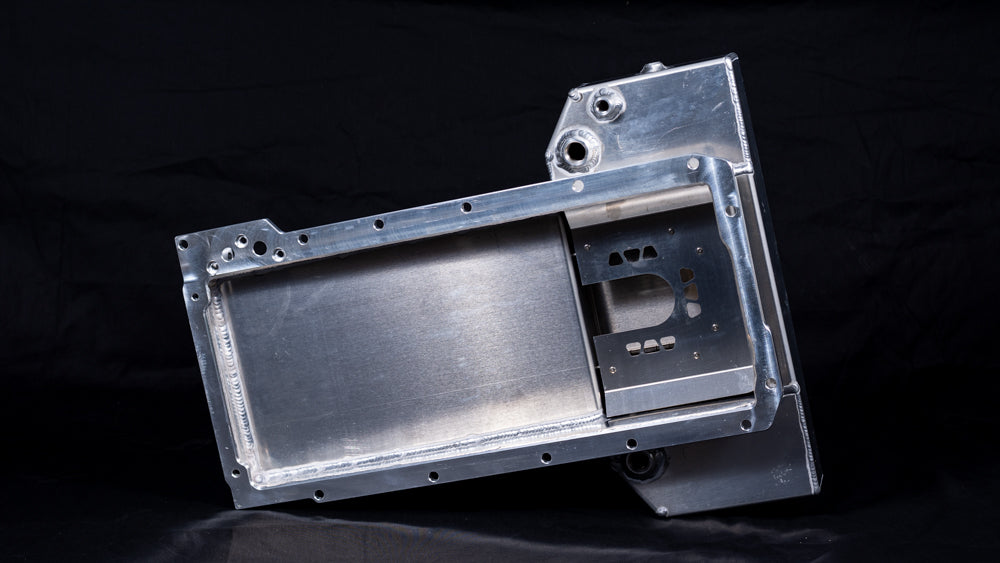

The Sikky 240sx LSX swap oil pan is made to help simplify your LS swap conversion, manufactured right here in the USA.  Designed to work with the Sikky LS Motor mount kit.  We build our oil pans with a ½” thick 6061 billet aluminum flange and back plate to provide superior strength that will outlast and outperform other pans available.  Our 100% aluminum design allows the Sikky pan to be lightweight and extremely durable unlike flimsy steel sheet metal pans.  As with all Sikky products, this pan was tested under rigorous track conditions to ensure our customers are provided with only the highest quality parts for their LS swap!

Pan Features:

• Designed to fit perfectly around the front sub frame of the Nissan 240sx S13, S14 and S15
• To ensure proper fitment use with Sikky Mount kit
• 1/2” thick CNC machined 6061 Billet Aluminum Flange and back plate
• 1/2” NPT Turbo oil drain bungs on left and right sides of pan kickouts
• 1/8” NPT oil temperature bung
• Machined gasket surface to ensure no gasket leaks
• Rigid design like the OEM GM pan to ensure maximum strength and durability

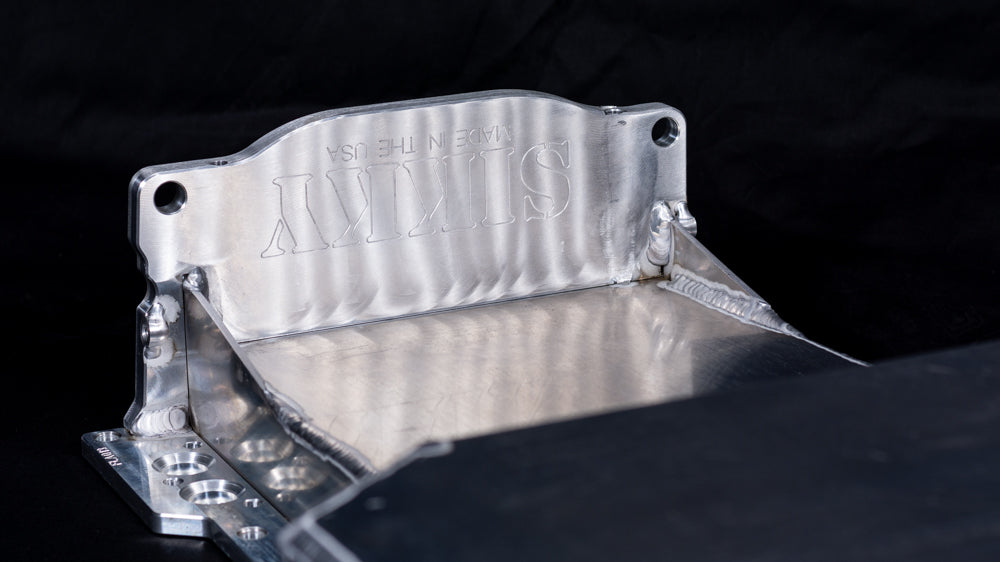

• Included back plate compatible with factory dust covers to prevent debris entering the bell housing
• High ground clearance design keeps the pan from hanging out the bottom of the car
• High capacity 6.8 quart sump (does not include oil filter or oil filter relocation)

Fitment Notes:

• Designed to fit perfectly in the Nissan 240sx, 180sx, s13, s14, and s15
• Suitable for all LS engines including LS1, LS2, LS3, LS6, L99, LQ4, LQ9, LSA, LS7, LS9, and LSX
• To ensure proper fitment use with Sikky Mount kit
• Does not hang below the bottom of the front subframe for added protection from damage

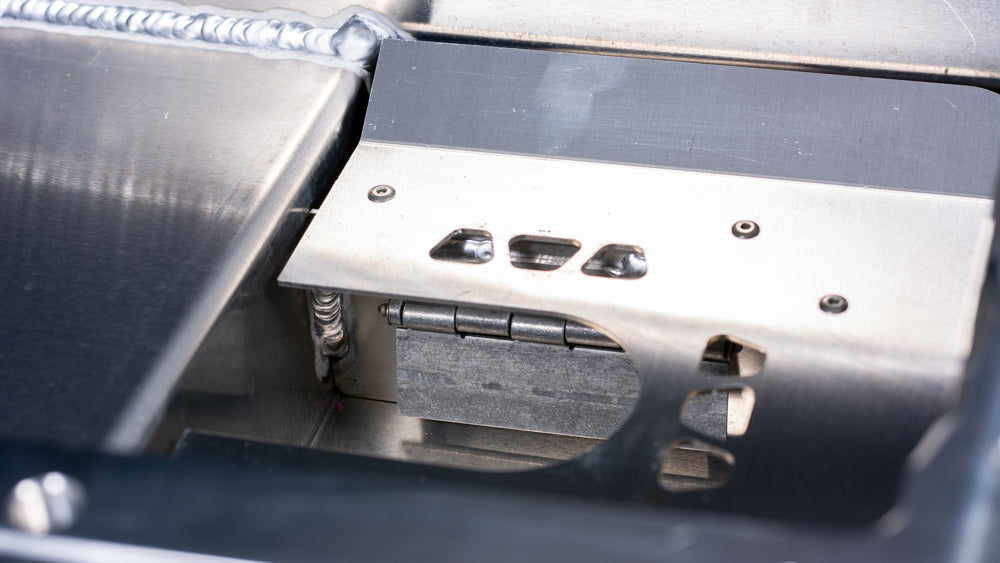

• Aftermarket oil pumps may require modification of the windage tray and baffle as well as adding additional clearance on the pan flange.  Be sure to double check the spacing between the bottom of the pickup tube and the oil pan to ensure there is at least a 3/8” gap.

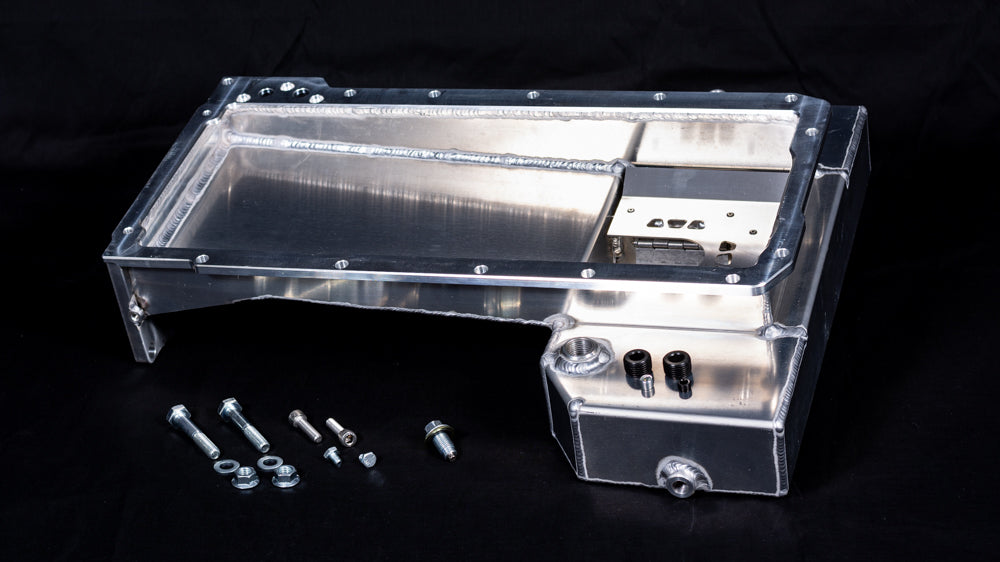

Oil Pan Kit Includes:

• Oil Pan
• Sikky Oil Pump Pickup Tube

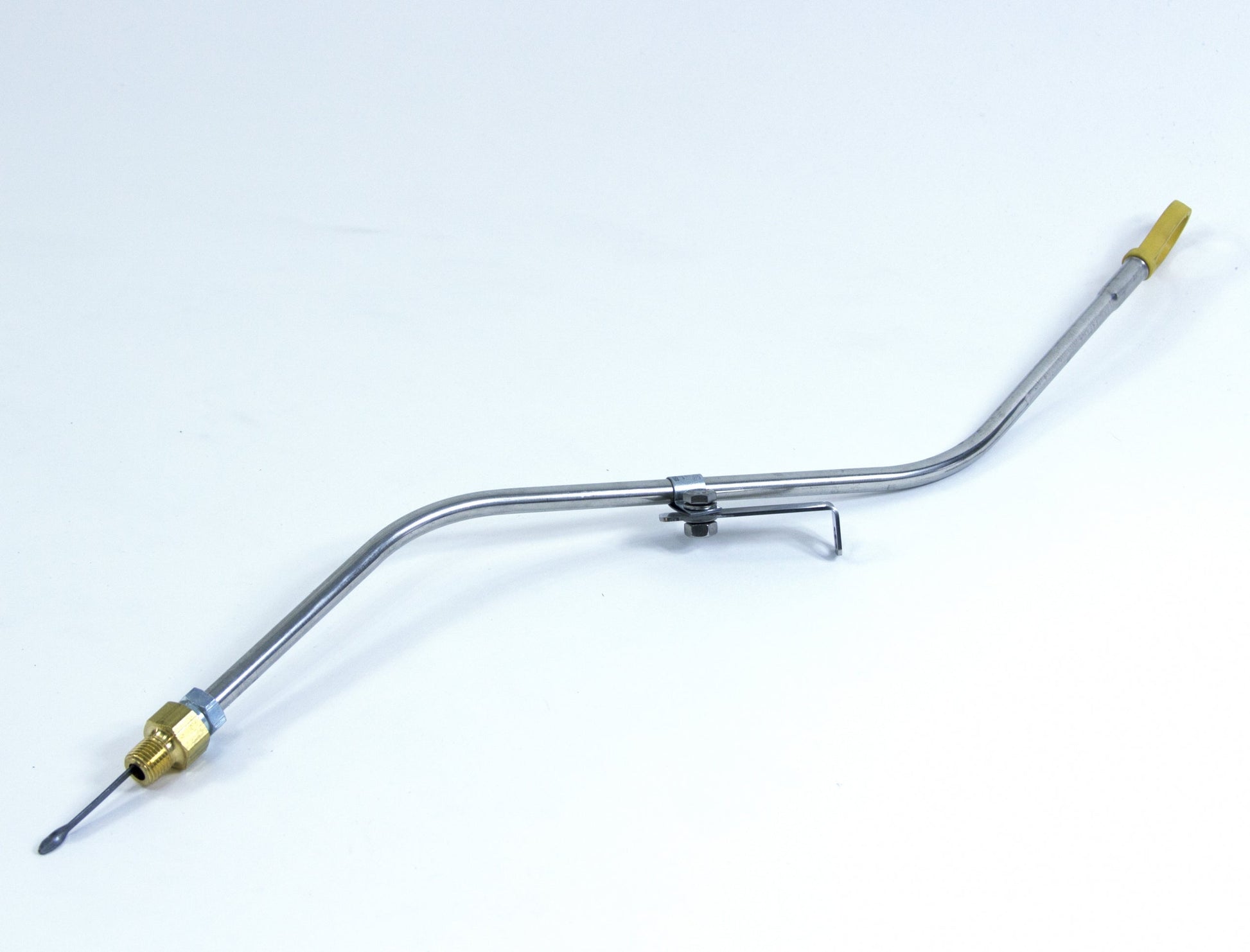

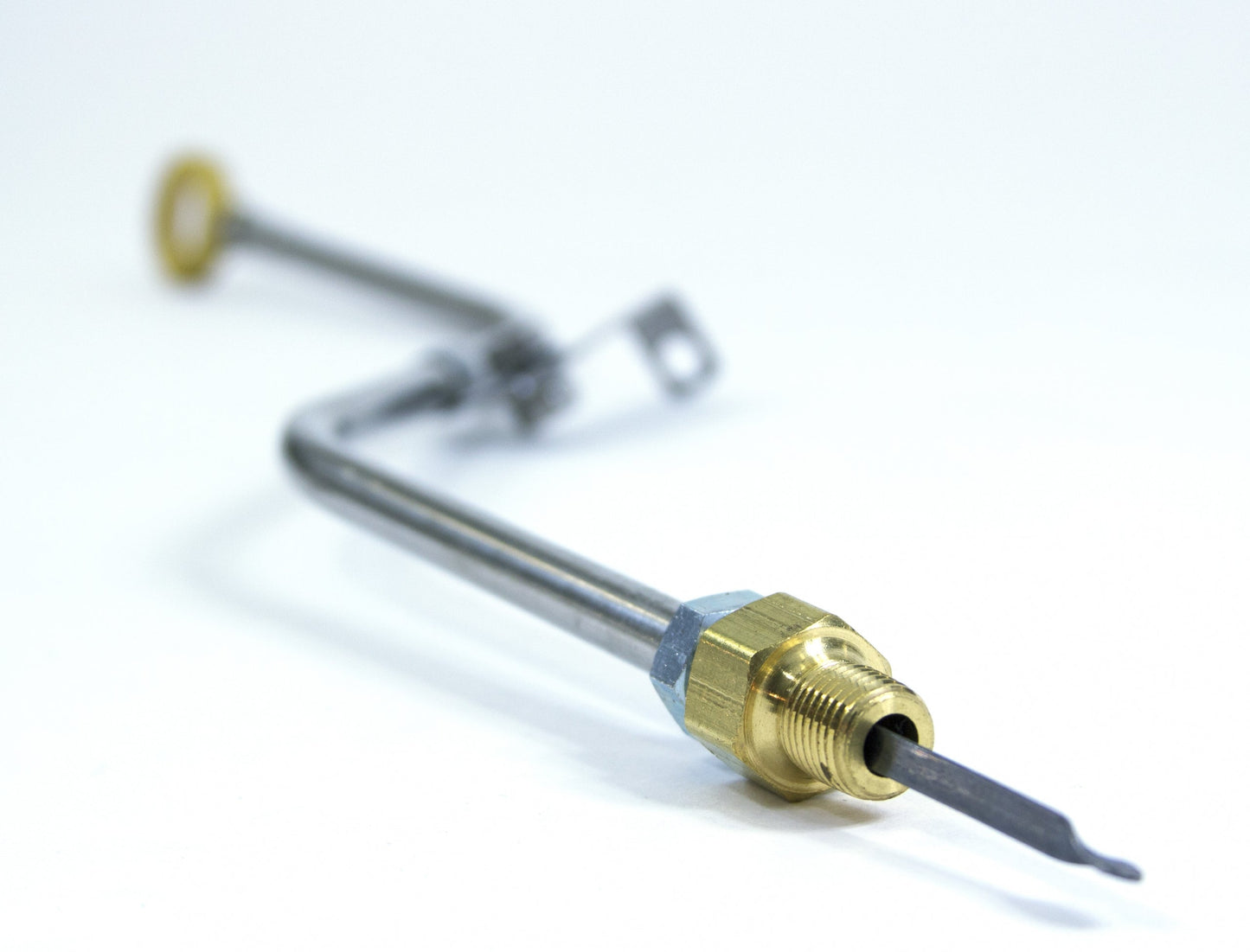

• Sikky Dip Stick Tube and Dip Stick
• Pan mounted bottom port remote oil filter adapter

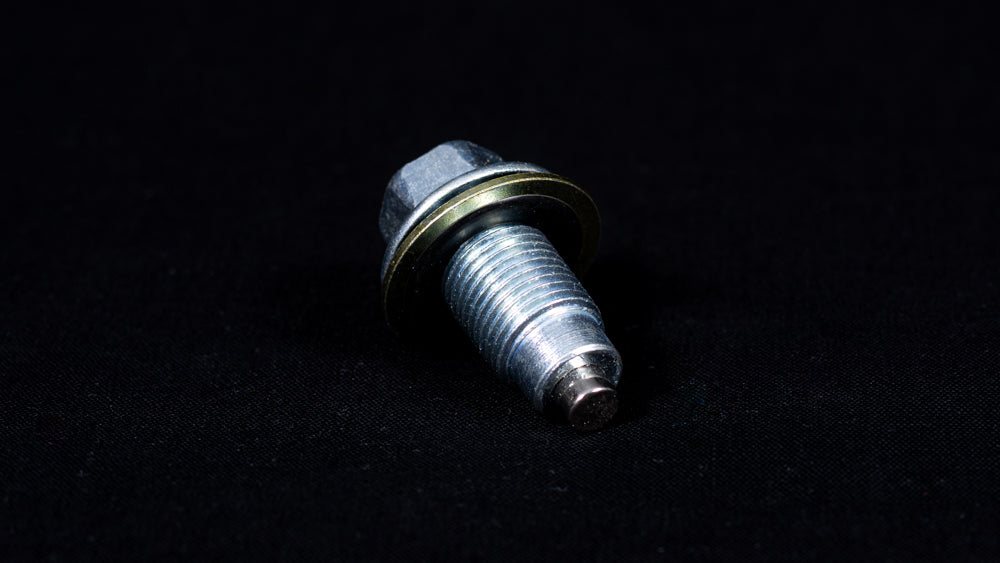

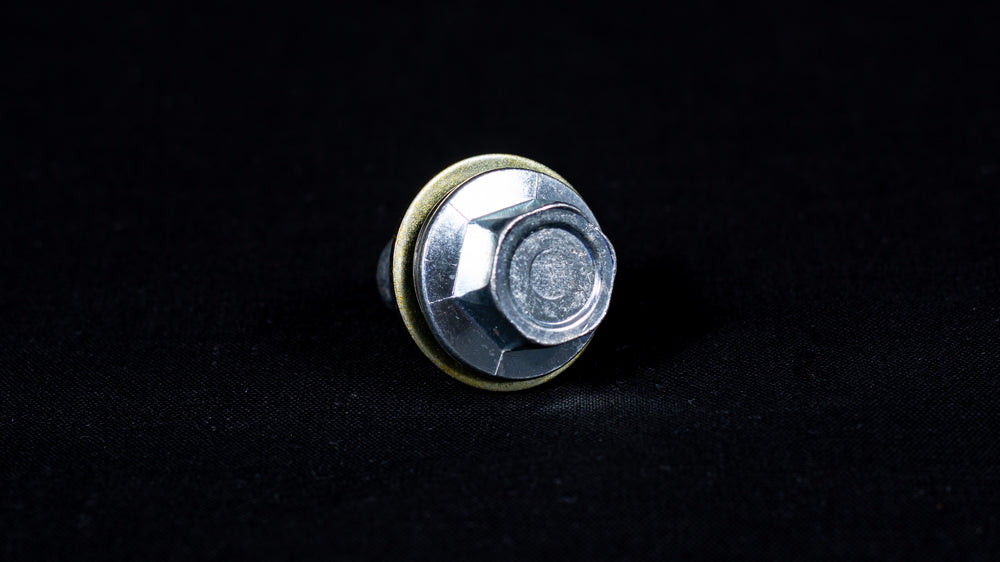

• Magnetic drain plug

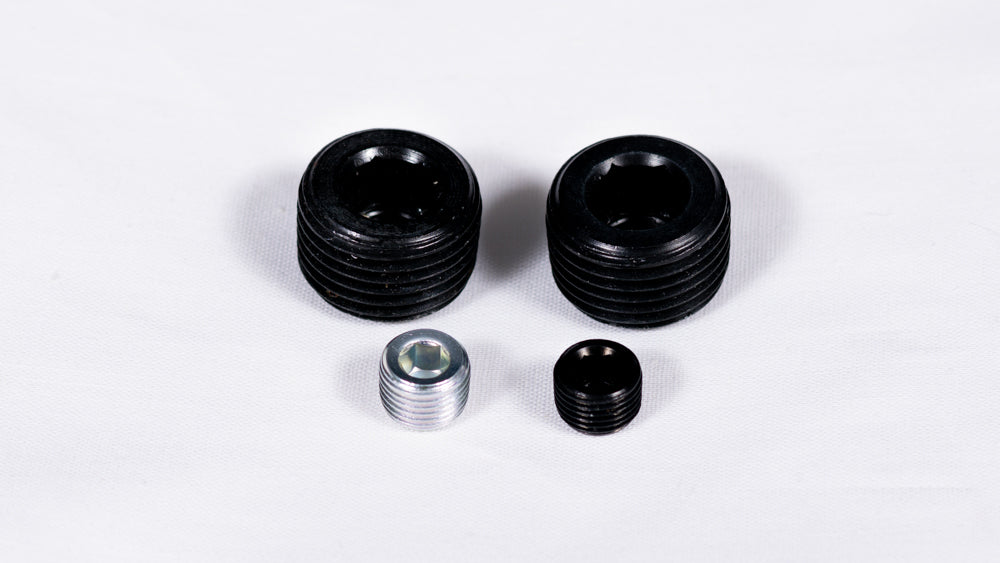

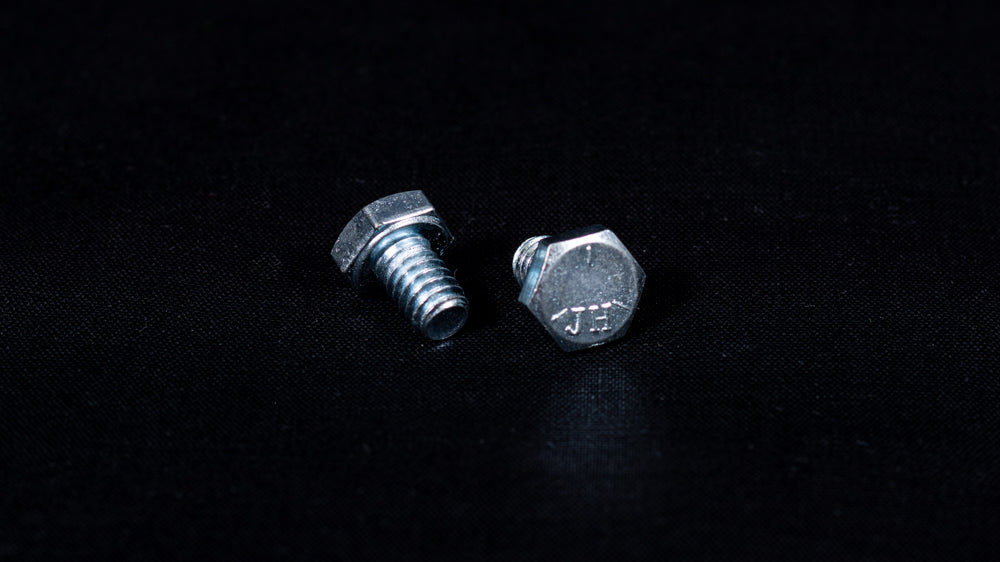

• NPT Plugs for turbo drain and temperature port bungs

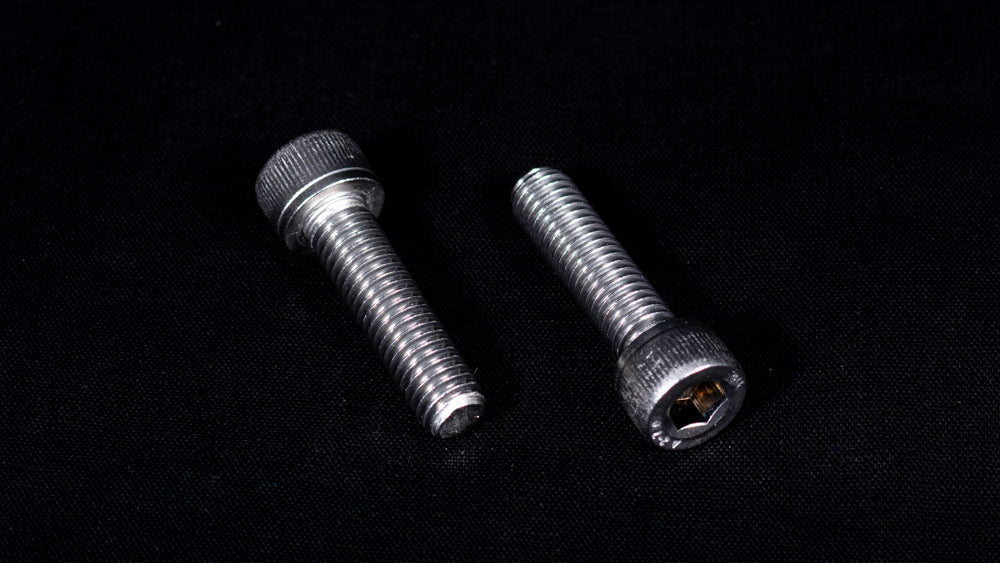

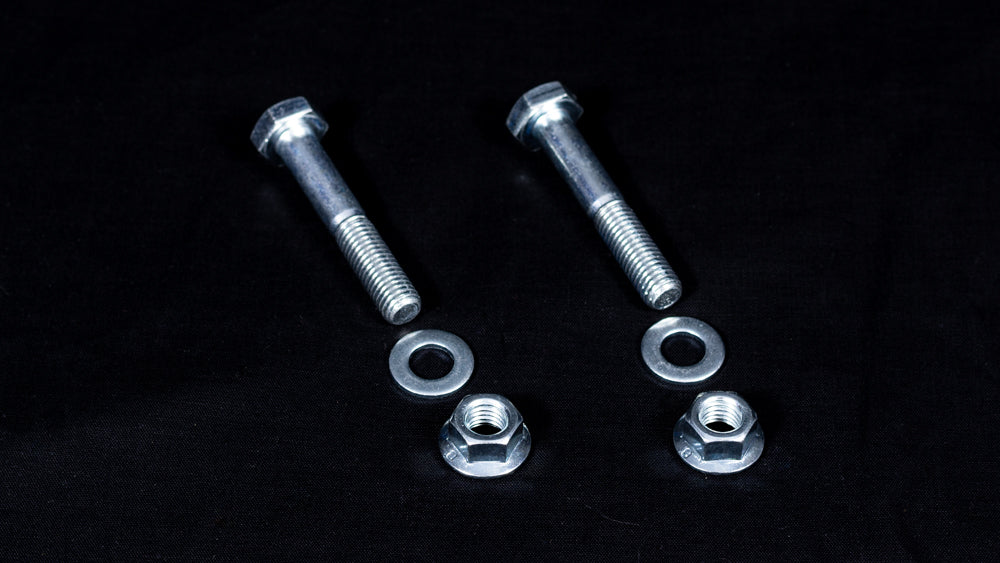

• Hardware Kit (utilizes some factory hardware not included)

Available options and upgrades:

• OEM Oil Pan Gasket
• Oil filter relocation kit with lines, remote filter mount, and filter
