STAGE 1 Honda K K20 K24 - BMW M57N2 HGU HGK / N54 Manual 6-Speed- 240mm / 9.45" ( S1-K-HGU-952 )

STAGE 1 Honda K K20 K24 - BMW M57N2 HGU HGK / N54 Manual 6-Speed- 240mm / 9.45" ( S1-K-HGU-952 )

SKU: PMC - S1-K-HGU-952 ⓘ

This sku has been copied to your clipboard!
Get the best deal with our price match guarantee.
Contact us today! (239) 270-5116 sales@drifthq.com

$1,509.59 USD
$1,359.99 USD $1,509.59 USD
Sale Sold out

Now accepting crypto with

Coinbase Commerce logo

Choose Coinbase at checkout

View full details

Product Details

PMC Motorsport STAGE 1 adapter kit (adaptor kit / set / adaption system / swap kit / conversion set / manual conversion) Honda K K20 K24 - BMW M57N M57N2 ZF GS6-53DZ HGU HGK E90 325D 330D 6-speed Diesel / N54 ZF GS6-53BZ 135i 335i 553i - 240mm / 9.45" - SACHS 3000 951 952 E60 530D

The adapter kit enables users connection of Honda K K20 K24 engine series with a very durable and easy-to-buy BMW gearbox. It is an ideal solution for motorsport as well as for people who want to change (convert) automatic gearbox (transmission) to manual.

  • Designed in a CAD environment
  • Only certified materials were used in the production process
  • CNC machining
  • Replaceable cast iron friction surface
  • The flywheel is balanced prior to shipment



Engine List
  • Honda K K20
    • Honda K20A
    • Honda K20A1
    • Honda K20A2
    • Honda K20A3
    • Honda K20A4
    • Honda K20A6
    • Honda K20Z1
    • Honda K20Z2
    • Honda K20Z3
    • Honda K20Z4
  • Honda K K24
    • Honda K24A1
    • Honda K24A2
    • Honda K24A3
    • Honda K24A4
    • Honda K24A8
    • Honda K24Z1
    • Honda K24Z2
    • Honda K24Z3
    • Honda K24Z4
    • Honda K24Z5
    • Honda K24Z6
    • Honda K24Z7
Gearbox List
  • BMW ZF (ZF Friedrichshafen) M57N2 23.00 7565213 ZF GS6-53DZ HGU (THGU) 6-speed 1067 010 014 ZF 1067 401 116 1067401116 BMW OEM 23 00 7 571 420 / 23 00 7 560 725
    • BMW E90 325D 330D
    • BMW E90N 325D M57N2
    • BMW E91 325D 330D
    • BMW E91N 325 M57N2
    • BMW E92 325D 330D M57N2
    • BMW E93 325D 330D M57N2
  • BMW ZF (ZF Friedrichshafen) M57N2 23.00 753 9000 ZF GS6-53DZ HGK (THGK) 6-speed 1067 010 004 ZF 1067 401 116 1067401116
    • BMW E90 325D 330D
    • BMW E90N 325D M57N2
    • BMW E91 325D 330D
    • BMW E91N 325 M57N2
    • BMW E92 325D 330D M57N2
    • BMW E93 325D 330D M57N2
  • BMW ZF (ZF Friedrichshafen) N54 23.00 7565215 ZF GS6-53BZ HGX (THGX) 6-speed 1067 010 016 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 571 423 / 23 00 7 567 242
    • BMW E60 535i
    • BMW E90 335i N54
  • BMW ZF (ZF Friedrichshafen) N54 23.00 7581859 ZF GS6-53BZ JGK (TJGK) 6-speed 1067 010 019 ZF 1067 401 127 1067401127 BMW OEM 23 00 7 581 860
    • BMW E82 135i N54
    • BMW E88 135i N54



Manual

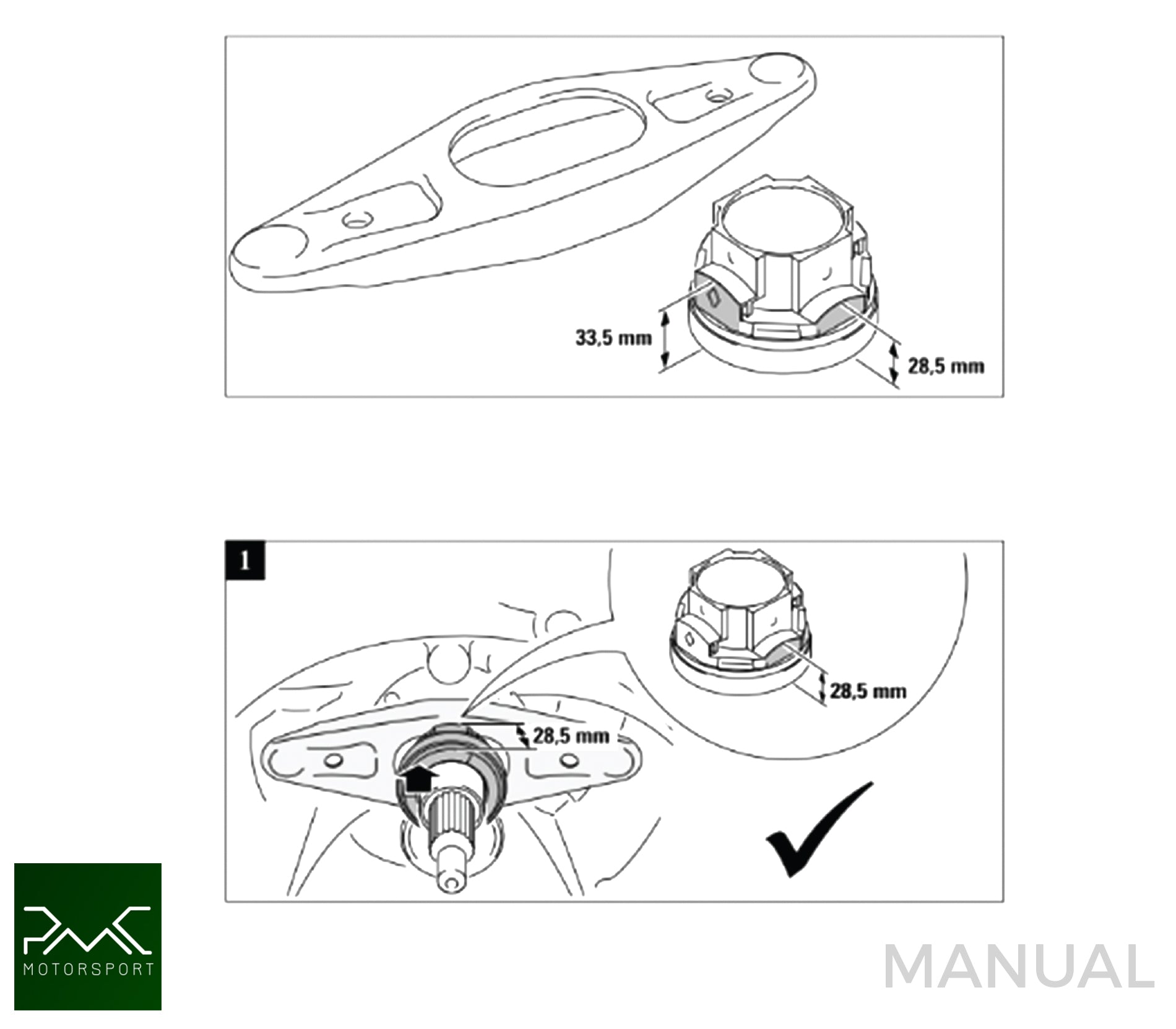

  • The bearing and clutch fork remain from your gearbox. If you have a bearing with two height positions - use the 28.5mm position
  • Use a 240mm clutch disc with a spline dedicate to your gearbox.



Engine:
Honda K K20 K24
Gearbox:
  • BMW M57N2 ZF GS6-53DZ HGU E90 330D 6-speed (DIESEL)
  • BMW M57N2 ZF GS6-53DZ HGK E90 330D 6-speed (DIESEL)
  • BMW N54 ZF GS6-53BZ 335i 135i 535i 6-speed (PETROL)
CLUTCH SET
Set with Clutch:
Yes
Flywheel Type:
Single Disc
Clutch Set:
BMW E60 530D Sachs 3000 951 952
Release bearing required:
Included
Clutch fork required:
Included
Clutch disc required:
Included
Max torque:
650Nm / 479,25 lb/ft
Starter required:
Honda K (OE) Brak w zestawie
ADDITIONAL INFORMATION
Adapter Kit Type:
Motorsport
Gearbox adapter thickness:
20mm / 0.78"
Replaceable friction surface:
Yes

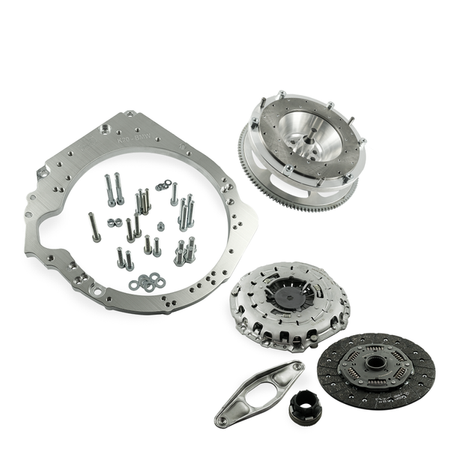

Set includes:

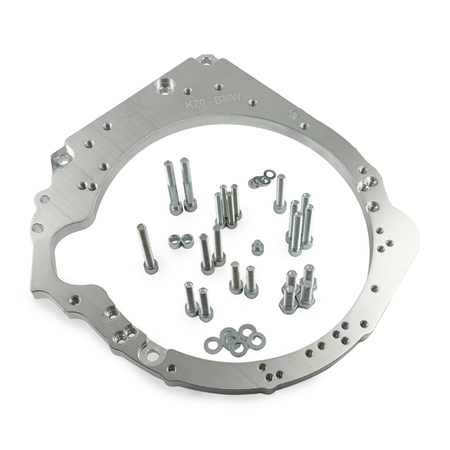

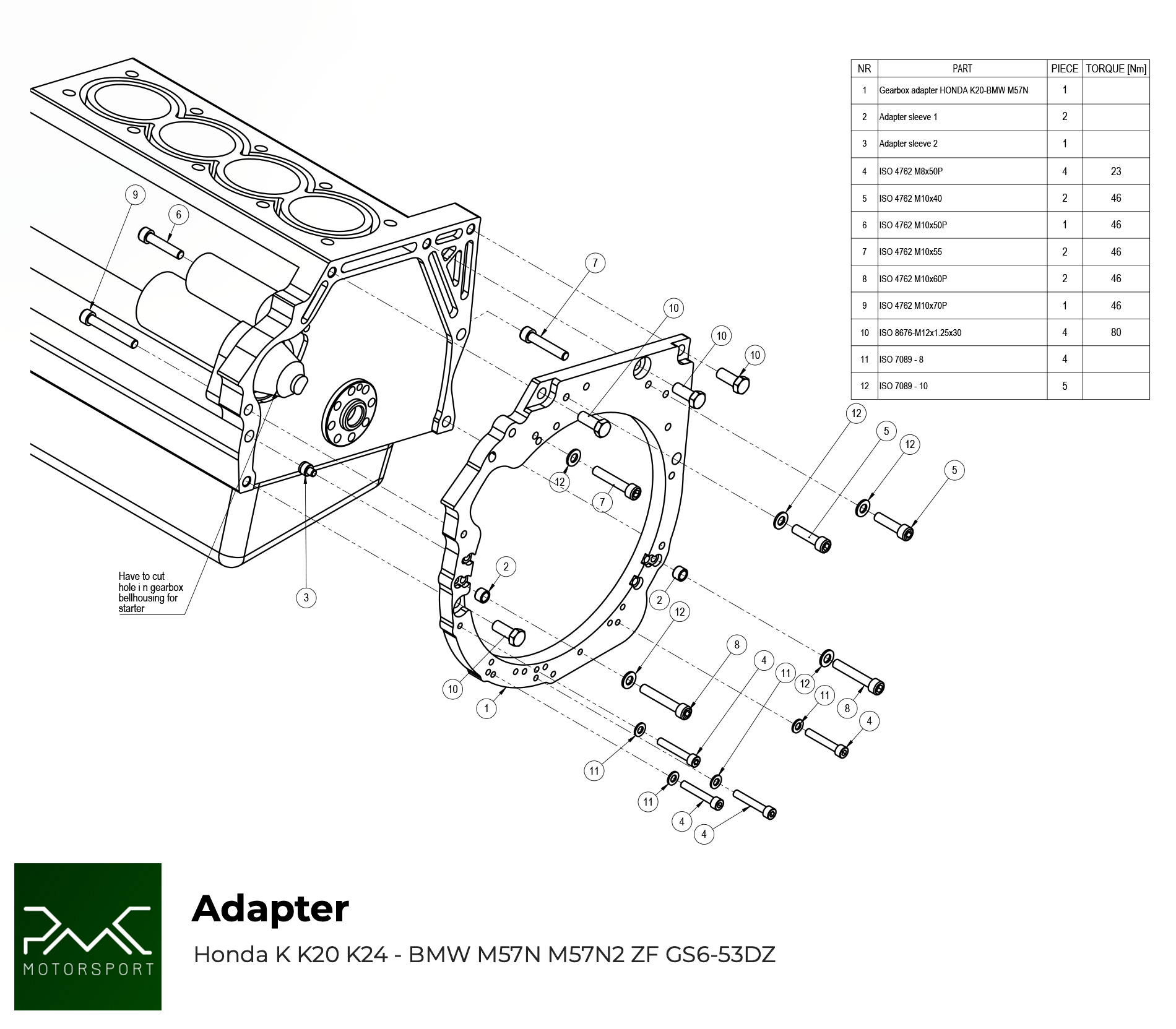

  • Aluminium gearbox adapter
  • Gearbox adapter bolts

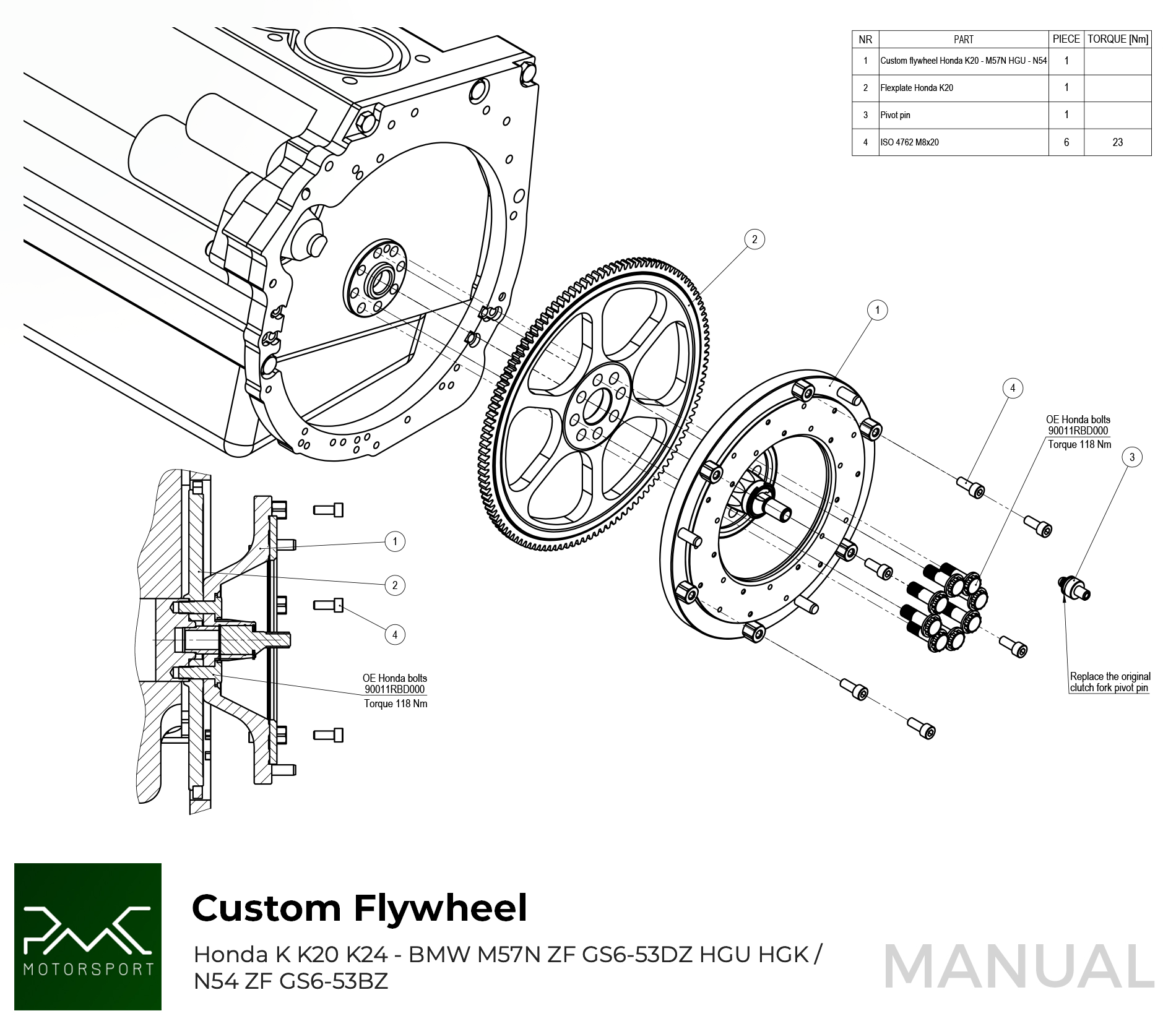

  • Custom Flywheel

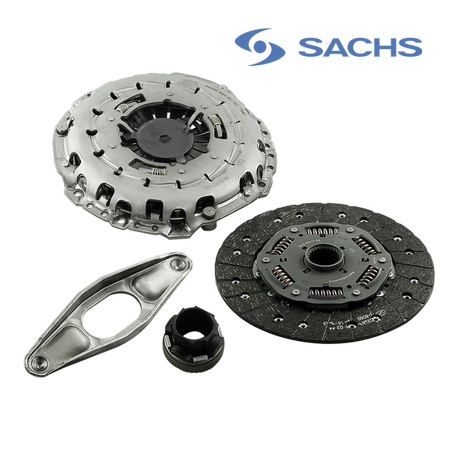

  • Sachs 3000 951 952
  • Clutch cover - pressure plate bolts kit
Product sales codes included:
  • SACHS 952 (1739)
  • K0HGU-240-K (4016)
  • F0BMW-K (1874)
