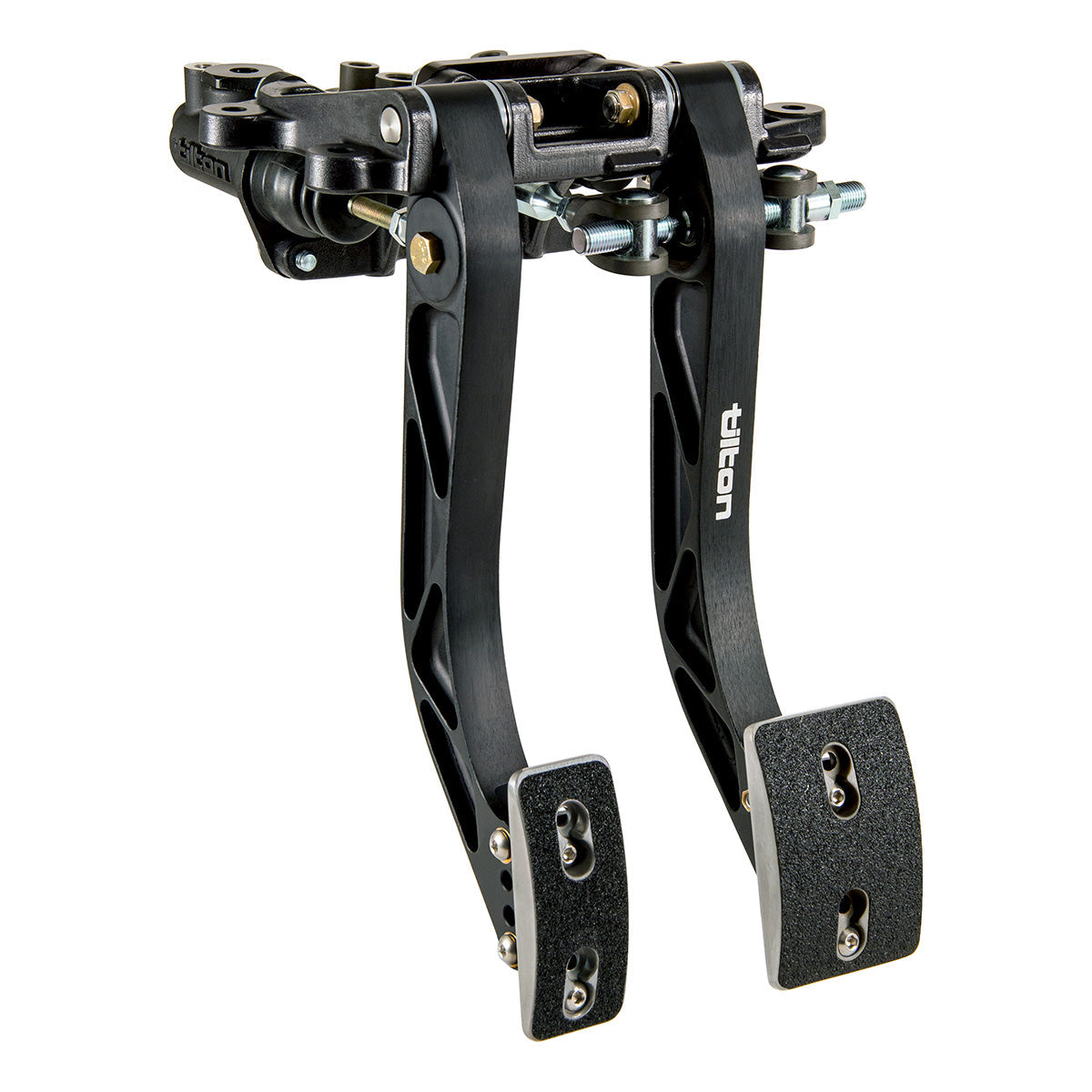

TILTON - 800 SERIES 2-PEDAL FIREWALL MOUNT PEDAL ASSEMBLY (TIL-72-807)

Tilton’s 800-Series firewall-mount pedal assembly merges the performance of 900-Series pedal assembly technology and the renowned value of 600-Series pedal assemblies. Features high-efficiency spherical bearing type balance bar and pivot-mount master cylinder design.

Features:

• High-efficiency balance bar and pivot-mount master cylinder design
• Forged aluminum pedals are engineered for high rigidity and low weight.
• Adjustable pedal ratios (5.0:1 – 6.2:1) enable the brake pedal to be tuned to driver preference without having to change master cylinder bore size.
• Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Large diameter 7/16”-20 balance bar provides maximum rigidity. PTFE coated aluminum clevises for increased durability and reduced friction.
• Pedal pivots feature wave washers to reduce lateral pedal movement and oil impregnated bronze bushings decrease stiction.
• Lightweight aluminum frame features guide “ramps” to reduce balance bar tipping, decreasing friction and improving brake repeatability.

Master Cylinders (sold separately):
Brakes: 78-Series or 79-Series master cylinders
Clutch: 76-Series master cylinders
