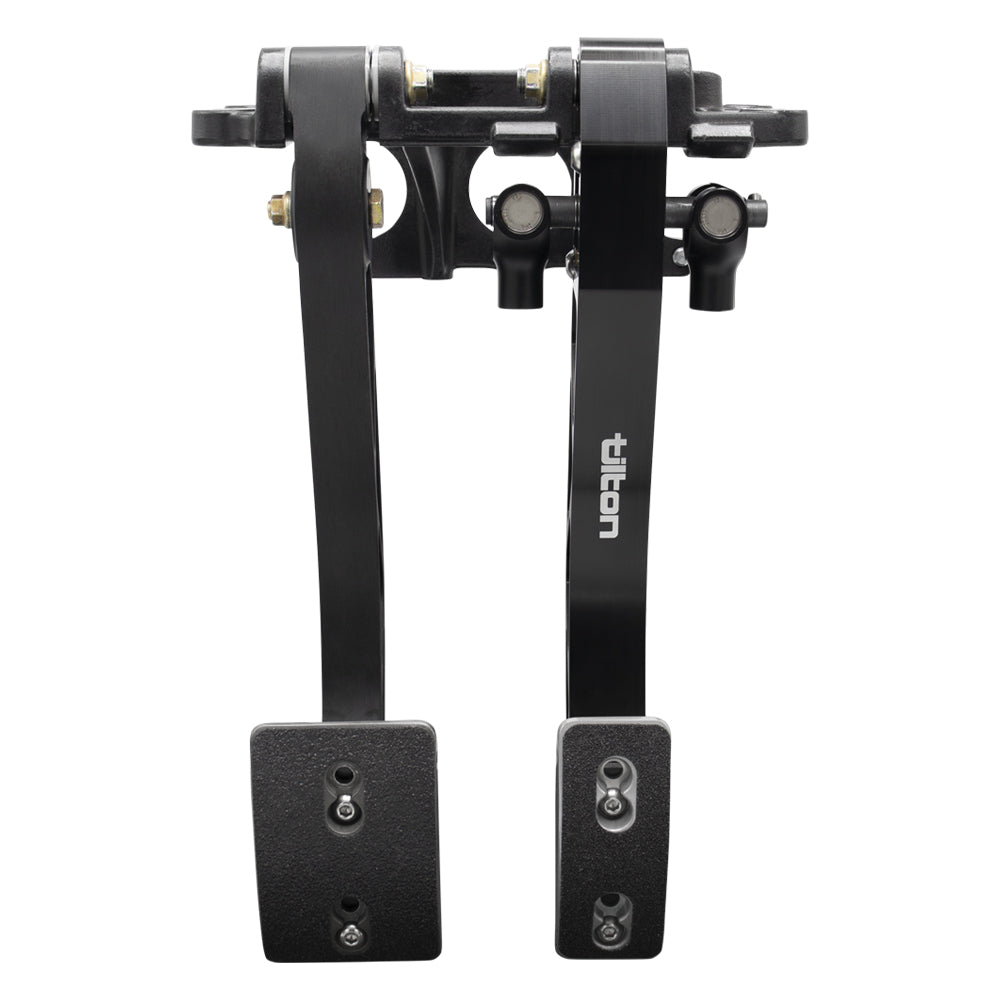

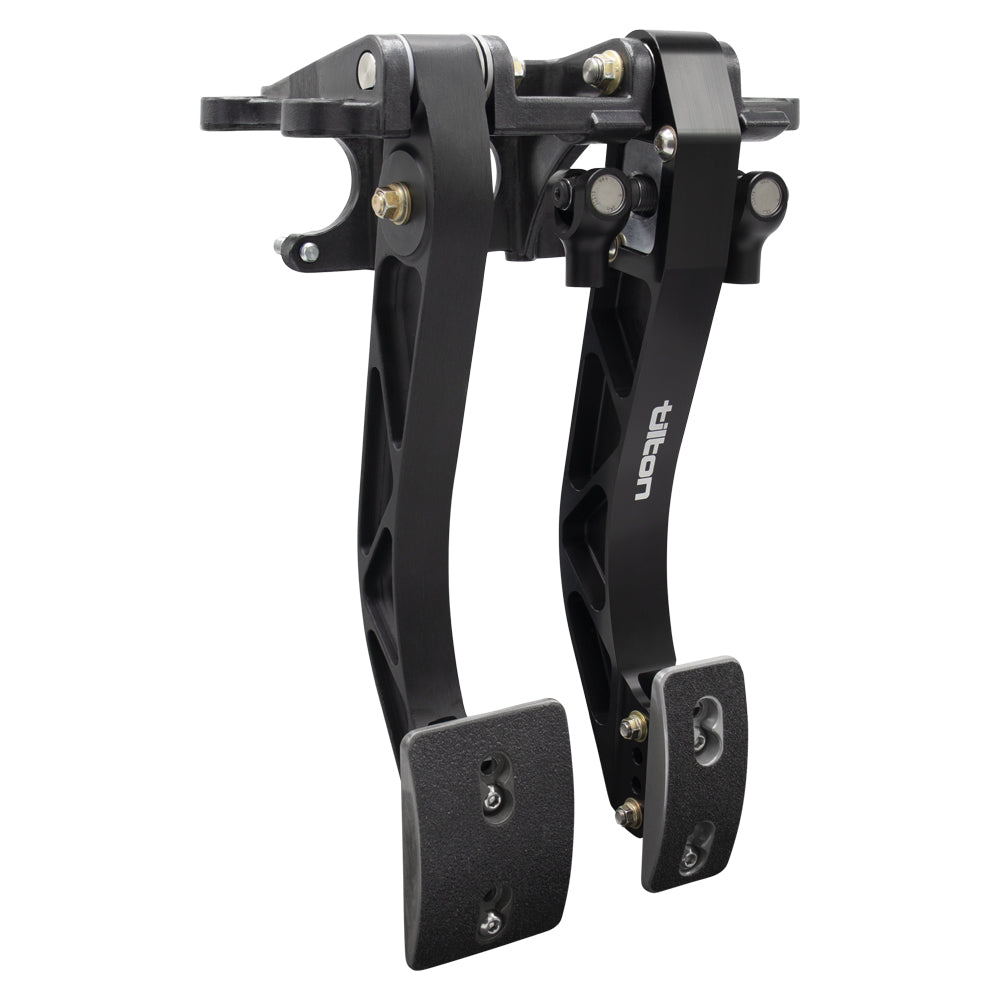

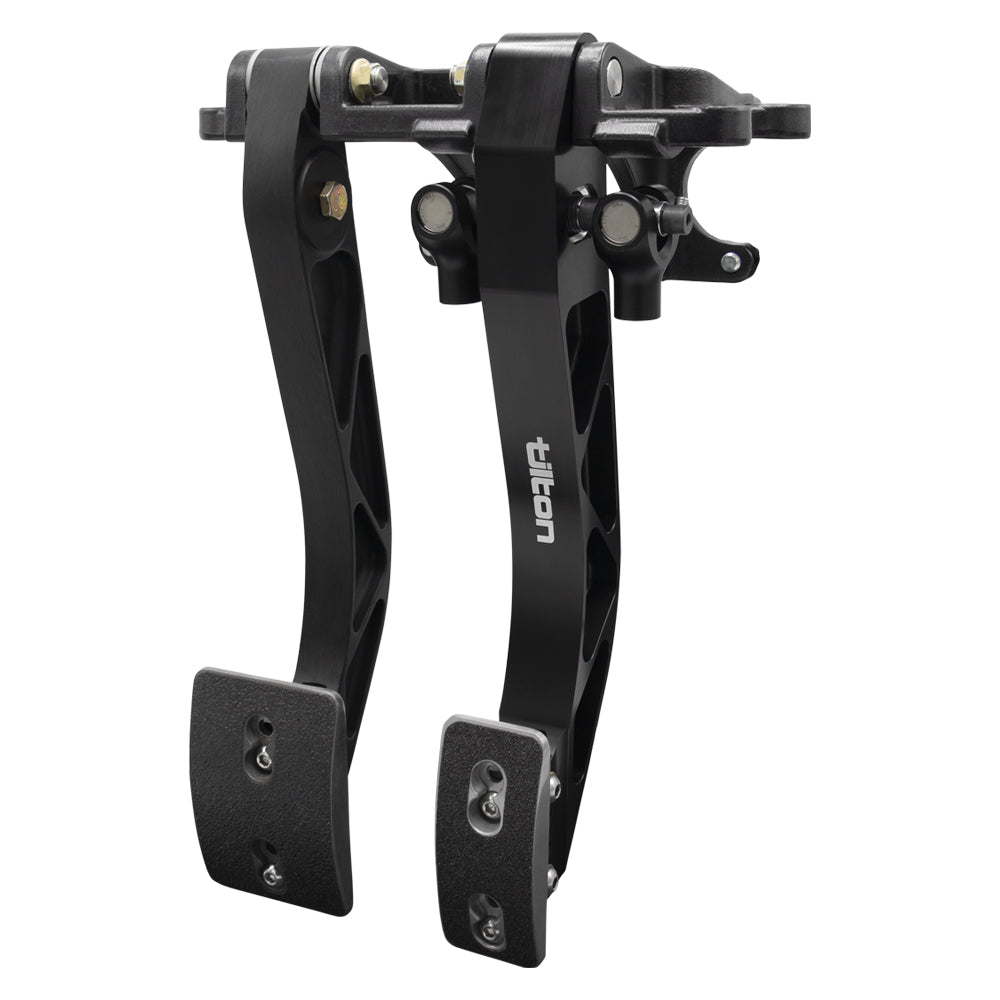

TILTON - 800-Series Firewall-Mount Pedal Assembly

Features:

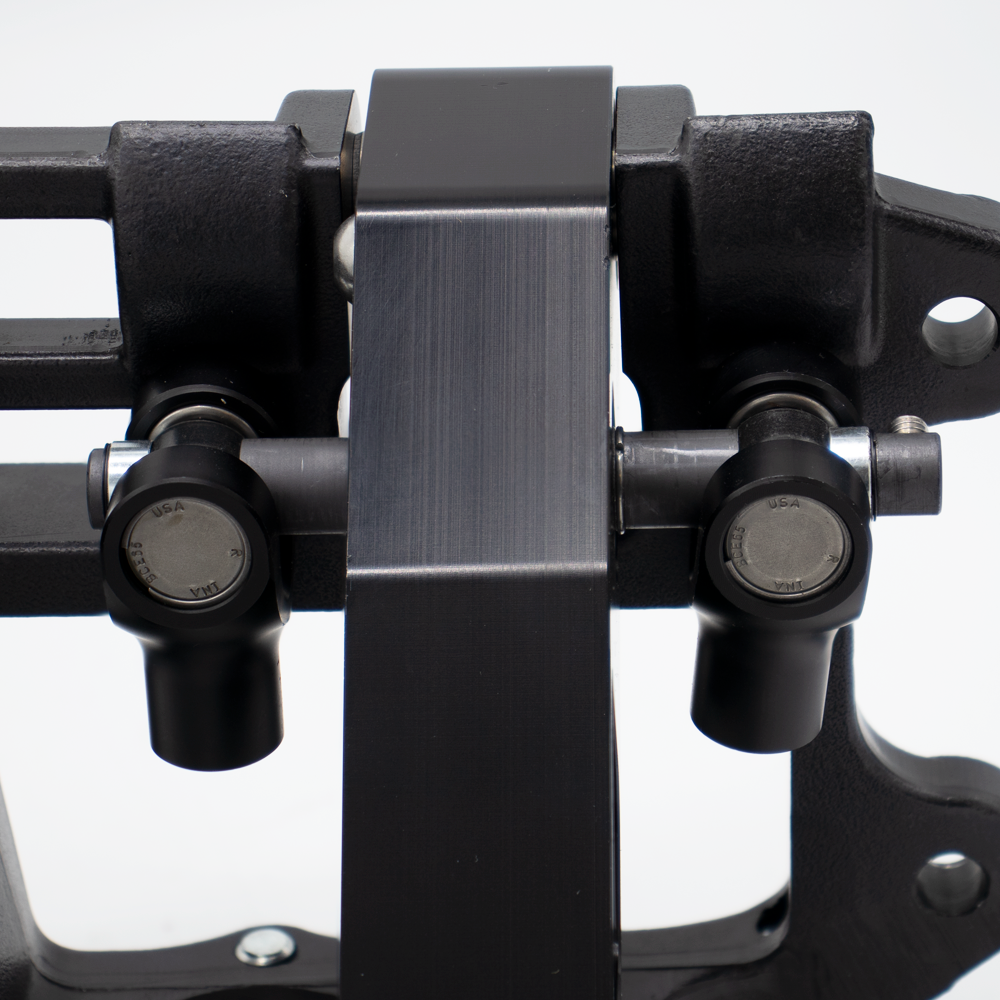

• Ultra-efficient 7/16”-20 trunnion type balance bar virtually eliminates brake migration through braking zone
• Billet aluminum brake pedal with ball bearings in pivot
• Forged aluminum clutch pedal with oil-impregnated bronze bushing in pivot
• Lightweight and high-strength aluminum frame
• Adjustable pedal ratio (5.0:1 to 6.2:1) enables the brake pedal to be tuned to driver preference without having to change master cylinder bore size
• Foot pads can be adjusted vertically, horizontally and in angle to suit individual driver preferences
• Weighs 5.8 lbs (does not include master cylinders)

Master Cylinders (sold separately):
Brakes: 78-Series or 79-Series master cylinders
Clutch: 76-Series master cylinders
