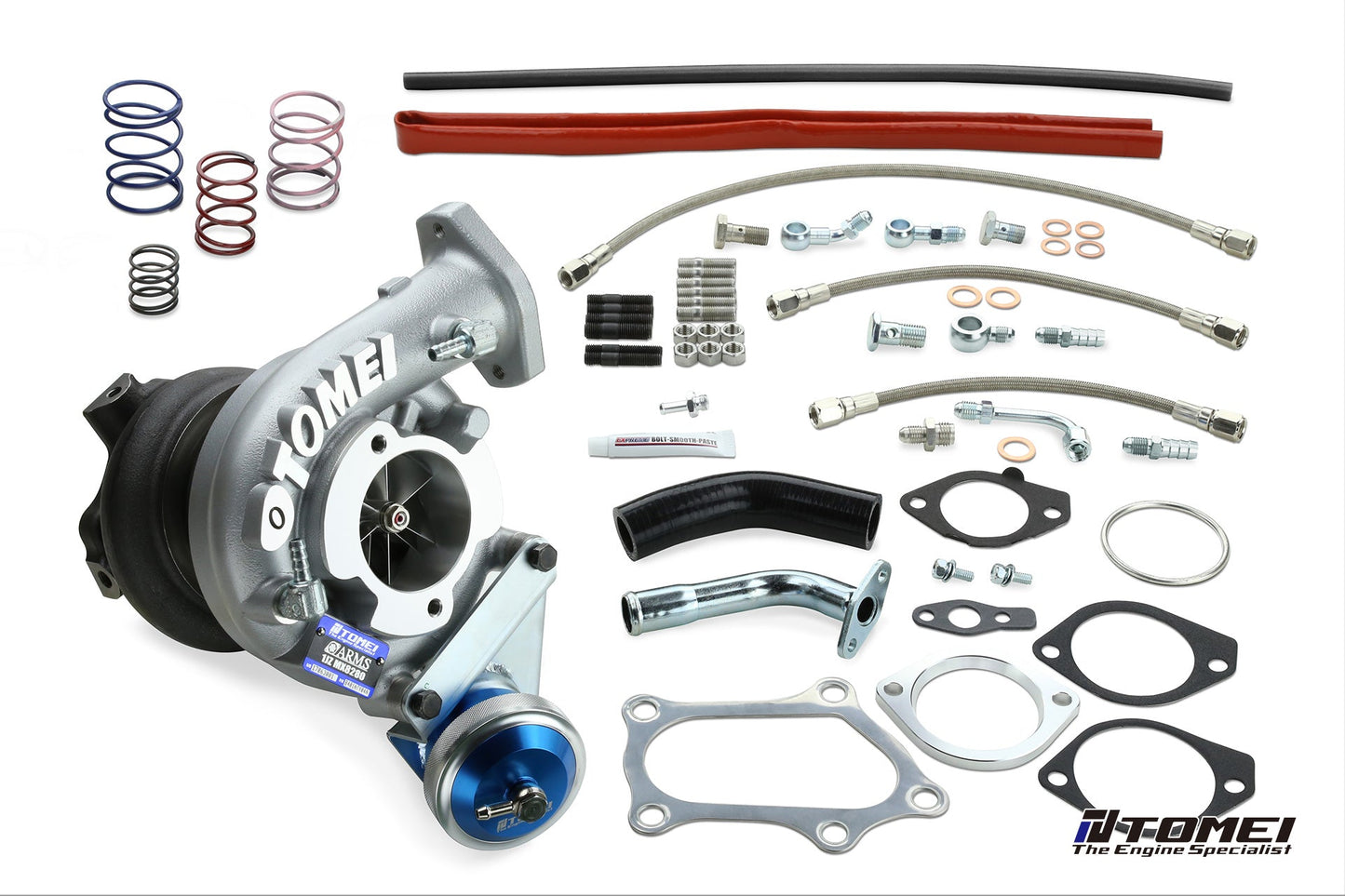

TOMEI - ARMS MX8280 450hp 1JZ-GTE Turbocharger Kit (TB401A-TY04A)

Tomei Arms MX Series Turbocharger Kit

CNC Billet Compressor Wheel

Significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface area for significantly improved airflow and turbo spool.

Multi Rate Billet Actuator

Large capacity, reinforced billet construction. Includes a total of 6 springs for fine boost adjustments. Swivel type nipple allows for greater freedom when routing hoses.

Combine up to 3 springs to find the perfect setup.

BEARING TYPE JOURNAL BEARING		INITIAL BOOST SETTING 1.0 kgf/cm2
COMPRESSOR WHEEL		TURBINE WHEEL
MX8280 Ⓐ IND(mm) 61.4 Ⓑ EXD(mm) 82.0 TRIM 56 BLADES 6 MATERIAL A2618 PRODUCTION CNC BILLET		MX8280 Ⓒ EXD(mm) 58.8 Ⓓ IND(mm) 67.0 TRIM 77 BLADES 11 MATERIAL K418 PRODUCTION CAST
COMPRESSOR HOUSING		TURBINE HOUSING
MX8280 IND(mm) 62.4 EXD(mm) 45.46 A/R 0.54		MX8280 IND(mm) 47.89 EXD(mm) 1JZ A/R 0.67
