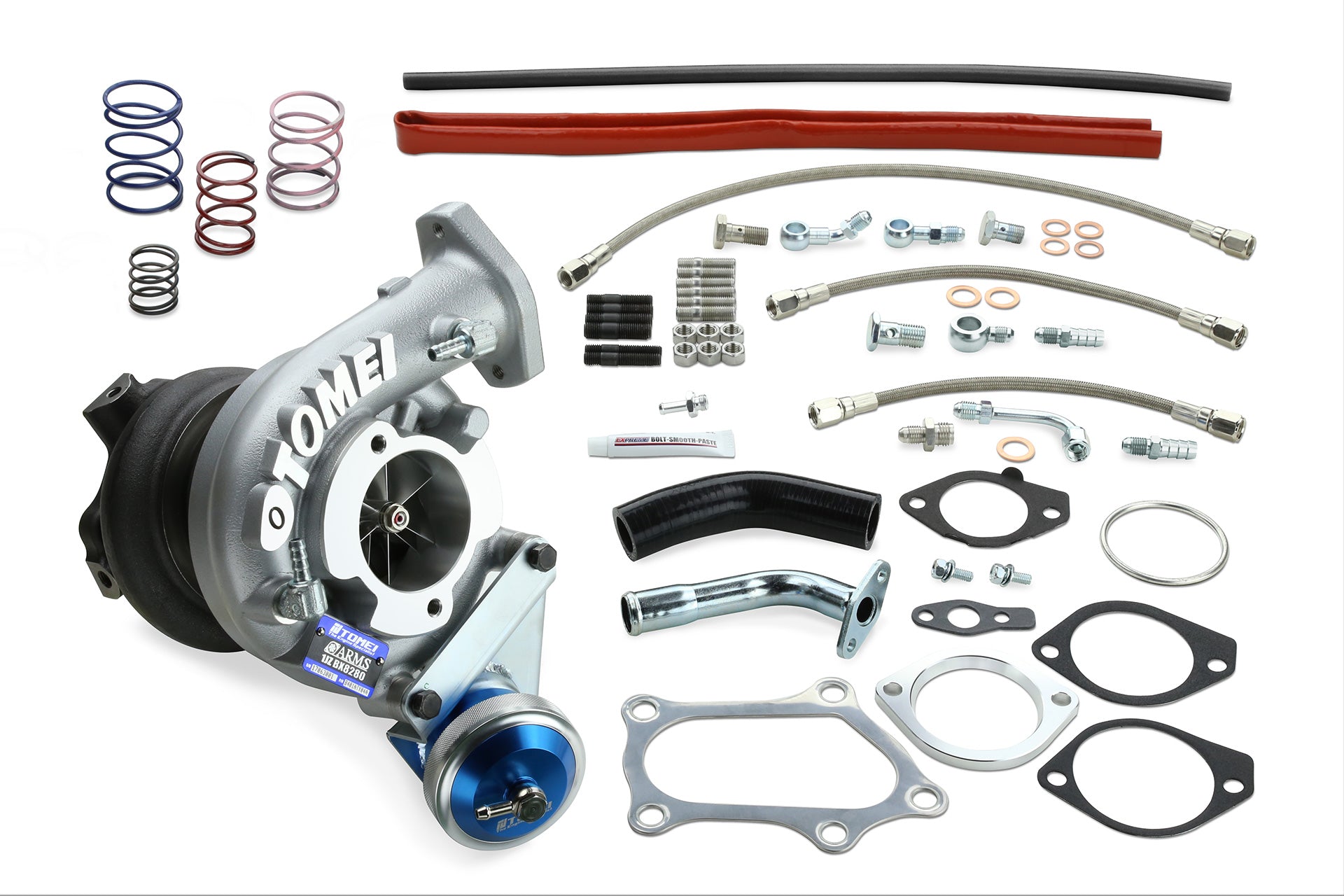

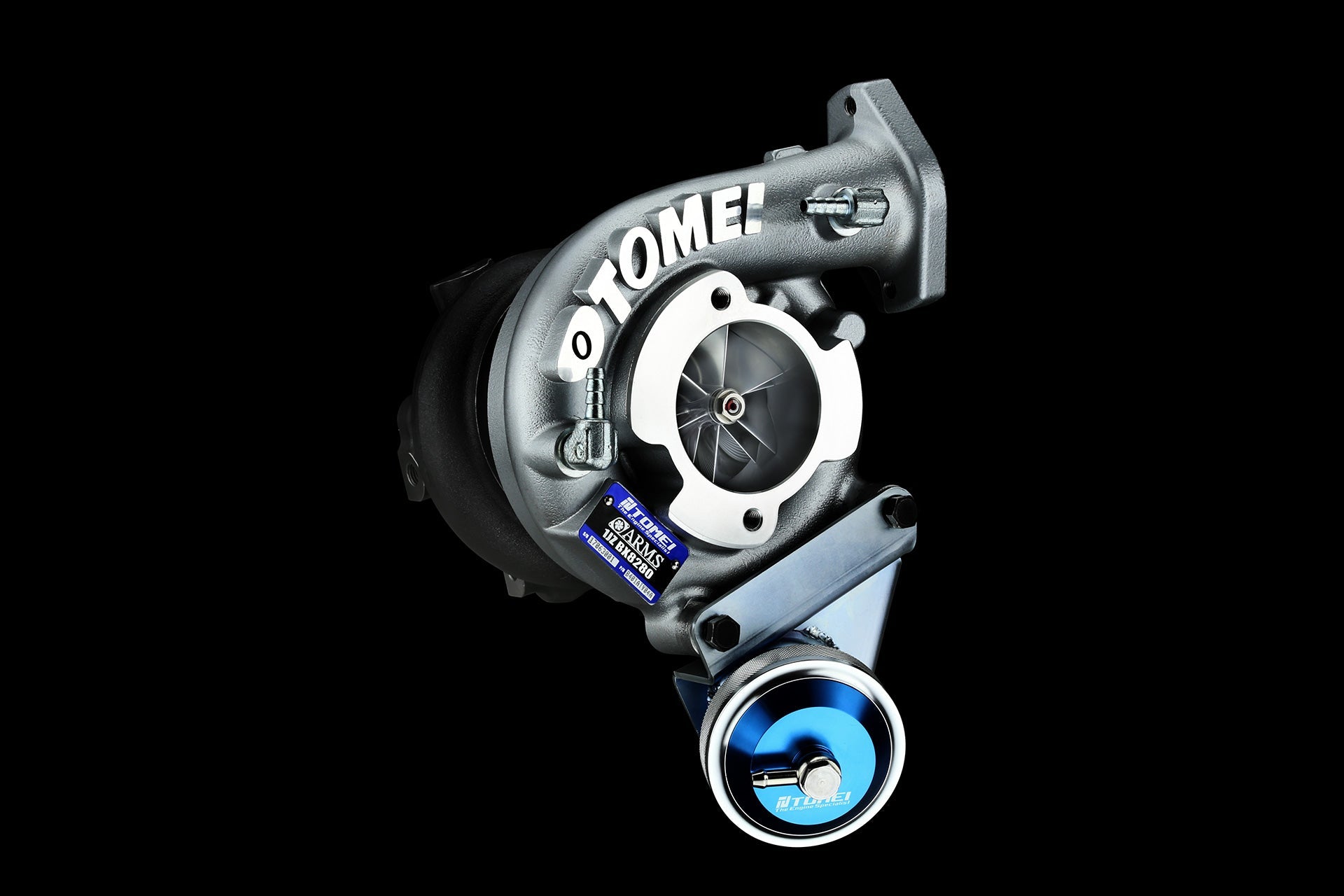

TOMEI - B/B TURBOCHARGER KIT ARMS BX8280 1JZ-GTE (TB403A-TY04A)

The Tomei ARMS BX-Series Turbocharger improves upons Tomei's MX-Series turbocharger design with the inroduction of ball bearings, a new lightweight billet wheel, multi rate billet actuator, and the very same ARMS technology Tomei is known for!

CNC Billet Compressor Wheel
The newly designed Billet Compressor Wheel offers significant improvement over traditional cast compressor wheels. Machined from aerospace grade materials, these highly durable lightweight compressor wheels feature thinner blades with a larger surface care for significantly improved airflow and turbo spool.

Multi Rate Billet Actuator
A large capacity multi rate billet actuator is utilized, with a reinforced forged billet construction. Includes a total of 6 springs for fine boost adjustments. Up to 3 springs can be combined to find the perfect setup. Swivel type nipple allows for greater freedom when routing hoses.

Specifications:
TARGET HP (HP): 450
BEARING TYPE: BALL BEARING
INITIAL BOOST SETTING (kgf/cm2): 1.0

COMPRESSOR WHEEL
A IND(mm): 61.4
B EXD(mm): 82.0
TRIM: 56
BLADES: 6/6
MATERIAL: A2618
PRODUCTION: CNC BILLET

TURBINE WHEEL
C EXD(mm): 58.8
D IND(mm): 67.0
TRIM: 77
BLADES: 9
MATERIAL: K418
PRODUCTION: CAST

COMPRESSOR HOUSING
IND(mm): 62.4
EXD(mm): 45.46
A/R: 0.54

TURBINE HOUSING
IND(mm): 47.89
EXD(mm): 1JZ
A/R: 0.67
