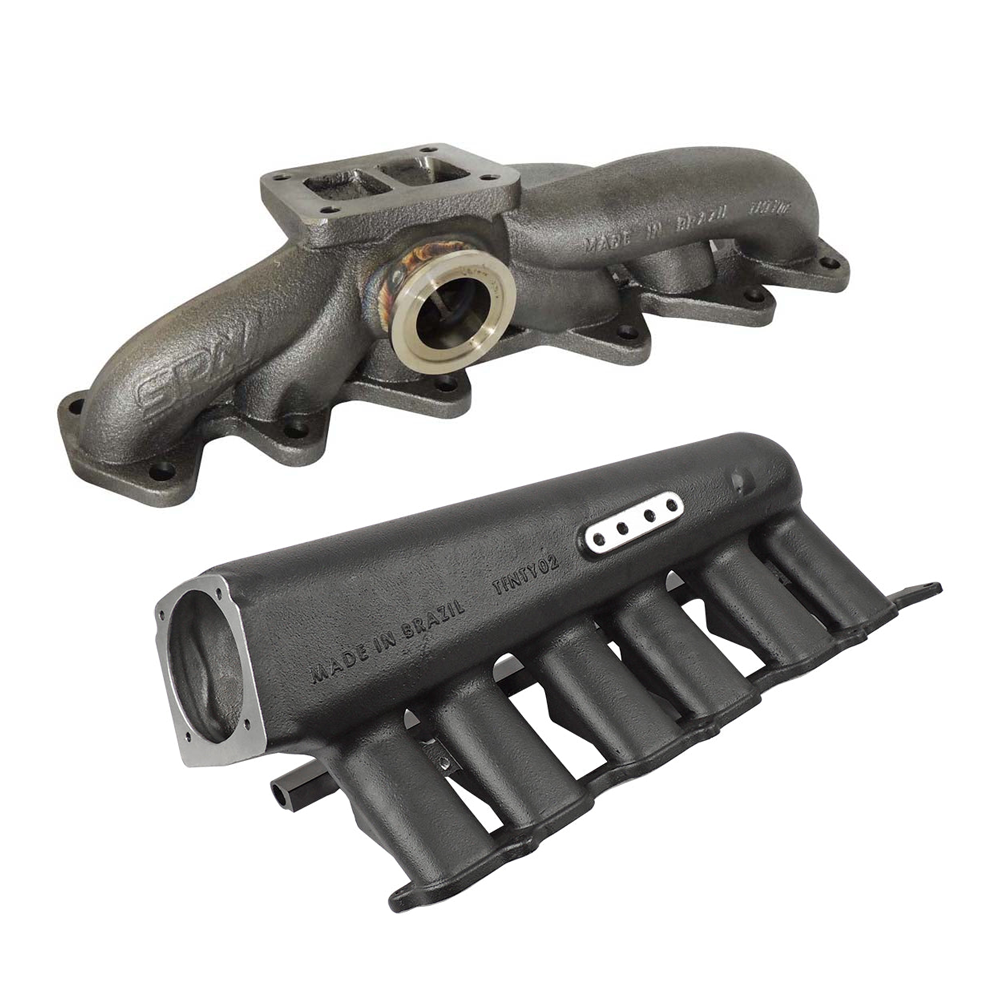

Toyota / Lexus 2JZ-GTE T4 High Performance Twin Scroll Turbo Manifold + intake manifold - 6 Injectors - Black

• Take advantage of this great opportunity and buy this product at an unbeatable price! This item will be available for delivery approximately 08/30/2024.
• Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25

‚

Toyota / Lexus 2JZ-GTE T4 High Performance Twin Scroll Turbo Manifold

SPA Turbo Exclusive: New Toyota 2JZ-GTE T4 High Performance Twin Scroll Turbo Manifold. The best option in high performance cast exhaust manifold, now in twin scroll version.

Our side mount turbo manifold can accept large T4 turbochargers, will fit to the Toyota bodies.

We offer this manifold in 44/45mm V-band.

Thank you for choosing the best turbo charger components - made by SPA Turbo!

SPA Turbo exhaust manifolds are precision CNC machined from high quality ASTM 536 60-40-18 cast iron.

These are ductile spheroidal (aka Nodular iron) castings, where the graphite components are spheroidal in shape and essentially free of other forms of graphite.

Specifically designed for pressurized components and high operating temperatures.

In other words, the ideal material for turbo exhaust manifolds; - also used for high quality cylinder liners.

Manufactured exclusively by SPA Turbo and not available anywhere else.

‚

93-02 Supra 2JZ GTE intake manifold - 6 Injectors - Black

After the great success of the intake manifold for the 2JZ GE engine, SPA Performance brings lovers of the Toyota Supra A80 and its turbo engine version (2JZ GTE) the new high-flow cast aluminum intake manifold.

• Application: 93-02 Supra 2JZ GTE (A80)
• Number of injectors: 6
• Fuel rail: Anodized billet aluminum (black) for 14mm injector o-rings (3 injector lenght adjustable)
• Fuel rail‚ inlet/outlet: -8AN
• Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long
• Throttle body bolt hole pattern:‚ 105mm (1986-1993‚ Mustang 5.0 throttle body)
• TBI mount: front side of vehicle
• Max working capacity: 10bar (145psi)
• Internal volume: 7,7L
• Material: Cast aluminum
