FDF Raceshop - Universal Dual Master Booster Delete

The FDF universal brake booster delete and bias pedal setup, designed to work on any chassis. We originally built this system for Corvettes, where it’s been proven and used heavily by road race drivers, and now we’ve turned it into a fully modular universal kit.

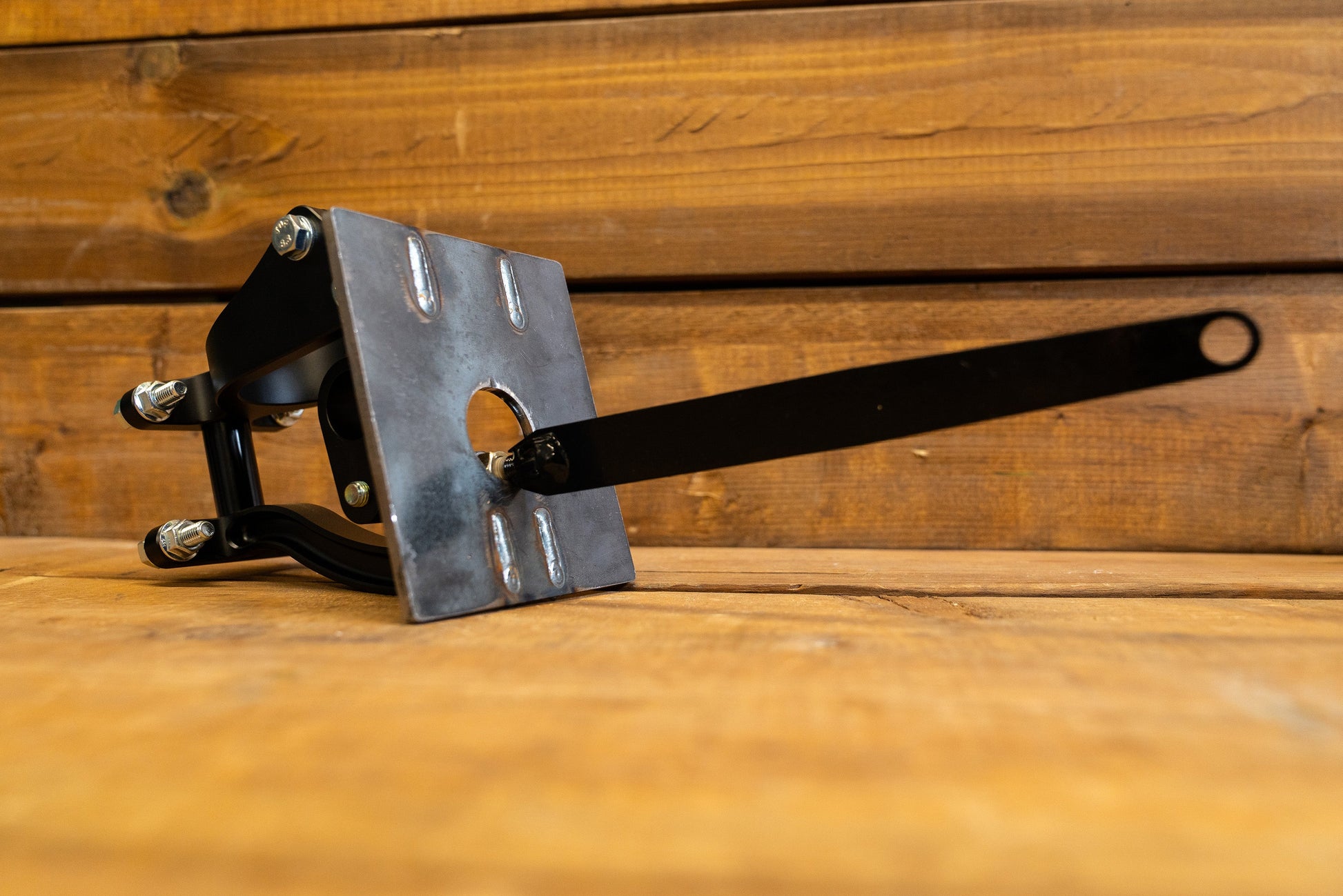

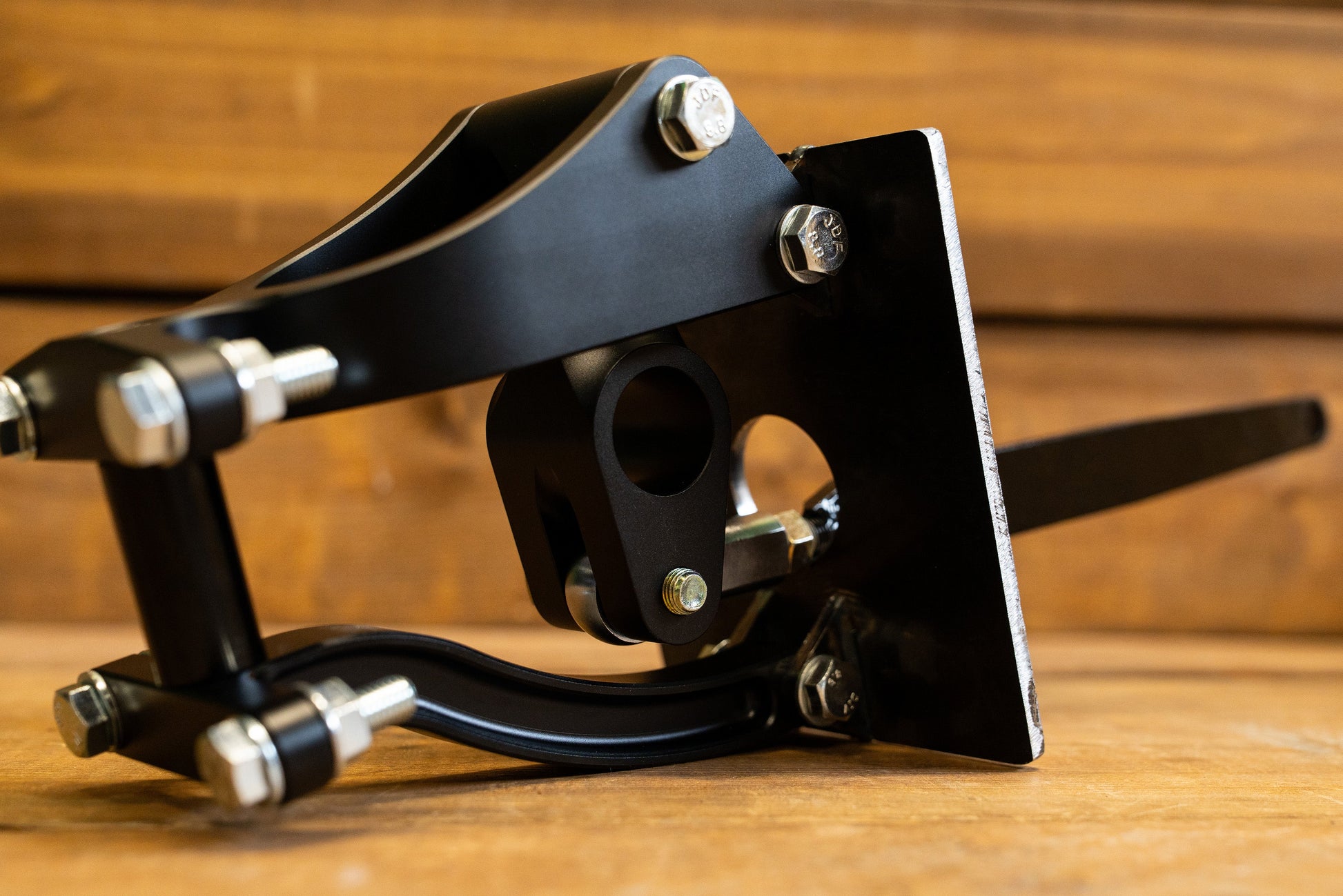

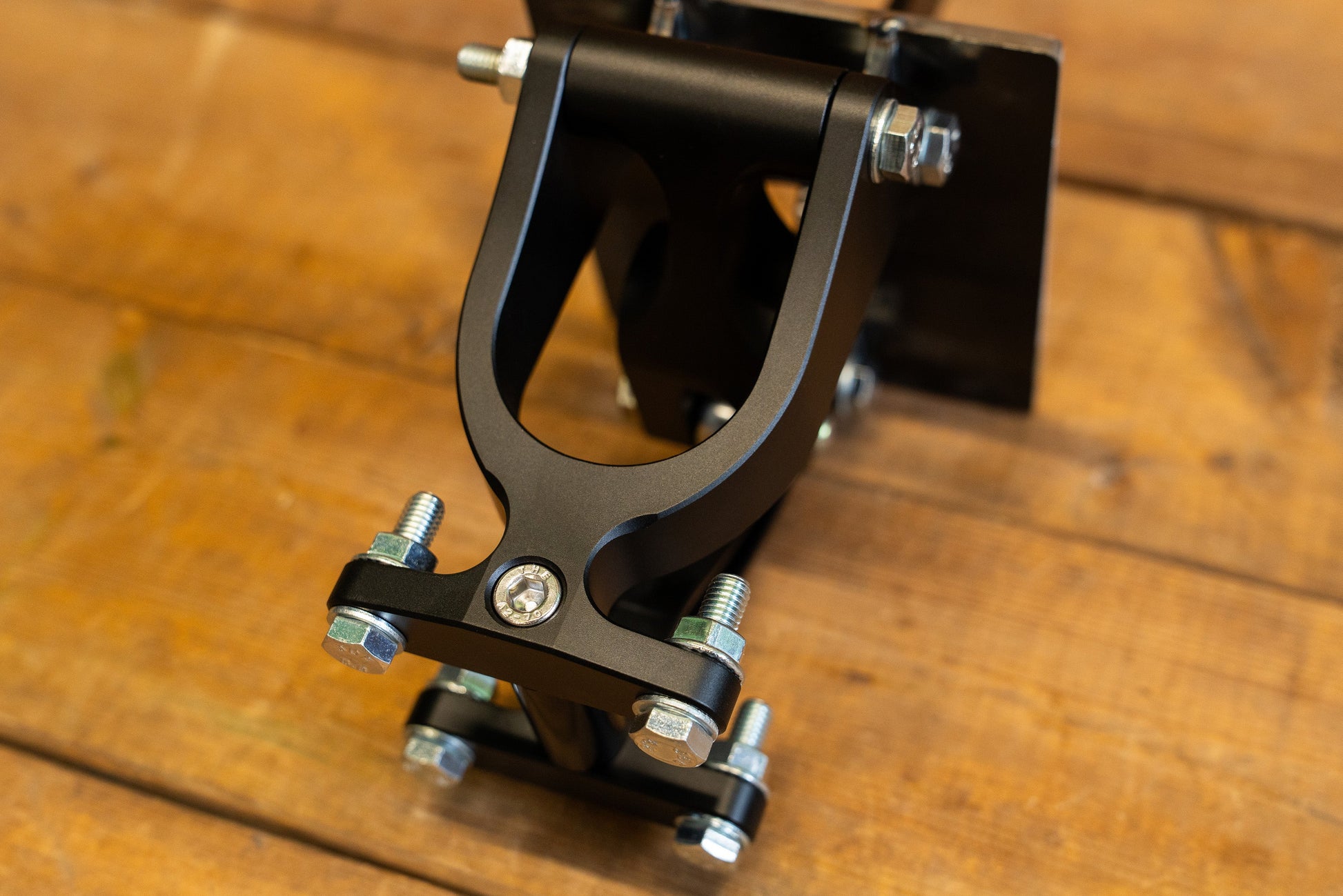

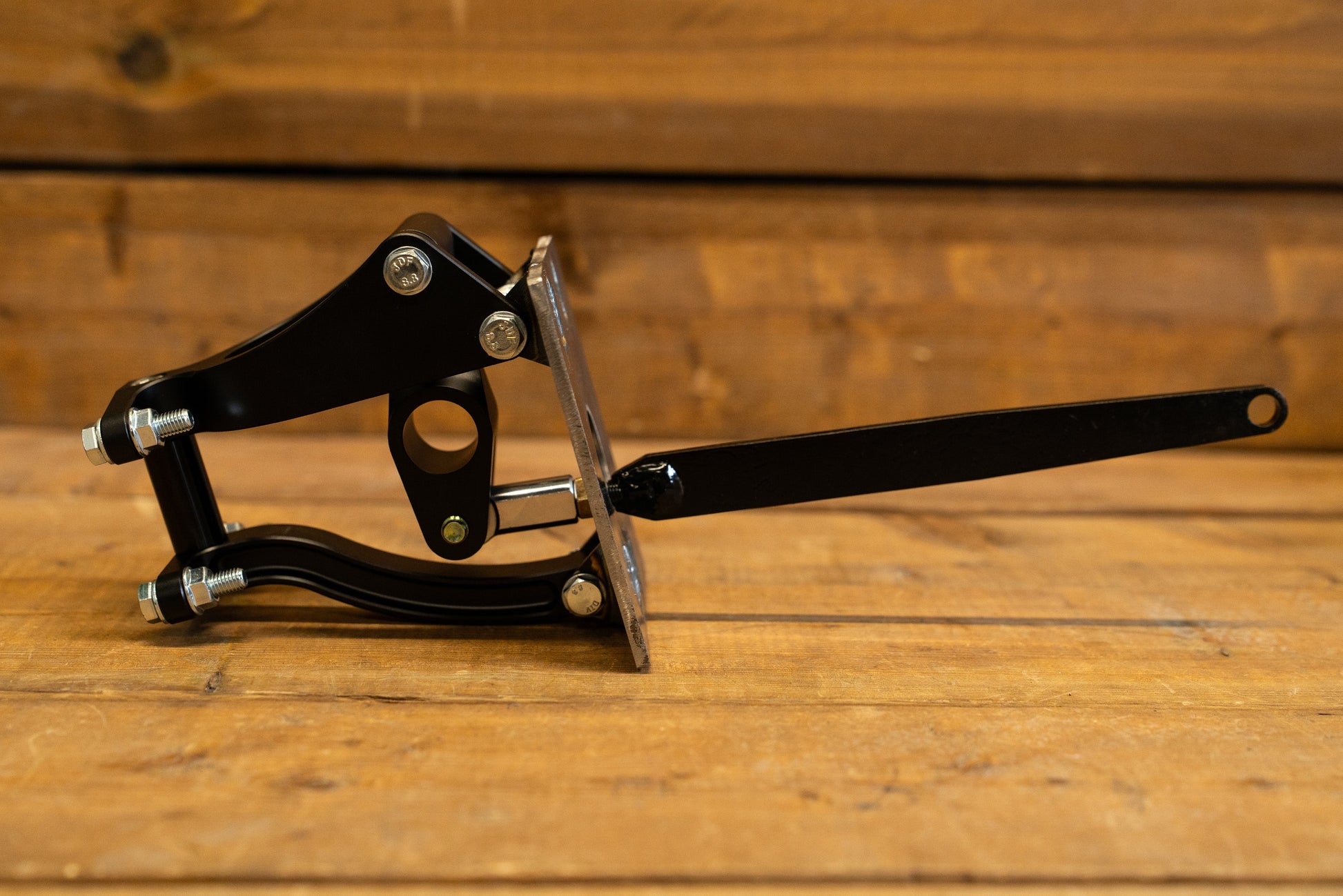

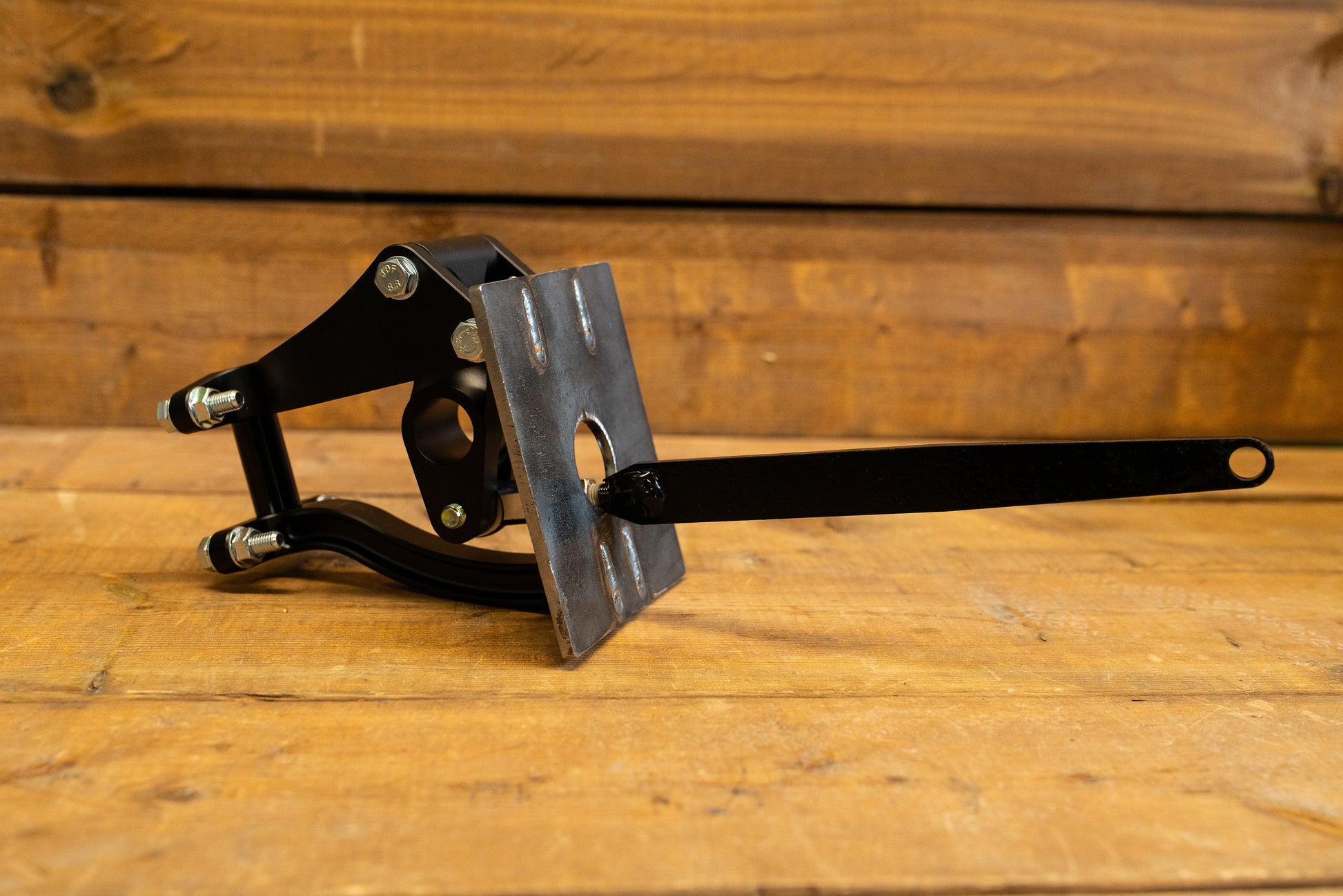

The kit uses a universal firewall mounting plate with no pre-drilled holes, so you can drill it to match your car’s factory booster pattern—two bolt, four bolt, or anything custom. From there, the billet swing-arm pedal assembly bolts together to create a solid dual master cylinder mount.

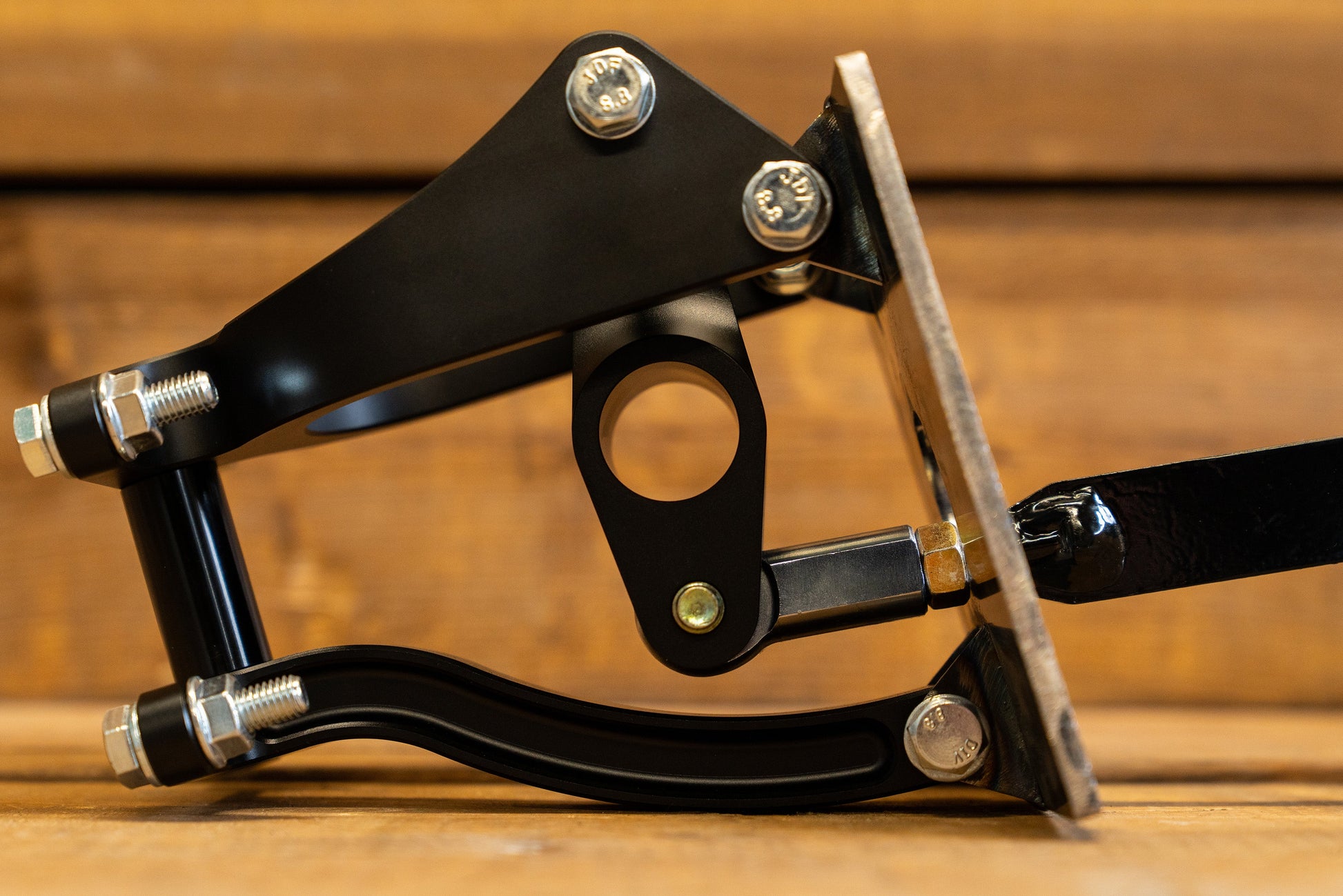

As the pedal is pressed, the swing arm increases pedal ratio and applies force through a bias bar to dual master cylinders, giving you adjustable front-to-rear brake balance and a much more consistent pedal feel.

Everything is CNC-machined from billet for strength and repeatability.

KEY FEATURES:

• Universal brake booster delete solution

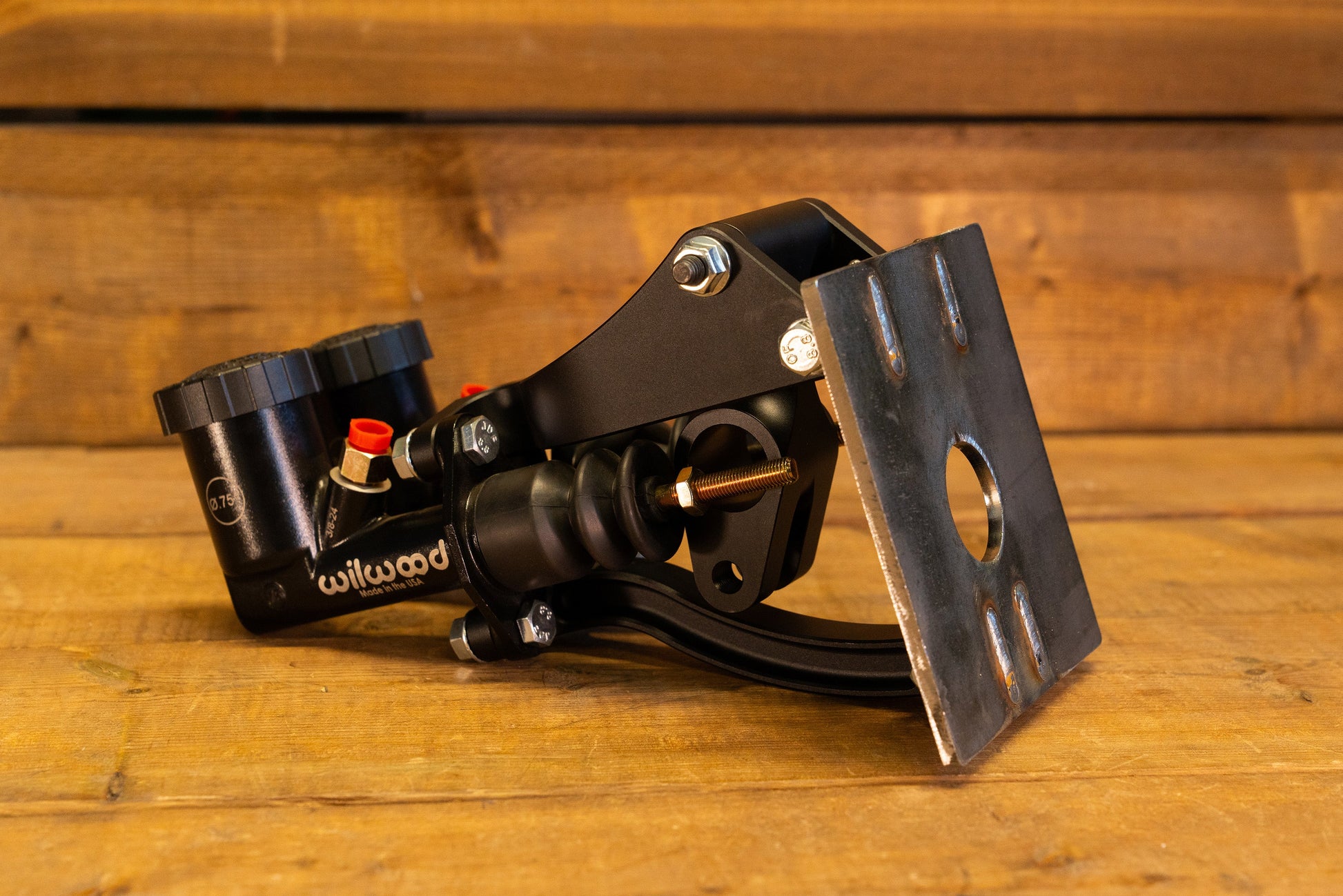

• Modular billet dual master cylinder & bias pedal assembly

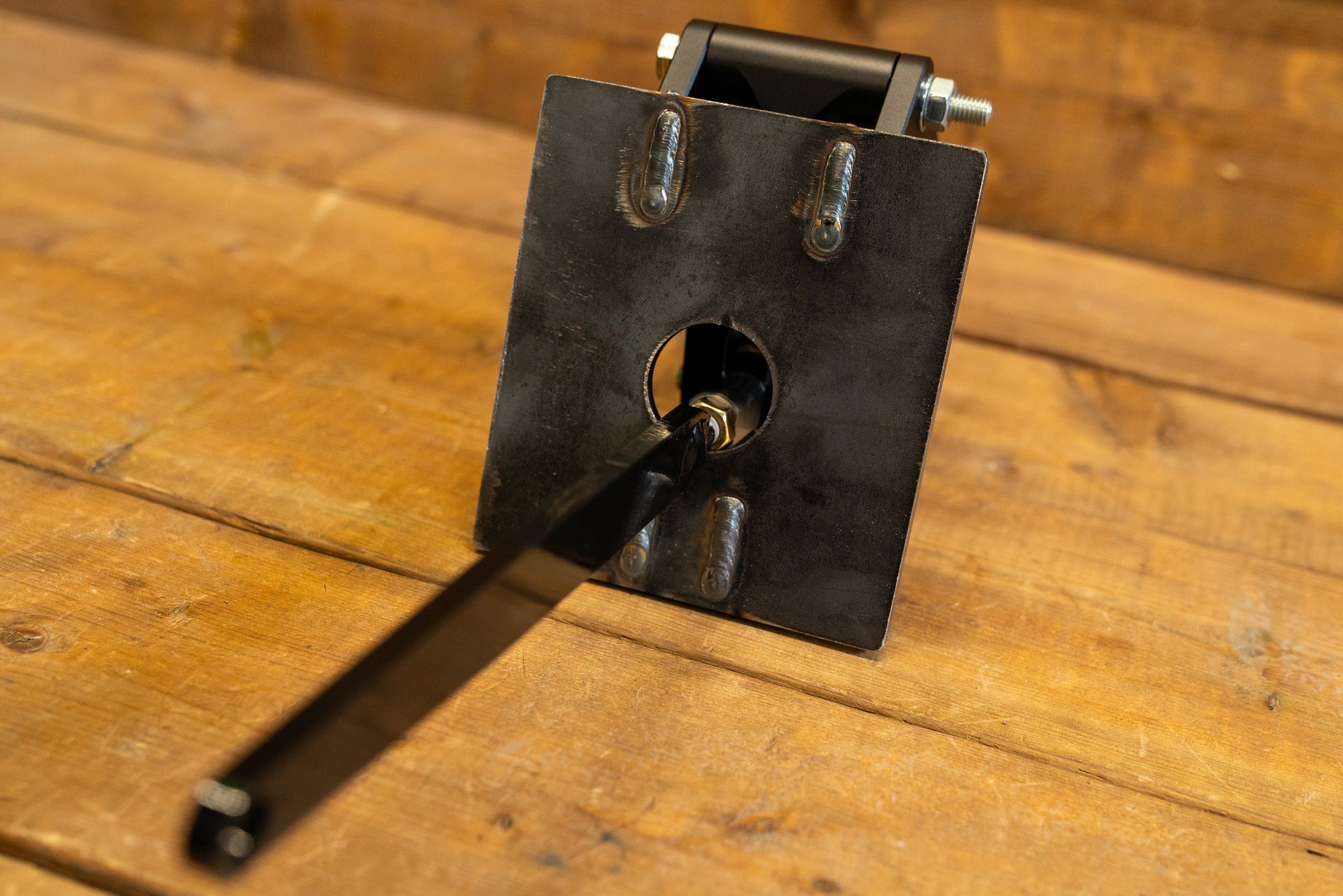

• Universal, drill-to-fit firewall mounting plate
• Swing-arm pedal design for increased pedal ratio
• Bias bar for precise brake balance adjustment
• CNC-machined billet construction
• FD legal and suitable for all motorsport disciplines

Note: Orders require 2–3 weeks for fabrication/machining before shipping.

The kit does not come with master cylinders. Selection should be based on your car's specific brake setup.

Installation Manual
