Wilwood/Tilton AR5/T56 Clutch Hydraulic Feed Line Kit

Wilwood / Tilton to AR5 / T56 Clutch Hydraulic Feed Line Kit

Wilwood / Tilton Master to AR5 / T56 -3AN Clutch Line Kit

Connect your Wilwood or Tilton clutch master cylinder to an AR5 or T56 slave cylinder with a complete -3AN hydraulic feed line system. This kit provides a clean, reliable solution for integrating aftermarket master cylinders into custom clutch setups.

Key Benefits & Features

• Converts aftermarket master cylinder to -3AN system
• Enables full braided PTFE clutch line setup
• Includes banjo fitting and hardware for secure connection
• Eliminates fitment issues with custom hydraulic systems
• Designed for clean, serviceable routing

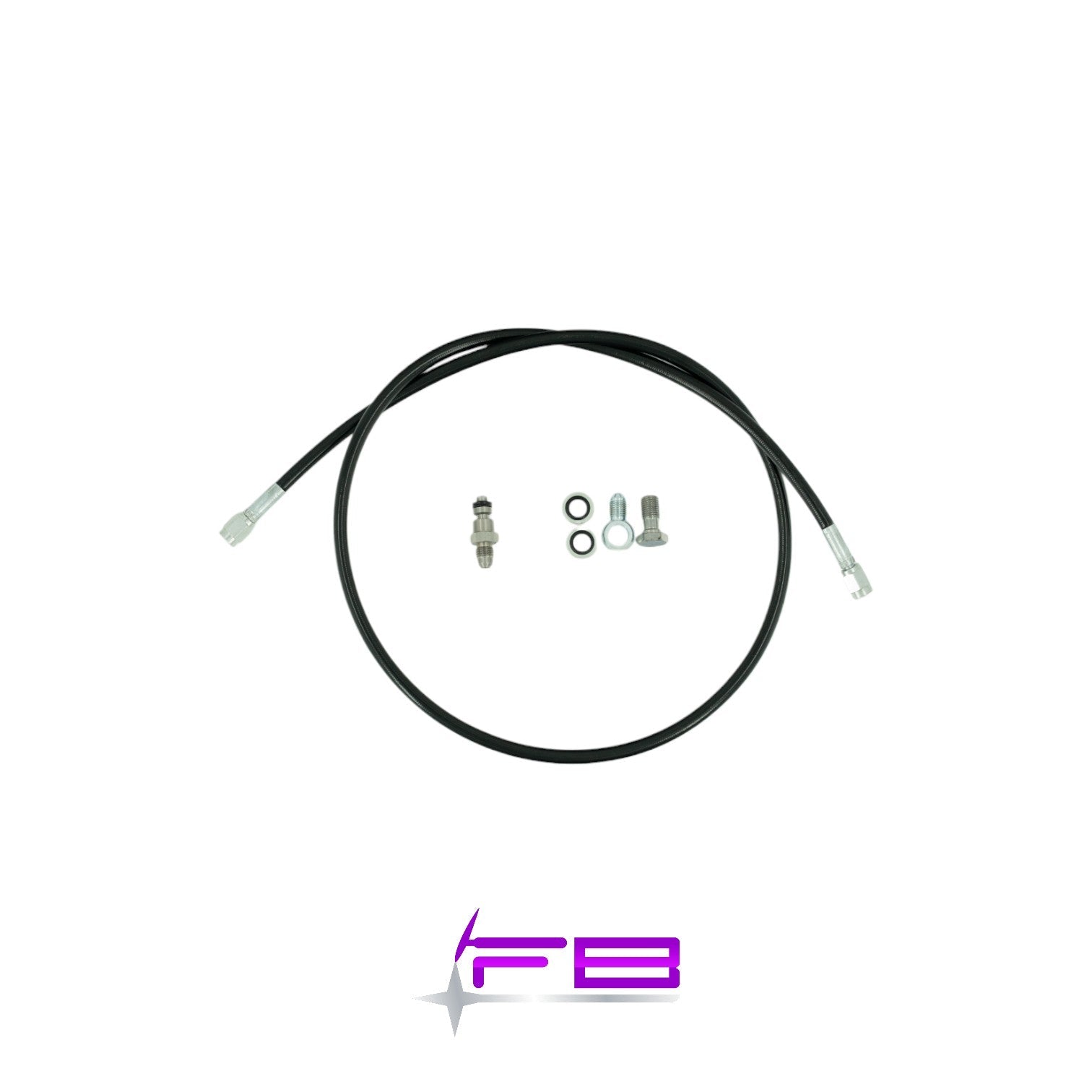

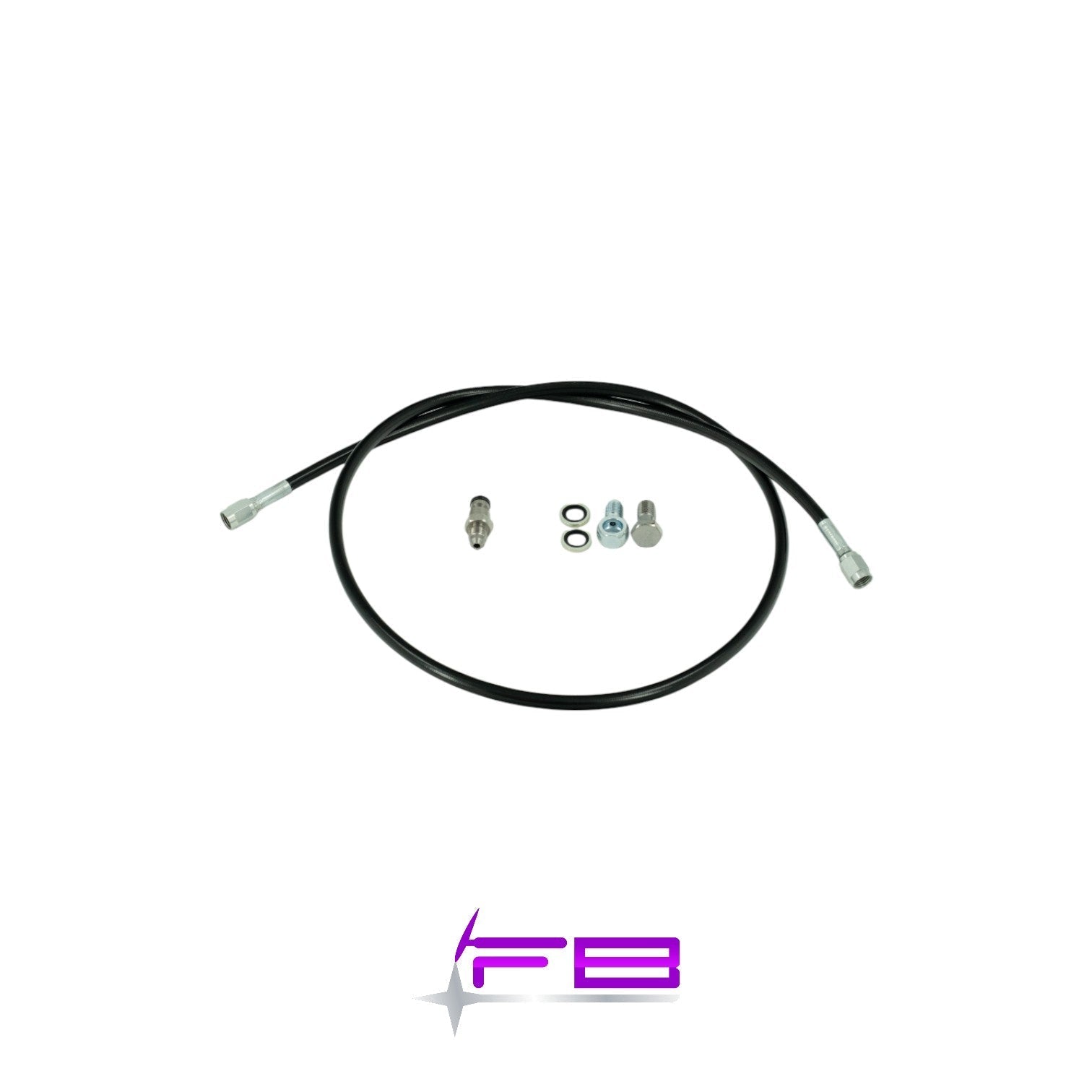

Included Components

• Braided PTFE -3AN hydraulic line
• 3/8"-24 banjo to -3AN fitting
• Banjo bolt with dowty seals
• AR5 / T56 slave cylinder adapter fitting

Technical Specifications

• Line Type: Braided PTFE
• Fitting Size: -3AN
• Master Connection: 3/8"-24 banjo

Fitment & Compatibility

• Wilwood and Tilton master cylinders (3/8"-24 only)
• AR5 and T56 slave cylinder systems
• LS swaps and custom builds

What You Will Need

• Compatible 3/8"-24 master cylinder (not 1/8" NPT)

Built for custom and motorsport applications, this kit provides a complete, reliable solution for integrating aftermarket master cylinders into a clean and serviceable hydraulic system.
