Xcessive Manufacturing - Ford 5.0 80mm Throttle Body Flange (UI-F5_0-TBF)

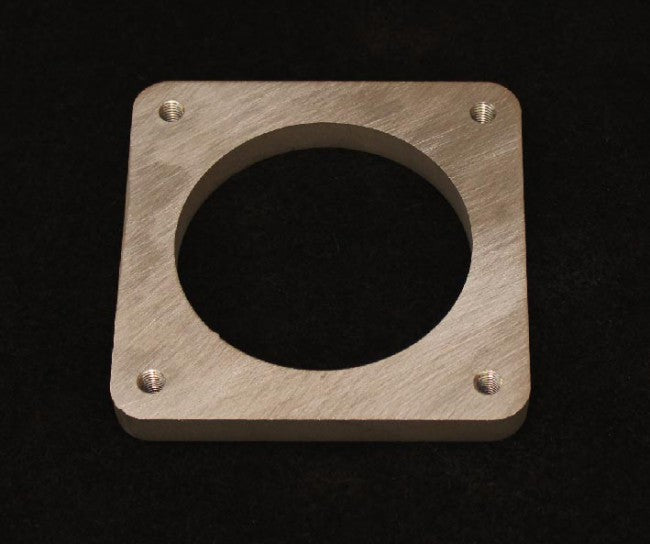

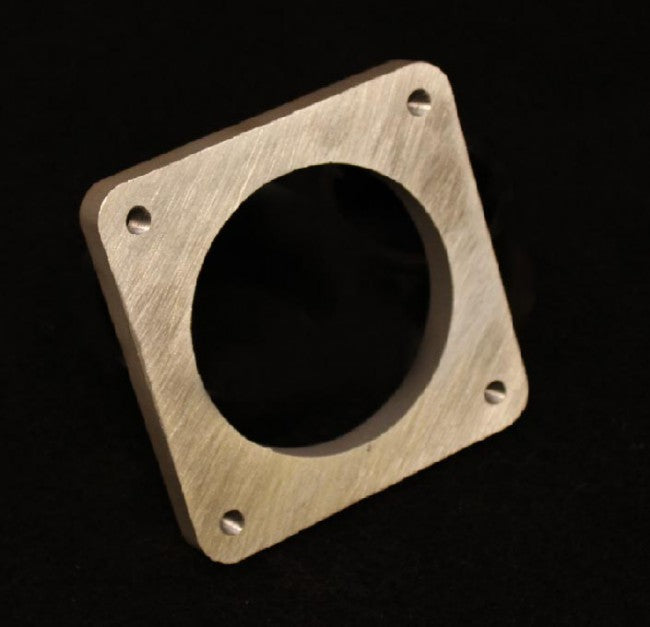

This large bore flange is machined to fit the '86-'95 Mustang 5.0L based 75mm throttle body. Made from 6061 T6 billet aluminum, this flange can easily be welded onto an existing manifold or used for a complete custom manifold.

The flange is made from 1/2" thick 6061 T6 aluminum with a 3.18" (80.5mm) bore and threaded for 8m bolts with a symmetrical bolt pattern on a 3.45" bolt circle.
