Xcessive Manufacturing - JZA80 - JZZ30 Clutch Pedals

    If you're doing a manual trans swap on your Supra or SC300/400 or Soarer chassis, you're going to need one of these!

General Fitment and installation

   The Toyota and Lexus chassis have factory mounting locations that we've utilized along with native clutch masters with a 5/8" bore to work with most factory slave cylinders.

  Using Toyota's location and fitment allows it to clear the brake booster in the engine bay and sits the pedal nicely in the cab under the dash to clear all the electronics.

   Chassis with auto transmssions typically have a larger brake pedal. Typically we cut down the brake pedal to match the size of the clutch pedal, which is factory spec for the brake pedal on manual cars.

Master Cylinders

   The standard master cylinder is 5/8" Bore. This is most common with external slave cylinders found on many Toyota, Nissan and BMW transmissions.

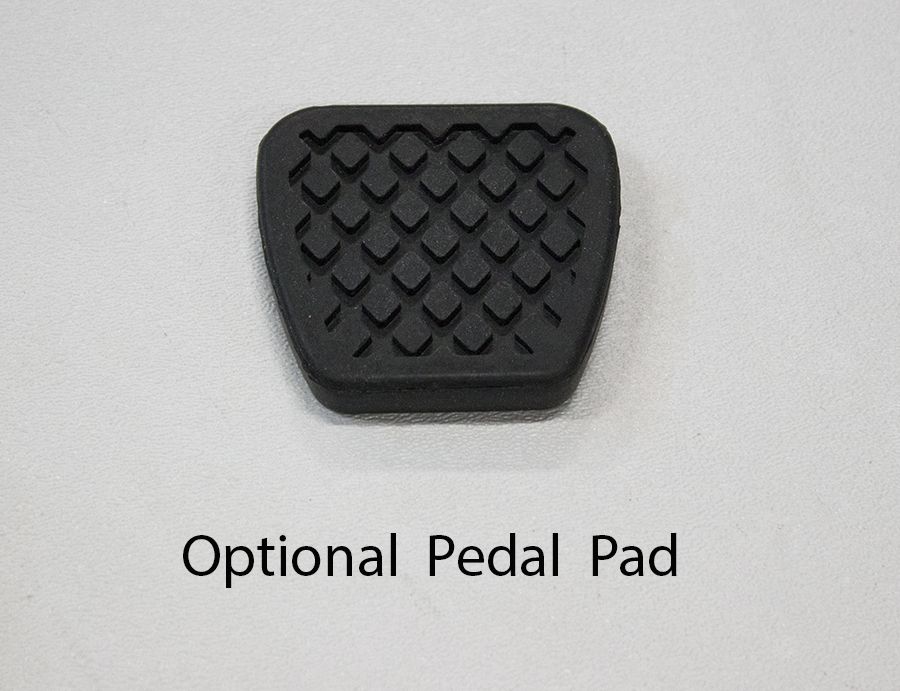

Pedal Pads

   The pedals come powder coated standard, we do offer an optional rubber pad that fits quite nicely if you want more of an OEM look. If you want to match your brake pedal when you cut it down, get two pads!

Construction and hardware

The main bracket is formed 1/8" steel and the hanging pedal arm is 1/4" steel on a 12mm pivot. We've also provided all the bolting hardware for the clutch mount and the master cylinder hook ups along with the master cylinder. You will need to get the correct clutch line for your your transmission, we offer them in braided stainless.

Kits include:

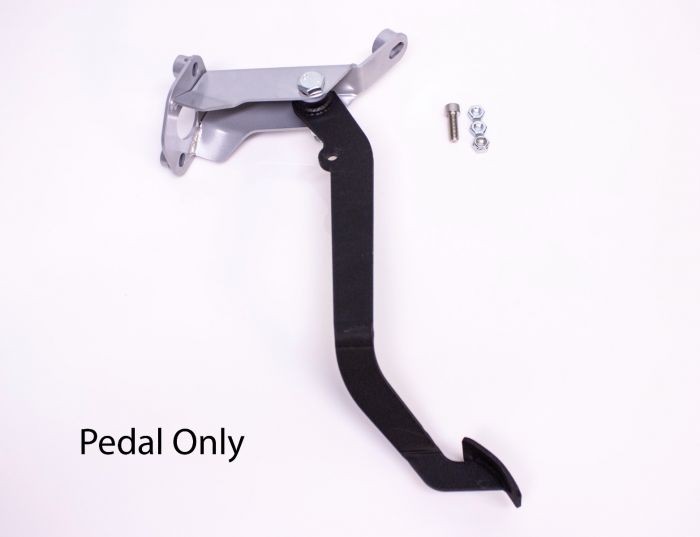

Bolt in clutch pedal base

Correct position Clutch pedal arm

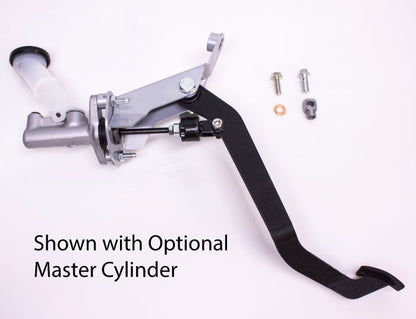

Kit with Master Cylinder is optional
