Xcessive Manufacturing - MX83 Rear Adjustable Arms - Pro Street (T-MX83-RAA-PS)

THE PRO STREET ARMS ARE CURRENTLY BACK ORDERED. PLEASE CONTACT US FOR DETAILS.

This is our set of Pro Street rear adjustable arms for the MX83 chassis set up with Poly bushing hardware on the inside for dramatically improved control over stock bushings, but without the harsh ride and shorter lifespan of Heims. These arms give you all the adjustability of our Pro Comp arms, but in a more street friendly package.

     The main arms are made from 1 1/2" DOM steel tubing with a double adjuster on the inboard end, a heavy formed clevis end so it won't bend even under moderate impacts (not like that ever happens) and a ton of adjustment, up to 15mm out and 20+mm in with and additional 6mm of adjustment possible with our supplied cam bolt delete washers. The main tube is now a bit shorter then the Pro Comp arms to allow the rear tires to flattened better on lowered cars to help compensate for the camber gain caused by the upper control arm.

    The Toe rods are made from DOM steel tube with welded RH and LH threads, heim taper adapter (outer heim) that fits the stock Toyota taper and requires no modification to bolt up and again a full set of cam delete washers to lock down any potential movement, set the tubes and the heims and they stay there. The traction rod again uses a plated steel DOM tube, heavy formed clevis end, RH/LH threads and chassis bolt to poly hardware.

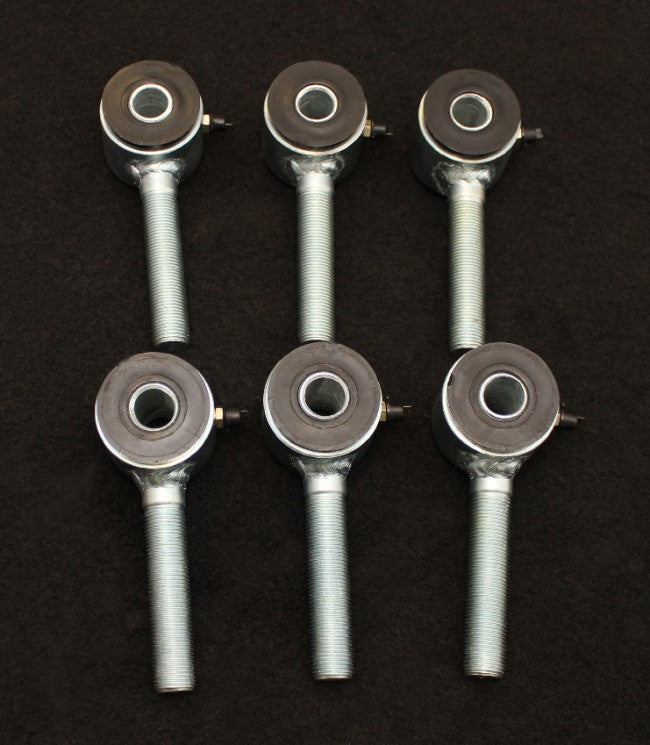

The Poly joints have grease fittings for long life with minimal service and all parts are plated to last, we even supplied a set of wrenches that fit both the double adjusters and heim jam nuts. You won't find a more complete set of arms on the market!

Kit includes:

2 Lower main arms - Poly inner mount

2 Toe Rods - Poly inner mount with heim outer

2 Traction Rods - Poly inner mount

2 Wrenches

Cam Delete Washers
