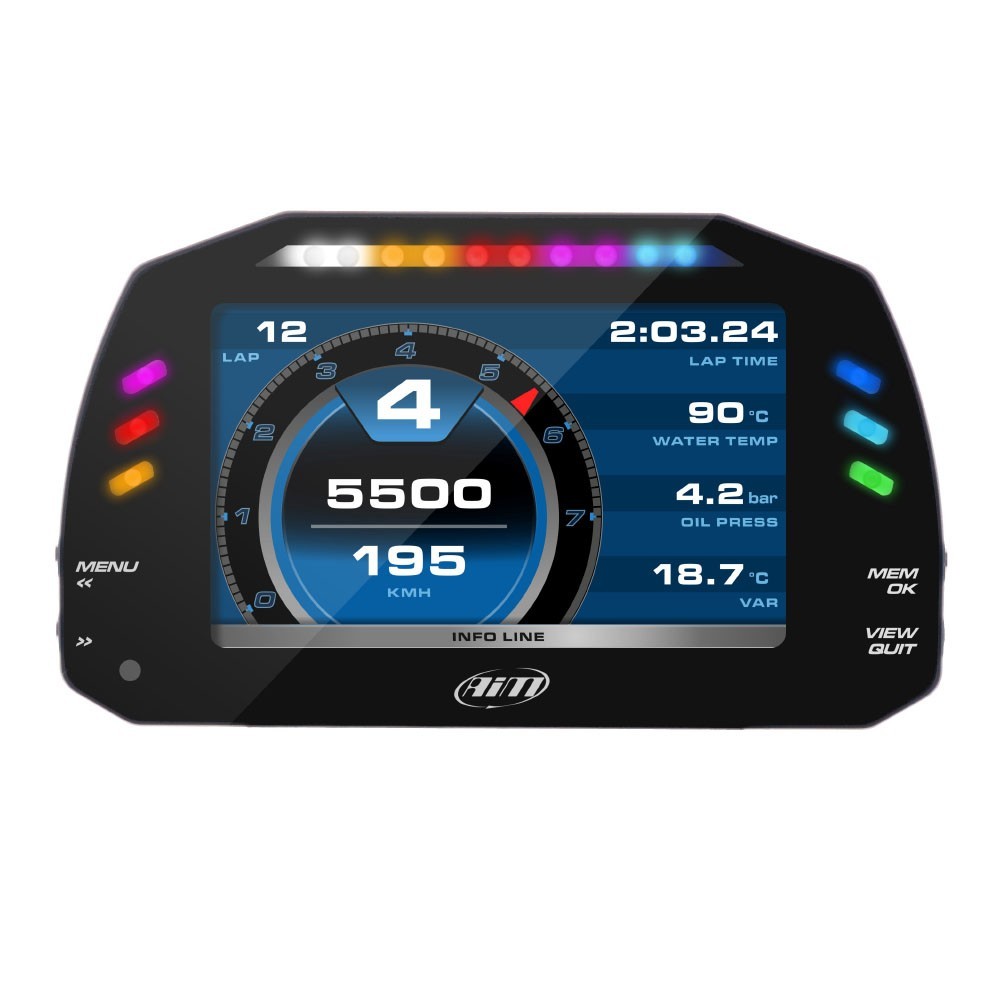

AiM - MXS 1.3 + 4 m GPS09c + USB cable + 37 pins standard harness

• Advanced MXS 1.3 dash logger with configurable pages, high contrast TFT display, and extensive data acquisition from ECU, GPS, accelerometers, and analog/digital inputs.
• Customizable alarms with RGB LEDs, flashing options, priority settings, and digital outputs for controlling external devices like lights and fans.
• Integrated camera inputs for mirror display and event management, suitable for motorsport, automotive, and high-performance vehicle applications.

MXS 1.3, the evolution of MXS, is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS09 Module included in the kit, analog / digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 5″ display has been specifically designed for installation in small cockpits.

Freely configurable pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.

High contrast TFT display
A high contrast TFT display identifies MXS 1.3 at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.

Flexible alarms
MXS 1.3 features six configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities.

Two digital outputs
MXS 1.3 features two digital outputs. The two digital outputs (Dout) are LOW SIDE type (switch to ground): they can be configured in order to be turned on/off depending on the value of the analog or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.

Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera,
through pushbutton command or event management.
