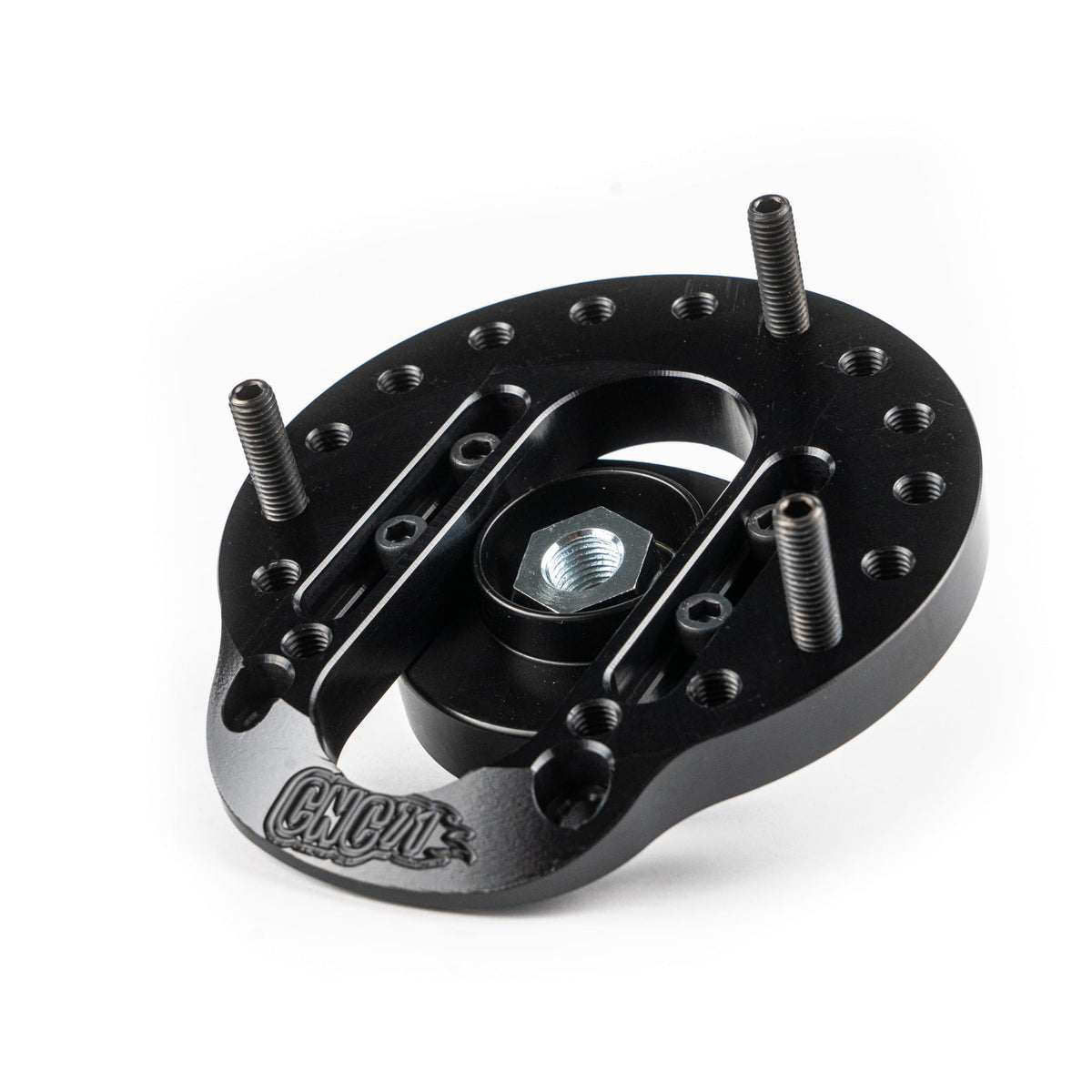

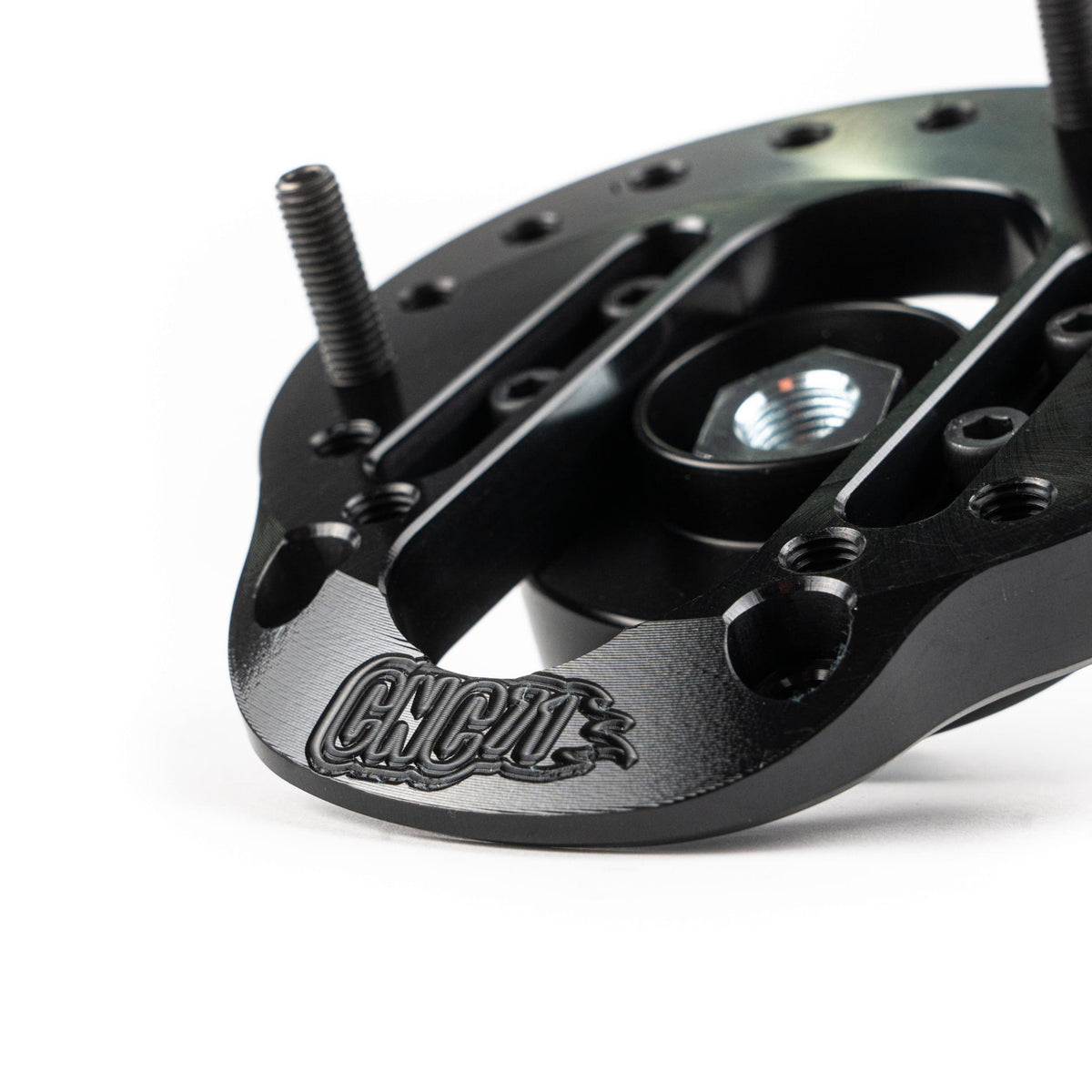

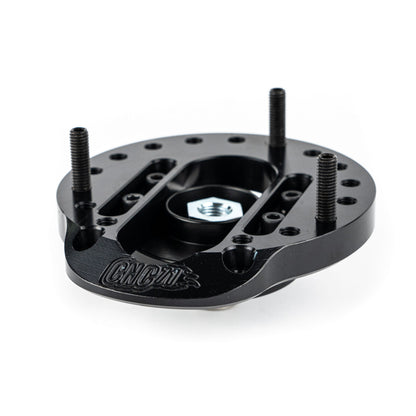

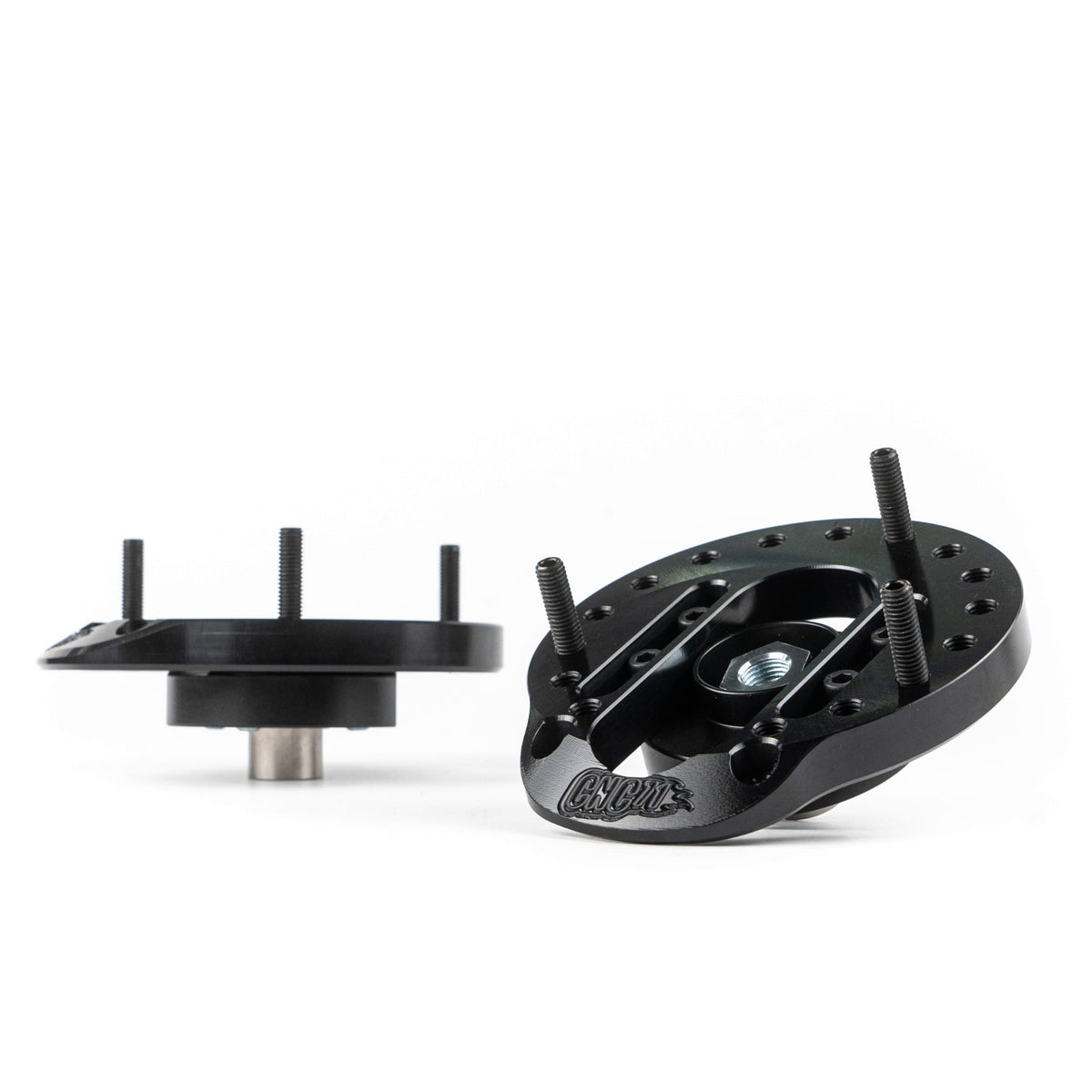

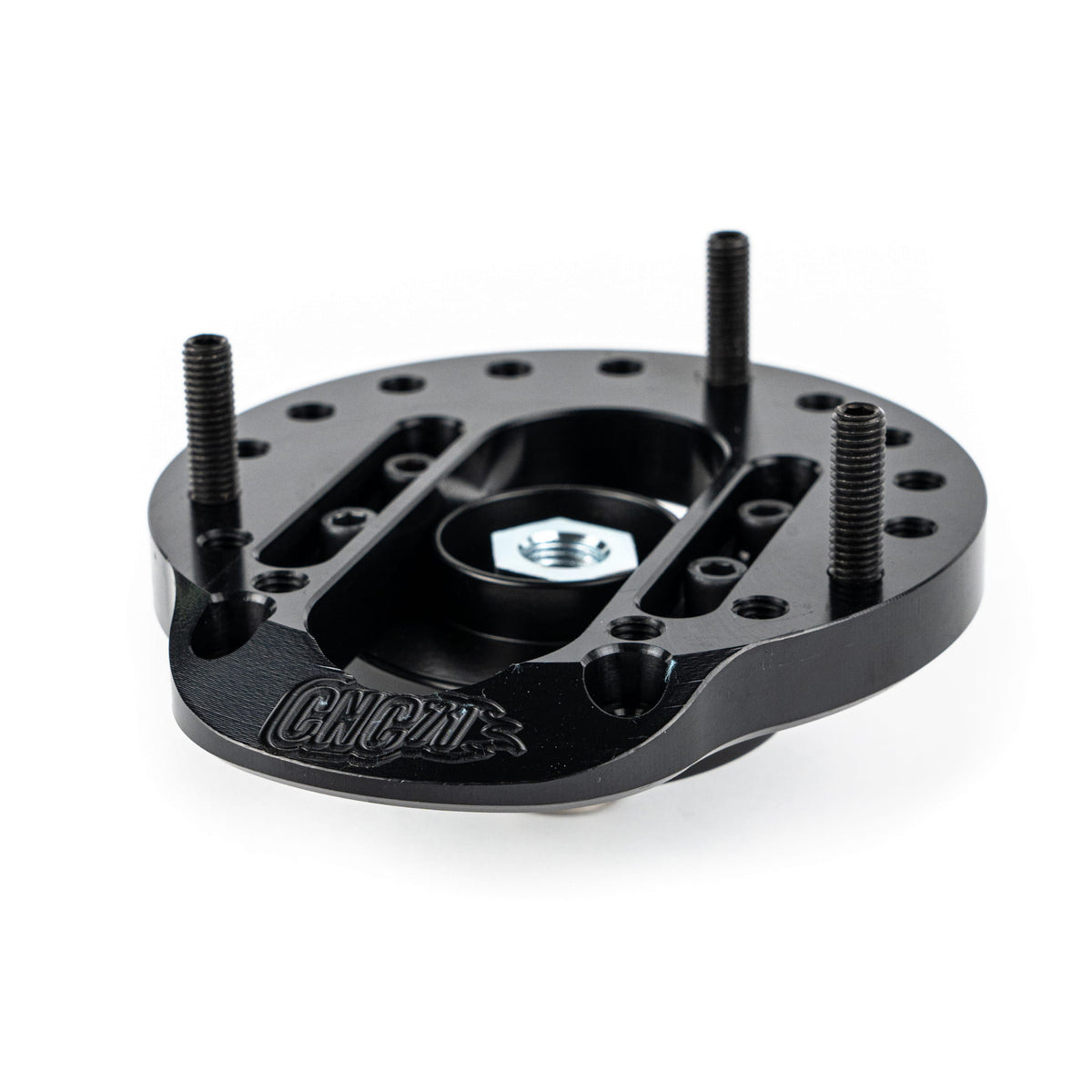

CNC71 - CAMBER PLATES BMW E36/E46/E8X/E9X - PRO

Camber plate for BMW E36/E46/E39/E8x/E9x model PRO - with increased range of adjustment designed by CNC71 Motorsport allows to adjust the camber and caster angle of the front wheel in a range of up to +/- 6 degrees from the serial position. This is the maximum that can be achieved without modifying the cup while maintaining adjustability.

• It is made of 7075 aluminum, 15 mm thick
• Maintenance-free GE20UK bearings ensure trouble-free operation in harsh conditions

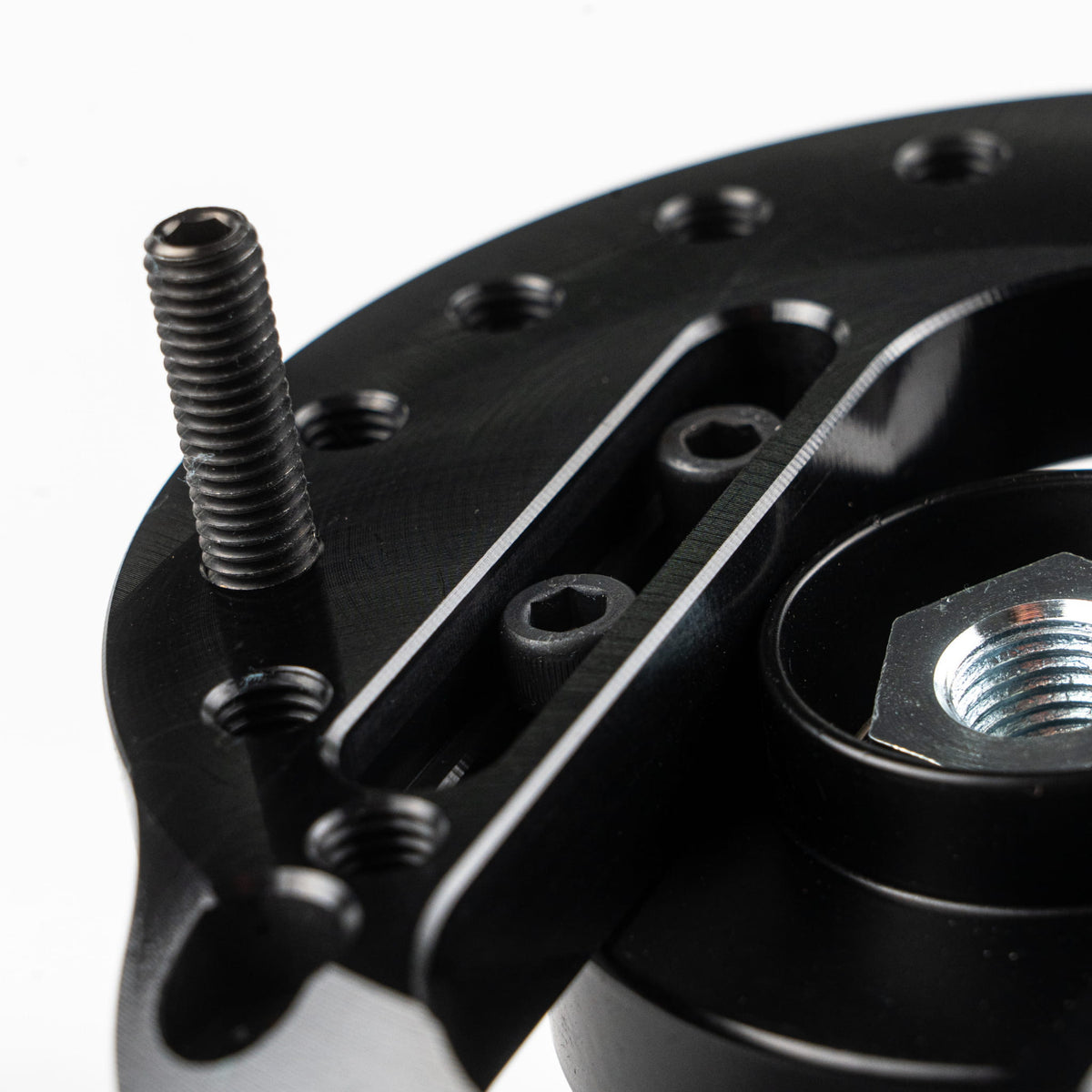

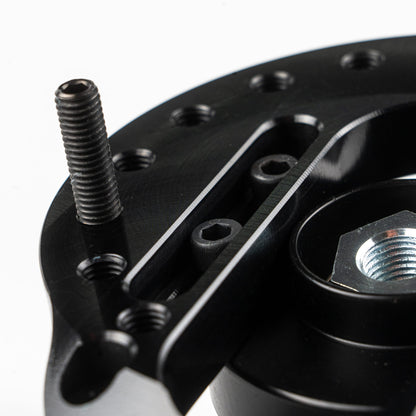

• Used nuts with serrated thrust surface prevent self-unscrewing from the cup
• Simplicity of design allows for trouble-free installation and ease of adjustment
• Attractive design

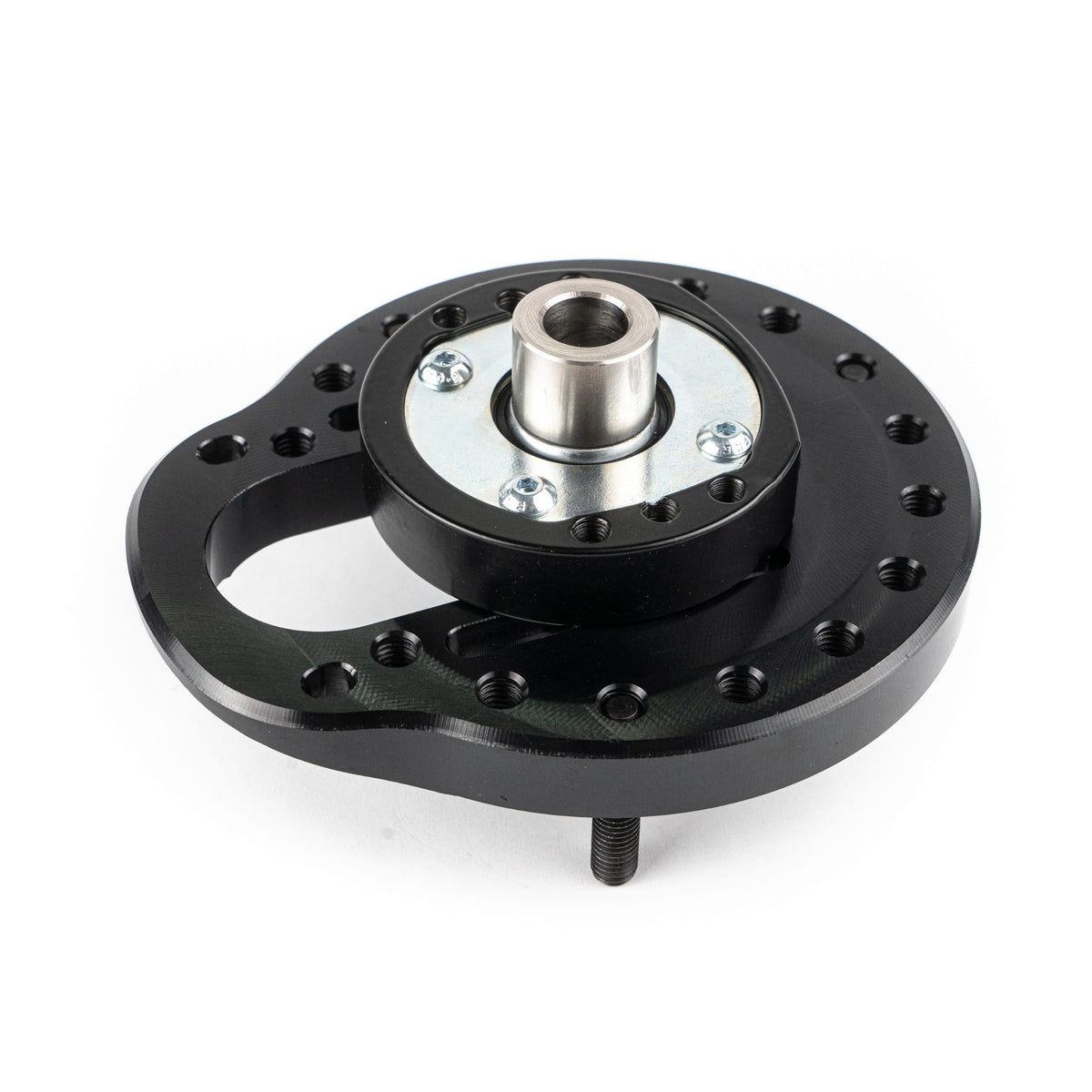

Stainless steel spacer sleeves are included. Thanks to its length, the lower bushing prevents collision with the spring plate when the shock absorber swings a lot. The upper bushing serves as a nut, thus avoiding problems with a threaded connection that is too short.

The neat and simple design will fit perfectly into any engine compartment.

• Price for set - 2 pcs
• Product made entirely on CNC machines
• Anti-corrosion resistance ensured by the use of stainless steel, powder coating of steel elements and anodizing of aluminum elements.

 Before purchasing, please check if the included bushings will fit your shock absorber (see photos). If there are any problems, please contact us for sizing.
