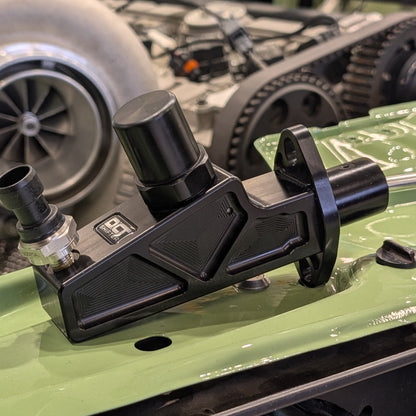

DCT Shifter - DCT Clutch simulator Firewall/Pedalbox - Black

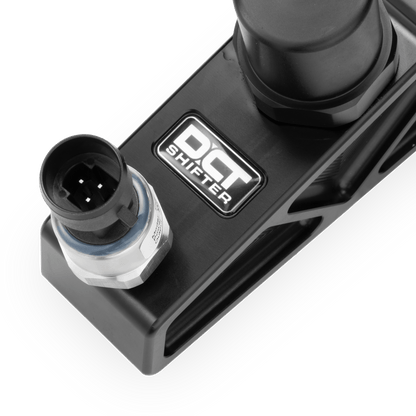

Introducing our latest innovation: the Clutch Simulator — designed to replicate the feel of a "real" clutch pedal. Available with an optional built-in 5v analog CPS (clutch position sensor) for straightforward installation in your build.

This Clutch Simulator is compatible to setup with most control systems that support clutch functionality for DCT/8HP transmissions, including popular solutions like Turbolamik and Maxxecu.

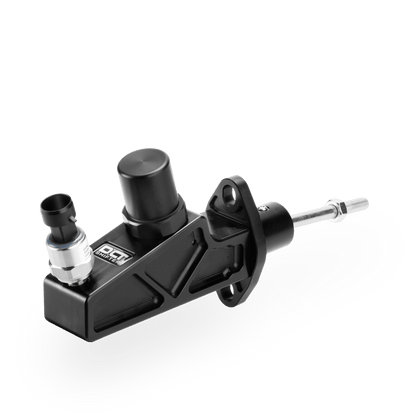

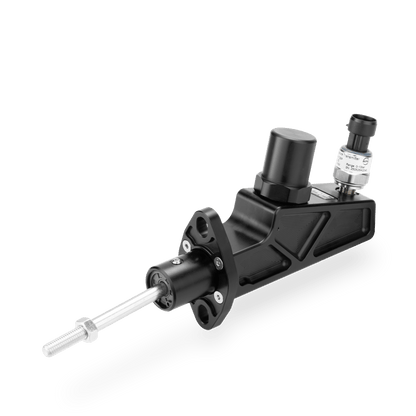

The unit features a robust, compact design crafted from high-quality anodized aluminum for maximum durability and protection. Made in Sweden.

You have the flexibility to choose your preferred installation type — select either remote or firewall/pedal mounting from the options below, also choose color (we only got black ones this first batch, silver is coming later)

NOTE! When you set up (calibrate) your simulator to your gearbox controller, please leave some room from when clutch pedal is not pressed. Heat from enginebay and others does some slight pressure change (voltage rise about 0.1v at 80 celsius). So if you read ~0.5v when 0% pressed, set 0% to at least 0.8-1.0v.

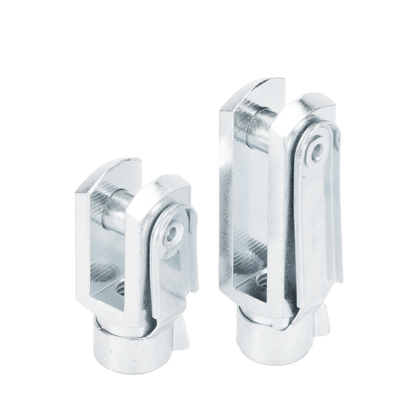

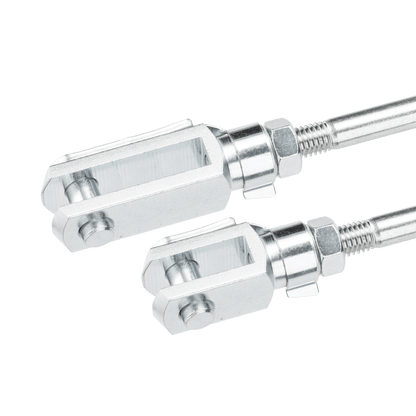

• Firewall/pedal Mounting: Includes a m8 rod with clevis link and a mounting plate that fits most firewalls (with center-to-center distances between 62–53 mm).

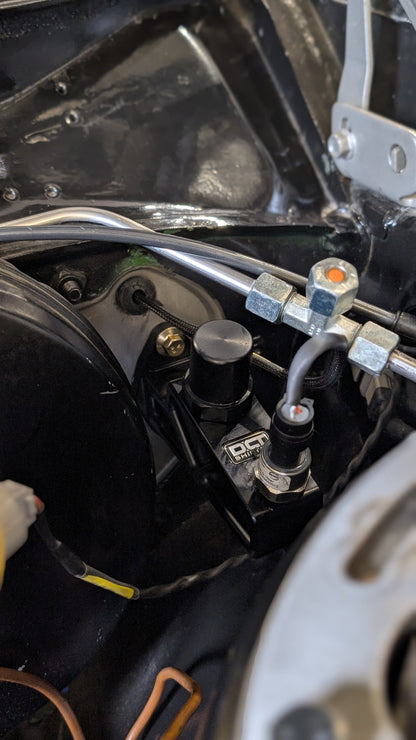

• Remote Mounting: Comes with a 3/8-24 UNF fitting, allowing it to connect seamlessly as a slave cylinder after your main clutch cylinder. Also comes with a mounting bracket in stainless steel. Small m3 screw for bleeding. Please be aware: you might need a "help spring" to correctly pull the pedal back. We've noticed some setups work great without one, but it seems to depend on your pedal's geometry and cylinder size. We're actively working on a fix to eliminate the need for an extra spring, but for now, adding a help spring is the easiest solution.


Specifications:

• Inlet thread: 3/8-24 UNF female
• Sensor thread: 1/8 npt

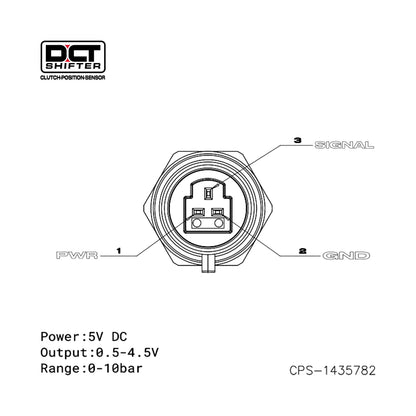

• Sensor power: 5v DC
• Sensor output: 0.5-4.5v
• Sensor range: 0-10 bar
• Total height (with firewall bracket): 110mm
• Body height(bottom of body to top of cap): 85mm
• Width:  35mm
• Total length: 160mm
• Length (from firewall to end of body):125mm
• Length of rod (from firewall): 110mm + 40mm clevis
• Weight: 0.8kg
• Material: Aluminium

Elevate your driving experience with our Clutch Simulator — engineered for performance, versatility, and ease of installation- Here in Sweden.
