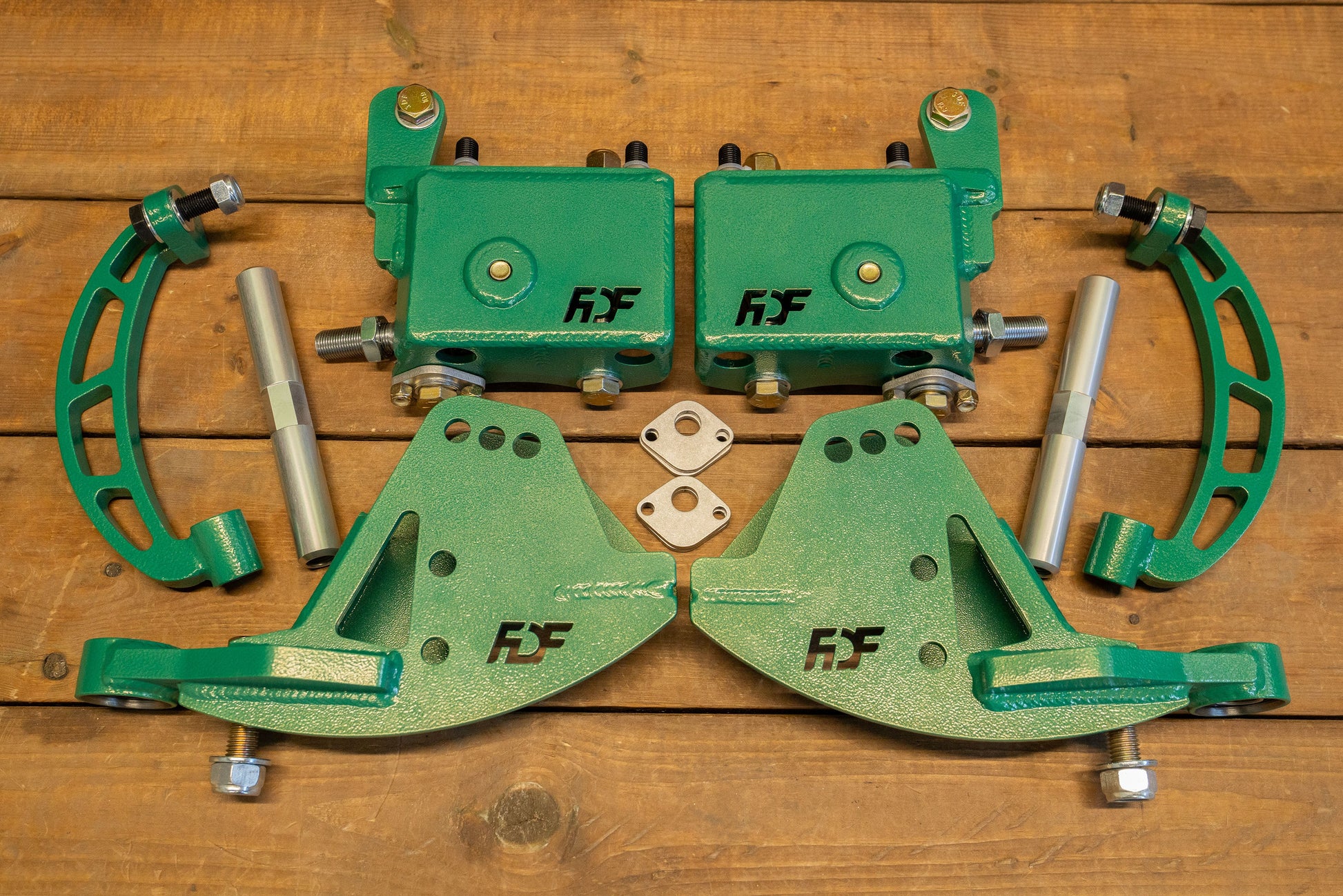

FDF Raceshop - IS300 / JZX90 / JZX100 Mini Mantis Angle Kit

This is the small starter kit that still packs way more angle than stock.

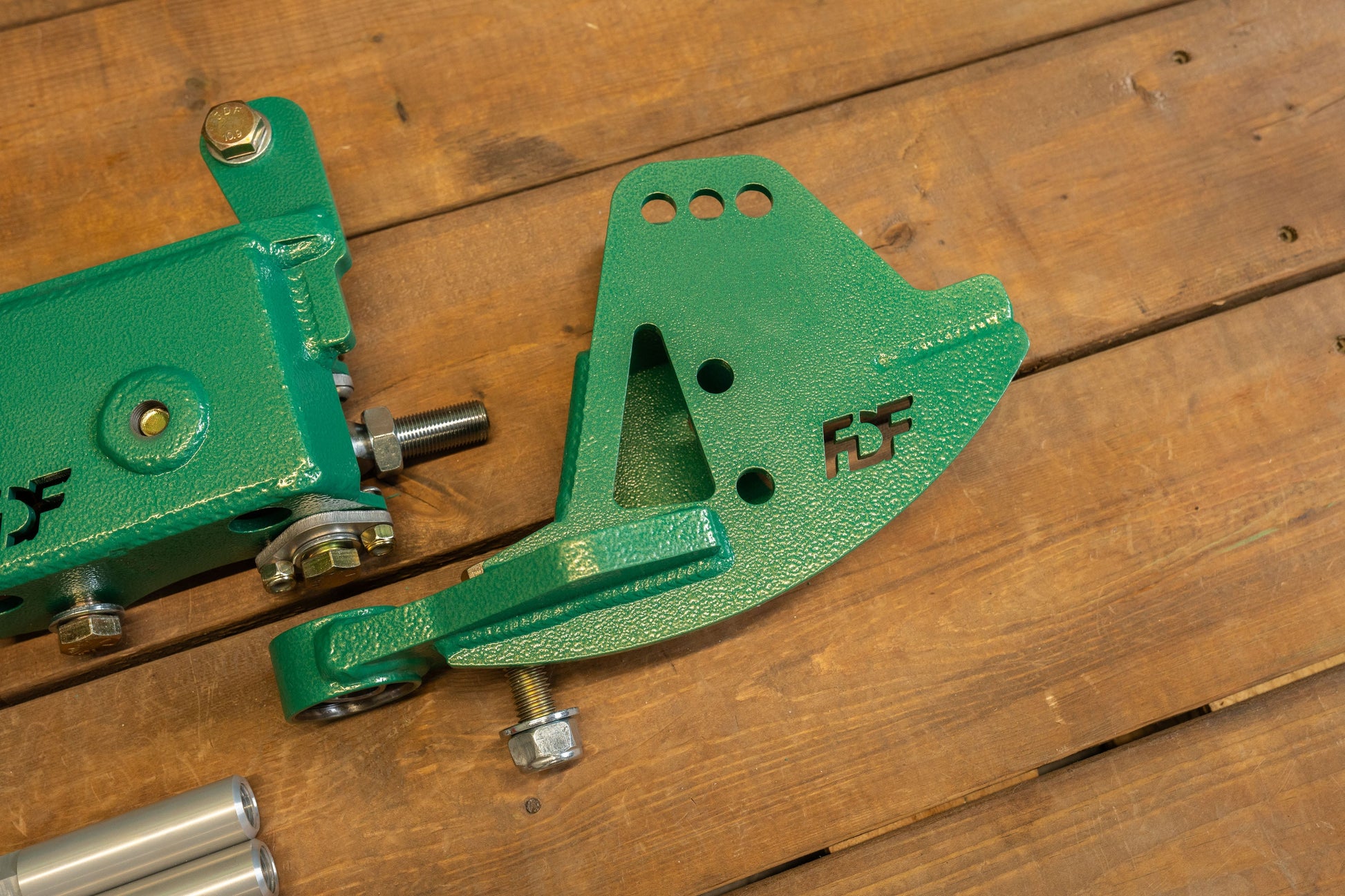

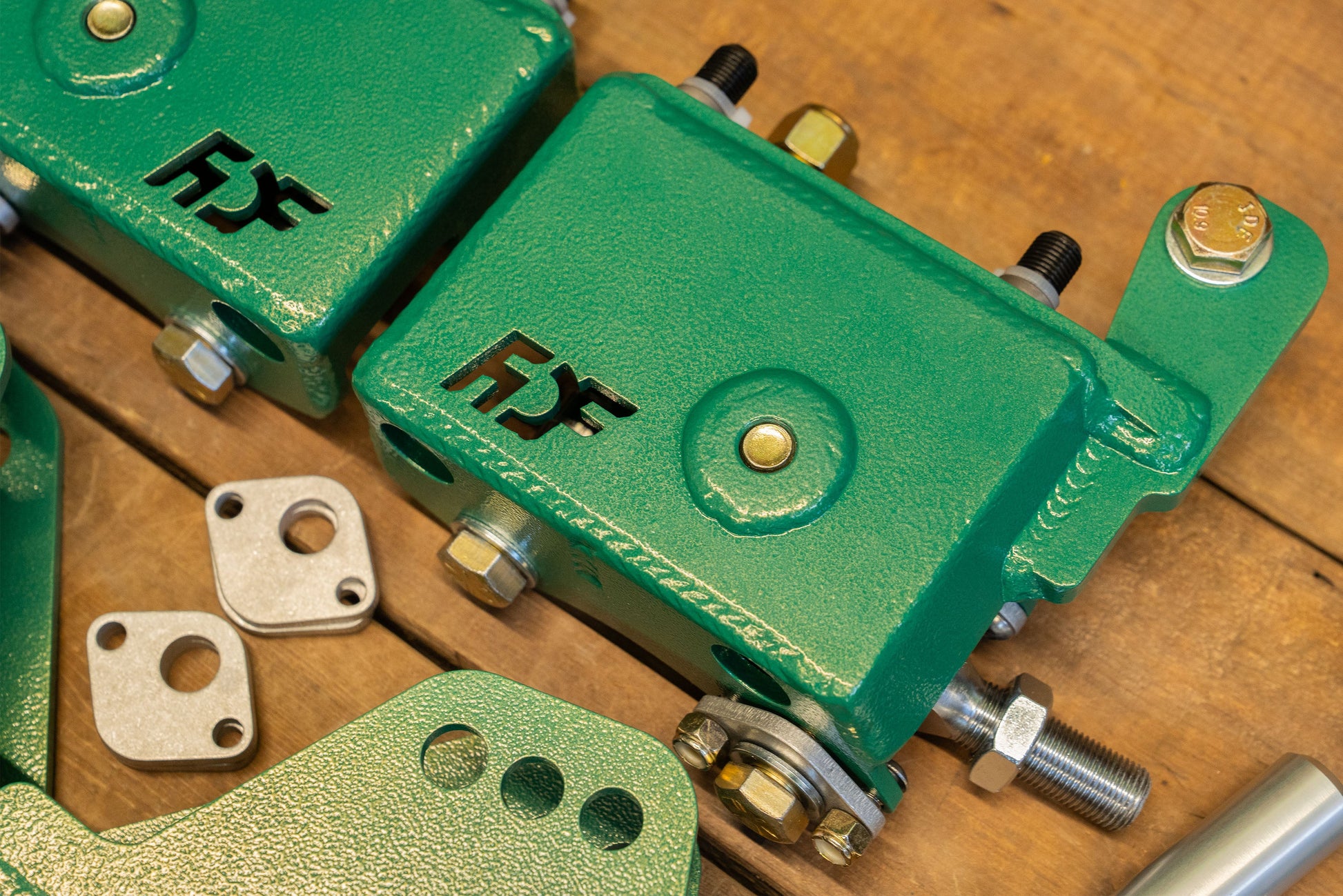

It uses a knuckle adapter and a lower control arm with a uniball that bolts right onto your existing arm—making it a perfect bolt-on-and-go setup.

Simple, effective, and a great way to get that extra steering angle.

The MINI kit can be used with factory or aftermarket caster/compression arms, if you want to run the FDF compression arms, you can order separately.

Key Features:

• Angle: 55 degrees + depending on your steering rack offset and wheel setup.

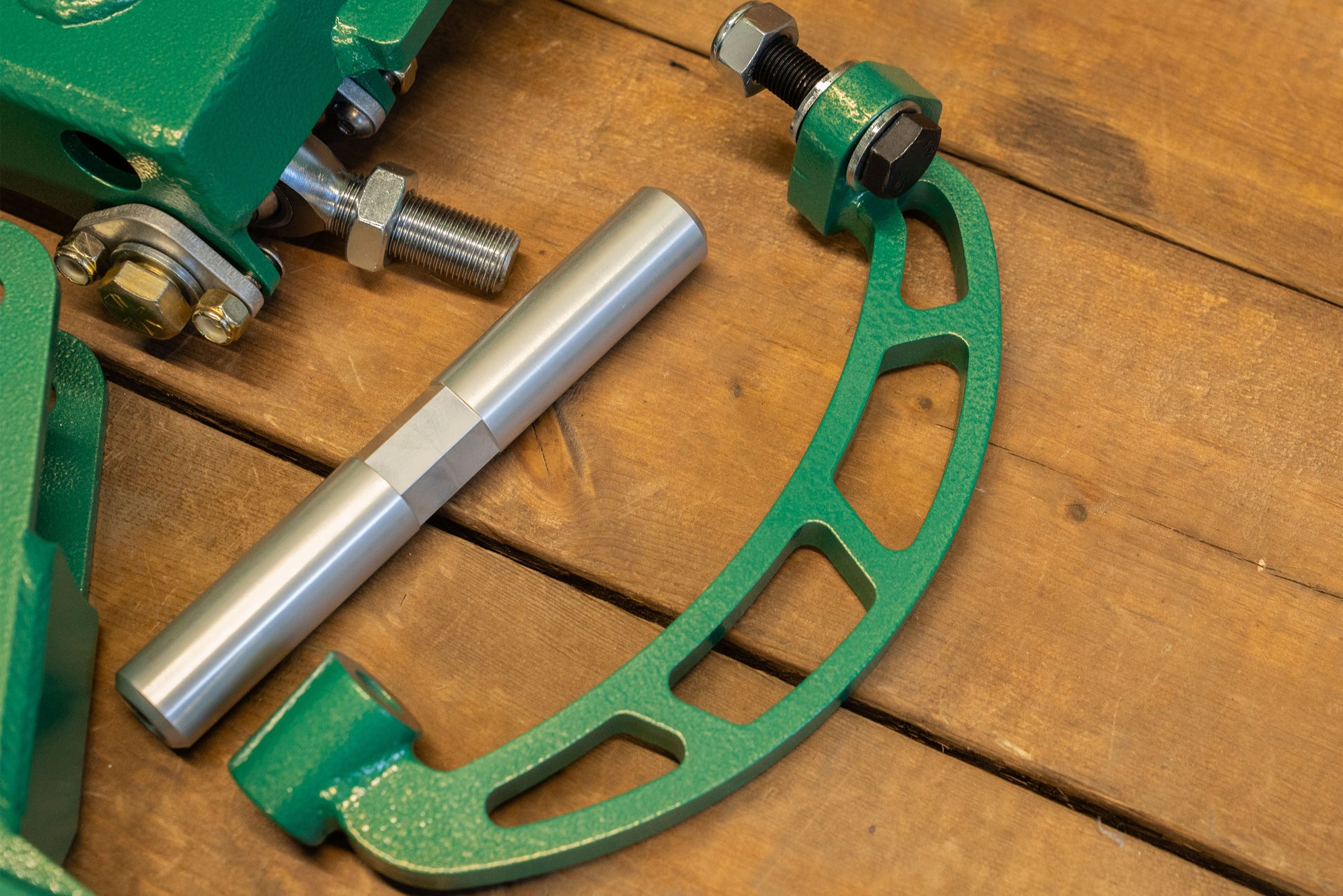

• Tierods:  The kit includes tierod adaptors to connect to the knuckle.
• Ackermann: Adjustable ackermann (other settings offered upon request).
• Roll Center: Optimized handling by adding 30mm of roll center correction.
• Bump steer: Corrected bump steer for a lowered ride height.
• Caster: Optimized caster and trail for the best alignment torque feedback.
• Camber: Optimized camber ranging from -3 to -6.
• Track Width: 35mm wider per side creating a stable and high clearance front end.
• Suspension Travel: Long travel range, full lock to full lock at any point throughout suspension travel for increased grip.
• Joints: Chromoly Heim joints, and spherical bearings with self-lubricating nylon race, easily replaceable.
• Durable, Reliable & Lightweight: Made from High strength alloy steel and Aluminum.

Note: This kit must be run with some form of adjustable upper control arms or extended upper control arms to have the recommended camber range of -3 to -6 degrees (-6 is the maximum we recommend).

Note: For custom colors, choose one from Prismatic Powders. Please list the item code and name within the order notes.

Note: Orders require 2–3 weeks for fabrication before shipping.

Why Choose FDF?

• Driver-inspired designs: Our products feature innovative, driver-inspired designs tailored for performance and style.
• High-quality materials: We use only high-strength alloys to ensure the durability and superior quality of our products.
• Made in North America: Our products are proudly made in-house in North America, ensuring exceptional craftsmanship and reliability.
