AiM - AIM Dash Logger - SOLO 2 DL GPS Lap Timer With ECU Connection

• Advanced lap timer with precise GPS and GLONASS positioning, compatible with 1,000+ ECU protocols for seamless integration.
• Multiple connection options including OBD2, CAN/RS232, and RPM input to support a wide range of vehicle setups.
• Wireless Wi-Fi data transfer, real-time video overlay with SmartyCam HD, and automatic track recognition.

The most precise and easy way to get lap times — Solo 2 DL with ECU Connection

The Solo 2 DL is available in 3 connection versions:

• Solo 2 DL OBD: Connects via OBD2 port using the OBD cable.
• Solo 2 DL CAN: Hard-wired CAN/RS232 connection for direct communication.
• Solo 2 DL RPM: Designed for vehicles without OBD or data output; uses a coil RPM input for logging.

The Solo 2 receives positioning data from both GPS and GLONASS satellites for dramatically improved speed and precision. Power-on takes only a few seconds, and lap times are accurate within 0.02 seconds.

With over 1,000 ECU protocols built in, connecting to your ECU is simple and fast. If your protocol isn't supported, Race Studio 3 includes an ECU Driver Builder that lets you create your own.

Coil RPM Input

Solo 2 DL includes a digital RPM input that logs data from square-wave signals (8–50V) or ignition coil triggers (150–450V primary circuit).

Automatic Track Recognition

With a database of more than 3,000 tracks worldwide, Solo 2 identifies your location on startup and instantly recognizes the start/finish line. If a track isn’t in the database, Solo 2 switches to autolearning mode and builds the track map automatically.

Predictive lap timing is more accurate than ever, and configurable RGB LEDs give clear feedback compared to your best lap.

Race Modes

Solo 2 supports several configurations:

• Closed-circuit speed races
• Point-to-point events
• Regularity
• Performance testing (0–100 km/h, etc.)

Each mode provides optimized feedback during the run and detailed data review afterward.

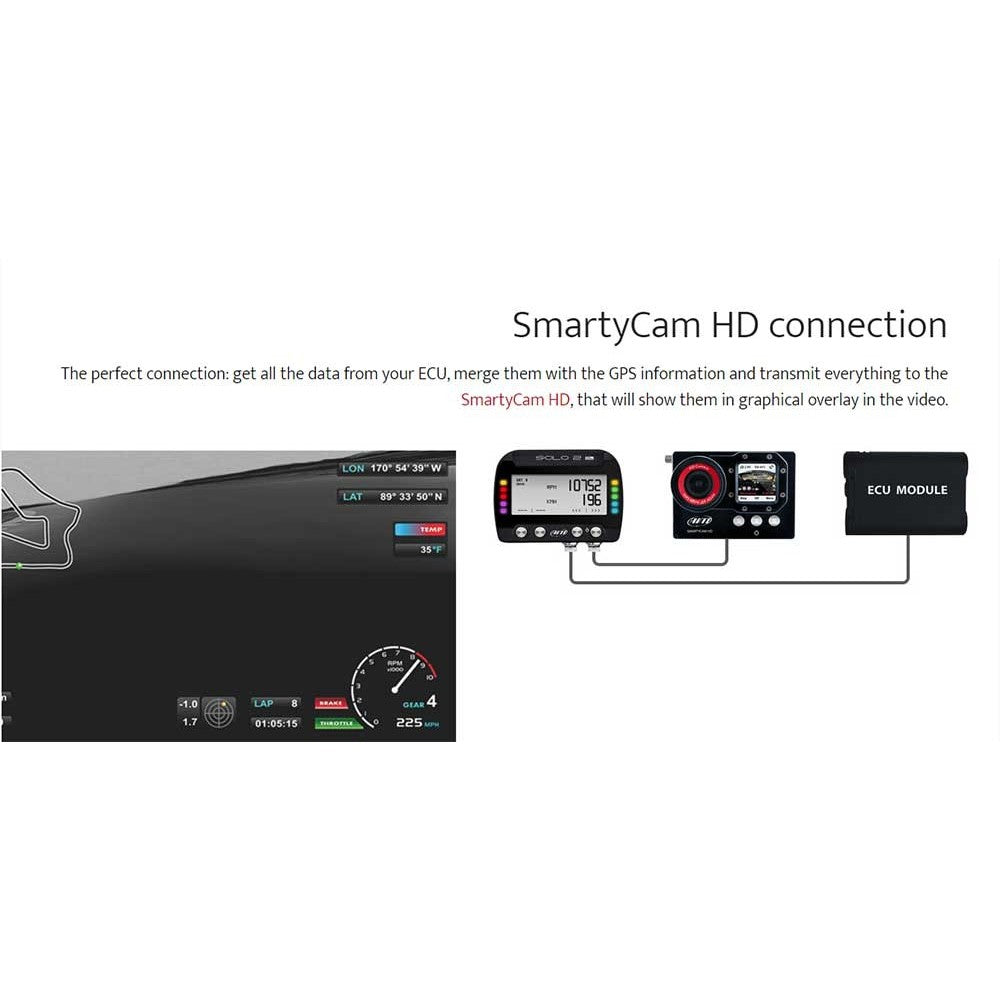

SmartyCam HD Integration

Solo 2 DL sends ECU and GPS data directly to SmartyCam HD for real-time graphical overlays in your video recordings.

On-Screen Data Recall

Review key data instantly on the display after each session.

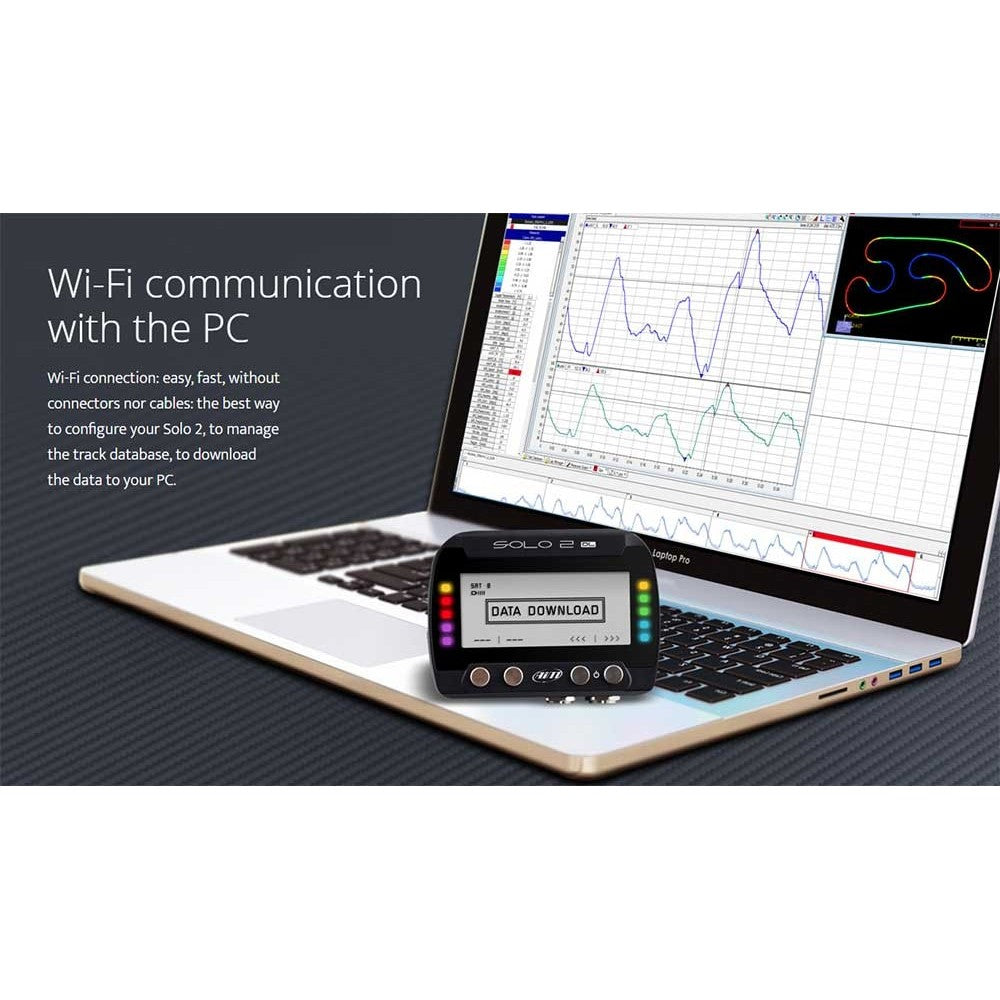

Wi-Fi Communication

Fast and cable-free Wi-Fi makes it easy to download data, manage tracks, and configure the unit from your PC.

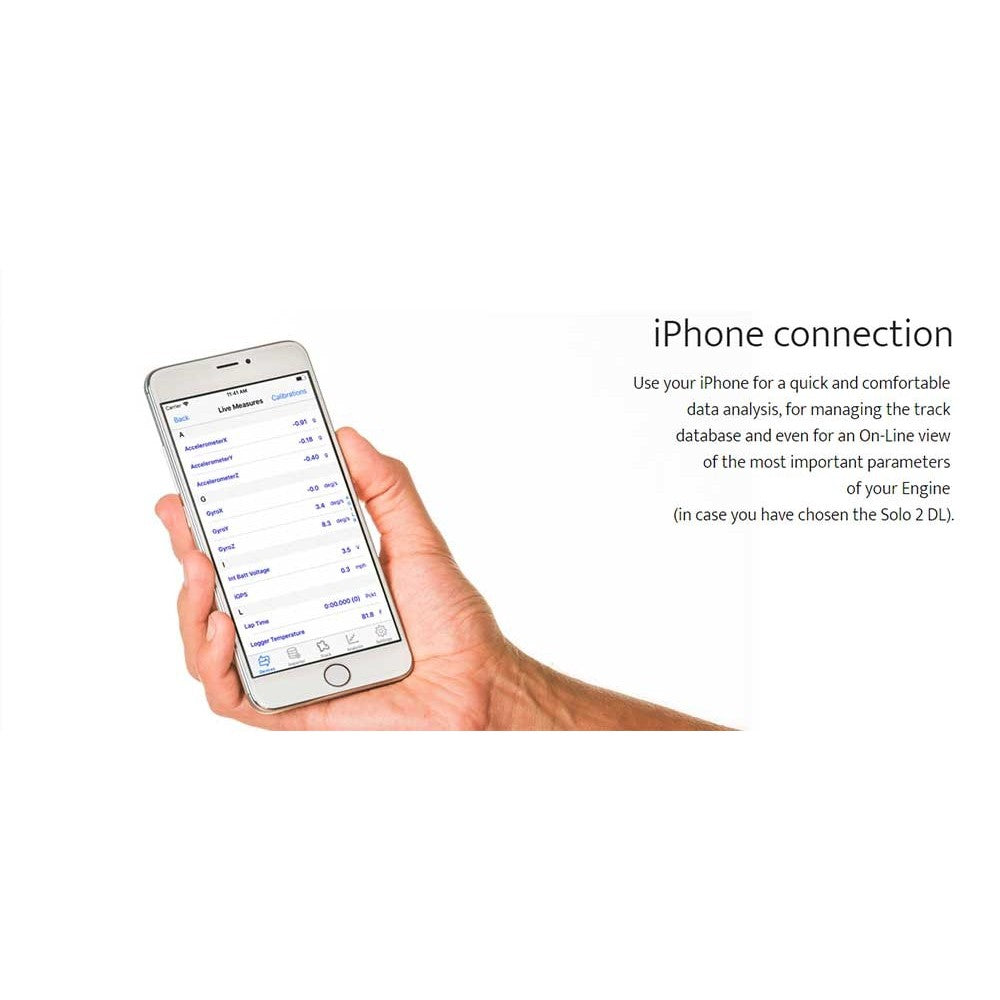

iPhone Connectivity

Use your iPhone for quick data analysis, track management, and live engine parameter viewing (DL versions only).

Technical Specifications

• Display: Graphical
• Resolution: 128 × 64 pixels
• Pages: Up to 8 configurable

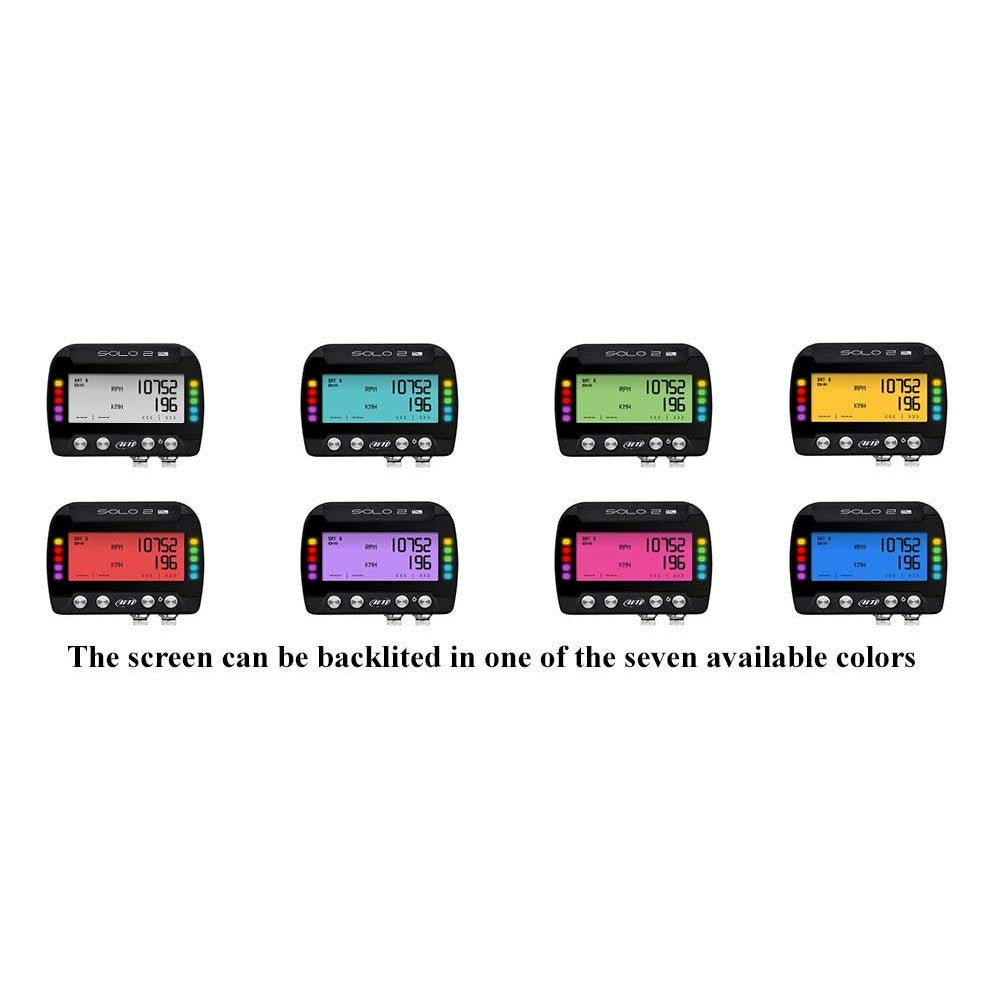

• Backlight: 7 RGB colors
• Shift/Alarm LEDs: 10 configurable RGB LEDs
• Track Database: Yes
• Inertial Platform: Internal 3-axis ±5G accelerometer, 3-axis gyro, 3-axis magnetometer
• Wi-Fi: Yes
• GPS: 10 Hz
• ECU Connection: CAN, RS232, or K-line
• External Power: 12V
• Connectors: Binder 712 (5-pin + 8-pin)
• Memory: 4 GB
• Battery: Rechargeable lithium
• Buttons: Metallic

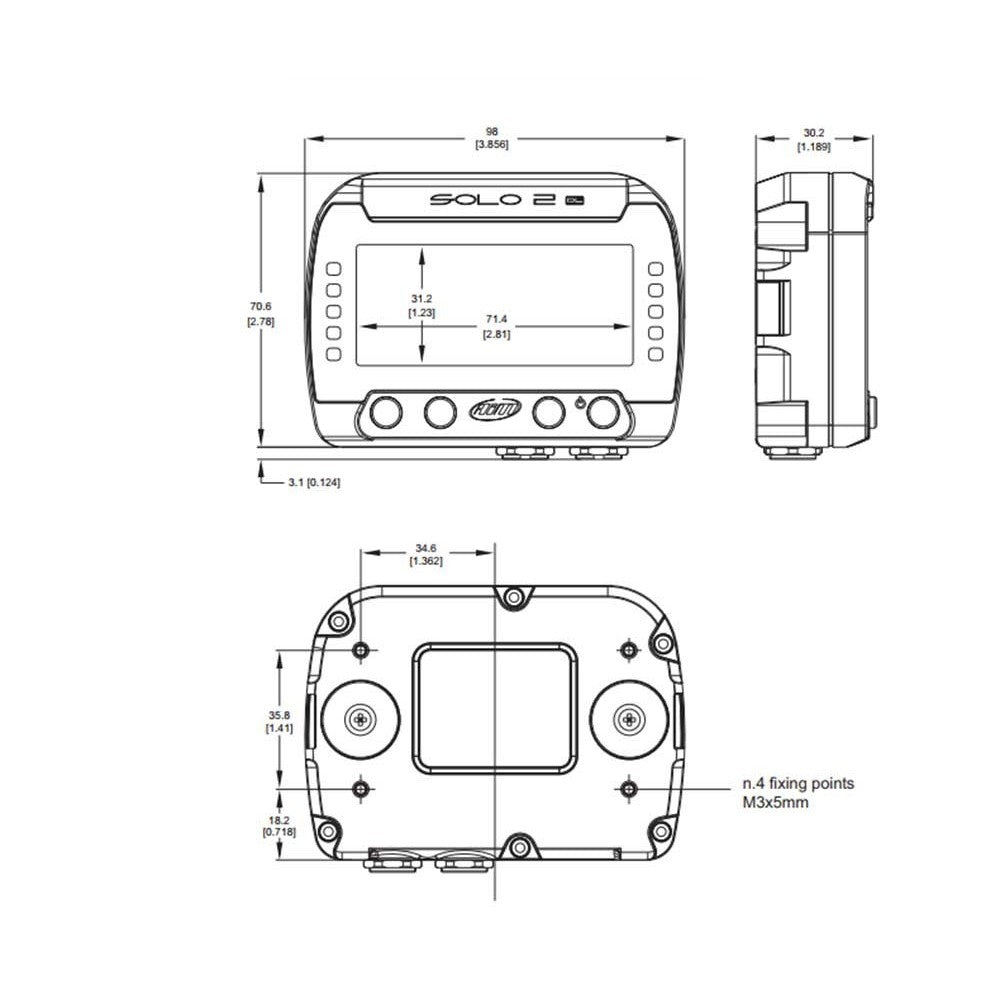

• Dimensions: 98 × 73.7 × 30.2 mm
• Weight: 240 g (battery included)
• Waterproof: IP67
