APEXi - N1 Evo Extreme (Midpipe) - 2016+ Lexus IS200t / IS300 [Turbo Model]

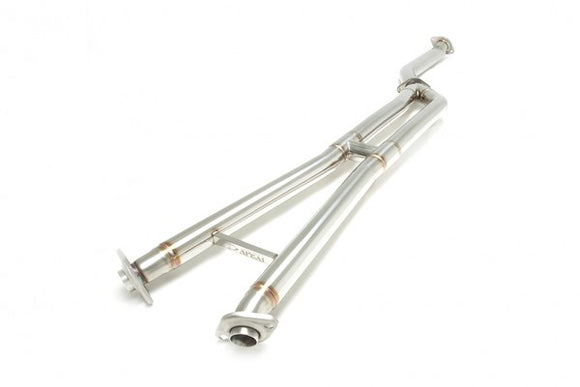

N1-X Evolution Extreme Midpipe (Non-Resonated)
2016-2017 Lexus IS200t
2018+ Lexus IS300 (Turbo)

The N1 Evolution Extreme is based on the proven performance basics of the N1 muffler. Optimum exhaust efficiency is achieved through the mid-pipes running parallel between the catalytic converter and rear muffler section. The H-style piping design was opted to equalize the pressure in both exhaust pipes. Our unique modular design allow the mid-pipes to be interchangeable with the factory OEM exhaust system components along with the rear section which is sold separately.

PRODUCT FEATURES:

• High-level of quality using tig-welded SUS304 stainless steel uniting quiet performance with high-power performance gains
• Matched and manufactured for select chassis
• Patented Megaphone piping structure to produce excellent torque and throttle response throughout the powerband. This piping design allows for a swirling exhaust gas flow effect that has for years produced proven results
• Compatible with the N1-X Evolution Extreme rear section part number 164-KT02

Bolt-On	Yes
Part Number	144-KT03P
Year	2016, 2017, 2018, 2019, 2020, 2021, 2022
Make	Lexus
Model	2016-2017 IS200t 2018+ IS300 (Turbo)
Body Style	4-Door Sedan
Engine	8AR-FTS
Chassis	ASE30
Exhaust Type	N1 Evolution Extreme Muffler (N1-X)
Piping Diameter	60.5mm. x 2
Pieces	3
Piping Material	SUS304 Stainless Steel
System Weight	Mid-pipe only 18.16 lbs. (Stock- xx.xx lbs.) x.x lbs. lighter than OEM
Sound Level	Sound Level (with part # 164-KT02): xx.x dB @ 4,500 RPM.
Special Notes	Modular design-> Mid-pipe and Rear Section can be interchanged with factory exhaust components.
Gasket Replacement	- Front Section (Header to Midpipe) x2 - P106 x D66.5: 3901-0700  - Mid Section (Center of the Midpipe Kit) x2 - P97 x D66.5 : 3901-1660 - Rear Section (Connecting to Rear Axleback) : Factory OE Donut Gasket (Lexus OE Factory product)
