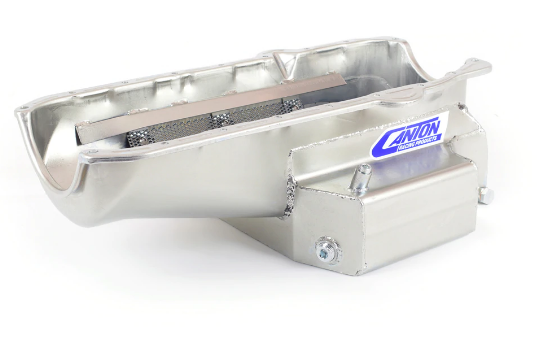

Canton - Small Block Chevy 12" Circle Track Long Sump 7" Deep

This Competition wet sump is for '80-'85 Small Block Chevys with right side dipstick. Fits front steer chassis with both aftermarket and Camaro front ends, others when the engine is moved. It has a 7" deep, 15" wide, 12" long sump, and an 8 quart system capacity. Will work with all starter and flywheel combinations. Requires one of our pickups.

Oil Pan Features
* 8 qt System Capacity
* 3.75" Stroke Clearance
* Six Trap Door Baffles & Three Runners
* Crank Scraper
* Bolt in Slosh Baffle
* Built in Windage Tray
* 1/2” NPT Temperature Bung
* Provison for our Pan Mounted Dipstick
* Magnetic Drain Plug

Recommended Accessories
20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
20-070 - Pickup for Small Block High Volume Pumps M55HV
20-072 - Pickup for Small block High Volume M155HV Pump w/ 3/4" Tube
20-077 - Press In Pickup for M10552 & M10555 Pump
20-071 - Flange Mount Pickup for M10552 & M10555 Pump
20-100 - Pickup for Big Block 5 bolt pumps M77 & M77HV
20-850 - Universal Dipstick Kit 1/4” N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
22-300 - Stud Kit For Oil Pan Mounting Small Block Chevy/Oldsmobile/AMC

Gasket
88-100 Gasket Oil Pan For Small Block Chevy Pre 1985

Product Tech
Best Results Installing an Oil Pan (PDF)
