Canton - Small Block Chevy Circle Track Open Chassis 1985 & Earlier

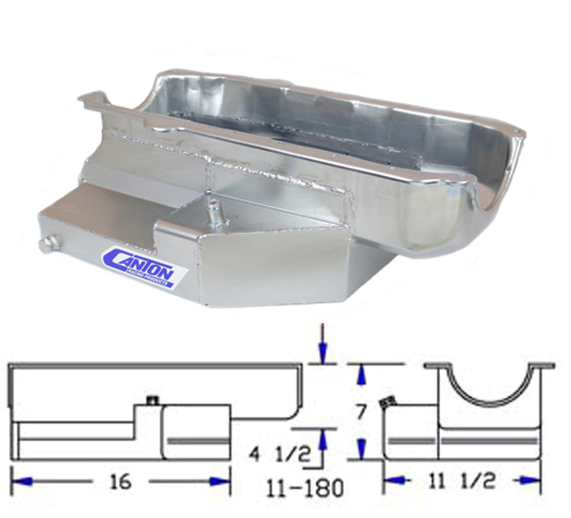

This SBC competition open chassis wet sump is for 85 and earlier Small Block Chevys. It is designed for chassis without any x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has a 11-1/2" wide, 16" long 7" deep L sump, and a 9 quart system capacity. Requires one of our pickups.

Oil Pan Features
* Clears 3.875" Stroke
* 7" Deep 16" long 11.5" wide sump
* 9 qt System Capacity
* Six Trap Door Baffle System
* Crank Scraper
* Bolt In Screen Windage Tray
* 1/2" NPT Temperature Bung
* Provision for pan mounted dipstick
* Magnetic Drain Plug

Recommended Accessories
20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
20-070 - Pickup for Small Block High Volume Pumps M55HV
20-071 - Oil Pump Pickup SBC For Bolt On Select Pump In 7" Circle Track Pan
20-072 - Pickup for Small Block High Volume Pumps w/ 3/4" Tube M155HV
20-077 - Press In Pickup for Melling 10552 & 10555 Pumps
20-100 - Pickup for Big Block (5-bolt) Pumps M77 & M77HV
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
22-300 - SBC Oil Pan Stud Kit
88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket

Product Tech
Best Results Installing an Oil Pan (PDF)
