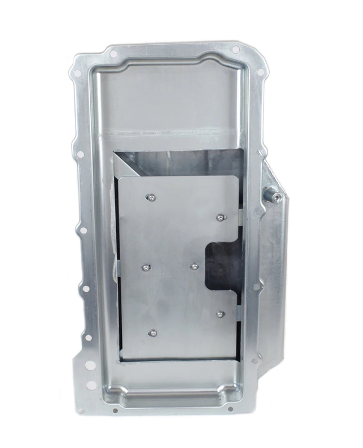

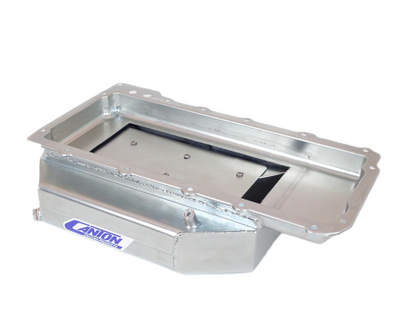

Canton - GM LS1 Open Chassis Steel Circle Track Rear Sump Pan

This circle track steel rear sump is designed for GM LS1 open chassis applications. It is 7" deep from center line of crank, 4-3/4" deep from the pan rail, 11" wide, 16" long and has a 7 quart system capacity. This pan requires our 11-281 pickup, and LS1 Filter Adapter (#22-630 or #22-632) or Filter Mount (#22-631).

NOTE: This pan requires our filter adapter or filter mount.

Oil Pan Features
* 7 qt System Capacity
* 4.25" Stroke Clearance
* Circle Track Trap Door Baffle System
* Bolt in Slosh Baffle
* 1/2" NPT Temperature Bung
* Magnetic Drain Plug

Recommended Accessories
21-870 - LS flywheel cover
22-302 - GM LS Oil Pan Stud Kit
22-620 - Billet Aluminum Spin-on Filter Adapter
22-623 - Billet Aluminum Remote Oil Filter Mount For 22MM x 1.5 Thread Filters
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting

Gasket:
Stock

Product Tech
Best Results Installing an Oil Pan (PDF)
11-280 Windage Tray Modification Notes (PDF)
