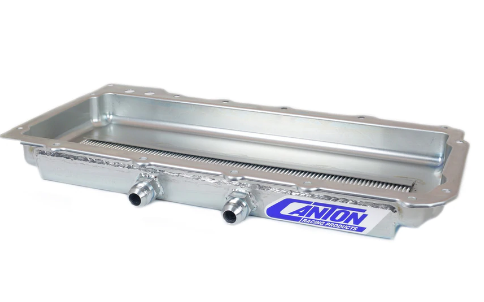

Canton - GM LS1-LS6 Shallow Dry Sump Pan Drag and Road Race

This GM LS1/LS6 pan is specific for engines with dry sump oiling systems for use in drag or road racing. Will not fit on LS Next 2 blocks. This oil pan is 2.5" deep.

Oil Pan Features
* Two -12AN Pickups Exiting on the Right Side
* 1/2" deep oil collection trough which aids in oil scavenging
* Provision for a third centrally mounted pickup

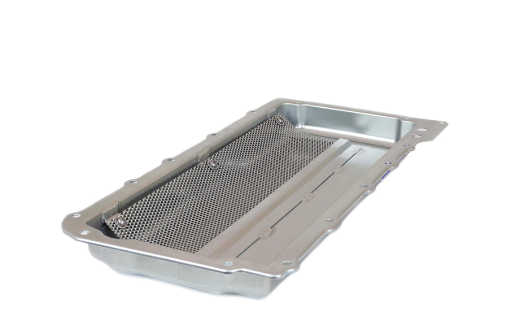

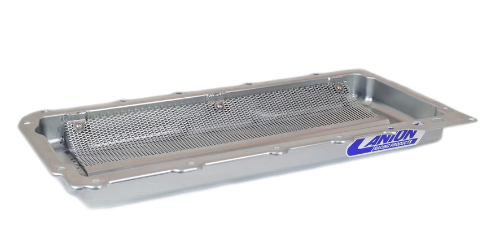

* Built In Screen Windage Tray
*2.5" Deep Sump

Recommended Products
21-870 - LS Flywheel Cover for T56 Bellhousing
22-302 - GM LS Oil Pan Stud Kit
22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread
22-630 - GM LS1 Remote Oil Filter Adapter
22-640 - In-Line Screen Protector -8 AN Fittings
22-650 - In-Line Screen Protector -10 AN Fittings
22-660 - In-Line Screen Protector -12 AN Fittings
22-750 - -12 AN Screen Pump Protector
23-110L - 10qt Universal Dry Sump Tank w/ Left Side Fittings
23-110R - Aluminum Universal Dry Sump Tank Right Fittings

Gasket:
Stock

Product Tech
Best Results Installing an Oil Pan (PDF)
