COMP Cams StudsCB Mark V Rocker

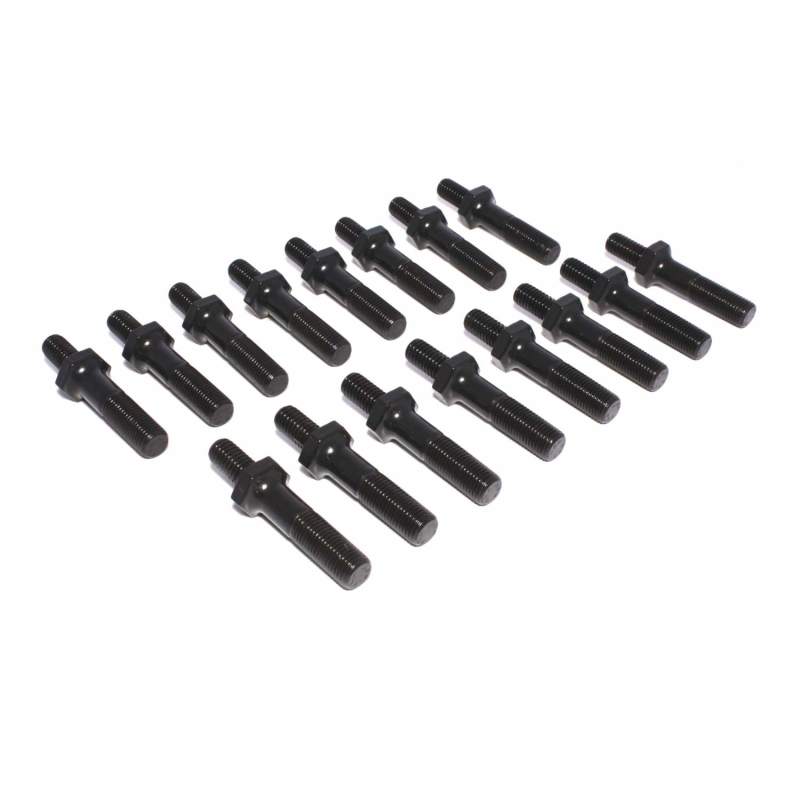

COMP Cams takes pride in having the finest Rocker arm Studs available on the market. The High Energyâ„¢ and Magnum Series Studs work well in Applications with moderate lifts and spring pressures and are available in the popular 3/8" and 7/16" sizes. When ultimate strength is required as with high rpm Roller Cam Applications, the Hi-Techâ„¢ Race Stud is the answer. This Stud has a thin jam nut for Rocker clearance, rolled threads for maximum contact and a ground-flat top so accurate valve adjustment can be achieved and maintained. The diameter of the jam nut is larger in order to spread the load over a larger area. All COMP Cams Studs have generous radii and a black oxide finish. Designed for ultimate strength and locking force High Energy and Magnum polylocks are best for moderate lift and spring pressure Applications Hi-Tech Polylocks work well in all high end Race applications. The Stud girdle polylocks are precision ground for minimum runout and tapered for extra strength in the locking area.Base ThreadPart #DescriptionDiameterLengthStud DiameterEffective Stud Length4514-16Hi-Tech Race Rocker Stud Chevrolet Big Block Mark V and Mark VI3/8".750"7/16"1.900"

This Part Fits:

Year	Make	Model	Submodel
1996-1997,1999-2000	Chevrolet	C2500	Base
1996-1998	Chevrolet	C2500	Cheyenne
1999-2000	Chevrolet	C2500	LS
1996-1998	Chevrolet	C2500	Silverado
1998	Chevrolet	C2500	WT
1996-1999	Chevrolet	C2500 Suburban	Base
1996-1999	Chevrolet	C2500 Suburban	LS
1996-1997	Chevrolet	C2500 Suburban	LT
1996-1997,1999-2000	Chevrolet	C3500	Base
1996-1998	Chevrolet	C3500	Cheyenne
1999-2000	Chevrolet	C3500	LS
1996-1998	Chevrolet	C3500	Silverado
1996-2000	Chevrolet	Express 3500	Base
1996-2000	Chevrolet	Express 3500	LS
1996	Chevrolet	G30	Beauville
1996	Chevrolet	G30	Chevy Van
1996	Chevrolet	G30	Hi-Cube
1996	Chevrolet	G30	Sportvan
1996-1997,1999-2000	Chevrolet	K2500	Base
1996-1998	Chevrolet	K2500	Cheyenne
1999-2000	Chevrolet	K2500	LS
1996-1998	Chevrolet	K2500	Silverado
1998	Chevrolet	K2500	WT
1996-1999	Chevrolet	K2500 Suburban	Base
1996-1999	Chevrolet	K2500 Suburban	LS
1996-1997	Chevrolet	K2500 Suburban	LT
1996-1997,1999-2000	Chevrolet	K3500	Base
1996-1998	Chevrolet	K3500	Cheyenne
1999-2000	Chevrolet	K3500	LS
1996-1998	Chevrolet	K3500	Silverado
1996-1999	Chevrolet	P30	Base
1996-2000	GMC	C2500	Sierra SL
1996-2000	GMC	C2500	Sierra SLE
1996-2000	GMC	C2500	Sierra SLT
1996-1999	GMC	C2500 Suburban	Base
1996-1999	GMC	C2500 Suburban	SLE
1996-1999	GMC	C2500 Suburban	SLT
1996-2000	GMC	C3500	Sierra SL
1996-2000	GMC	C3500	Sierra SLE
1996-2000	GMC	C3500	Sierra SLT
1996	GMC	G3500	Magnavan
1996	GMC	G3500	Rally
1996	GMC	G3500	Rally Camper Special
1996	GMC	G3500	Rally STX
1996	GMC	G3500	Vandura
1996	GMC	G3500	Vandura Special
1996-2000	GMC	K2500	Sierra SL
1996-2000	GMC	K2500	Sierra SLE
1996-2000	GMC	K2500	Sierra SLT
1996-1999	GMC	K2500 Suburban	Base
1996-1999	GMC	K2500 Suburban	SLE
1996-1999	GMC	K2500 Suburban	SLT
1996-2000	GMC	K3500	Sierra SL
1996-2000	GMC	K3500	Sierra SLE
1996-2000	GMC	K3500	Sierra SLT
1996-1999	GMC	P3500	Base
1996-2000	GMC	Savana 3500	Base
1996-2000	GMC	Savana 3500	SLE
