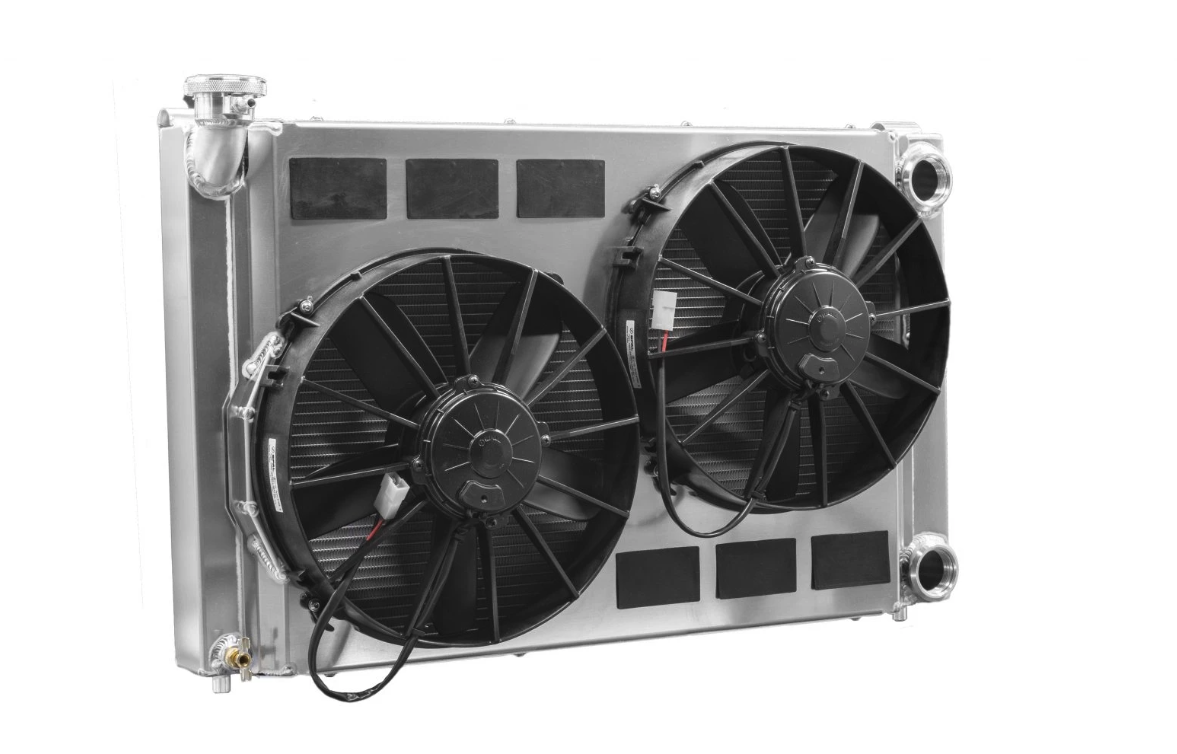

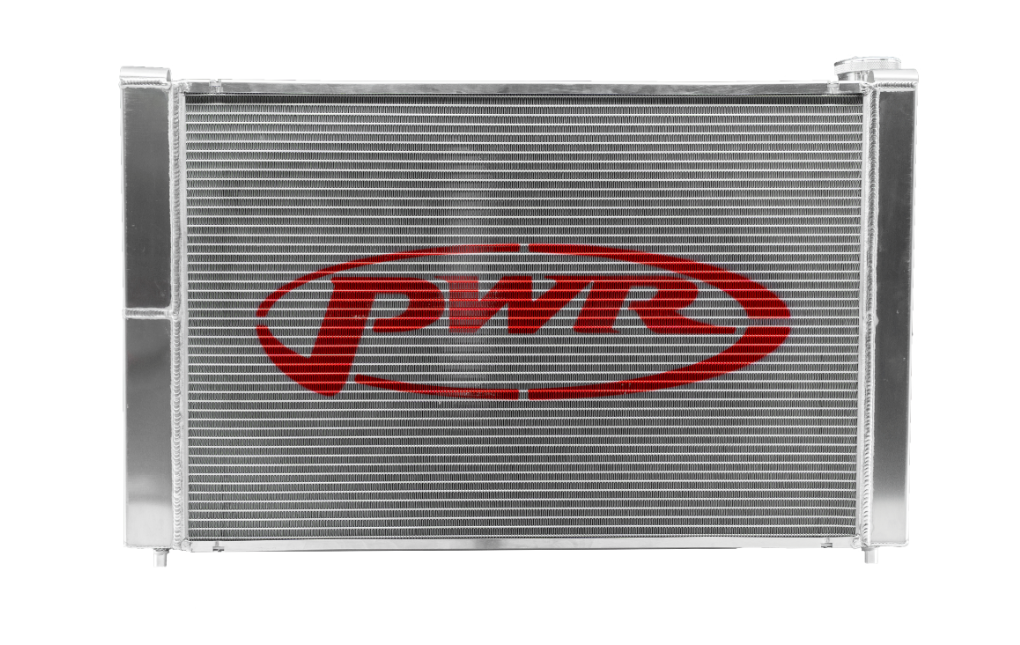

55mm Performance Radiator Module (Toyota Supra A80 1993-98) W/ Dual 12″ SPAL Fans

Introducing the ultimate cooling upgrade for your 1993-98 A80 Toyota Supra – our handcrafted and TIG welded radiator module, made in the USA using premium aluminum materials. Engineered with racing-inspired hemmed/louvered R-Fins and rolled dimple tubes, this radiator is designed for maximum durability and efficiency. Our design outperforms OEM and our competitors, by lowering coolant temps resulting in more consistent horsepower output. Lower coolant temperatures also translate to longer track sessions and better tuning potential, giving you an unfair advantage on the road or track.

Our A80 Supra radiator module is a drop-in unit, requiring no modifications for installation. It boasts two high-performance Spal brushed fans with a combined CFM of 3280, ensuring maximum possible performance while benefiting from motor life that is second to none.. The AN-20 inlet and outlet ports allow for easy installation of a variety of fittings, simplifying servicing and customization.

Experience worry-free driving on the street or the track and unleash your glorious 2JZ’s full potential with our easy-to-install A80 Supra radiator. Don’t let engine overheating limit your track session or your spirited driving adventures short. Upgrade with confidence and experience the unfair advantage in cooling technology!

Dimensions:

• Overall Height / Core Height: 19.58 in / 17.36 in
• Overall Width / Core Width: 29.65 in / 25.03 in
• Overall Depth / Core Depth: 7.30 in / 3.30 in
• Inlet Size: AN-20 F
• Outlet Size: AN-20 F

Fans:

• IX-30102038
• Combined CFM: 3280

1993-98 A80 Toyota Supra Radiator Module

Radiator Style: Crossflow
Number of Passes: Double
Inlet Location: Upper Passenger
Inlet Size: -20 AN Universal Port Bung
Outlet Location: Lower Passenger
Outlet Size: -20 AN Universal Port Bung
Tube Size: 55mm
