Chevy LS/LT/SB/BB to Dodge 8HP 845/850RE 70/75/90/95 Charger/Challenger/Scat Pack Hellcat Trackhawk RAM Adapter Kit

Adapter kit to fit a Dodge 8HP 845/850RE 70/75/90/95 Charger/Challenger Scat Pack Hellcat Trackhawk RAM Transmission to a Chevy LS/LT/SB/BB engine.

This adapter kit fits transmission from the following models

• 8HP70/75 From Charger/Challenger/Scat Pack
• 8HP70/75 From 1500 RAM
• 8HP90 from Hellcat
• 8HP95 from Trackhawk
• 845RE/850RE from Pentastar engines

Dodge RAM Ecodiesel transmissions has a separate adapter kit

Adapter plate and converter adapter made out of high grade aluminum and natural and black anodized for a premium feel and experience.

Adapter plate thickness is 25mm.

Note! Recommended to use a non-shrouded starter, otherwise you need to trim the gearbox bellhousing.

Note! If you have a SB/BB engine please make a note while ordering as the center guide and bolts are different.

Note! This kit supports both long and short-nosed crank, however if you have a long nose crank the center guide needs to be shortened and modified. Reach out to us before ordering.

Note! If you are going to use this kit for 845RE/850RE, please make a note while ordering as there are some differences in the included parts!

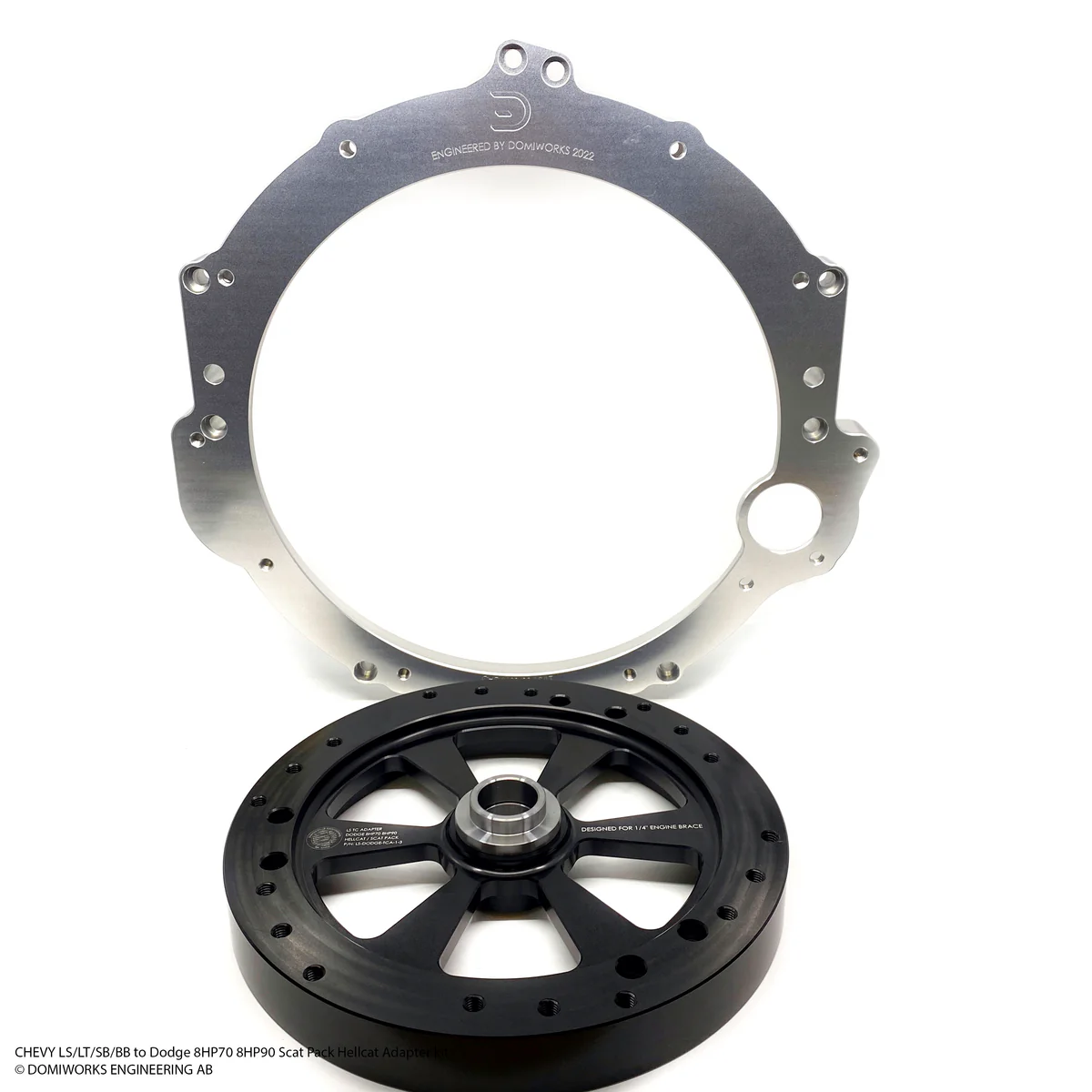

Adapter kit includes:

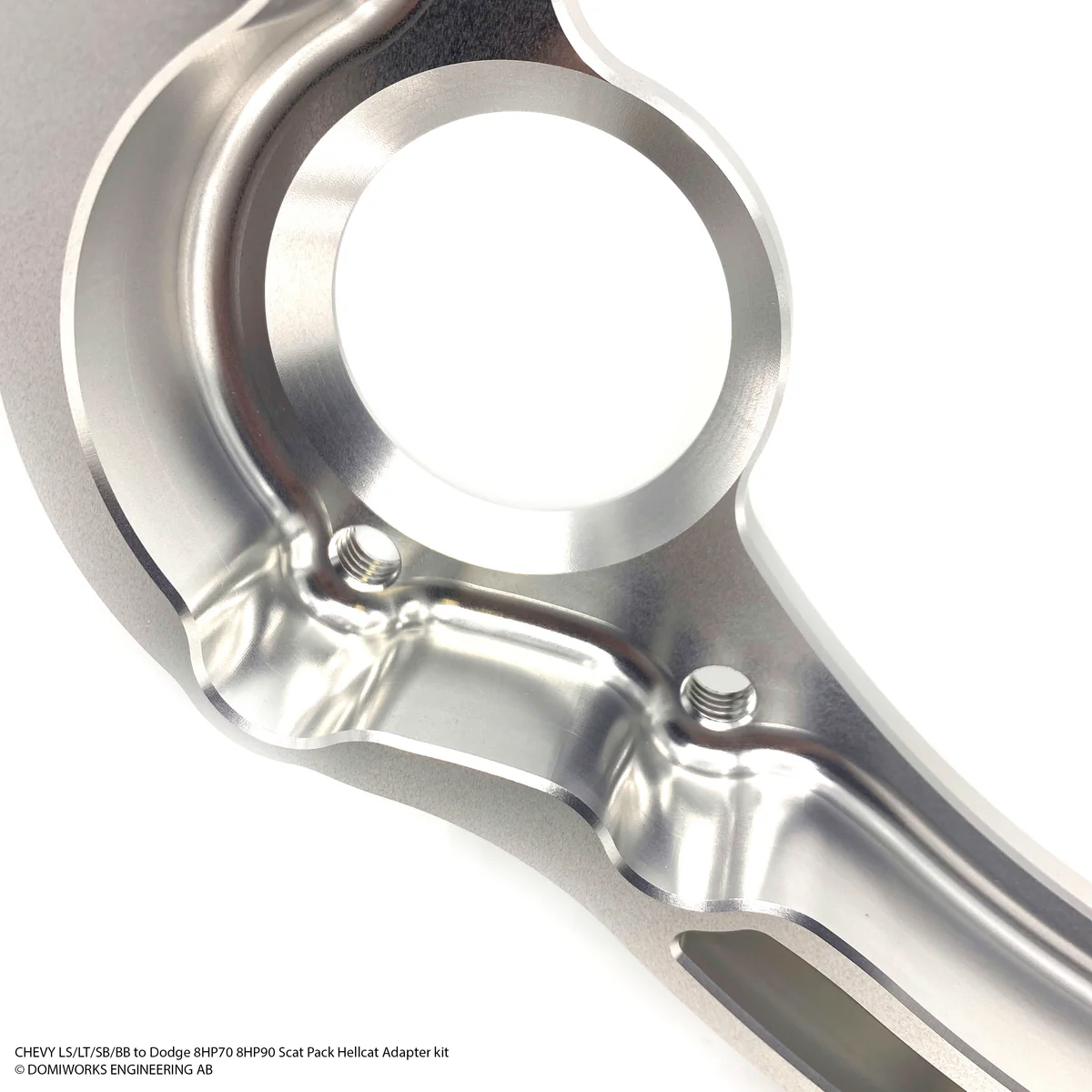

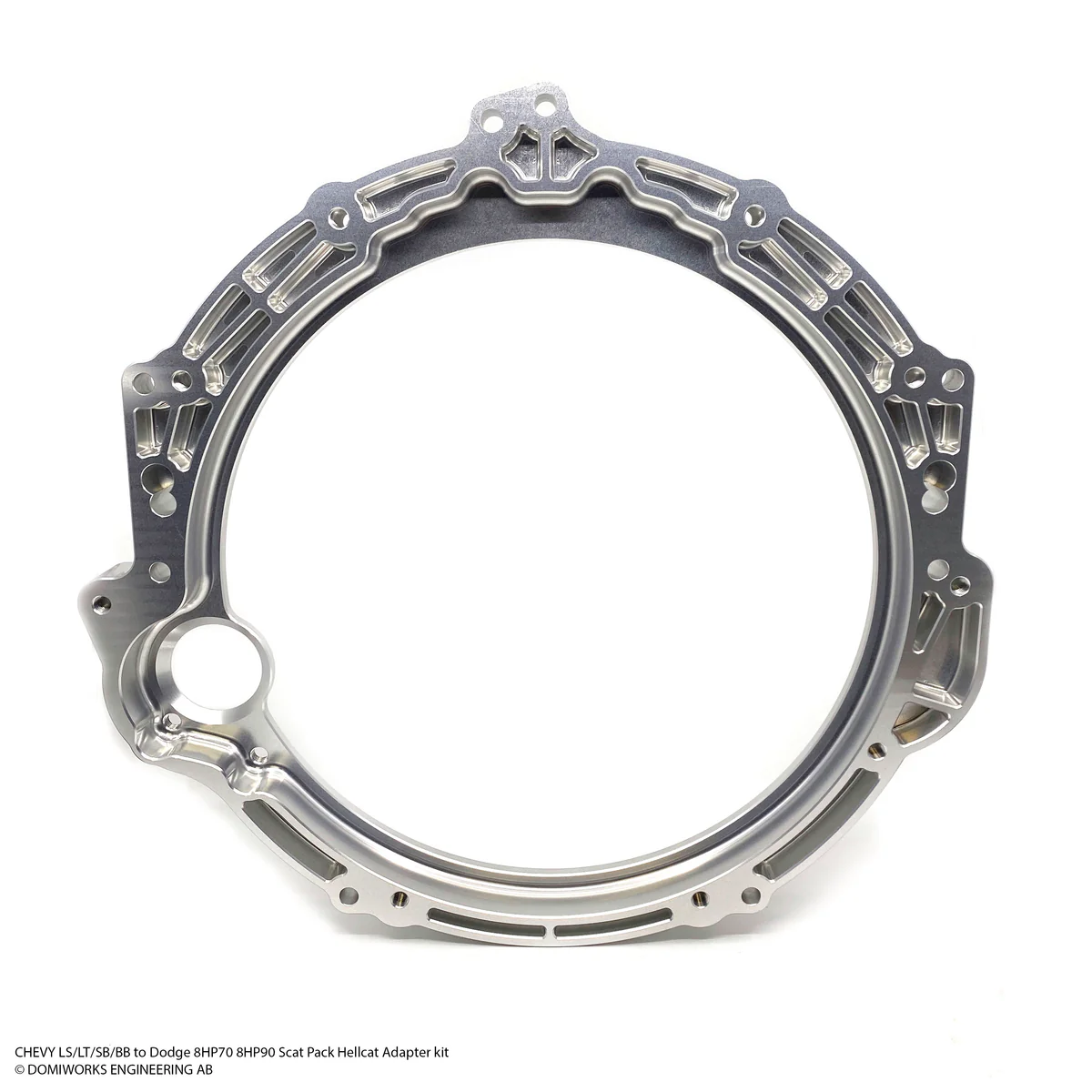

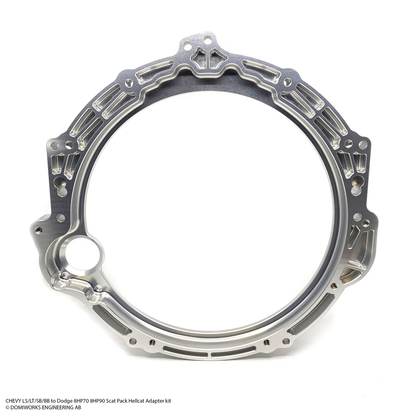

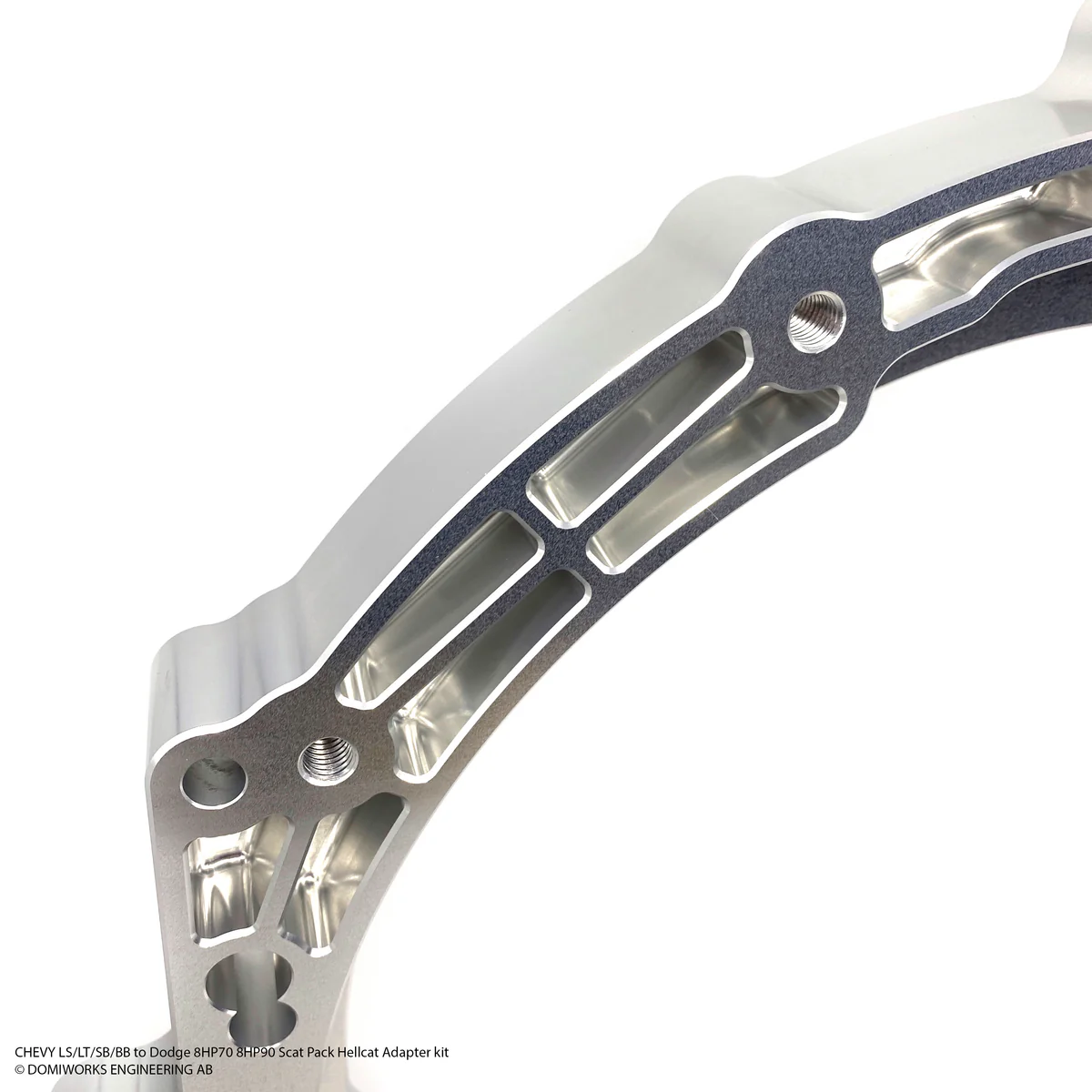

- LS to Dodge Adapter plate

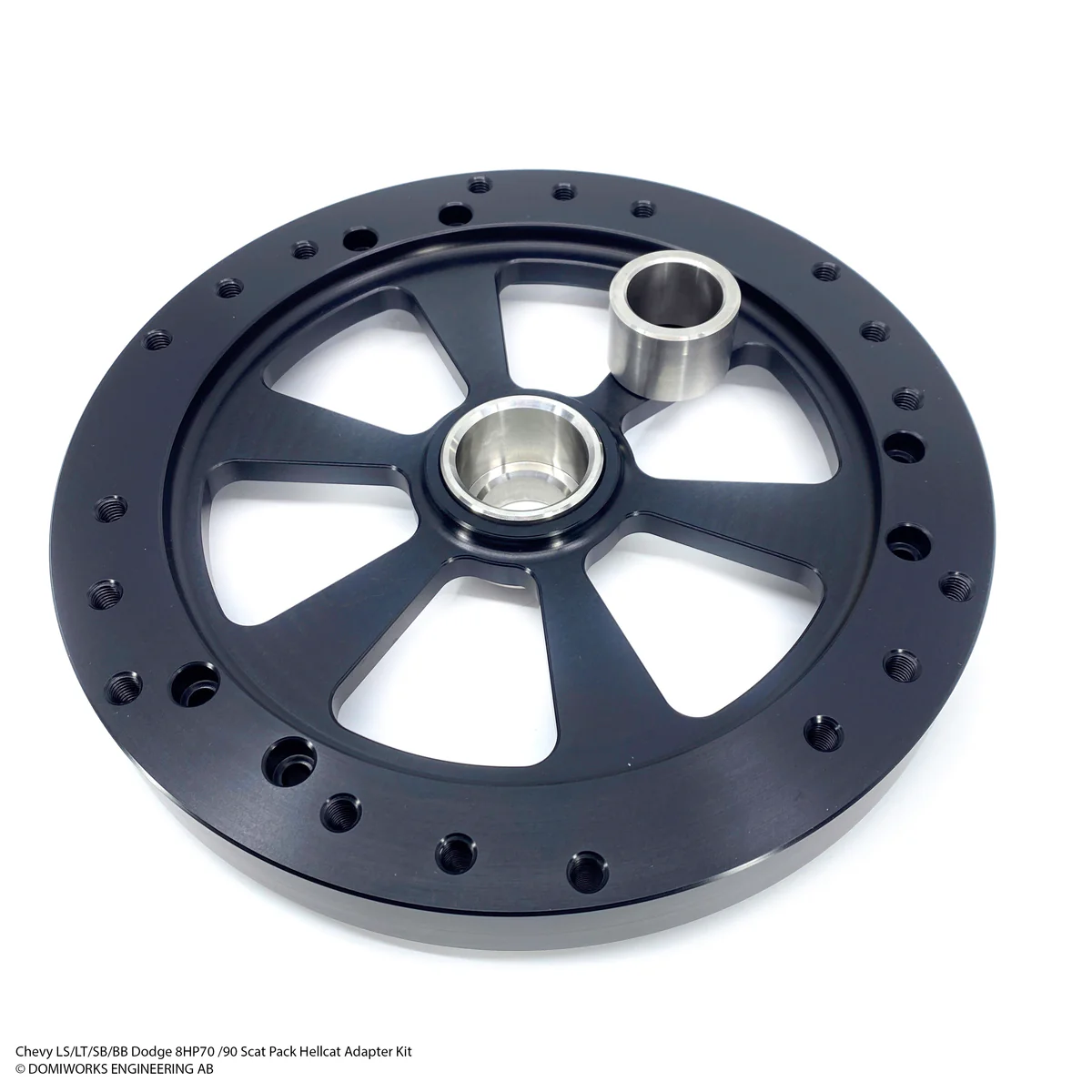

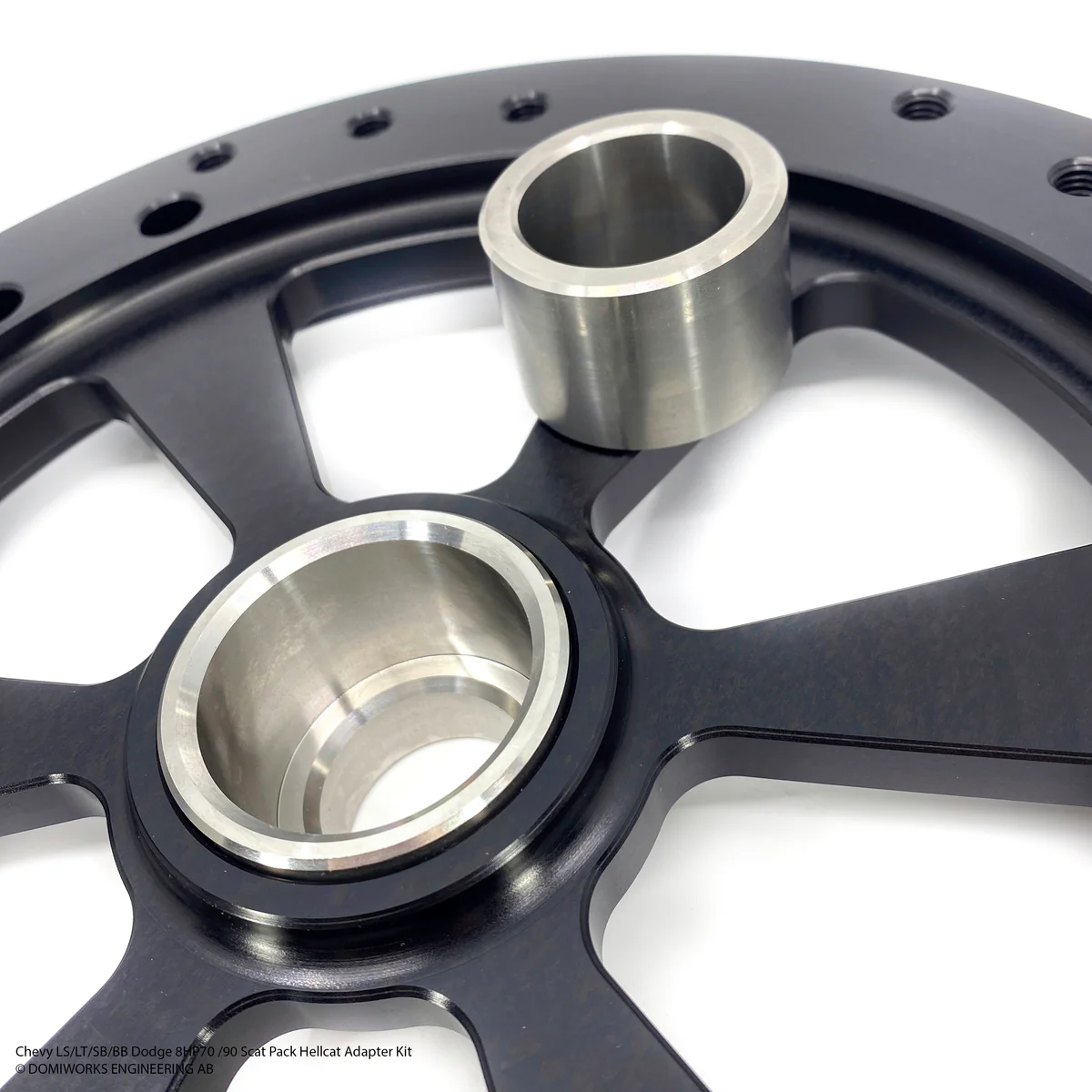

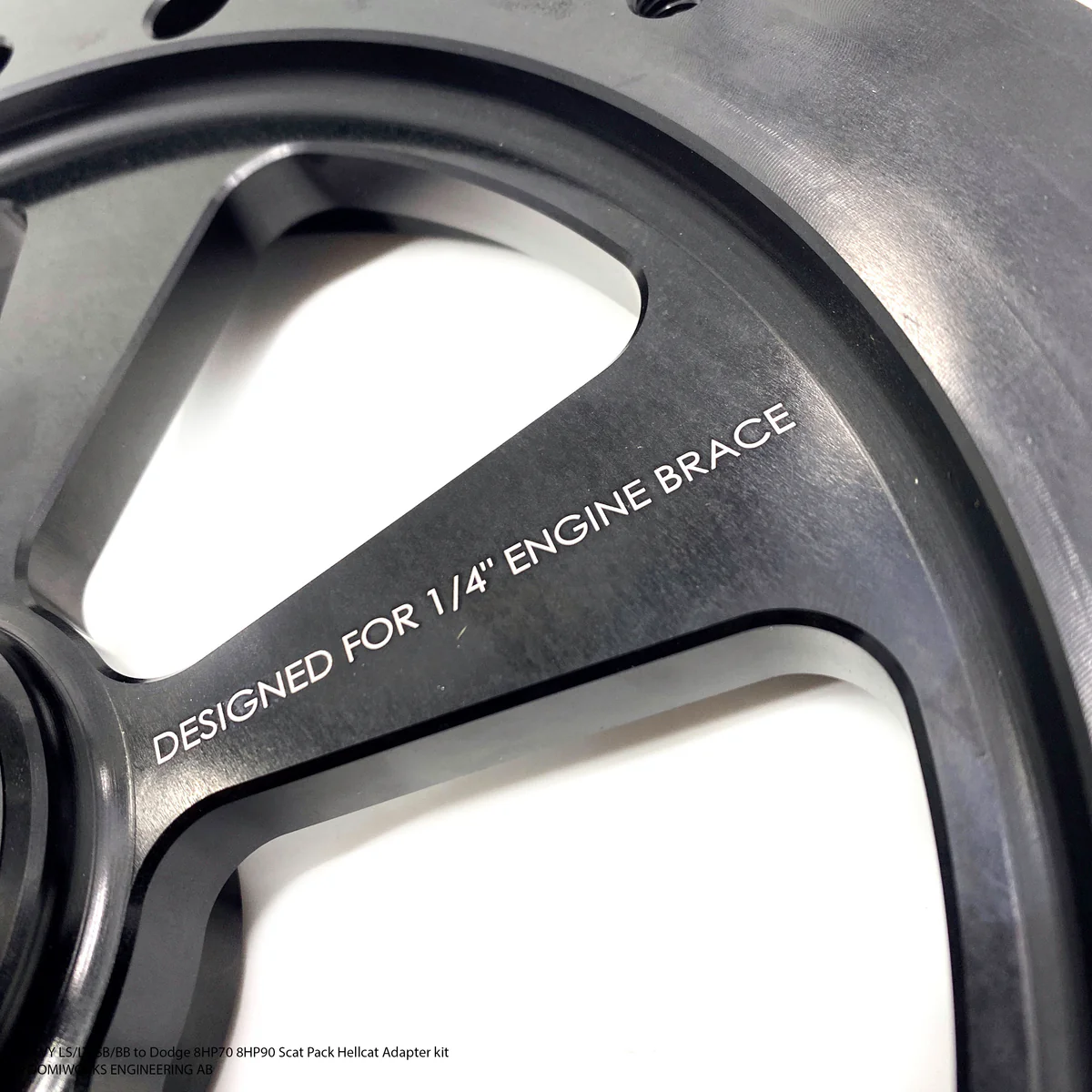

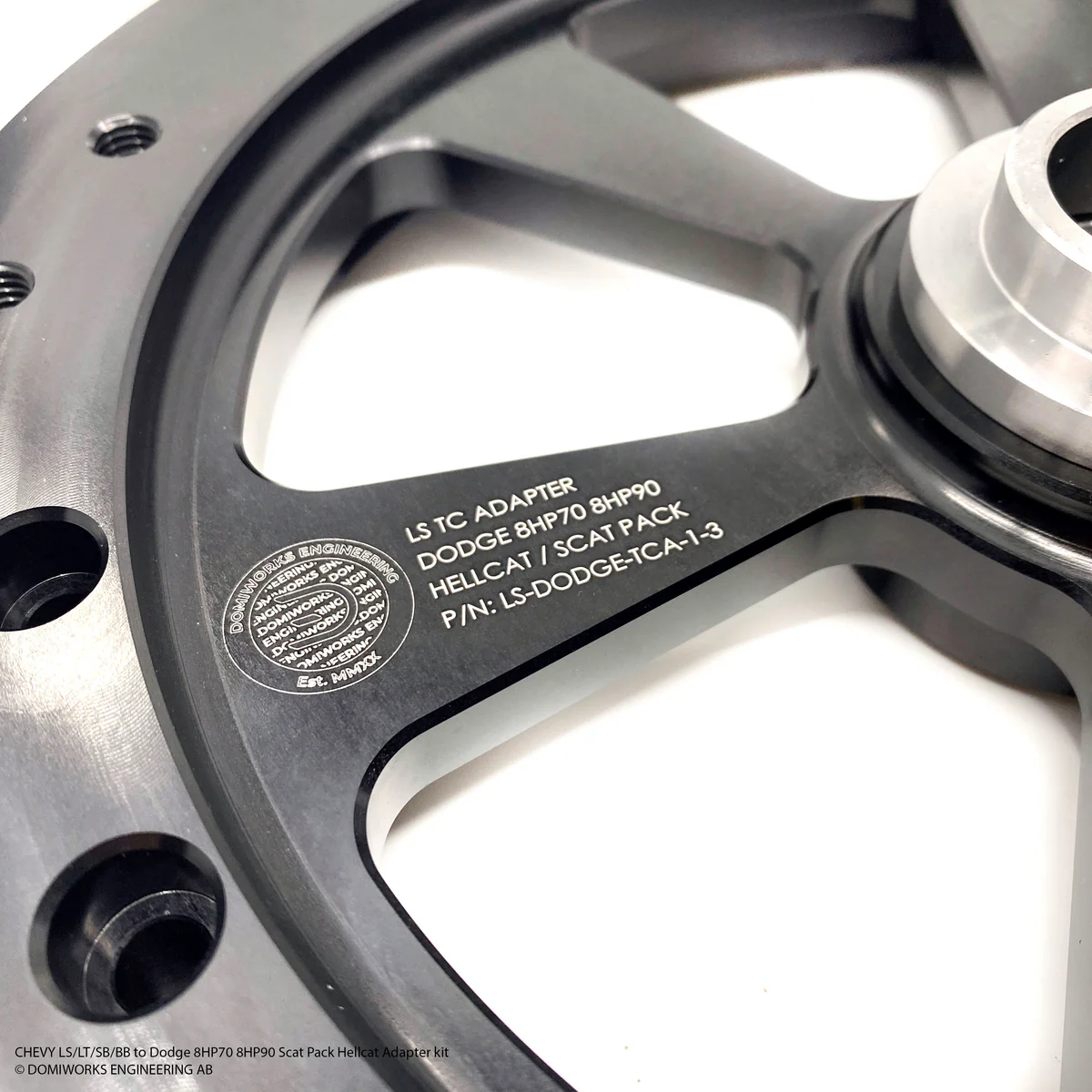

- Converter adapter with center guiding pin

- Mounting hardware

Installation Instructions
