Drift Brake Front Mount Master

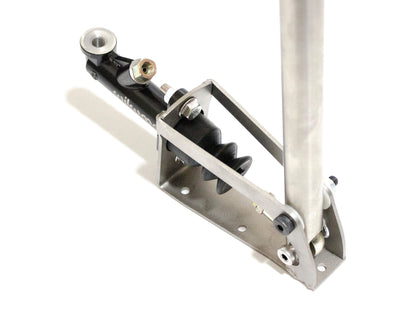

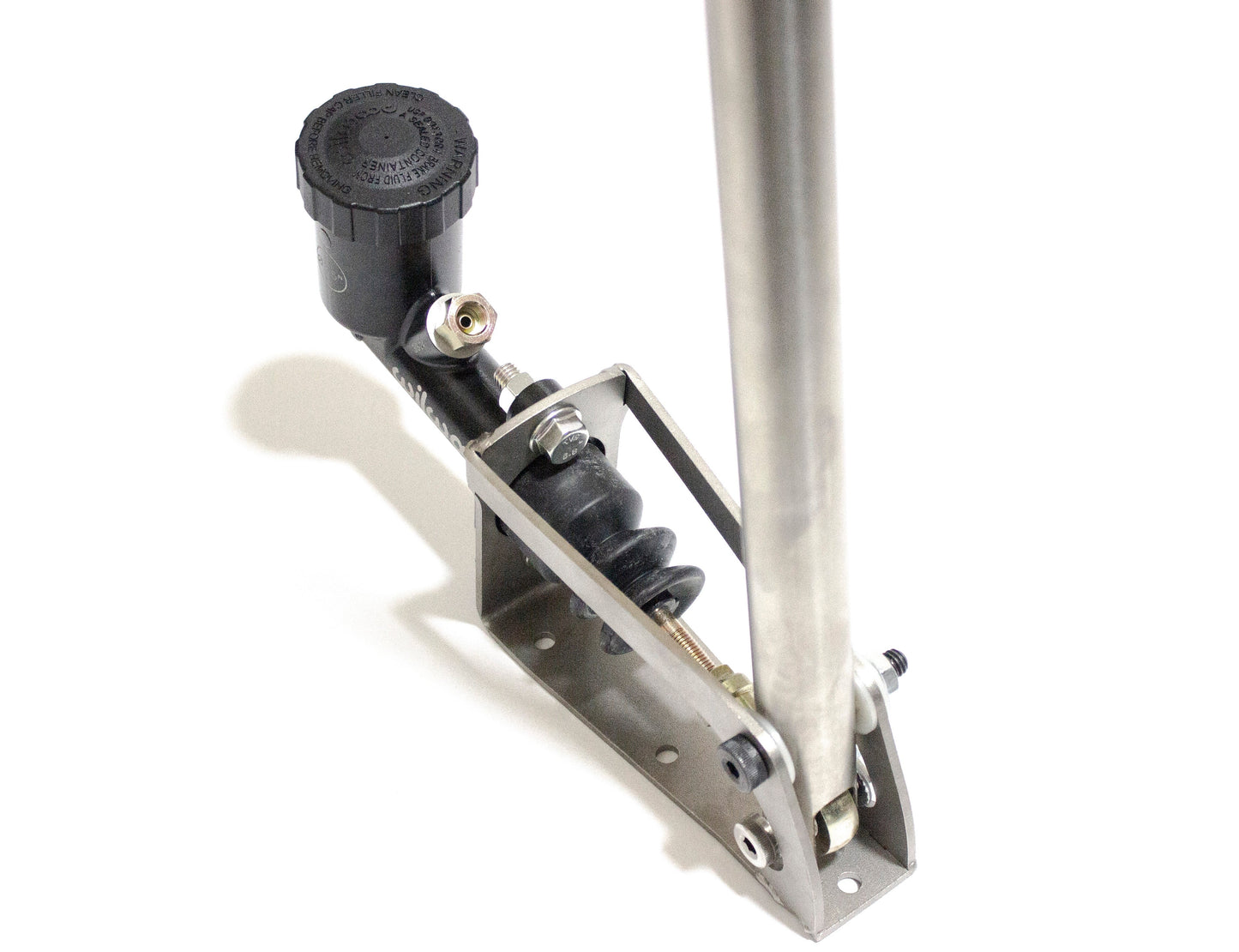

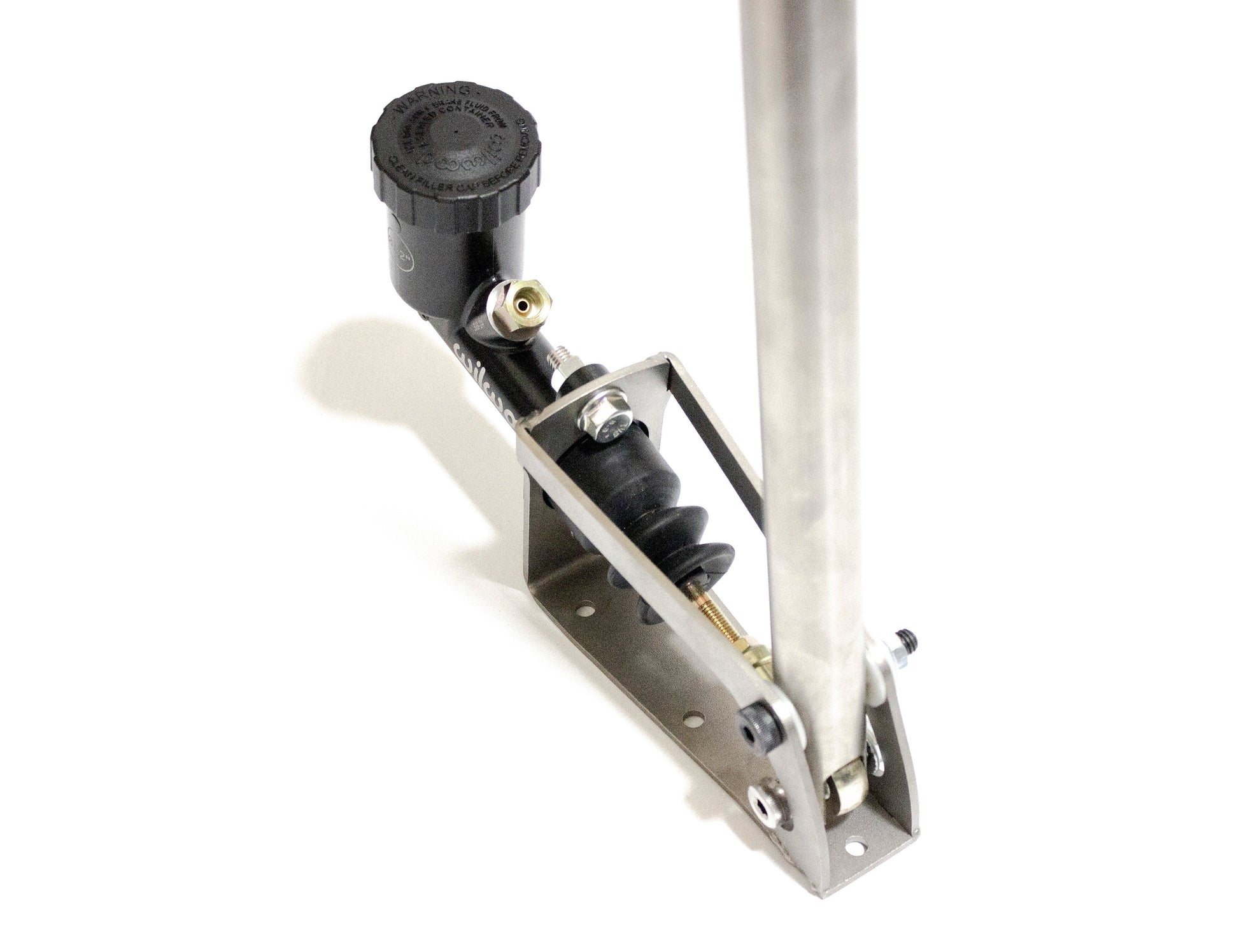

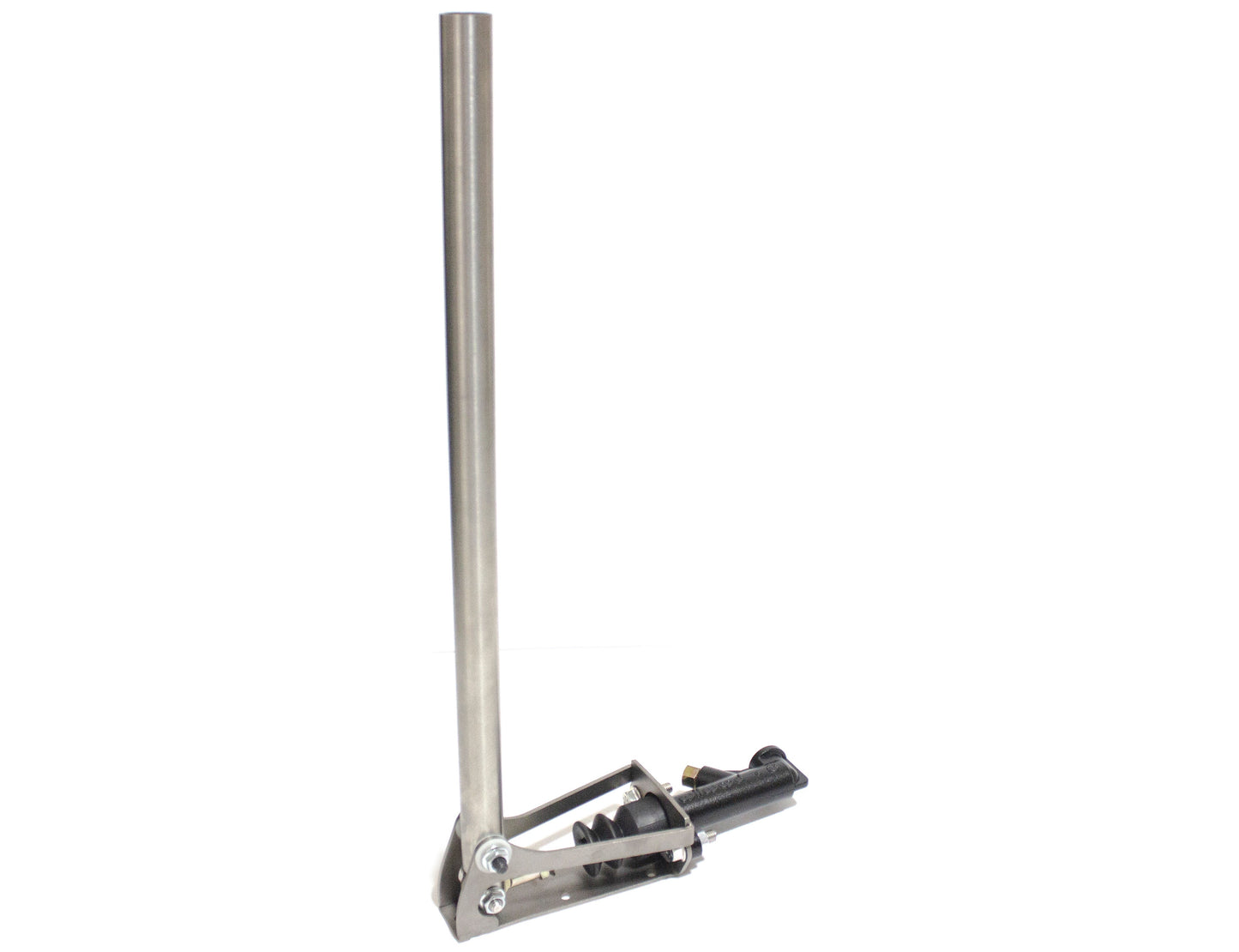

Front Mount master cylinder- Vertically can be used with a 5/8" or 3/4" Reservoir type or with a 5/8" or 3/4" Inline master cylinder and a Vertical Handle

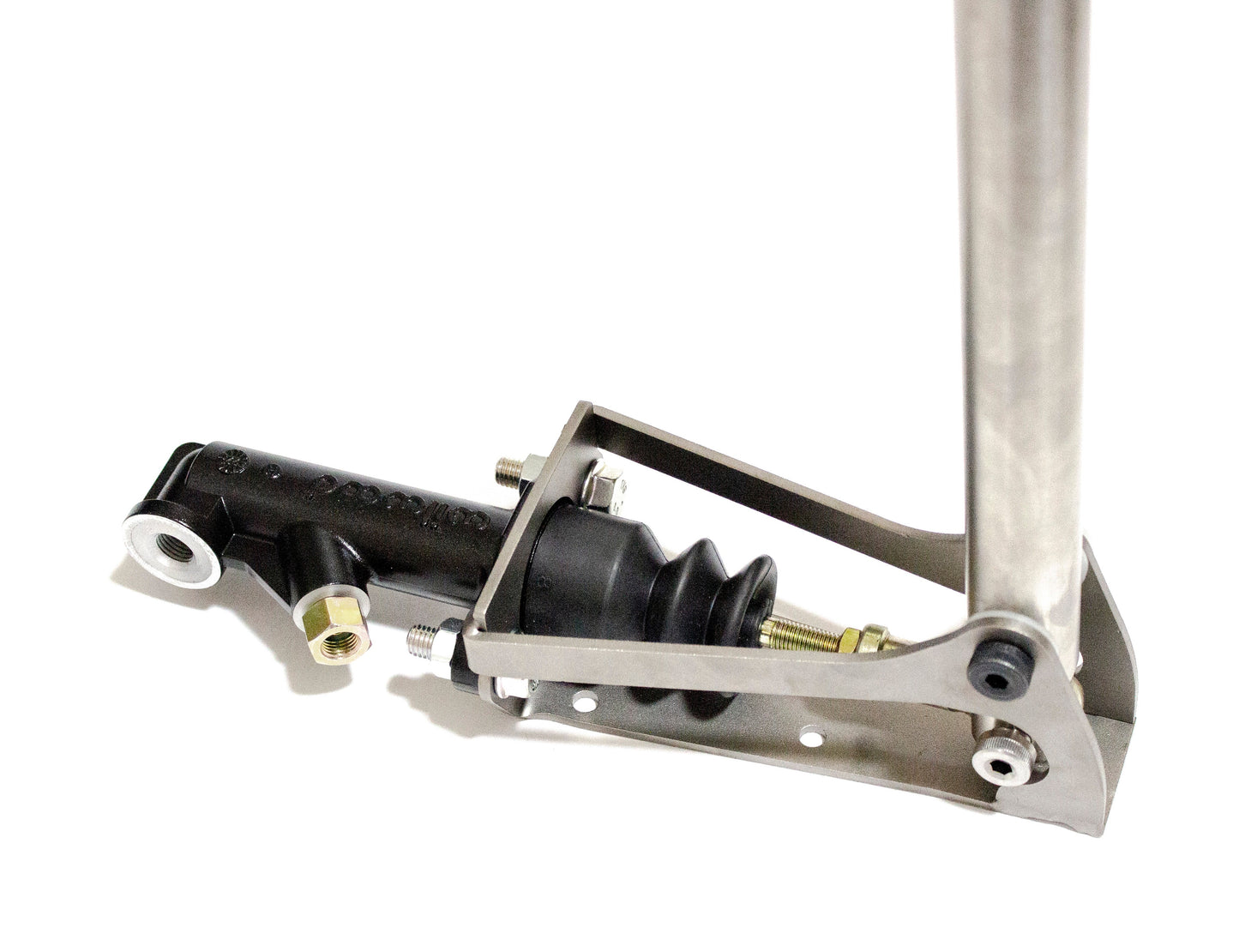

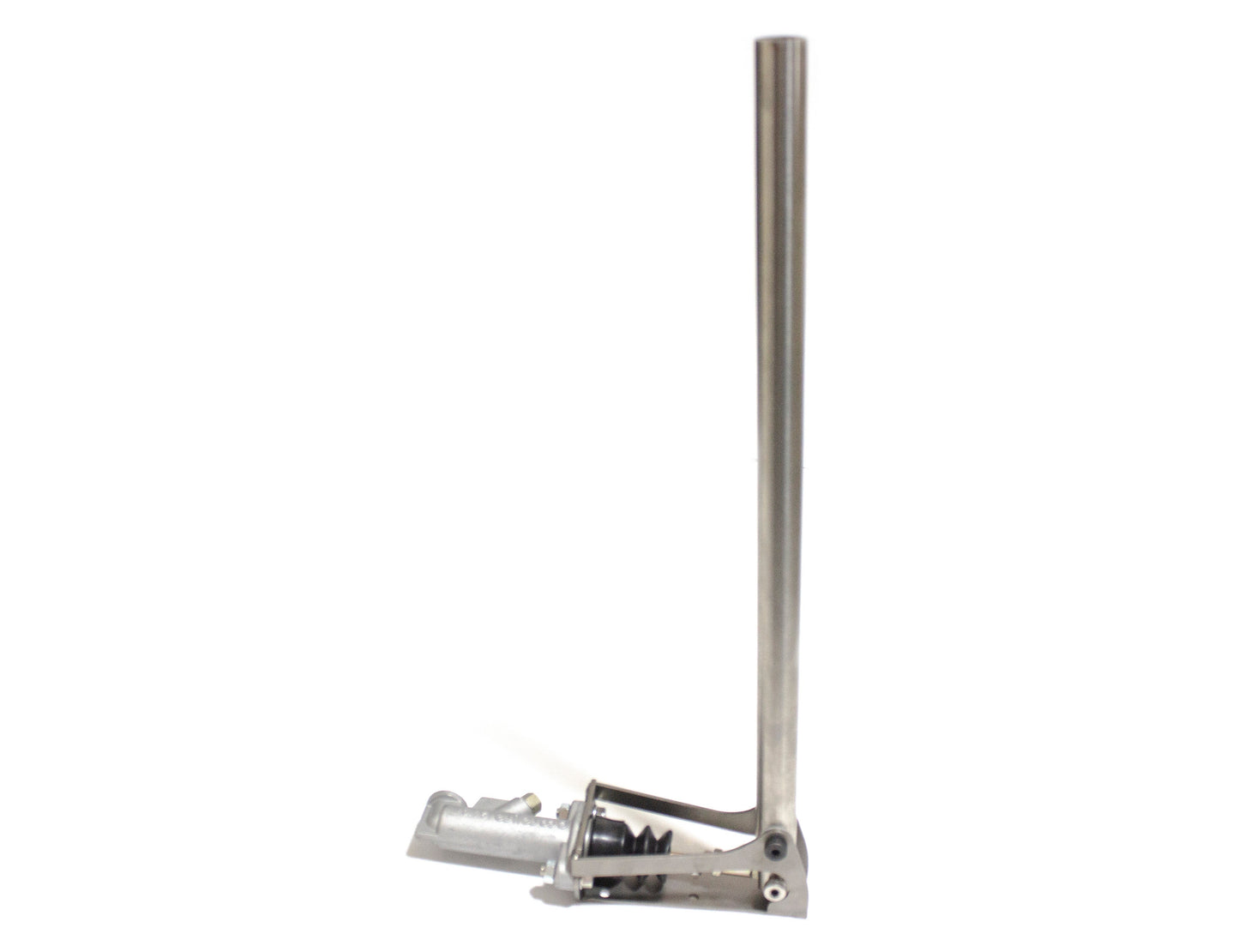

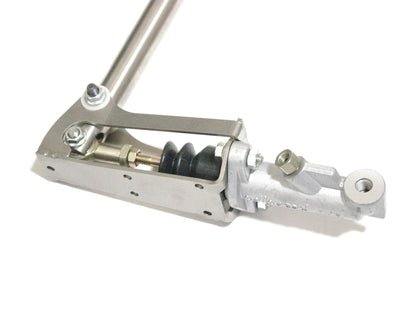

Front Mount master cylinder- Horizontally can only be used with a 3/4" or 5/8" Inline master cylinder and a Vertical Handle

The vertical mounts are typically used for dedicated hydro systems where the master doesn’t have to be tucked in tight spot under the dash. The Vertical placement of the master is easier to bleed and also allows the use of stand alone hydro brakes with a dedicated reservoir as well as inline.

The Horizontal Mounts typically used for inline hydro systems where the master is going to be tucked under a dash or center console. The horizontal placement of the master lowers the profile significantly but does require extra attention to bleed the system over a vertical master.

Black Handle covers and installation parts also available in Hydro accessories.

The Stainless Steel mount base and handle weigh less then 2 lbs., with the master cylinder it's approximately 3 lbs.
