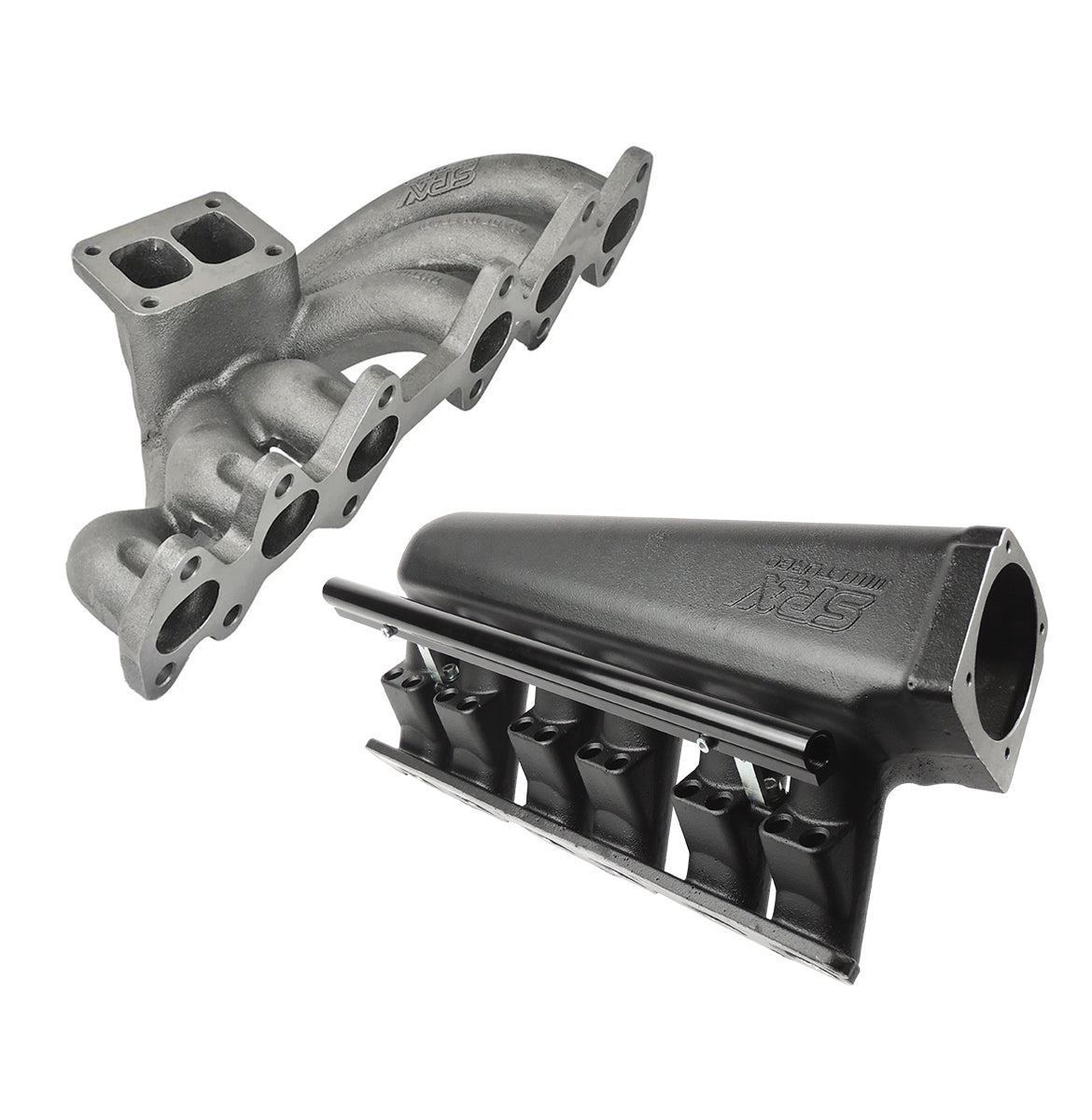

For 2JZ-GTE TOP MOUNT TWIN SCROLL TURBO MANIFOLD + INTAKE‚ MANIFOLD

TOP MOUNT TWIN SCROLL CAST TURBO MANIFOLD V-BAND WASTEGATE

SPA Performance brings another great news for 2JZ lovers! The new turbo manifold for 2JZ-GTE engines, now in the top mount twin scroll version and with V-Band 44/45mm wastegate flange, ensuring maximum flow and boost control for your project.

• Application: Toyota / Lexus 2JZ-GTE
• Turbocharger position: Top mount
• Turbine housing flange: T4
• Wastegate flange: V-Band 44/45mm
• Internal diameter runners: 41mm
• Material: Cast iron
• Turbo Flange Bolt Specs: T2 turbo flange bolt holes: M8x1.25; T3/T4 turbo flange bolt holes: M10x1.5; Wastegate flange bolt holes (if applicable): M8x1.25

93-02 Supra 2JZ GTE intake manifold - 12 Injectors - Black

After the great success of the intake manifold for the 2JZ GE engine, SPA Performance brings lovers of the Toyota Supra A80 and its turbo engine version (2JZ GTE) the new high-flow cast aluminum intake manifold.

• Application: 93-02 Supra 2JZ GTE (A80)
• Number of injectors: 12
• Fuel rail: Anodized billet aluminum (black) for 14mm injector o-rings (3 injector lenght adjustable)
• Fuel rail inlet/outlet: -8AN
• Injectors compatible: Bosch style, 14mm o-ring, compact / standard / long
• Throttle body bolt hole pattern:‚ 105mm (1986-1993‚ Mustang 5.0 throttle body)
• TBI mount: front side of vehicle
• Max working capacity: 10bar (145psi)
• Internal volume: 7,7L
• Material: Cast aluminum
