FuelTech USA - PRESSURE SENSOR SHORT BODY

TECHNICAL DESCRIPTION

• Output: 0.5-4.5V
• Supply: 5V

• Thread size: 1/8" NPT

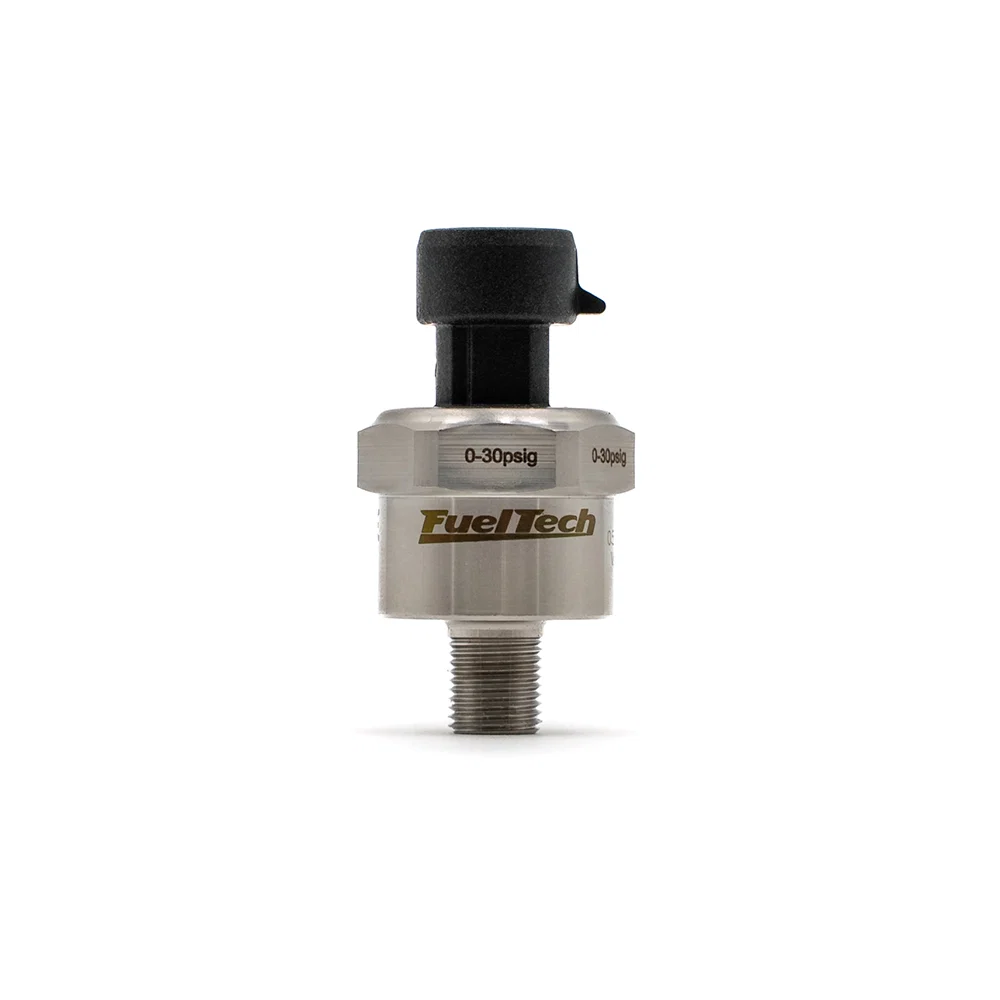

• Height: 45.5 mm (52.8 mm for 0-30 PSI)
• Hex Diameter: 27 mm
• Material: Stainless steel

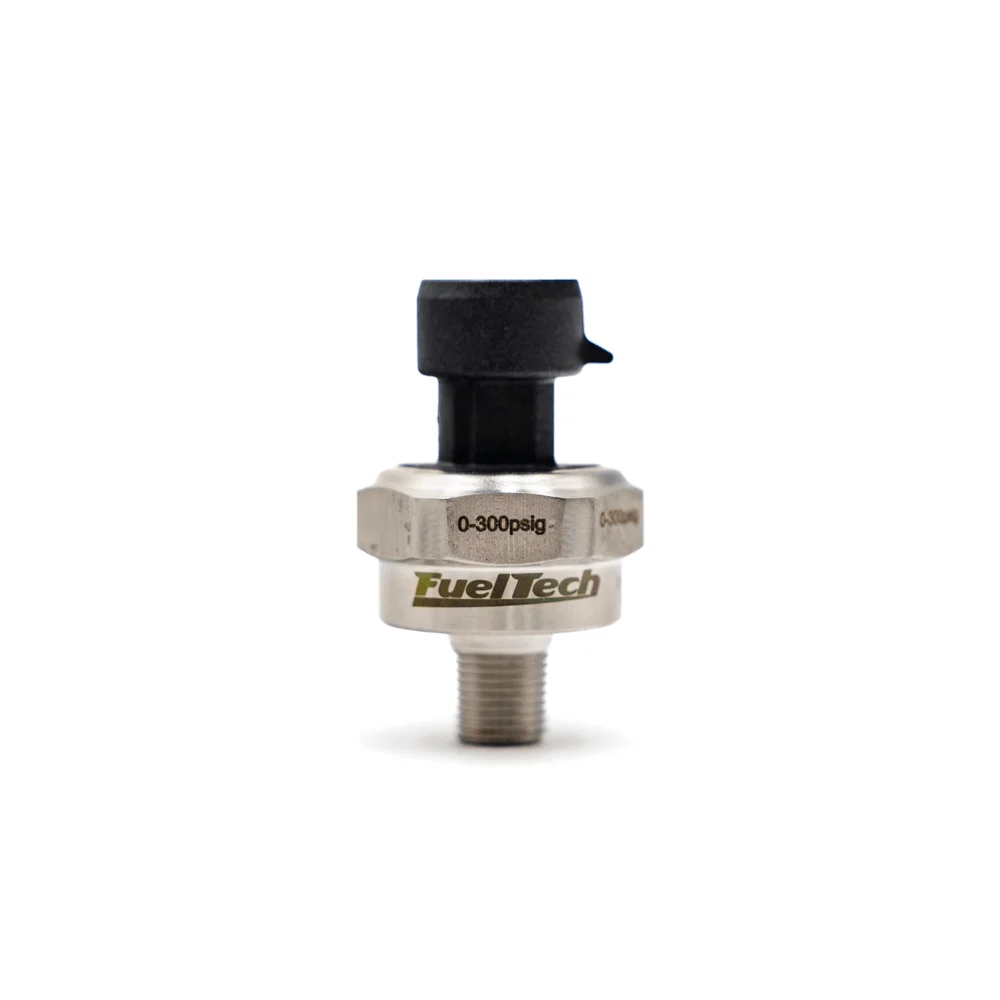

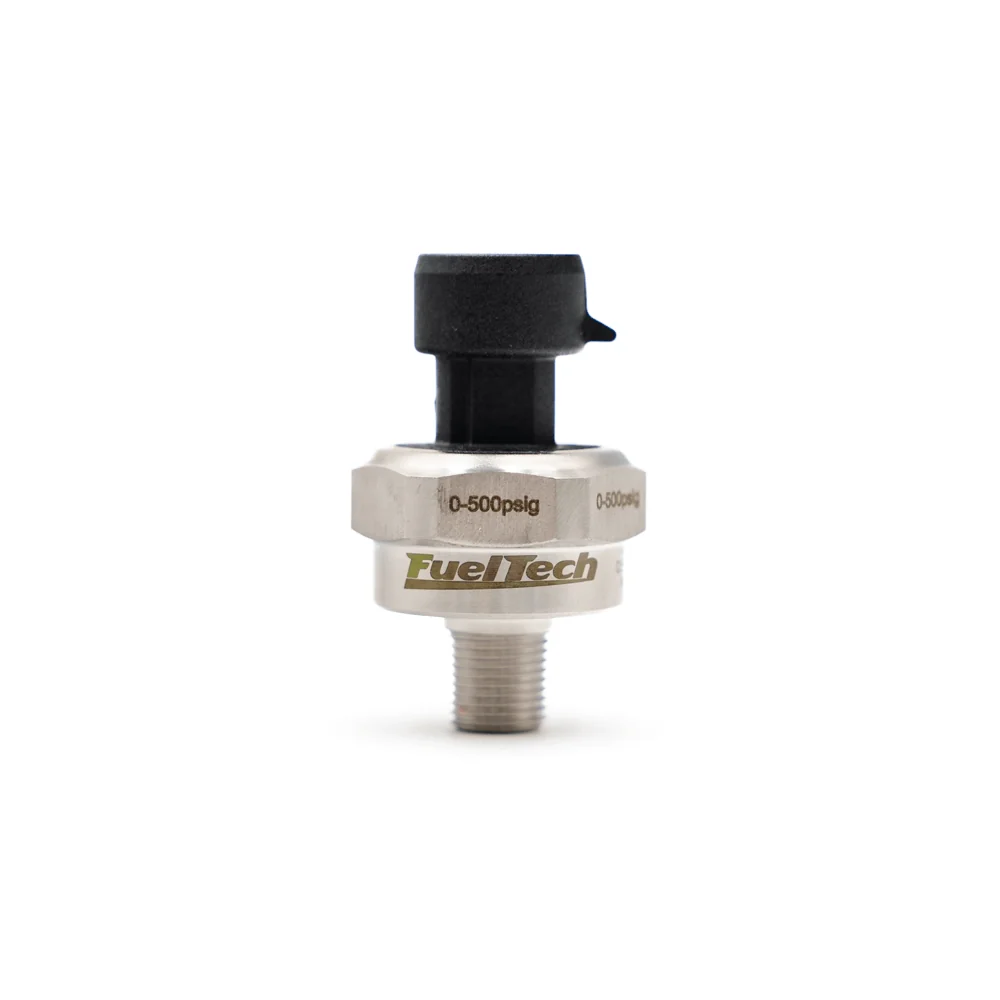

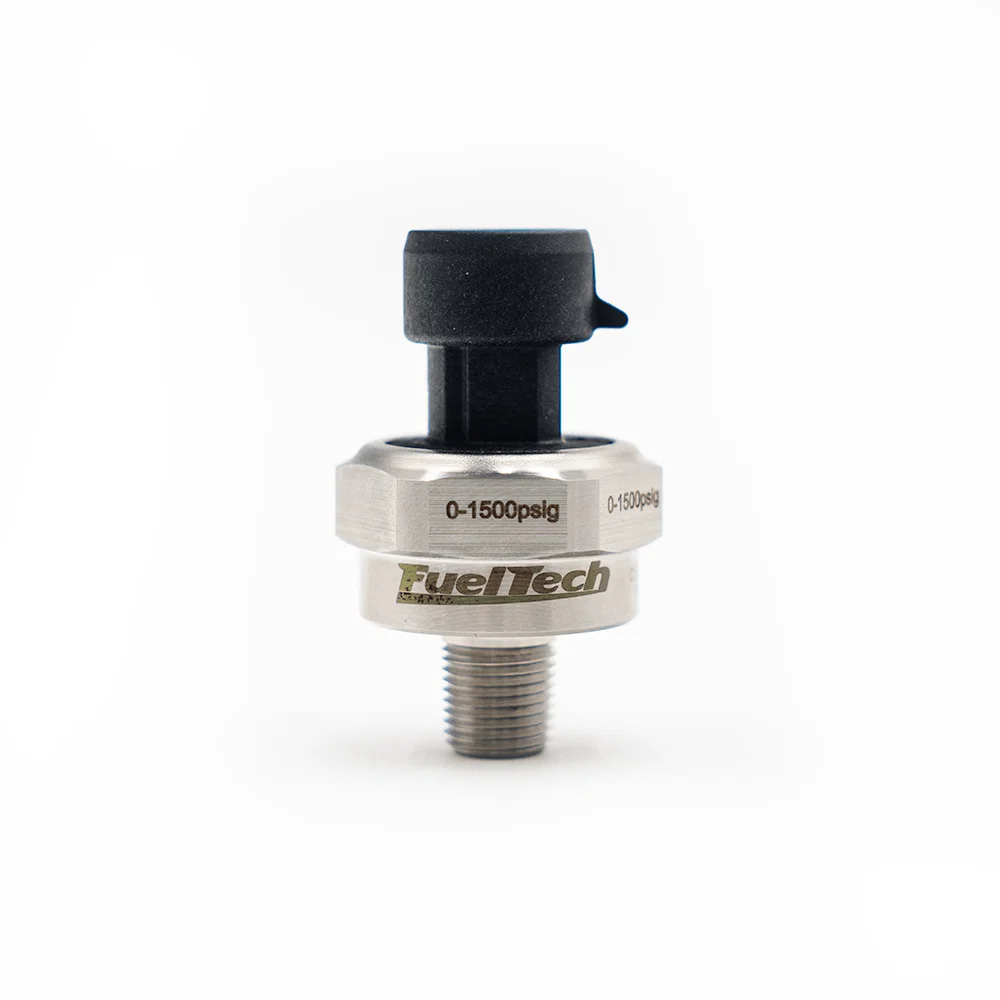

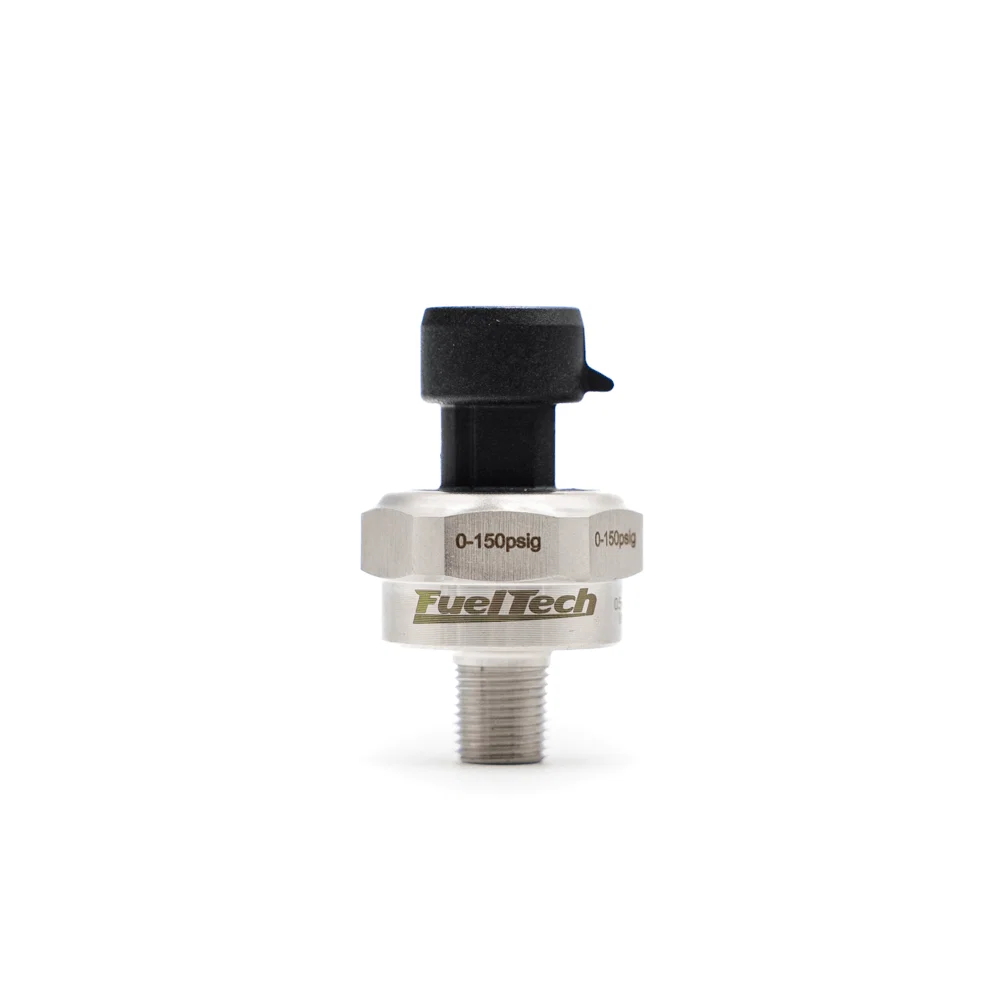

• Ranges: PS30, PS150, PS300, PS500, PS1500

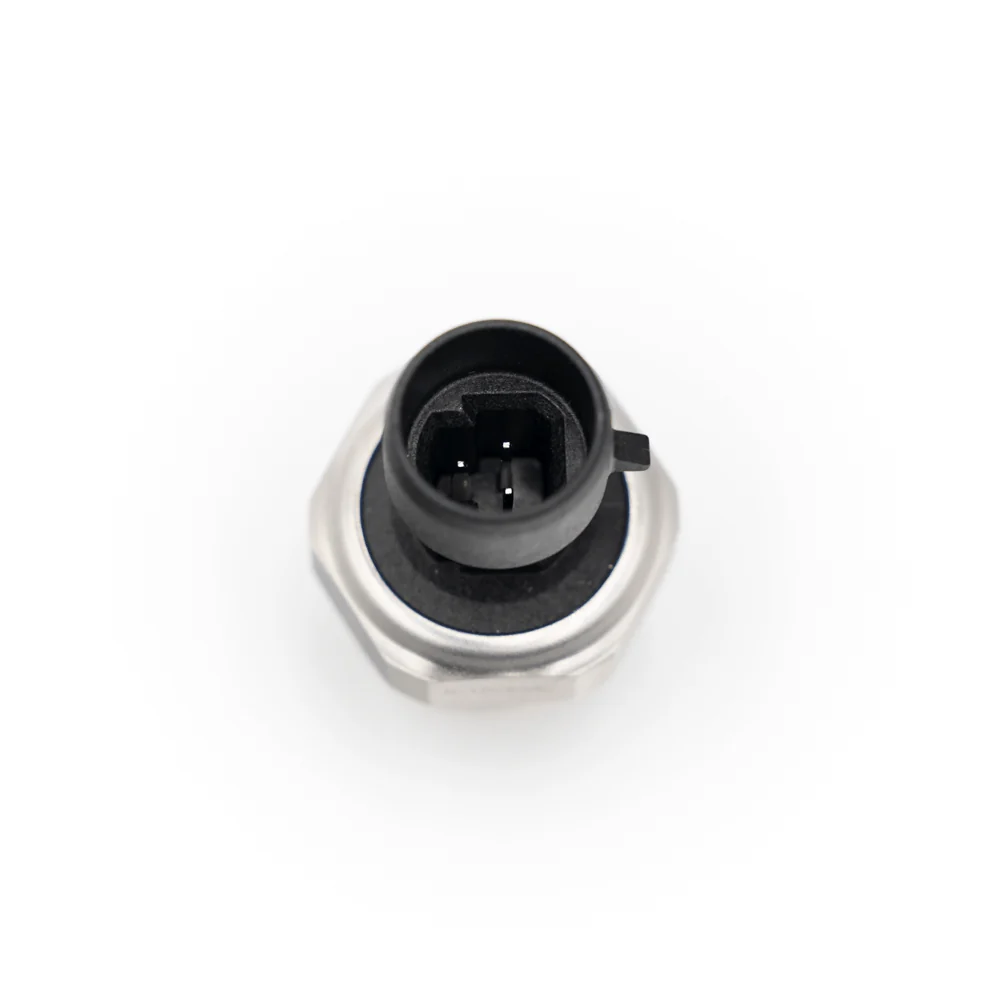

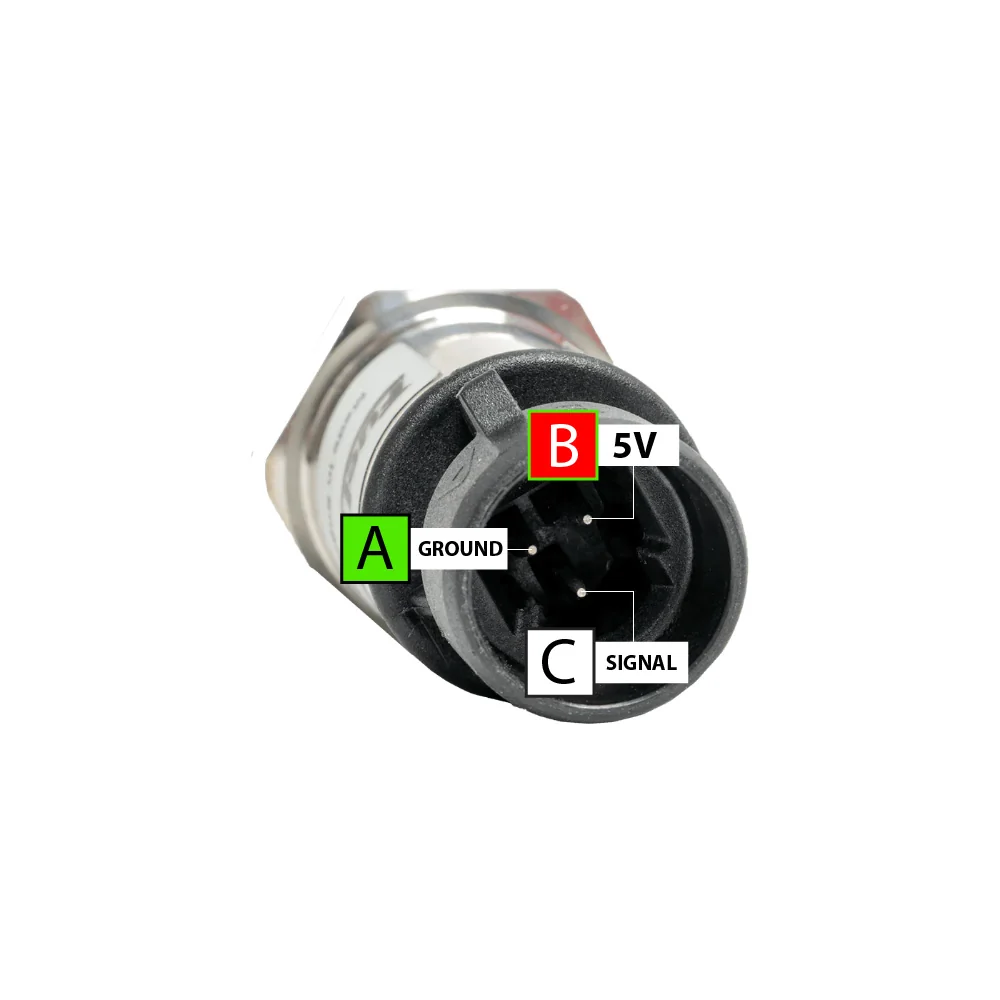

Connector Pinout:

• A - Ground
• B - 5V
• C - Signal

SPECS

Accuracy: ±1.0% span

Stability: ≤±0.25% of span/year

Compensated Temp: -58°F to +257°F (-40°C to +125°C)

Operating Temp: -40°F to +257°F (-40°C to +125°C)

Zero Tolerance: 0.5% of span

Span Tolerance: 0.5% of span

Response Time: < 5ms

Warm-up Time: < 20ms

Fatigue Life: 50M Cycles

Wetted Parts: 17-4 PH Stainless Steel

Enclosure: IP67 (IP65 for electrical code G)

Vibration: Random vibration (20 g) RMS; 20-2000 hz per IEC 60068-64

Shock: 100 gs, 6ms

Approvals: CE, conforms to European Pressure Directive, Fully RoHS compliant, UL recognized files #E219842 & E174228
