Garagistic Competition M14 Wheel Stud Conversion Kit: (A90 Supra)

Description

Wheels studs are an absolute must for any car enthusiast looking for an easier, stronger way to mount their wheels. Whether it's at the track, in the garage, or at the show, wheel studs help with wheel installation by self-aligning the wheel to the hub. These M14x1.25 studs have a tapered bullet nose design which makes lug nut installation a breeze on any wheel.

Have you lost a wheel while spiritedly driving your A90?

If your answer is no, please take our recommendation and invest in some wheel studs and nuts before it's too late, and if the answer is yes, you likely already understand the importance of being able to properly line up and install a wheel every time without failure.

Our M14x1.25 90mm wheel studs are compatible with spacers up to 25mm thick, and our M14x1.25 75mm studs are compatible with spacers up to 10mm thick, allowing for use with a majority of wheel and spacer combinations!

Make sure you have Loctite for the installation of these studs. This is the one we recommend: https://amzn.to/3LhAmol

Important Note: To receive all parts needed for installation, you will NEED to purchase the optional lug nuts. Stock vehicles come with lug bolts.

Technical Specifications

• Bullet Nose Hex Studs - Allowing for a Quick and Pain-Free Wheel Install!
• Rust Proof Black Zinc Coating on Both Studs & Nuts

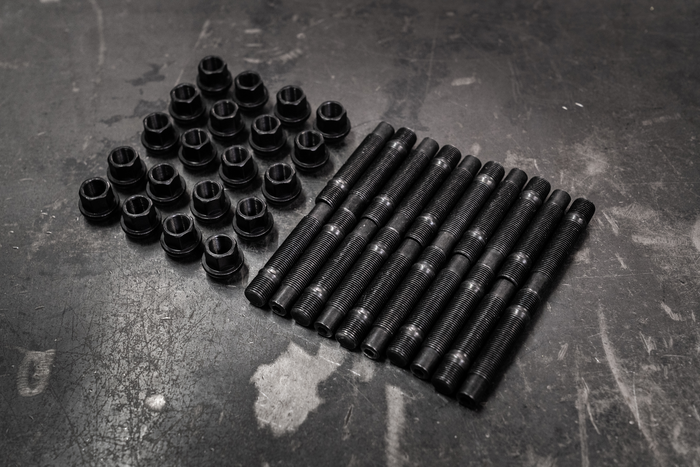

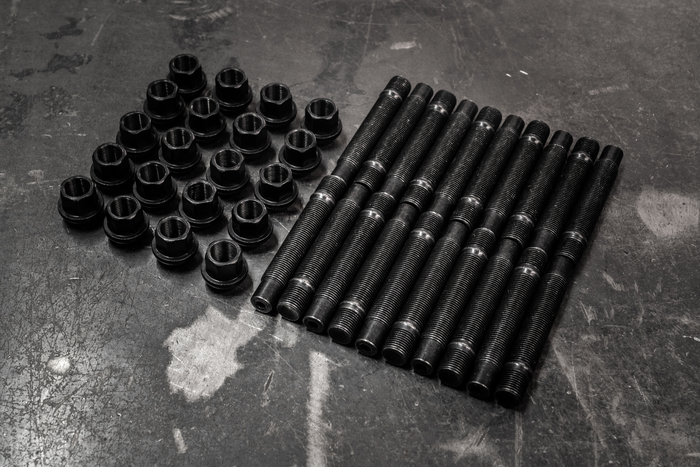

• 20 Studs Per Kit w/ Optional Lug Nuts

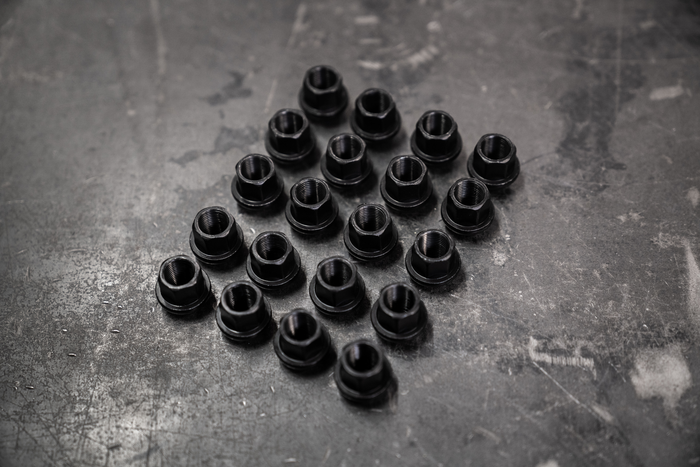

• Optional Lug Nuts: Open-Ended Conical Nuts
• Spacer Compatibility:

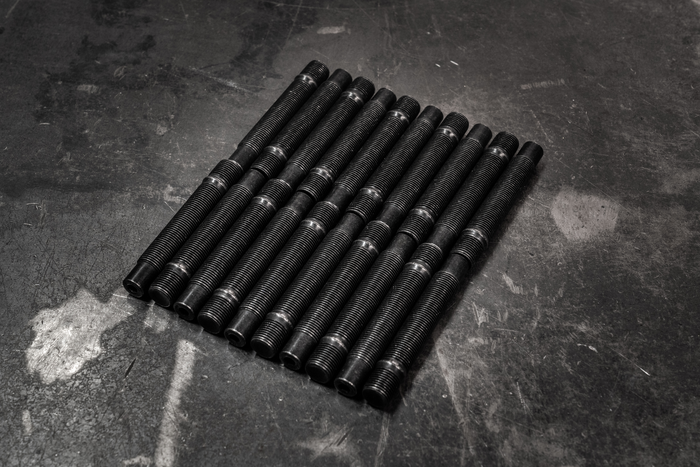

• 90MM stud length allows up to 25mm spacer

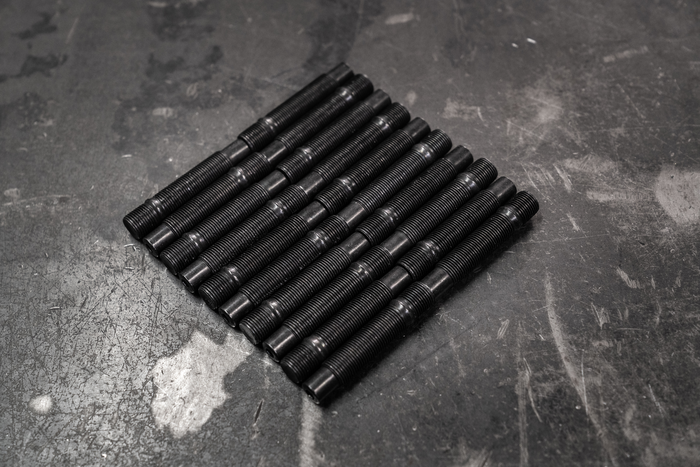

• 75MM stud length allows up to 10mm spacer

Fitment

• All 5-Lug vehicles with 14x1.25mm thread pitch wheel bolts
• Fits: All Toyota A90 Supra
• Fits: All BMW Fxx Models
• (F01, F02, F07, F10, F11, F06, F12, F13, F25, F20, F21, F30, F31, F34, F32, F33, F36. F22, F23, F15, F45, F46, F26, F16, F48, F39, F40, F44)
• Fits: All BMW Gxx Models
• (G01, G02, G05, G11, G12, G14, G15, G16, G20, G21, G22, G23, G24, G29, G30, G31, G32)

Install Notes

• Torque Sequence: 1, 3, 5, 2, 4
• Wheel Stud Torque Spec: 27 to 32 lb-ft.
• Lug Nut Torque Spec: OEM Factory
• Required Engagement: 7 Turns Minimum
