LS to EA200 CD Truck Nissan 6-Speed Complete Adapter Bundle

Complete LS to EA200 CD Truck Transmission Swap Bundle

The LS to EA200 CD Truck Complete Adapter Bundle is a complete conversion solution for mating a Nissan EA200 6-speed manual transmission to a GM LS engine. Designed around the truck-based transmission found in 2005–2019 V6 Nissan Frontier and 2005–2015 V6 Nissan Xterra applications, this bundle combines our precision adapter system with the bellhousing, clutch, flywheel, slave cylinder, and hydraulic components needed for the conversion.

Instead of sourcing critical swap parts individually, this package brings the major components together into one matched solution. The EA200's truck-oriented shifter position makes this combination especially well suited for truck builds, restomods, classic American cars, street vehicles, and custom high-horsepower applications.

Choose Your Clutch Pressure Plate

Every bundle includes our 12-inch custom 6-puck ceramic sprung clutch disc. Choose the pressure plate that best matches your power level and intended use:

• Street Clutch Pressure Plate — Up to 750 WHP: Ideal for high-performance street cars, trucks, restomods, and performance builds requiring strong holding capacity with street-oriented operation.
• HD Race Clutch Pressure Plate — Up to 1,000 WHP: Designed for higher-horsepower and more demanding track, race, and performance applications.

Both options use the included 12-inch 6-puck ceramic sprung clutch disc and F-Body Camaro LS1-to-T56 flywheel configuration.

Engineered for Strength, Fitment & Simplified Installation

• Complete LS to EA200 Conversion Package: Combines our precision adapter system with the major components needed for the swap.
• Precision Drivetrain Alignment: Precision-machined components help maintain proper alignment between the LS engine and EA200 transmission.
• Truck-Friendly Shifter Position: The EA200 shifter location is well suited for many trucks, classic cars, restomods, and custom chassis.
• 12-Inch Performance Clutch: Includes our custom 6-puck ceramic sprung clutch disc with your choice of 750 WHP Street or 1,000 WHP HD Race pressure plate.
• Correct 4L60E Bellhousing Included: Includes the required SBC-style 4L60E bellhousing, GM P/N 24206579.
• F-Body LS1/T56 Components Included: Includes the required flywheel and clutch slave cylinder.
• Complete Hydraulic Setup: Includes the F-Body LS1/T56 slave cylinder, custom spacer, hydraulic feed line, remote bleed line, and fittings.

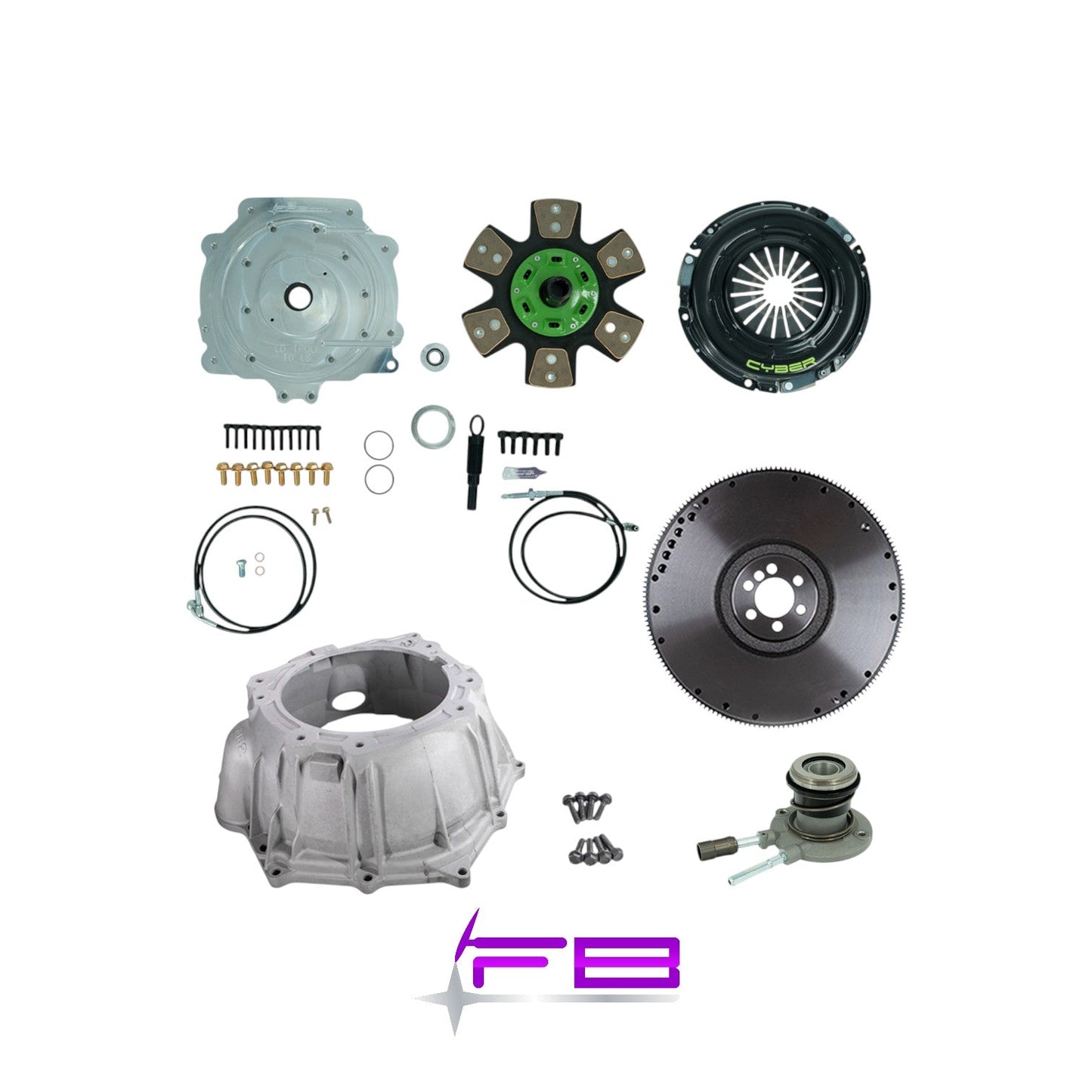

Included Components

• Precision LS to EA200 CD Truck Adapter Plate
• High-Tolerance Pilot Bearing
• Custom Clutch Slave Cylinder Spacer
• Adapter Plate Installation Hardware
• 12-Inch Custom 6-Puck Ceramic Sprung Clutch Disc
• Choice of 750 WHP Street or 1,000 WHP HD Race Clutch Pressure Plate
• F-Body Camaro LS1-to-T56 Flywheel
• Clutch Alignment Tool and Installation Hardware
• F-Body Camaro LS1-to-T56 Clutch Slave Cylinder
• Clutch Hydraulic Feed & Remote Bleed Lines with Fittings
• 4L60E SBC Bellhousing — GM P/N 24206579

Transmission Compatibility

Designed specifically for the Nissan EA200 CD Truck 6-speed manual transmission commonly found in:

• 2005–2019 Nissan Frontier V6
• 2005–2015 Nissan Xterra V6

The EA200 belongs to Nissan’s CD transmission family but uses a different configuration than the car-based CD009, JK, and 1EA transmissions.

Important: Verify that your transmission is an EA200 before ordering rather than relying solely on vehicle year, make, and model.

CD009 / JK / 1EA Transmissions

This bundle is not designed for CD009, JK, or 1EA 6-speed transmissions commonly associated with Nissan 350Z, 370Z and Infiniti G35/G37 applications. Those transmissions require our dedicated LS to CD009 / JK / 1EA Adapter Kit or Complete Adapter Bundle.

Engine Compatibility

• Gen III GM LS-Series Engines
• Gen IV GM LS-Series Engines

Complete EA200 Adapter & Clutch Package

The LS to EA200 CD Truck Nissan 6-Speed Complete Adapter Bundle provides a straightforward way to pair a GM LS engine with the Frontier/Xterra EA200 transmission without sourcing the major conversion components separately.

The bundle includes the GM 4L60E SBC bellhousing (P/N 24206579), F-Body LS1/T56 flywheel and slave cylinder, 12-inch custom 6-puck ceramic sprung clutch disc, your choice of Street or HD Race pressure plate, hydraulic components, transmission adapter hardware, and installation components.

If you already have the required bellhousing, flywheel, slave cylinder, and pressure plate, choose our standard LS to EA200 CD Truck Transmission Adapter Kit. For a more complete matched conversion package, choose the Complete Adapter Bundle.
